Wisycom MTP61 miniature bodypack transmitter - UK1The smallest and lightest multiband bodypack transmitter on the market, the MTP61 has the widest tuning range currently available (470 to 1260MHz). Among the industry’s most powerful transmitters, the compact design of the MTP61 not only makes it comfortable, but also ideal for location sound and theater applications alike.
It is equipped with a Bluetooth module which allows to adjust parameters in real time via mobile device apps.
It offers embedded recorder to record directly on the internal 64 GB micro SD card and an integrated Linear Time Code decoding. Features of the Wisycom MTP61:- The multi-band MTP61 currently has the widest tuning range of any wireless transmitter on the market (470 to 1260 MHz)
- Monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
- The Bluetooth interface and mobile app allows full control from mobile or tablet
- Advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate multiple transmitters in close proximity to each other without needing an intermod frequency plan
- Embedded recorder to record directly on the internal 64 GB micro SD card and integrated Linear Time Code decoding
- DSP based signal processing allows easy switching between wide and narrow band operation
- ENS compander for a totally clear sound
- Powering with Lithium-ion battery LBP61
- Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
- Front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
Specifications of the Wisycom MTP61- Frequency range: from 470 to 1260 Mhz
- Switchable channels: 2400 managed in 40 groups ofr 60 frequencies completely user programmable
- Switching-window: Up to 362 MHz, depending on band (see Configurations)
- Frequencies: Quartz PLL frequency synthesizer circuit (5 kHz step)
- Frequency error: ±2.5 ppm, in the rated temperature range
- RF Power: 10mW/ L10 W/ 20 mW/ L20 mW/ 50 mW/ 100 mW (on specific configurations)
- Antenna connector: SSMA
- Modulation: Wideband and Narrow-band with DSP based digital signal processing
- Nominal deviation: ±40 kHz Wideband / ±25 kHz Narrowband
- Peak deviation: ±56 kHz Wideband / ±35 kHz Narrowband
- Spurious emissions: < 2 nW
- Telemetry feature: TX transmits also a digitally modulated sub-carrier, suitable for:
- tone-squelch operating - remote battery monitoring, compander and modulation control - optional PTT (push to talk) operation - Noise Reduction system: ENS - Wisycom ultra-high performance compander
- AF bandwidth: Audio frequency response (dBa)
- in NarrowBand mode (NB): 45 Hz ÷ 17 KHz (3dB) - in WideBand mode (WB): 45 Hz ÷ 20 KHz (3dB) - Distortion: < 0.3 % (0.15 % typ.)
- SND/D ratio (Analogue): typ. 115 dB (A)rms with 40 kHz deviation; typ. 121 dB (A)rms with 56 kHz deviation Wideband
typ. 115 dB (A)rms with 25 kHz deviation; typ. 121 dB (A)rms with 35 kHz deviation Narrowband - Audio input connector: LEMO 3pin
- Audio input level: from -40 dBu (12mV RMS) to 6 dBu (1,55Vrms) adjustable in 1 dB steps input dynamic extension with an integrated limiter
- Max input level: +6 dBu (1,55Vrms) at clipping
- Storage media: internal 64 GB micro SD memory card (industrial grade heavy duty)
- Time code: Linear Timecode decoding
- Bit rate: 24 bit / 32 bit
- Sampling rate: 48 kHz

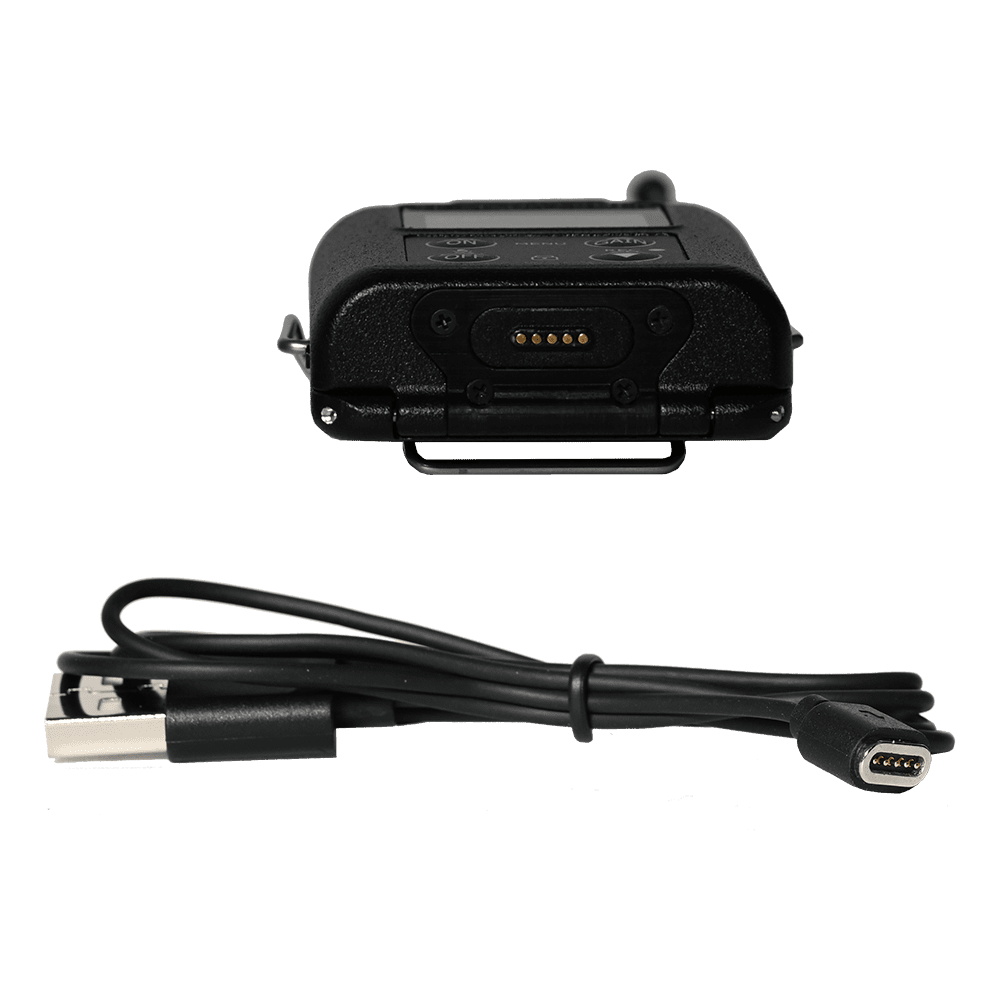

- Managing interface: Bluetooth 5.2 low energy long range, proprietary waterproof magnetic connector 5 pin (USB HS + power + LTC)
- LED: 3 RGB LEDs (red, green and blue) for audio, RF, battery status and battery charger
- Battery level indication: percentage or minute/second
- PTT function: Pin 3 of AF connector can be controlled via an externall PTT button
- Display: High contrast OLED white display (128 x 64 pixels)
- Power supply: Cameron Sino Lithium-ion battery Model CS-BCE10 Part No. CGA-S008E (3.7V, 1050 mAh)
- Battery life: approx. 8 hours @ 10mW
- Temperature range: -10 ÷ +55 °C
- Dimensions: 66.8mm x 47mm x 17mm (HxWxD) without clip
- Weight: Approx. 72 g. without battery; 94 g. with battery
|
