DPA d:screet™ Core 4060 omni lavalier

Product Code: GENDPA4060

Barcode: 5713055011543

Brand: DPA Microphones

Product Features

  • DPA 4060 high sensitivity lavalier microphone
  • Clean natural sound and low noise from the CORE preamp
  • Easy to hide with Bubblebee Concealer
  • Soft HF boost grid included
  • If you need something even smaller take a look at the 6060 below

Colour

£369.00 Inc VAT £307.50 Exc VAT
Select Option
Normally 1-2 days
Product Description

DPA d:screet™ Core 4060 Lavalier Microphone

The DPA d:screet™ 4060 Core Omni lav Microphone has high sensitivity and the very clean and natural sound you expect from this Danish manufacturer. Ideal for use in TV drama and feature film dialogue recording it is easy to mount and hide under the actor's costume.

(But for the ultimate in miniature lav microphones take a look at the 6060 in the related products below)

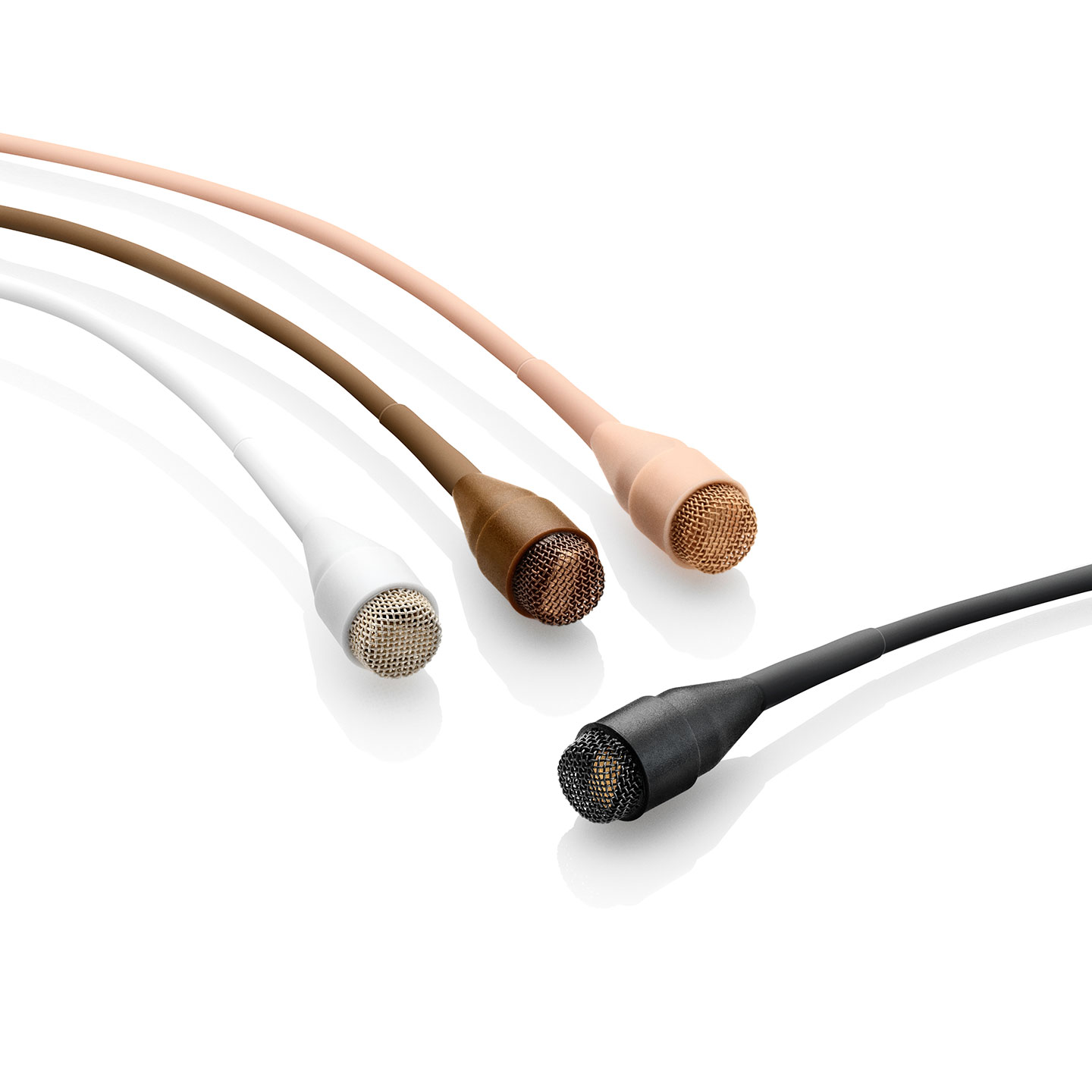

Available in black, white, beige or brown, all DPA miniature microphones are fitted with a microdot connector and there is a range of adaptors to connect them to your favourite wireless transmitter. But if you prefer a hard wired connector we can do that for you.

All the DPA lav mics featured here have the new CORE preamps which increase the dynamic range of d:screet™ Miniature and d:fine™ Headset Microphones by up to 14dB depending on the type of capsule.

Your mics lead a hard life on set, often in quite unpleasant conditions so here's a useful article from DPA about looking after your investments:-

How to wash a DPA lavalier microphone



Specifications

  • Cartridge type Pre-polarized condenser
  • Frequency range 20 Hz - 20 kHz
  • With soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz
  • With high boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
  • Sensitivity, nominal ±3 dB at 1 kHz 20 mV/Pa  -34 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)
  • Equivalent noise level, ITU-R BS.468-4 Typ. 35 dB (max. 38 dB)
  • Total harmonic distortion (THD) 1% up to 137 dB SPL peak
  • Dynamic range Typ. 106 dB
  • Max. SPL, peak before clipping 134 dB
  • Output impedance 30 - 40R
  • Cable drive capability Up to 300 m (984 ft)
  • Power supply (for full performance) For wireless systems: Min. 5V - max. 50V through DPA adaptor
  • Cabled with DAD6001-BC/DAD6024/DAD4099 48 V phantom power ±4 V
  • Connector MicroDot
  • Weight 7.5 g (0.26 oz) incl. Cable and MicroDot
  • Microphone diameter 5.4 mm (0.21 in) Microphone length 12.7 mm (0.5 in)
  • Cable length 1.8 m (5.9 ft)
  • Polarity Positively increasing sound pressure produces positive going output Voltage
  • Temperature range-40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH) Up to 90%
