Audioroot vmDBOX-HRS-CC power distribution unit

Audioroot vmDBOX-HRS-CC Power distributor

One only at this price to clear

The Audioroot vmDBOX-HRS-cc is a space-saving, intelligent DC power distribution box designed for ENG sound bags and portable setups. With six DC outputs, rugged Hirose locking connectors, and a high-contrast OLED display for real-time power metrics, this device offers unmatched control and reliability — all in a 119g ultra-compact form.

Smart Energy Monitoring

At the heart of the vmDBOX-HRS-cc lies an integrated coulomb counter — a critical tool when working with standard, non-SMBus batteries. Unlike "smart" batteries with built-in communication protocols, standard batteries offer no way to track energy consumption. The vmDBOX-HRS-cc fills this gap by precisely measuring current, voltage, and time to calculate:

This enables users to estimate remaining battery capacity, avoid unexpected shutdowns, and optimize power usage, even with basic lithium or NiMH battery packs — a vital advantage for demanding field work.

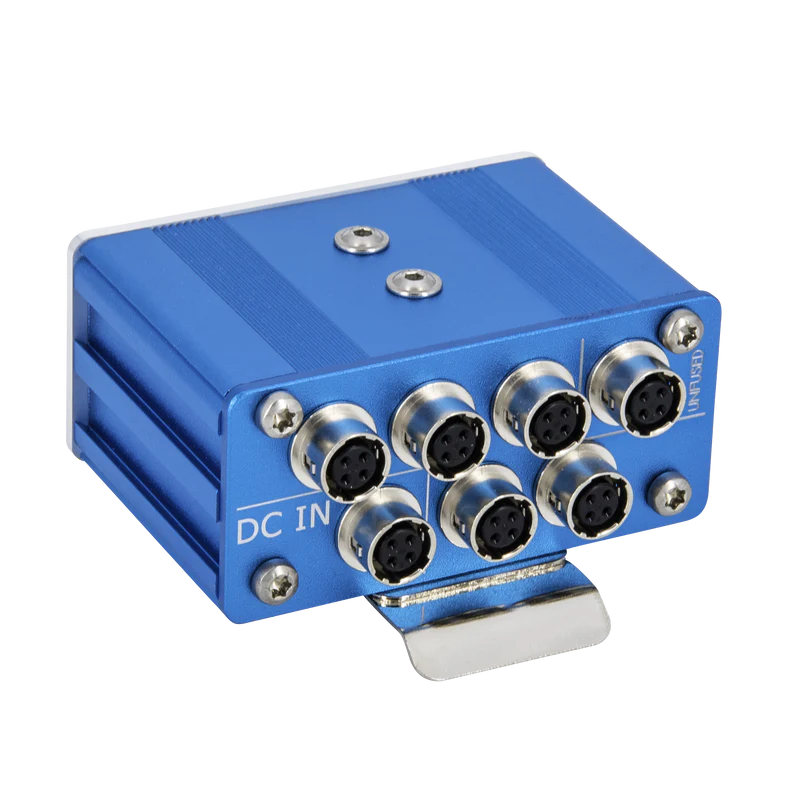

All cables enter and exit from the bottom of the box yielding a much smaller footprint in your bag. The vmDBOX-HRS has a DC input connector and 6 outputs all on rugged Hirose locking connectors.

Key Features

• 6 DC outputs. Locking Hirose 4p connectors
• 5 with resettable 2.5A fuses, 1 unfused

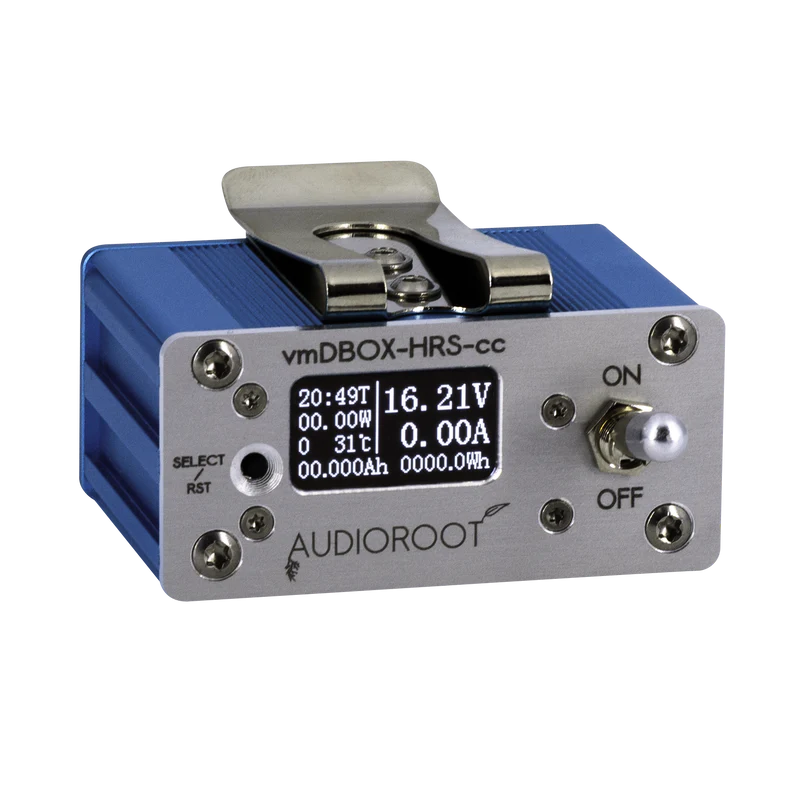

• Multifunction OLED display
• Wide 5 - 24 Volt input range
