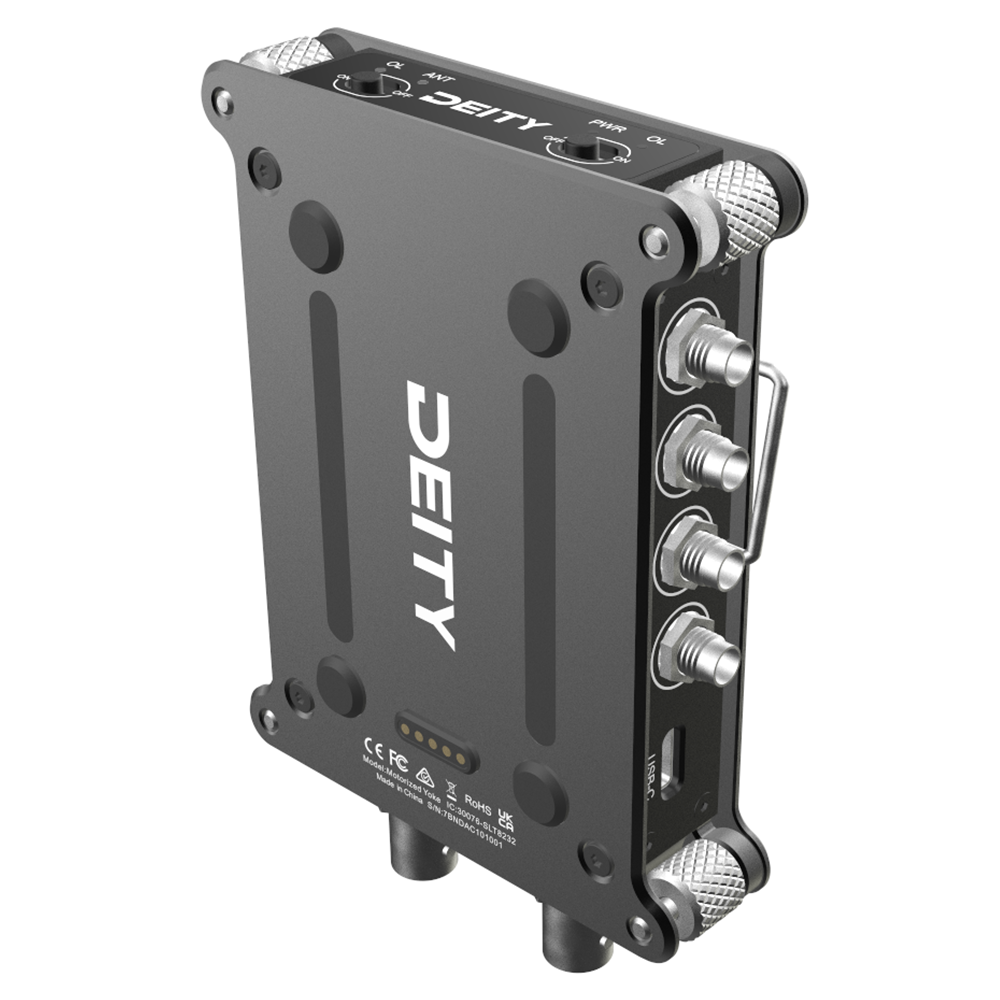

• Angled black RF signal distributor with multiple BNC connectors and mount points
  • Black DEITY RF signal distributor with BNC connectors and DC input on back

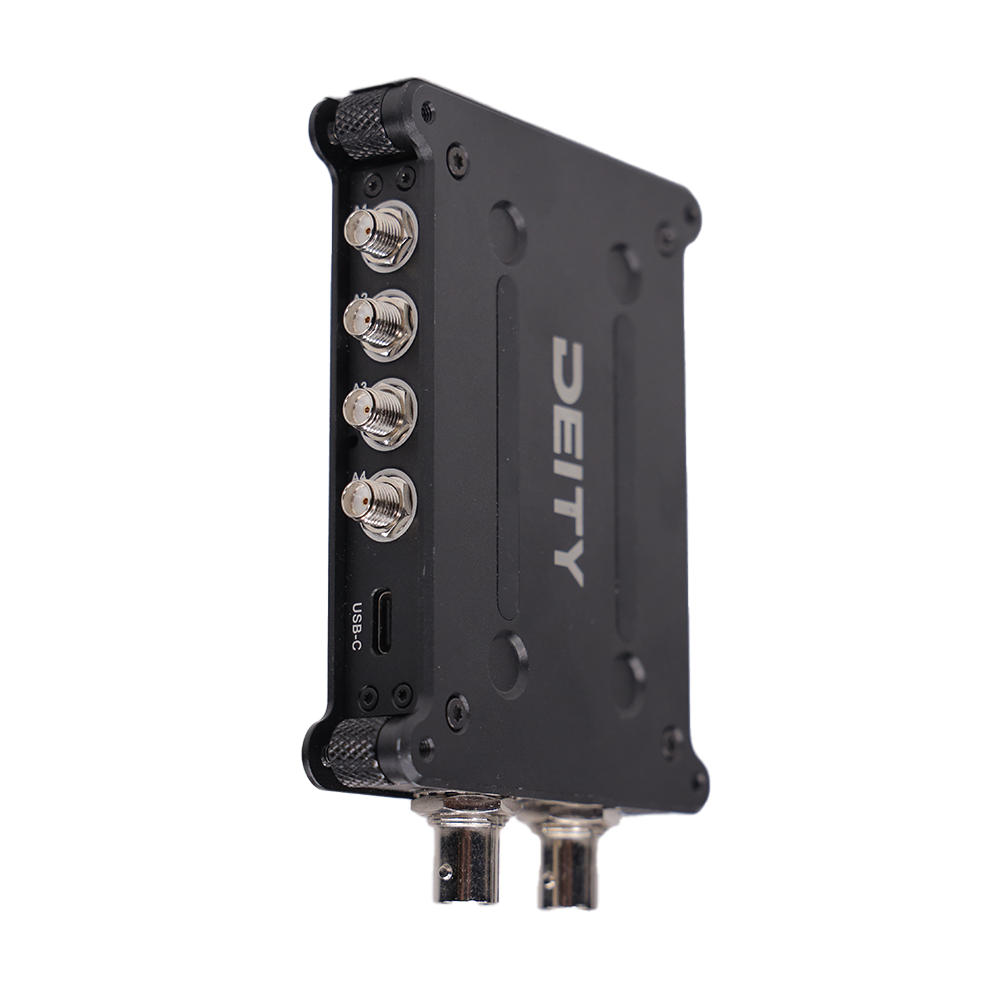

  • Black RF signal distributor with USB-C port and BNC connectors on side
  • Black RF signal distributor with OL/ANT switch and PWR control knobs
  • RF signal distributor control panel with knobs, switches, and status display

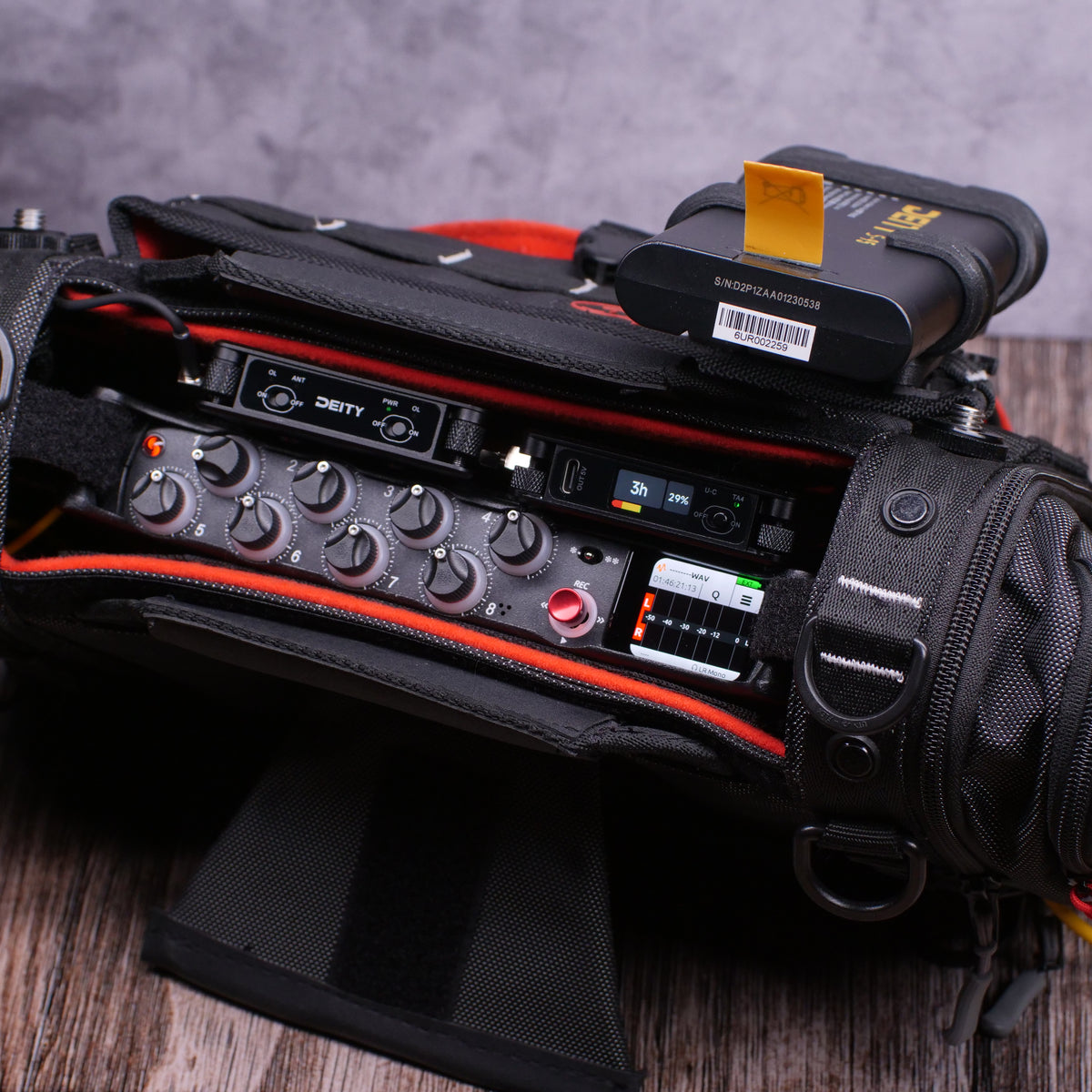

  • Black RF distributor module with knobs, display, and cable inputs on padded case

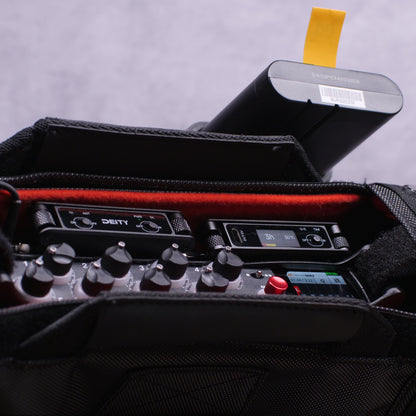

  • Black RF distributor module with control knobs and small screen inside carry case

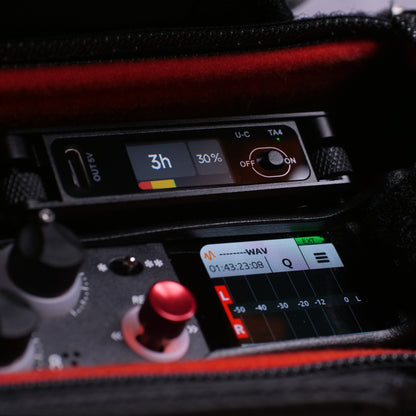

  • RF distributor display with 3h timer, percent readout, and control dial
  • RF distributor front panel with DEITY controls, ON/OFF switches, and numbered knobs
  • RF distributor module with control knobs, small display, and red button in case

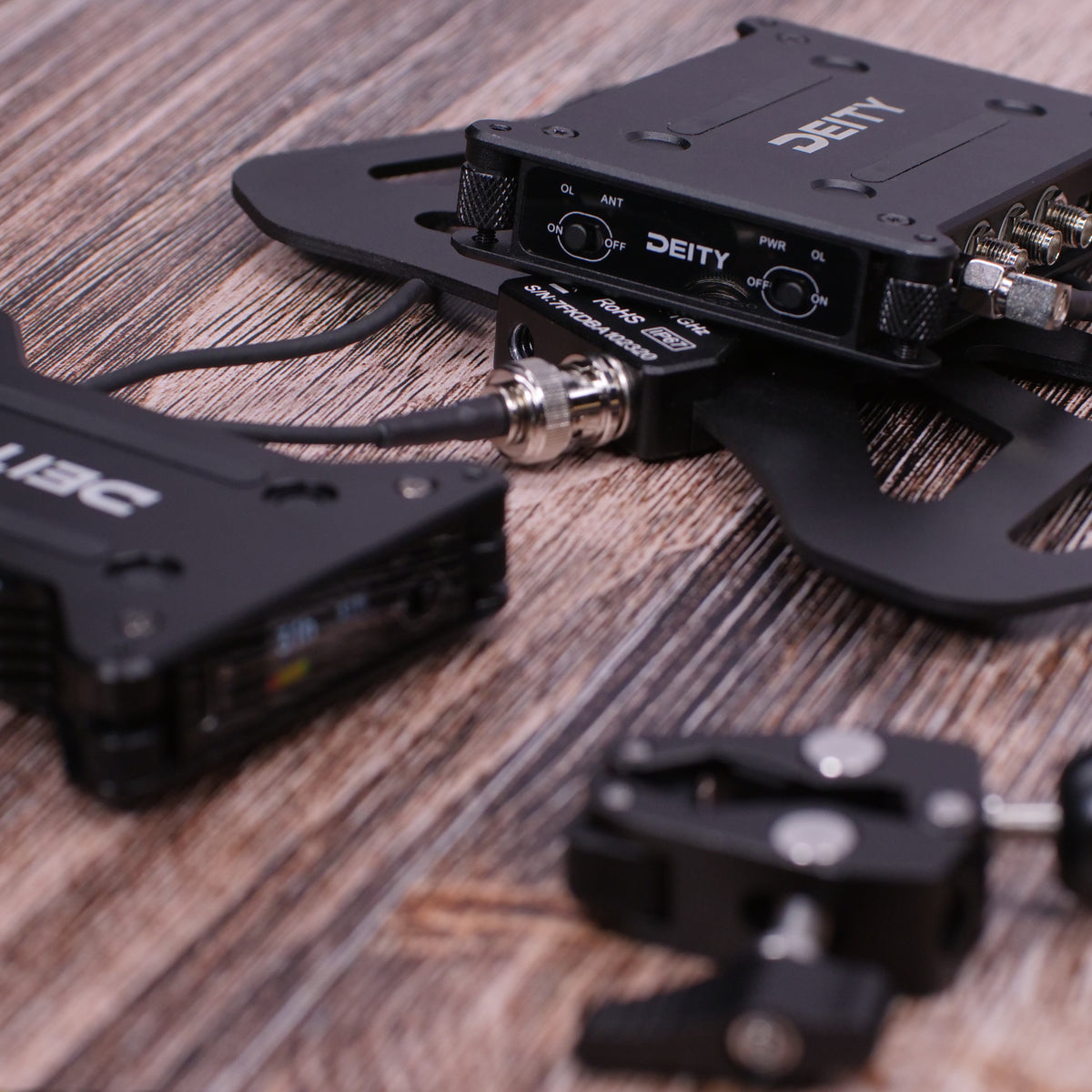

  • Black RF distributor units with connector ports and cables on wood tabletop

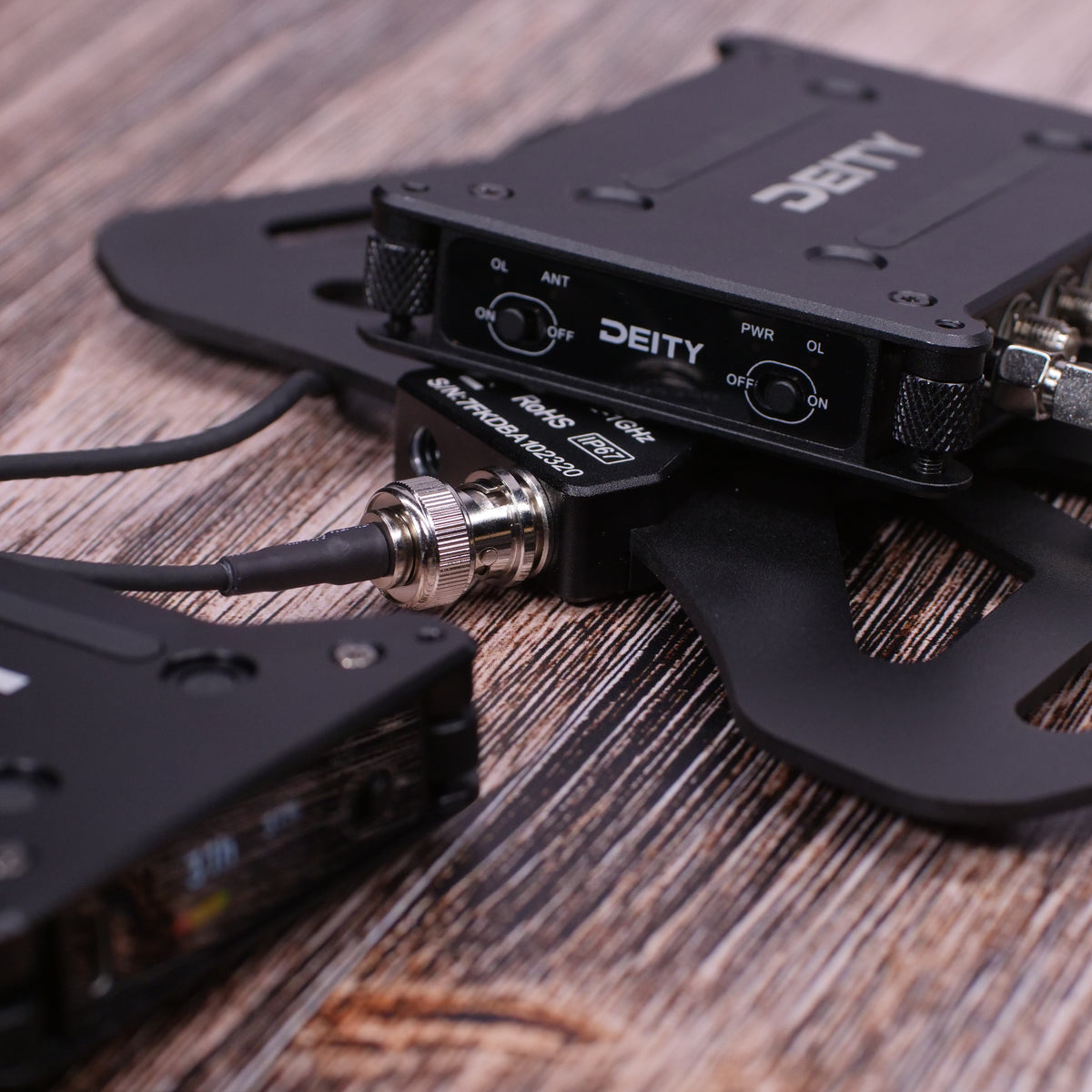

  • Black RF distributor unit on wood with ports and connected cables

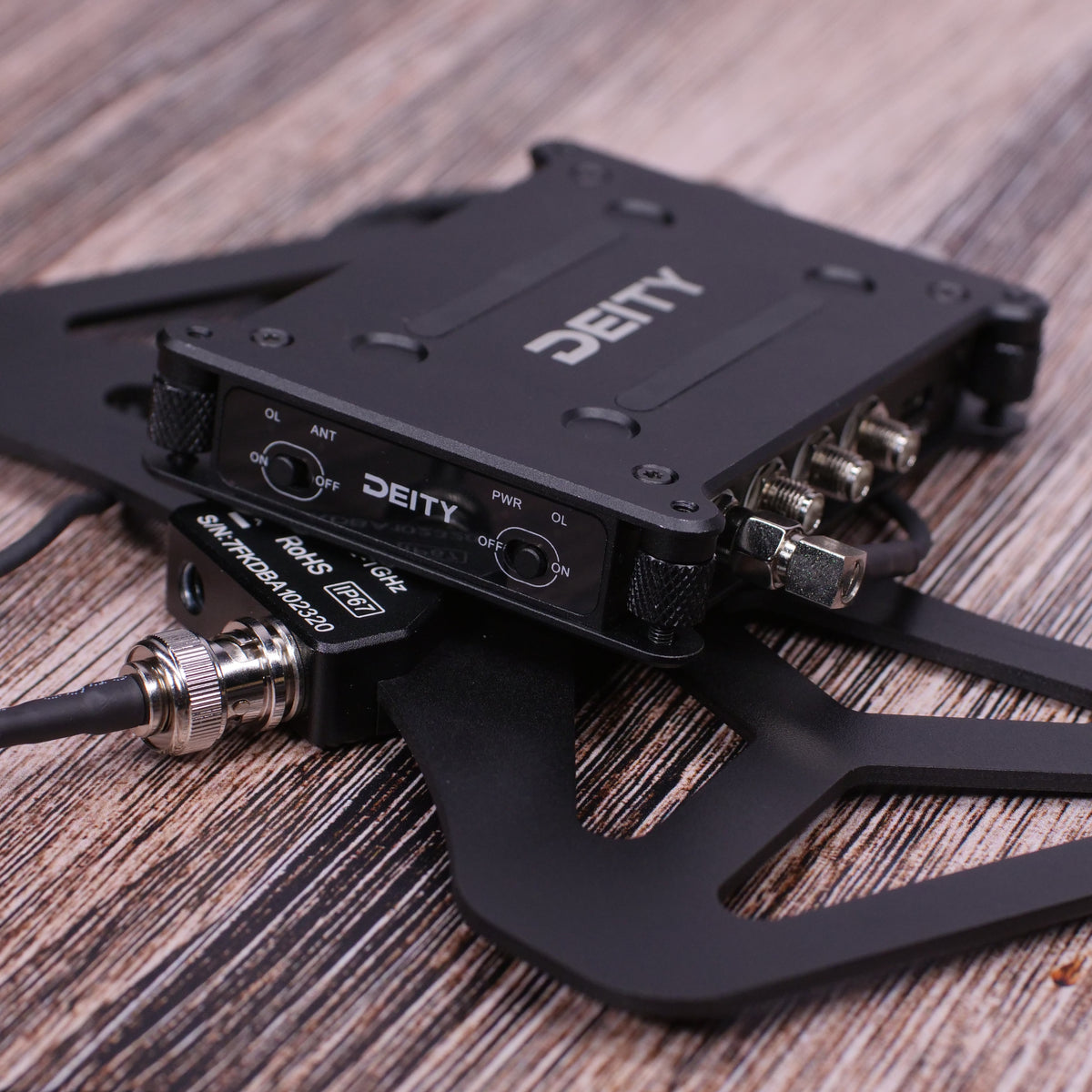

  • Black RF distributor unit with antenna and power ports on wood surface
  • Back of black RF distributor unit with multiple connector ports on wood
  • Stacked black RF distributor modules with PWR and 31h display on wood

Deity

SRD-Mini RF Distributor

• Compact active RF splitter/distributor for location sound bag wireless systems.
• 2x 50Ω BNC inputs split to 8x 50Ω SMA outputs for A/B wireless distribution.
• 470MHz–1GHz operating range with overload warning LEDs and multiple power options.

Need help choosing?

Choose the SRD-Mini if you need a compact RF distributor for a sound bag wireless setup. It is designed for mixers running multiple UHF wireless receivers who need A/B antenna distribution, active or passive antenna support, overload indication and flexible powering from USB-C, 4-pin Hirose-compatible input or SPD-Mini pogo-pin power.
£565.87 (£471.56 ex VAT)
£565.87 (£471.56 ex VAT)
Tax included. Shipping calculated at checkout.

The SRD-Mini is a compact active RF distributor designed for professional location sound bag setups and UHF wireless microphone systems.

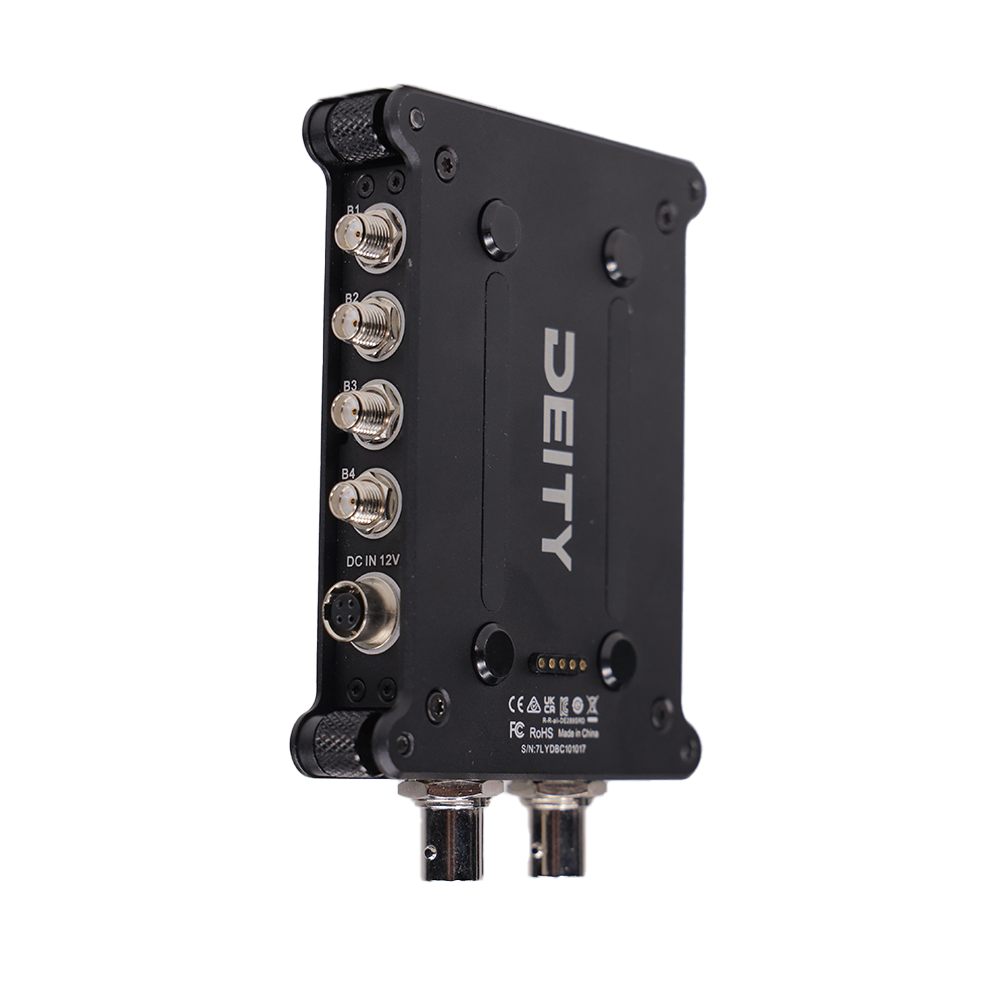

It accepts A/B RF inputs via 50Ω BNC connectors and splits the signal to eight 50Ω SMA outputs, supporting up to 16 channels of bag wireless. With active gain, RF overload warning LEDs, support for passive or active antennas and multiple power options including USB-C, 4-pin Hirose-compatible input and SPD-Mini pogo-pin power, the SRD-Mini helps keep wireless systems organised, powered and reliable in the field.

Choosing your type

Choose the SRD-Mini if you need a compact RF distributor for a sound bag wireless setup. It is designed for mixers running multiple UHF wireless receivers who need A/B antenna distribution, active or passive antenna support, overload indication and flexible powering from USB-C, 4-pin Hirose-compatible input or SPD-Mini pogo-pin power.

Specifications

Frequency Range

470MHz–1GHz

Gain

'+3dB to +9dB

Port Isolation

>20dB

Input Impedance

50Ω

Output Impedance

50Ω

Front-End Max Input Signal

'+13dBm

Overload Indication

0dBm

Noise Figure

<1.5dB

Working Voltage

USB-C: 5V DC; HRS4: 12V–16.8V DC

Current Consumption

<160mA via HRS4 input

Material

Aluminium alloy

RF Input Port

2x BNC

RF Output Port

8x SMA

Size

115.5mm x 78mm x 20.8mm

Weight

185.5g

Compatibility

• UHF wireless microphone systems
• Bag-based wireless receiver setups
• Active antennas
• Passive antennas
• Receivers and antenna distribution systems using 50Ω BNC inputs
• Wireless devices using SMA RF inputs
• Deity THEOS ecosystem
• SPD-Mini power distributor
• Location sound bags
• Film and TV production
• Live events
• Corporate video production
• Documentary sound recording

Dimensions

Length

115.5mm

Width

78mm

Depth

20.8mm

Weight

185.5g

What’s in the box?

• 1x SRD-Mini RF Distributor
• 1x Warranty Card
• Deity Stickers

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

2-year warranty + optional 6-month extension

This product includes a 2-year Deity manufacturer warranty against defects in materials and workmanship under normal use.

The warranty can be extended by an additional 6 months by registering the product with Deity.

For help with a fault or warranty claim, please visit our Returns & Warranty page and fill out the warranty form.

Soundkit will then help handle the warranty process with Deity on your behalf.

This manufacturer warranty does not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation or normal wear-and-tear items such as cables and accessories.

This manufacturer warranty is in addition to your statutory rights.

Important Notes

• SPD-Mini shown in some product imagery is sold separately.

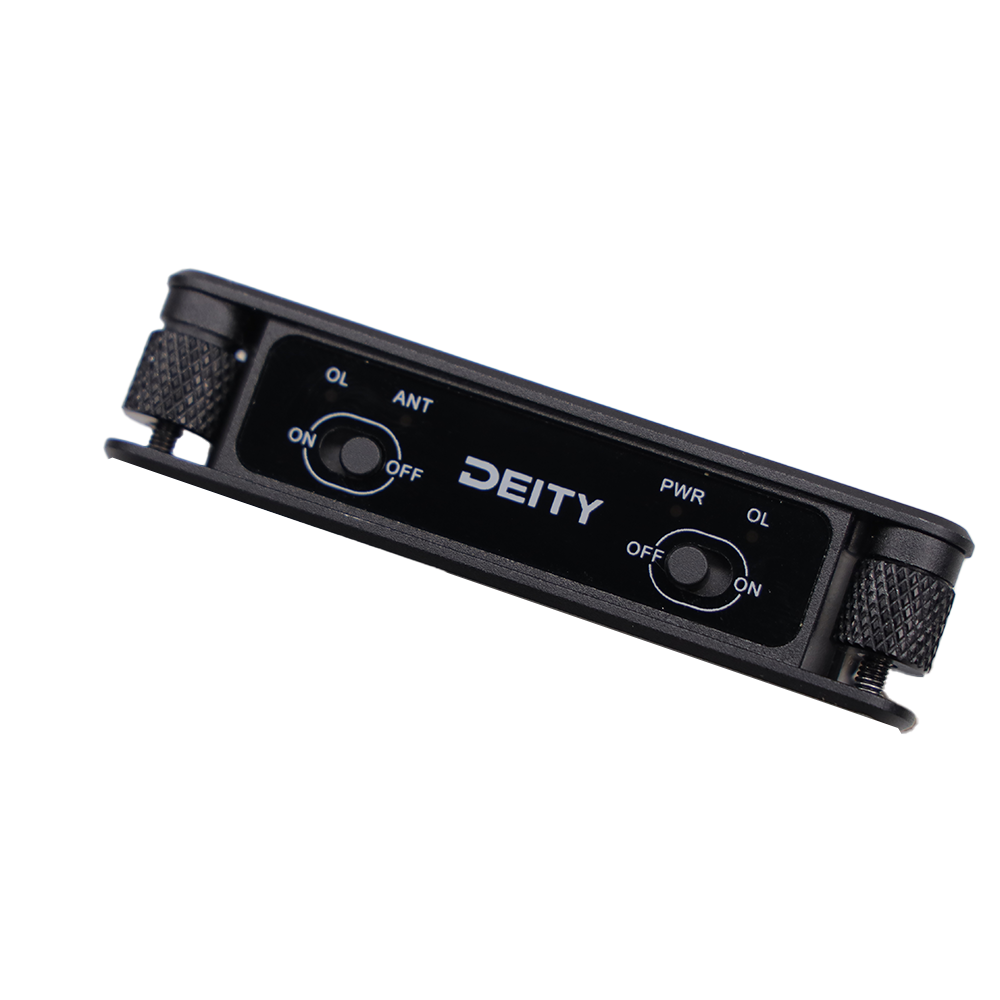

• Supports passive and active antennas; active antenna power can be toggled independently for the A and B sides.
• Red overload LEDs indicate when the RF signal on the corresponding port is overloaded.
• Can be powered by USB-C, 4-pin Hirose-compatible input or SPD-Mini pogo-pin/RPS power.
• SKU and barcode still need to be confirmed.
• UK price and cost still need to be added.

Technical Downloads

For up to date manuals, product documents and more in depth specifications, please refer to the official Deity Manuals page

SRD-Mini RF Distributor

£565.87

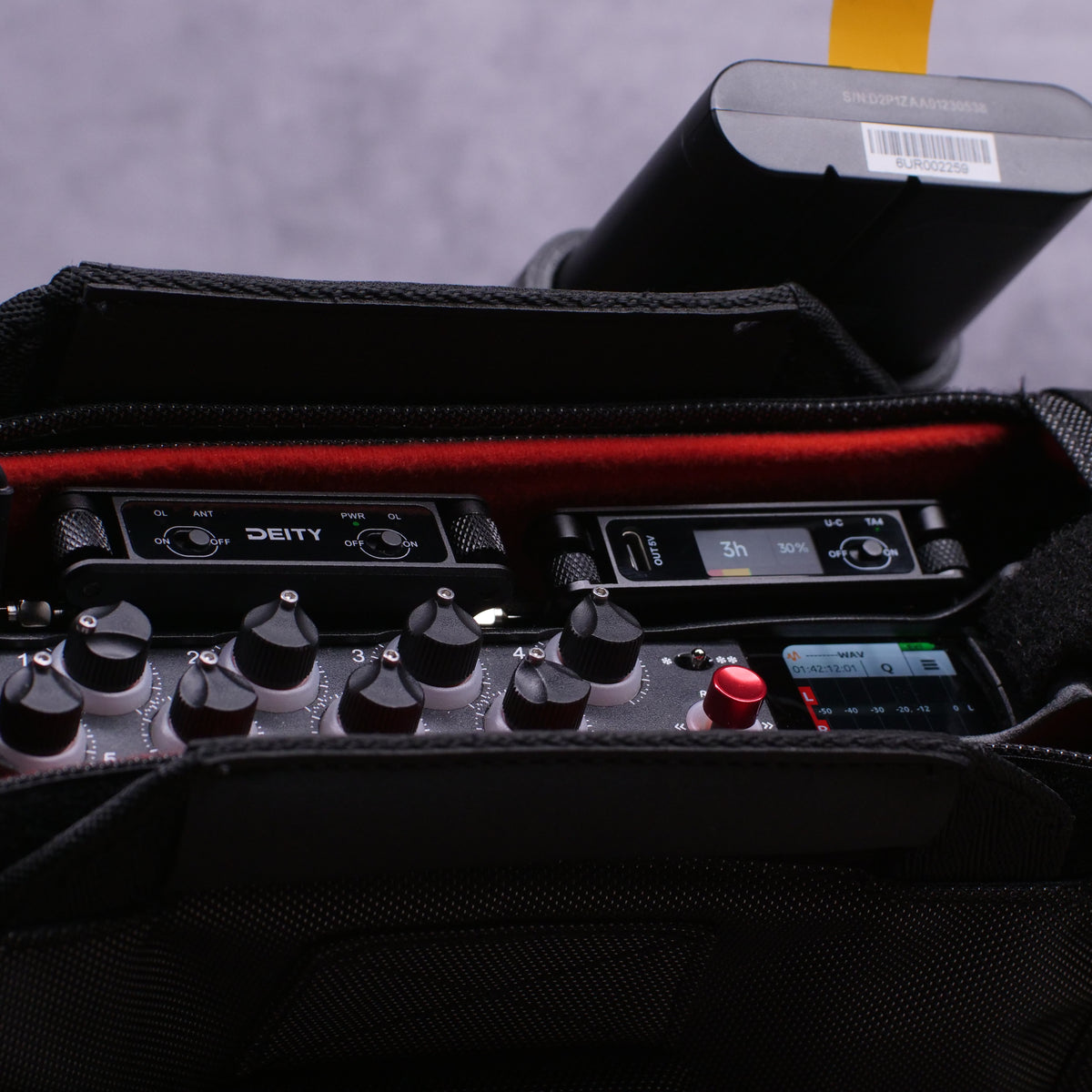

RF distributor module with control knobs, small display, and red button in case

Compact RF Distribution

Split A/B Antenna Feeds in a Sound Bag

Two 50Ω BNC inputs split to eight 50Ω SMA outputs, giving location sound mixers a compact way to distribute RF signals to multiple wireless receivers.

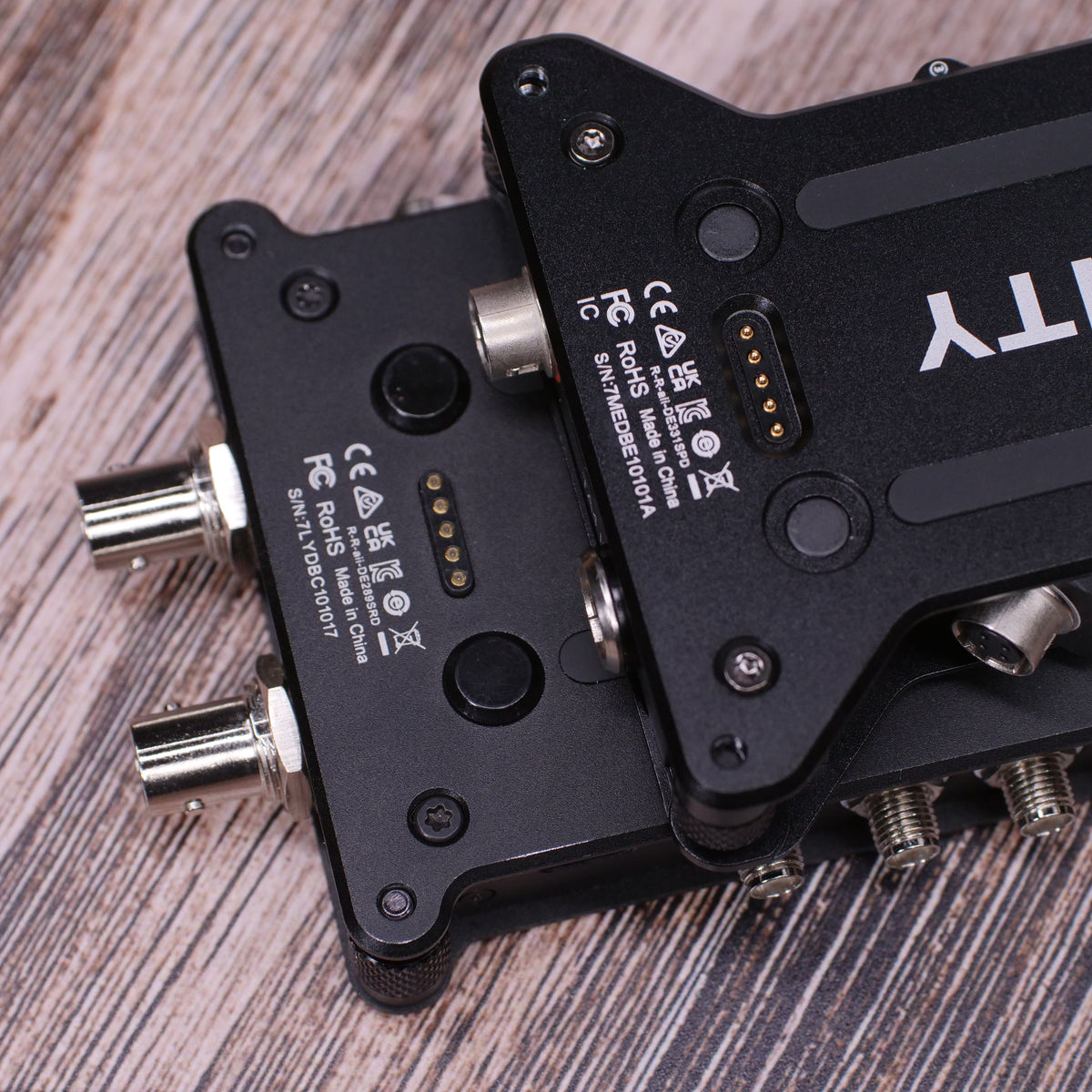

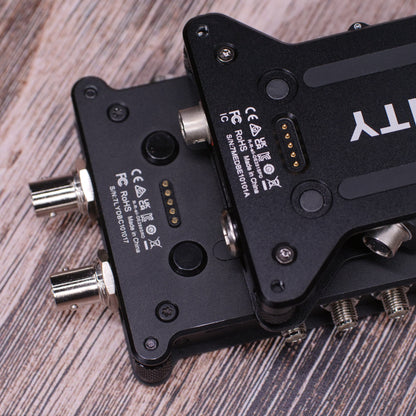

Back of black RF distributor unit with multiple connector ports on wood

Active Antenna Support

Power External Antenna Circuitry

Each A/B side can independently toggle active antenna power, with overload LEDs helping you spot excessive RF input before it causes issues.

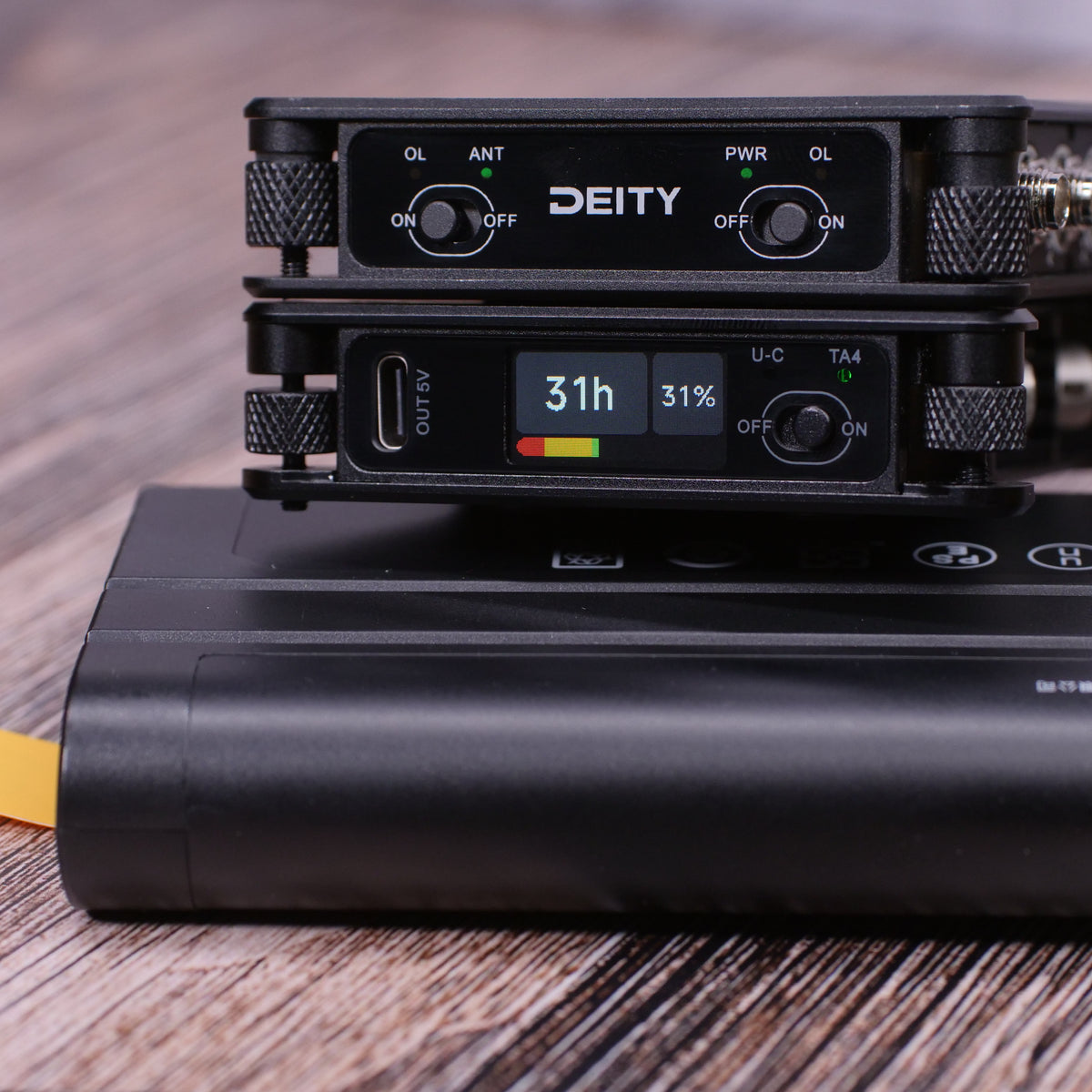

Stacked black RF distributor modules with PWR and 31h display on wood

Flexible Powering

USB-C, Hirose-Compatible or SPD-Mini Power

Power the SRD-Mini through USB-C, a 4-pin Hirose-compatible input or the SPD-Mini pogo-pin/RPS system for a cleaner bag setup.
