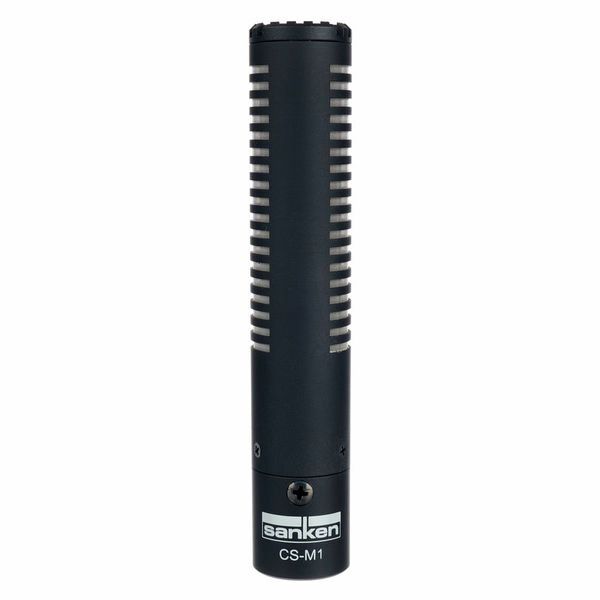

• Sanken shotgun microphone, dark cylindrical body with front grille and side controls

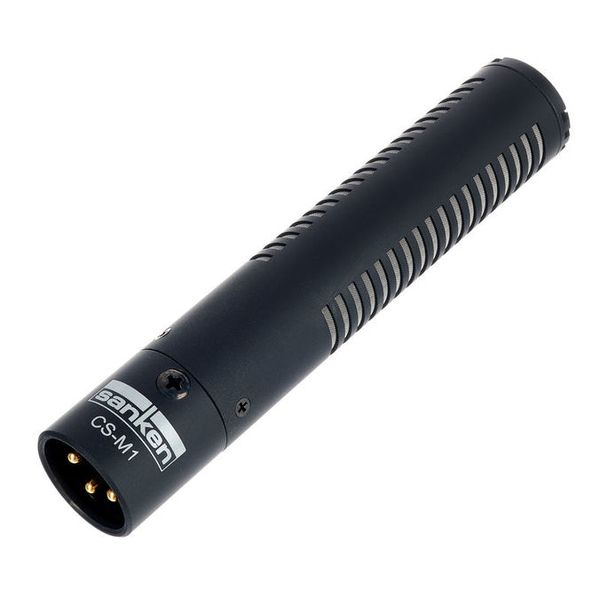

  • Sanken CS-M1 shotgun microphone with XLR-style output on the front end

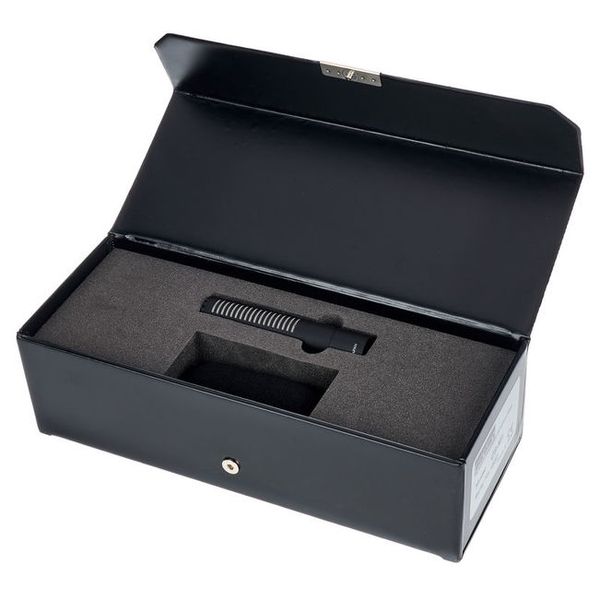

  • Sanken shotgun microphone case with foam insert holding the microphone

Sanken

Sanken CS-M1 Ultra-Compact Shotgun Microphone

• Only 103mm long and approximately 55g.
• Focused supercardioid/lobar response for dialogue and production sound.
• High 79mV/Pa sensitivity with up to 137dB SPL handling.
• Strong RF rejection and rugged location-ready construction.
• Standard balanced XLR output.

Need help choosing?

Choose the CS-M1 when you need a very short, lightweight directional microphone for interiors, camera mounting, vehicle work or discreet planting. Add suitable suspension and wind protection for boom or outdoor use.
£729.00 (£607.50 ex VAT)
£729.00 (£607.50 ex VAT)
Tax included. Shipping calculated at checkout.

The Sanken CS-M1 is an ultra-compact professional shotgun microphone for boom, camera and plant-microphone applications where space and weight matter.

At only 103mm long and 55g, it delivers focused dialogue capture, a hot output and full 70Hz–20kHz response while fitting into positions that larger shotguns cannot.

Choosing your type

Choose the CS-M1 when you need a very short, lightweight directional microphone for interiors, camera mounting, vehicle work or discreet planting. Add suitable suspension and wind protection for boom or outdoor use.

Specifications

Transducer

Back-electret condenser

Polar Pattern

Supercardioid / lobar

Frequency Response

70Hz–20kHz

Sensitivity

79mV/Pa (-22dB)

Equivalent Noise

16dB-A

Maximum SPL

137dB SPL

Output Impedance

140Ω

Powering

48V phantom

Current Consumption

4mA

Connector

XLR-3M

Length

103mm

Diameter

19mm

Weight

Approx. 55g

Compatibility

• Professional recorders, mixers, cameras and interfaces with 48V phantom power
• Standard XLR-3 microphone cables
• 19mm microphone suspensions and wind protection

Dimensions

Length

103mm

Weight

55g

Frequency

70Hz–20kHz

Max SPL

137dB

Power

48V

What’s in the box?

• 1x Sanken CS-M1 Shotgun Microphone
• 1x Foam windscreen
• 1x Protective case
• Measurement data
• Documentation

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

The CS-M1 requires 48V phantom power. Its 19mm diameter may require the correct suspension insert or microphone clip.
