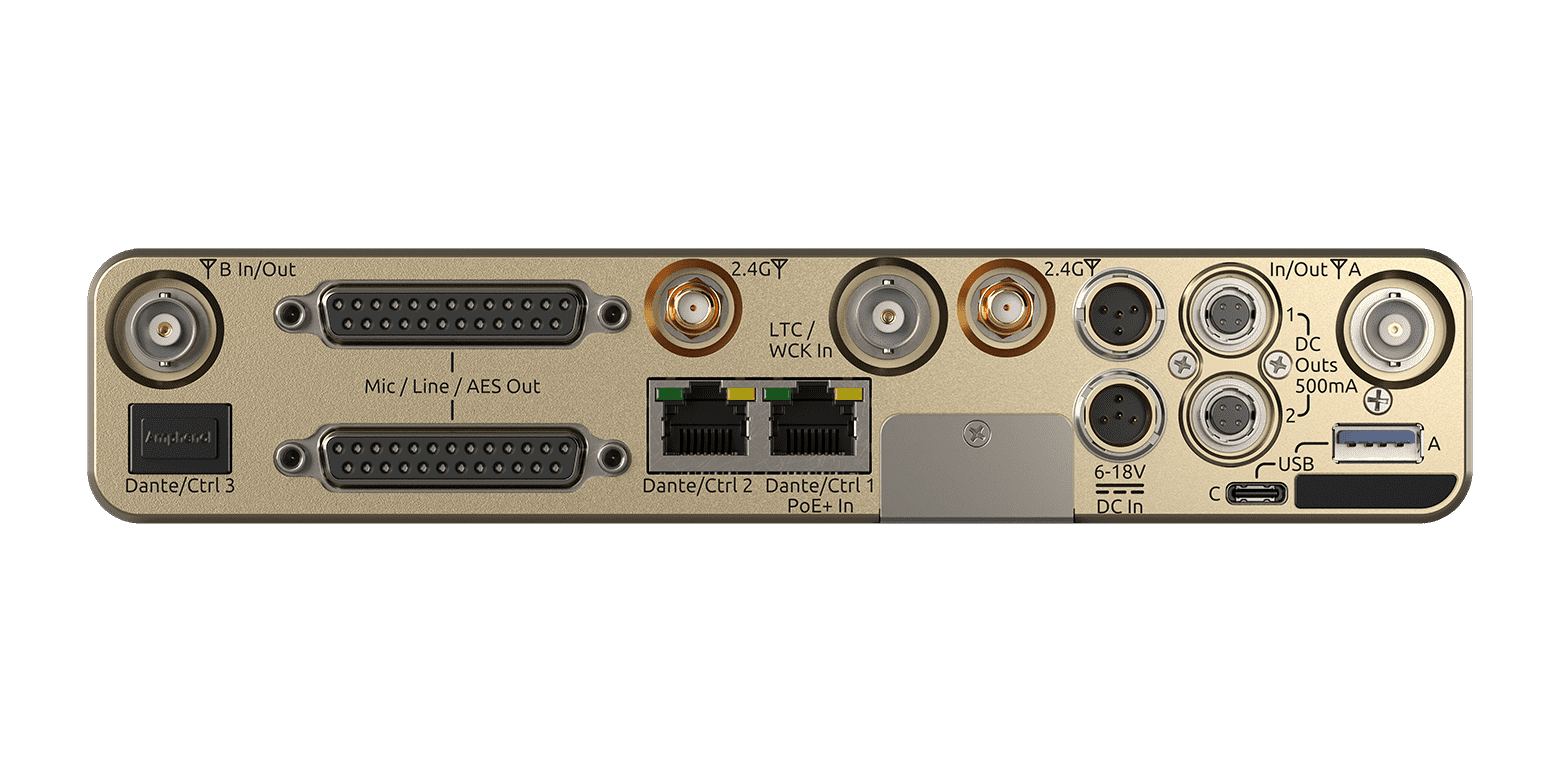

  • Astral ARX16 rear panel with multiple input/output ports and connectors
  • Astral ARX16 audio device with cables, mounting stands, and Sound Devices decals

Sound Devices

Astral ARX16

  • 8-channel true-diversity receiver, expandable to 12 or 16 channels via optional software licence
  • 169 MHz – 1525 MHz SpectraBand tuning range, with country-dependent frequency availability
  • Dante, NexLink, Web App control and DB-25 outputs for flexible professional audio workflows
£15,588.00 (£12,990.00 ex VAT)
£15,588.00 (£12,990.00 ex VAT)
Tax included. Shipping calculated at checkout.
  • Next-day UK delivery
  • Authorised UK stockist
  • Trusted by industry experts

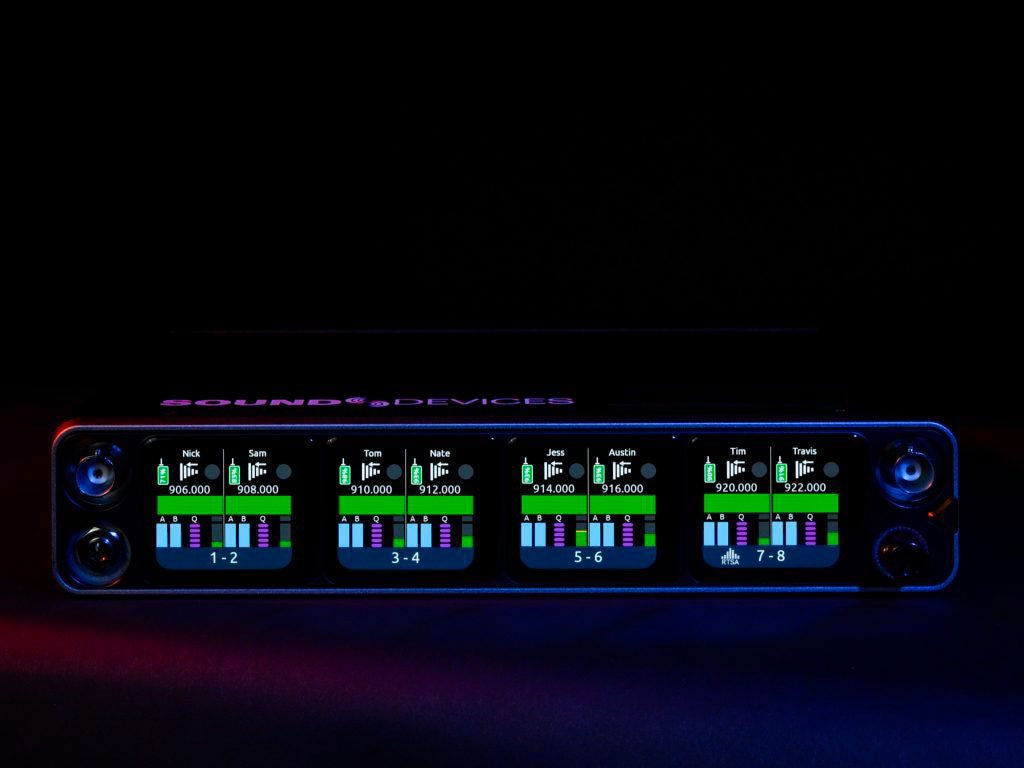

The Sound Devices Astral ARX16 is an 8-channel true-diversity digital wireless receiver for professional production sound workflows. It can be expanded to 12 or 16 channels using optional 4-channel software expansion licences.

Featuring SpectraBand wideband tuning from 169 MHz to 1525 MHz, NexLink transmitter control, Dante audio-over-IP, DB-25 analogue/AES outputs and browser-based Web App control, the ARX16 is suited to bag, cart, rack and remote receiver setups.

Specifications

Receiver channels

8 channels, expandable to 12 or 16 channels

Receiver type

True-diversity digital wireless receiver

Tuning Range

169 MHz – 1525 MHz

Tuning step size

25 kHz

RF technology

SpectraBand technology

Modulation

Proprietary 100% digital RF modulation

Modulation modes

Standard, Long Range, T&M/Test & Measurement

Audio frequency response

10 Hz – 20 kHz, ±1 dB

Dynamic range

>130 dB with an Astral transmitter

Latency

2 ms standard / 3.9 ms long range / 7 ms T&M

Low cut options

Off, 40, 60, 80, 100, 120, 160, 200 Hz

Audio outputs

Analogue, AES3 and Dante

Audio-over-IP

Dante, 44.1 / 48 / 96 kHz

NexLink

2.4 GHz proprietary long-distance transmitter control

Power options

DC input, PoE+, 8-Series dock, optional AC mains adapter

What’s in the box?

1 × Sound Devices Astral ARX16 Receiver

2 × A20-Monarch SpectraBand antennas

2 × Articulating arms with clamp and 1/4"-20 thread mount

2 × 30 in / 75 cm BNC-BNC cables

2 × 2.4 GHz SMA tilting antennas

2 × NexLink side mounting brackets with SMA-to-SMA cable

Dimensions

Height

1.6 in

Width

8.0 in

Depth

6.6 in

Weight

1.27kg unpackaged

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

1-year warranty + optional 1-year extension

This product includes a 1-year Sound Devices manufacturer warranty against defects in materials and workmanship from the original date of purchase.

The warranty can be extended to 2 years in total by registering the product directly with Sound Devices within the first year.

Register your product with Sound Devices

For help with a fault or warranty claim, please visit our Returns & Warranty page. Have your order number and product serial number ready.

This manufacturer warranty is in addition to your statutory rights.

Technical Downloads

User Manual
Dimensions Drawing

For the most up-to-date manuals and product documents, please refer to the official Sound Devices Astral ARX16 product page.

Astral ARX16

£15,588.00

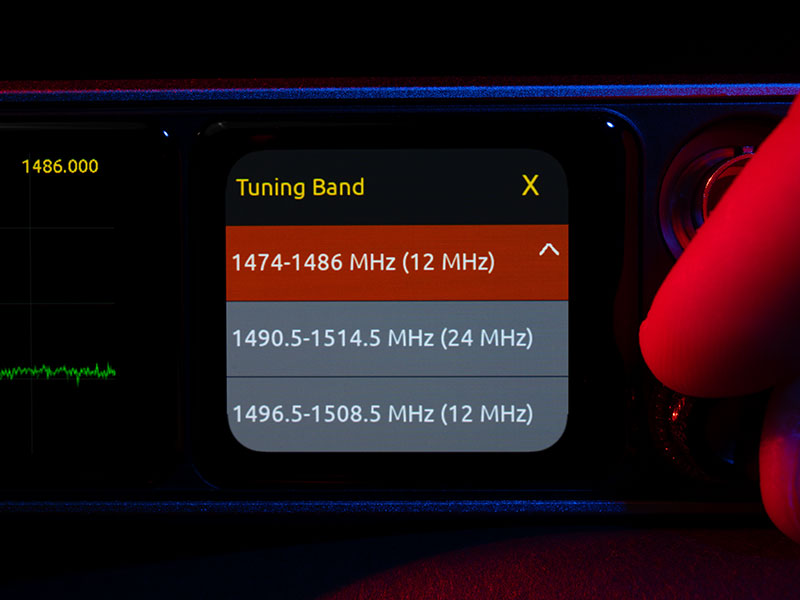

Wideband tuning

SpectraBand

SpectraBand gives the Astral ARX16 a wide tuning range of 169 - 1525 MHz in a single receiver. This helps production sound teams find usable spectrum across multiple frequency bands, with available frequencies depending on the country of operation.

Remote transmitter control

NexLink

NexLink allows compatible Astral transmitters to be controlled and monitored from the Astral ARX16 using its built-in long-distance control link. Adjust supported transmitter settings remotely, including frequency, power state and timecode sync, without needing direct access to the transmitter.

Network control

Network Away

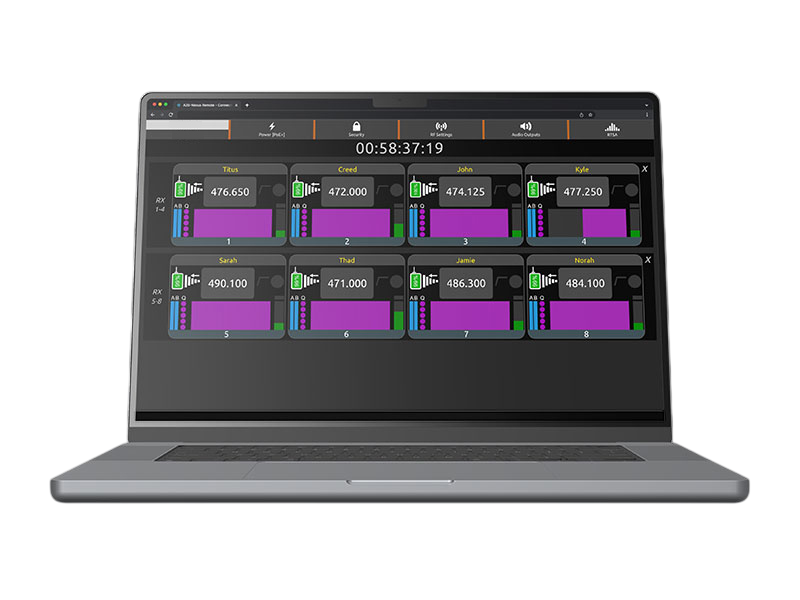

The Astral ARX16 can be controlled from a computer, tablet or phone using its built-in Web App. With PoE+ powering, Dante audio-over-IP and network control, the receiver can be positioned remotely while audio and settings remain accessible from your main workflow.

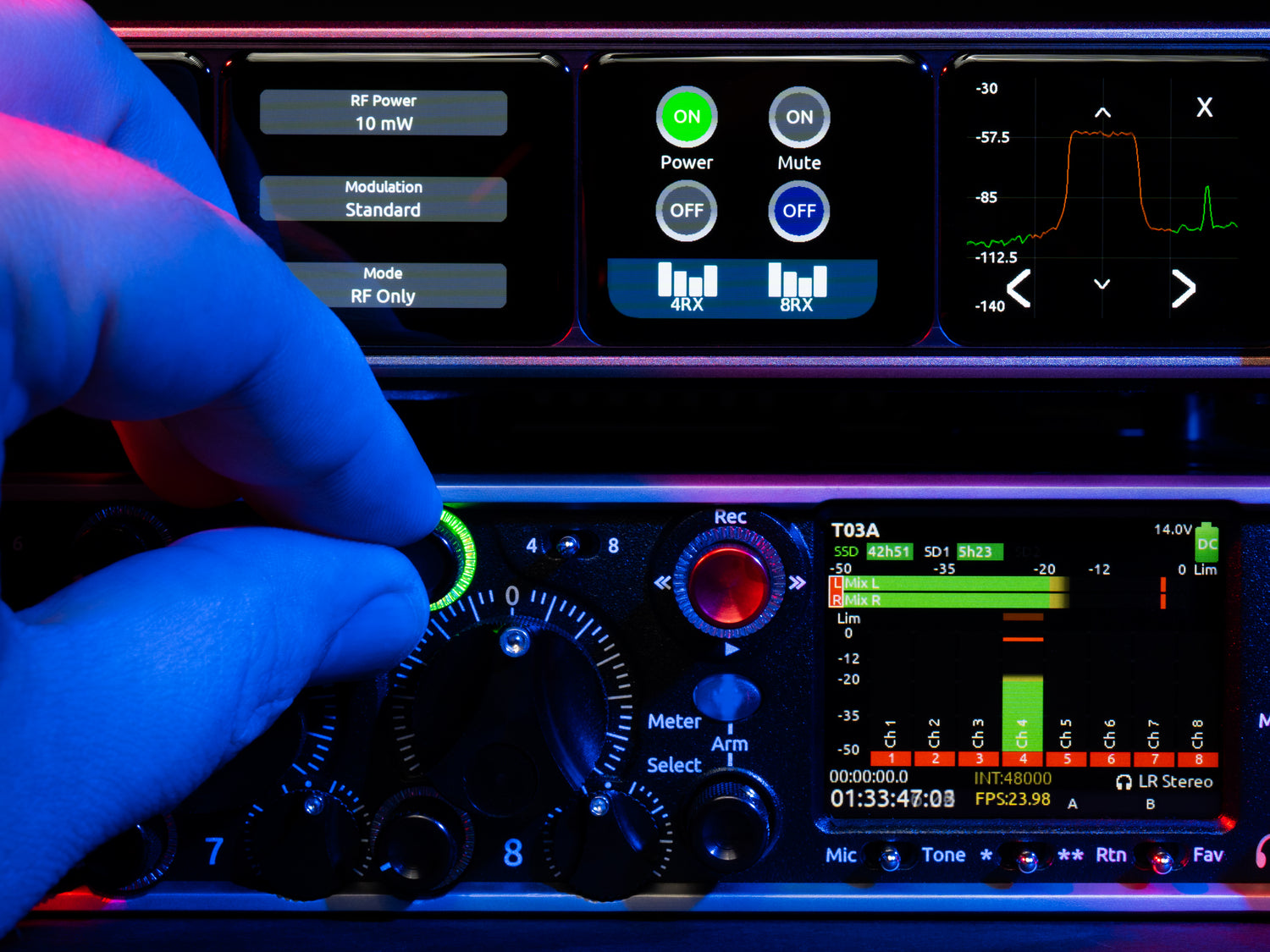

Local gain control

GainForward

GainForward allows compatible Astral transmitters to be controlled from the Astral ARX16 or mixer-recorder, including gain, low-cut and limiter settings. This means level adjustments can be made locally at the receiver or mixer, without needing to access the transmitter directly.

Automatic frequency assignment

AutoAssign

AutoAssign scans the selected tuning band for clean frequencies and assigns them across multiple receiver channels. When used with NexLink-compatible transmitters, those frequencies can be pushed automatically to the linked transmitters.
