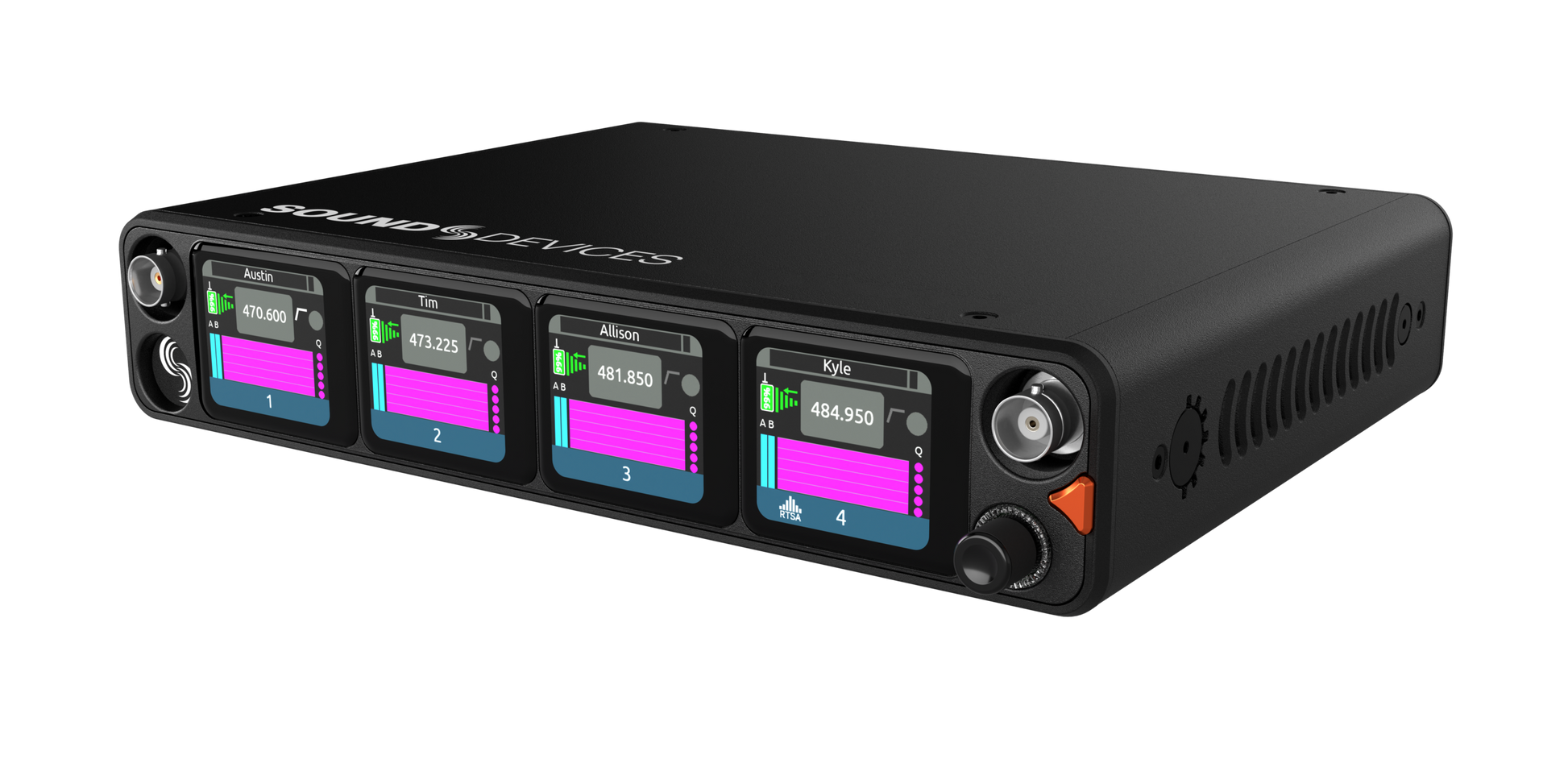

• Audio interface front and side view with four displays and rotary control

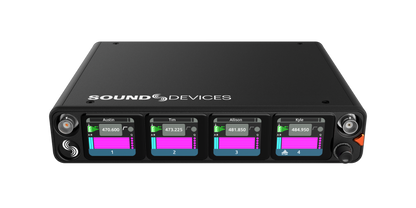

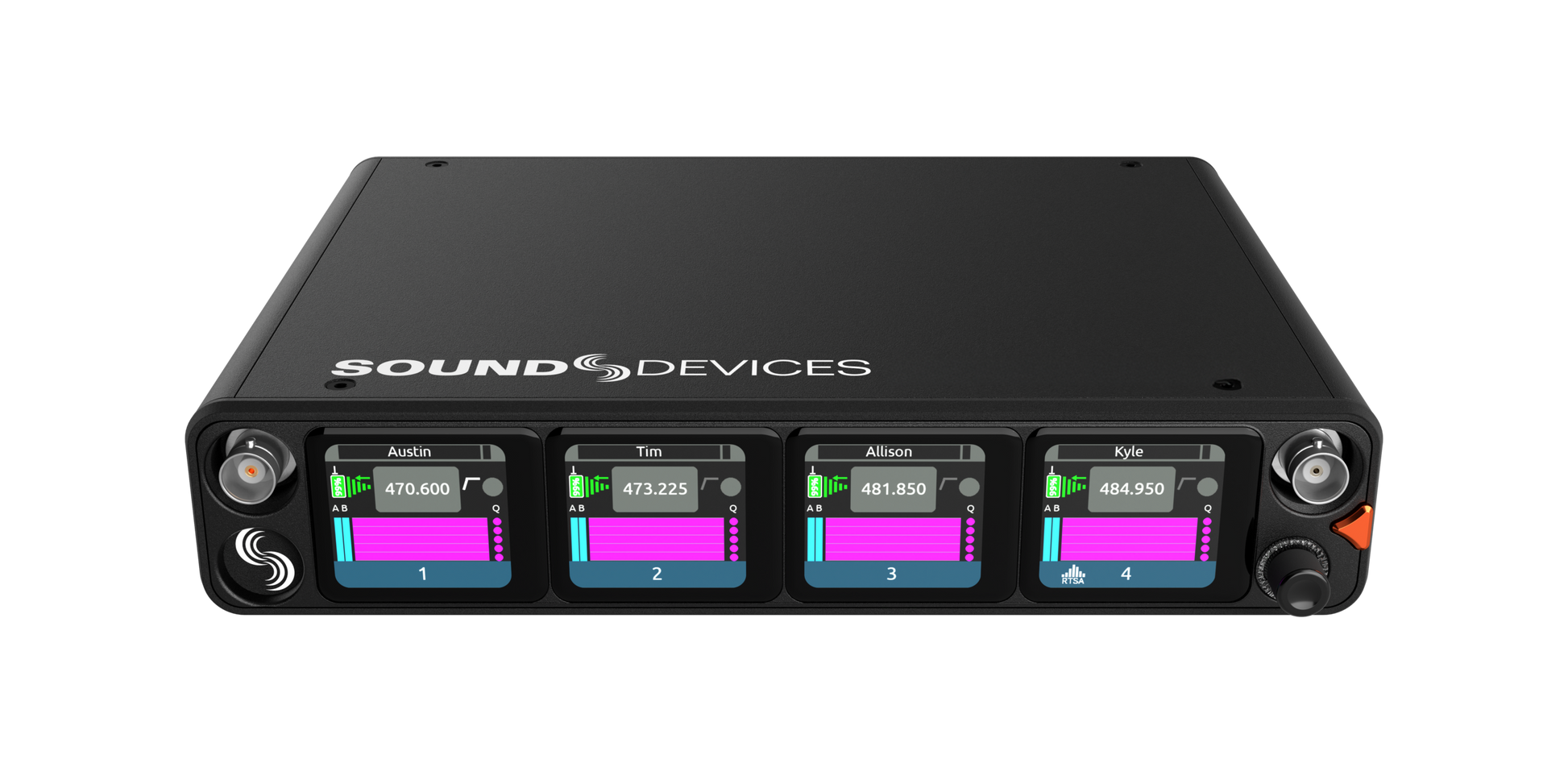

  • Audio interface front panel with four color displays, meters, and control knobs

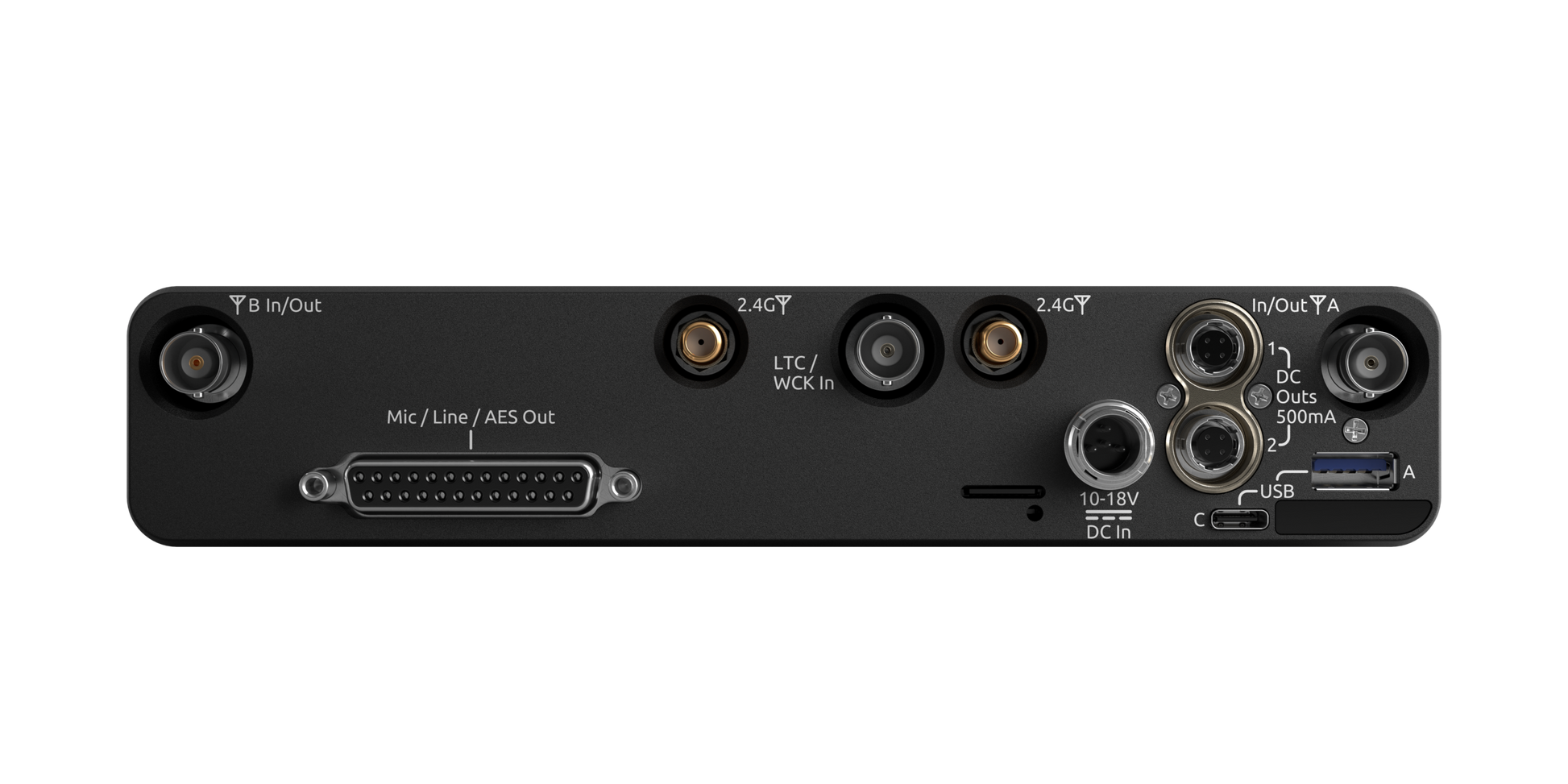

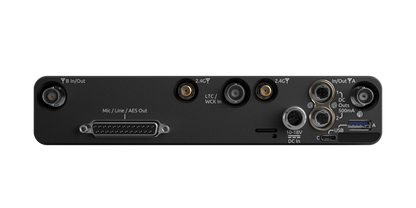

  • Audio interface rear panel with ports, connectors, and power input

Sound Devices

Astral ARX8

  • 4-channel true-diversity receiver, expandable to 6 or 8 channels via optional software licences
  • 169 MHz – 1525 MHz SpectraBand tuning range for flexible frequency coordination
  • NexLink, AutoAssign, RTSA and GainForward for remote transmitter control and efficient setup
£8,832.00 (£7,360.00 ex VAT)
£8,832.00 (£7,360.00 ex VAT)
Tax included. Shipping calculated at checkout.
  • Next-day UK delivery
  • Authorised UK stockist
  • Trusted by industry experts

The Sound Devices Astral ARX8 is a portable true-diversity digital wireless receiver for professional production sound workflows. It includes 4 receiver channels as standard and can be expanded to 6 or 8 channels using optional 2-channel software expansion licences.

Featuring SpectraBand tuning from 169 MHz to 1525 MHz, NexLink transmitter control, AutoAssign frequency deployment, real-time spectrum analysis and DB-25 analogue/AES outputs, the ARX8 is designed for bag, cart, rack and 8-Series mixer-recorder workflows.

Specifications

Receiver channels

4 channels, expandable to 6 or 8 channels

Receiver type

True-diversity digital wireless receiver

Tuning Range

169 MHz – 1525 MHz

Tuning step size

25 kHz

RF technology

SpectraBand technology

Modulation

Proprietary 100% digital RF modulation

Modulation modes

Standard, Long Range, T&M/Test & Measurement

Audio frequency response

10 Hz – 20 kHz, ±1 dB

Dynamic range

>130 dB with an Astral transmitter

Latency

2 ms standard / 3.9 ms long range / 7 ms T&M

Low cut options

Off, 40, 60, 80, 100, 120, 160, 200 Hz

Audio outputs

DB-25 connector for mic, line or AES outputs

Audio output sample rate

44.1 / 48 / 96 kHz

NexLink

2.4 GHz proprietary long-distance transmitter control

Power options

DC input, 8-Series dock, optional AC mains adapter

What’s in the box?

  • 1 × Sound Devices Astral ARX8 Receiver
  • 2 × Monarch Antennas
  • 2 × Articulating arms with 1/4"-20 mount for mounting Monarch antennas
  • 2 × 30" BNC to BNC antenna cables
  • 2 × 2.4 GHz SMA-M antennas
  • 2 × Astral 2.4G Ant+Mounts for mounting to ARX8 side panels
  • 4 × Rubber feet
  • 1 × Astral ARX8 product document
  • 1 × Audio product portfolio brochure
  • 2 × Promo stickers

Dimensions

Height

1.6 in

Width

8.0 in

Depth

6.6 in

Weight

1.22kg unpackaged

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

1-year warranty + optional 1-year extension

This product includes a 1-year Sound Devices manufacturer warranty against defects in materials and workmanship from the original date of purchase.

The warranty can be extended to 2 years in total by registering the product directly with Sound Devices within the first year.

Register your product with Sound Devices

For help with a fault or warranty claim, please visit our Returns & Warranty page. Have your order number and product serial number ready.

This manufacturer warranty is in addition to your statutory rights.

Technical Downloads

User Manual
Quick Start Guide

For the most up-to-date manuals and product documents, please refer to the official Sound Devices Astral ARX8 product page.

Astral ARX8

£8,832.00

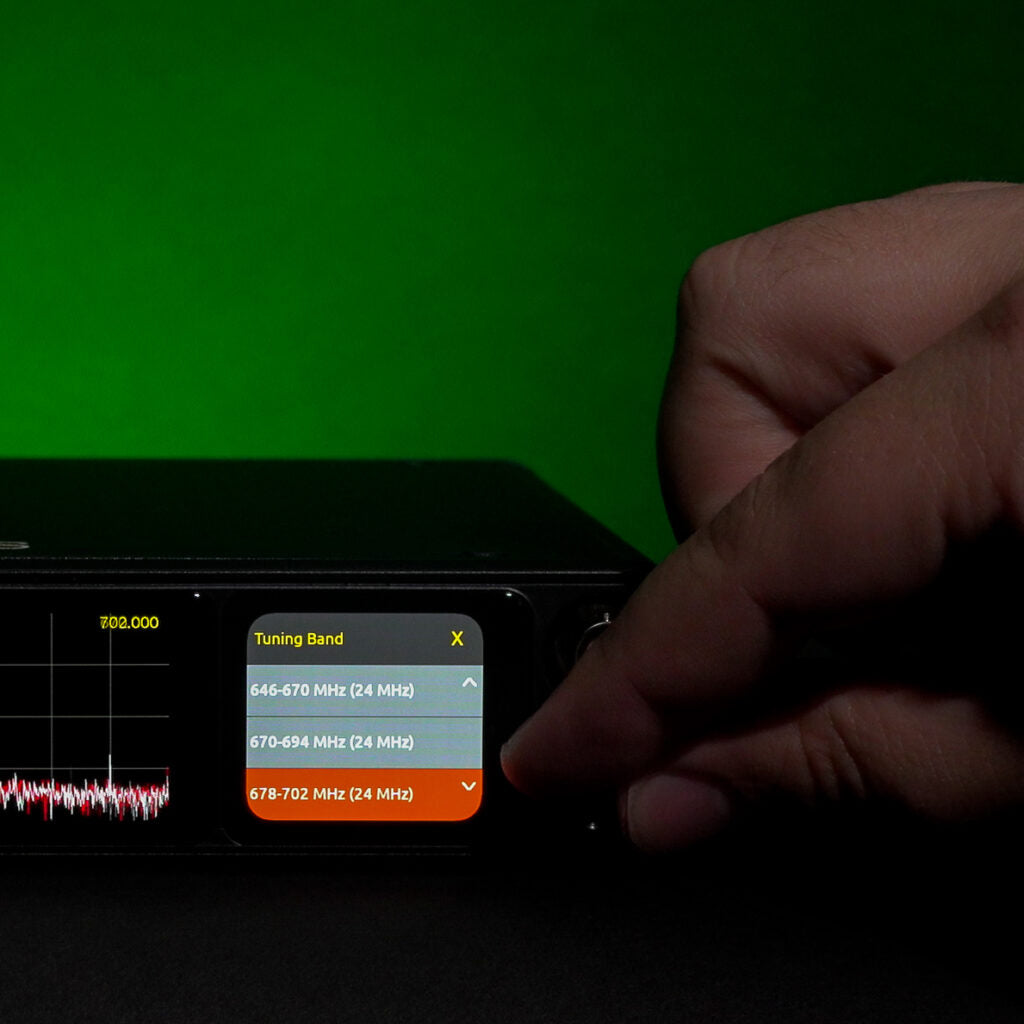

Wideband tuning

SpectraBand

SpectraBand gives the Astral ARX8 a wide tuning range of 169–1525 MHz in a single receiver. This helps production sound teams find usable spectrum across multiple frequency bands, with available frequencies depending on the country of operation.

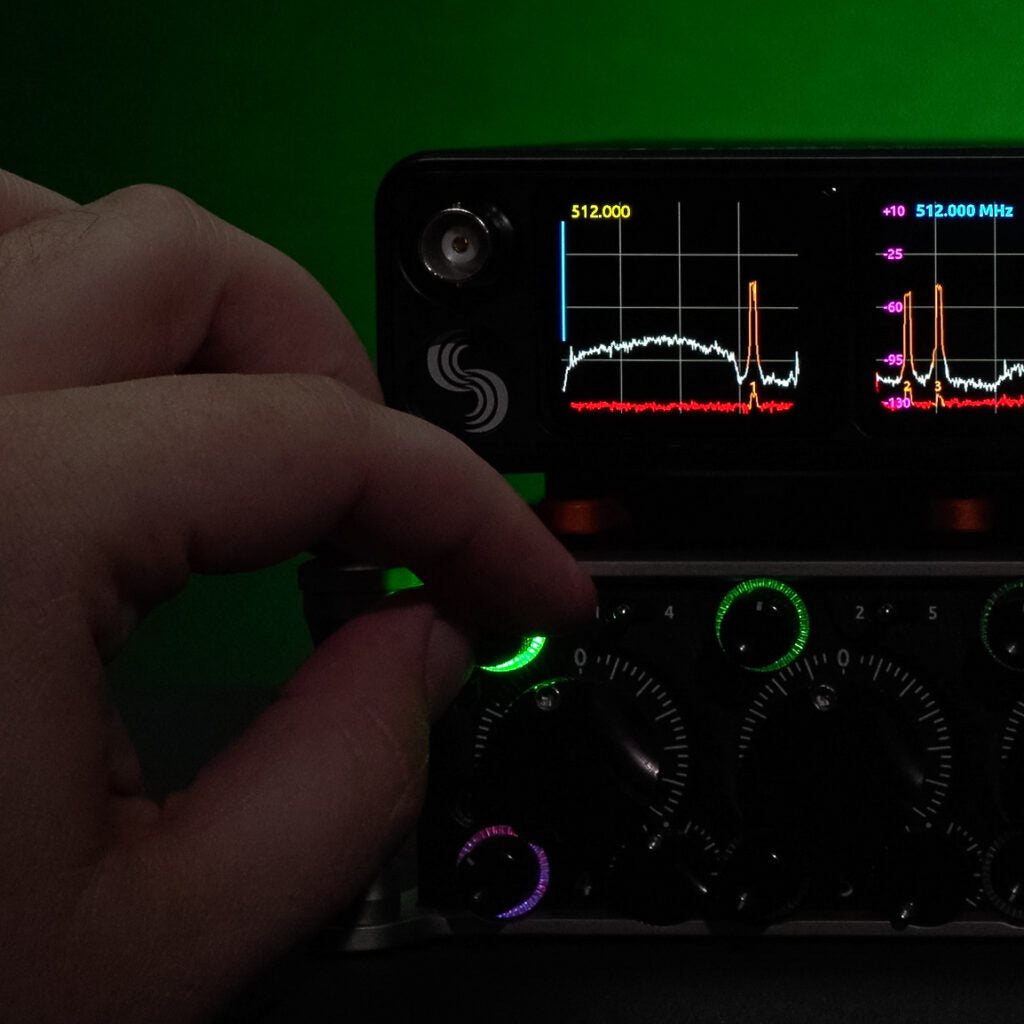

Local gain control

GainForward

GainForward allows compatible Astral transmitters to be adjusted from the Astral ARX8 or mixer-recorder. Gain, low-cut and limiter settings can be controlled locally, reducing the need to access the transmitter once it is fitted to talent.

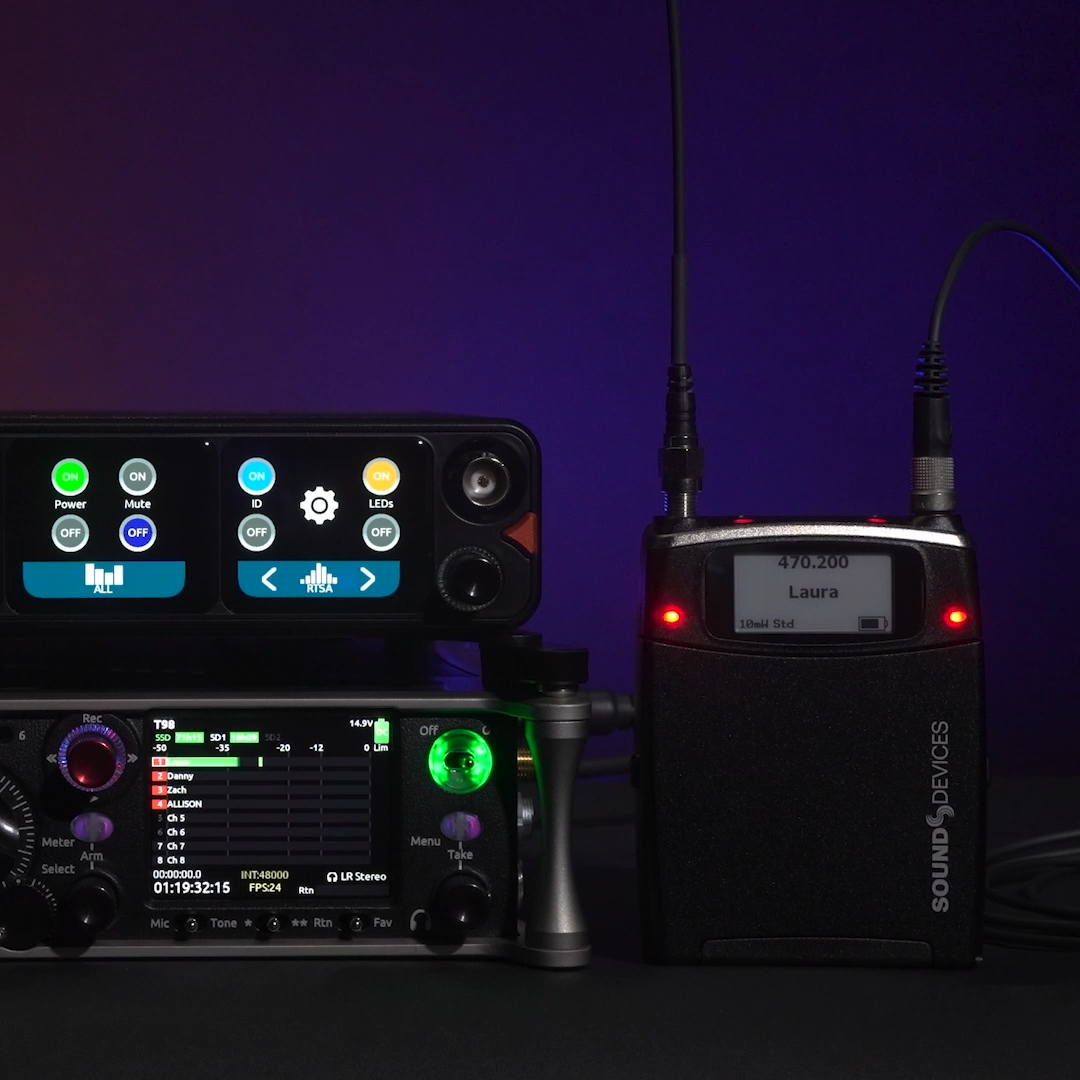

Remote transmitter control

NexLink

NexLink provides long-distance remote control and monitoring of compatible Astral transmitters from the Astral ARX8. It supports transmitter control, timecode sync and group functions, including remote power on/off.

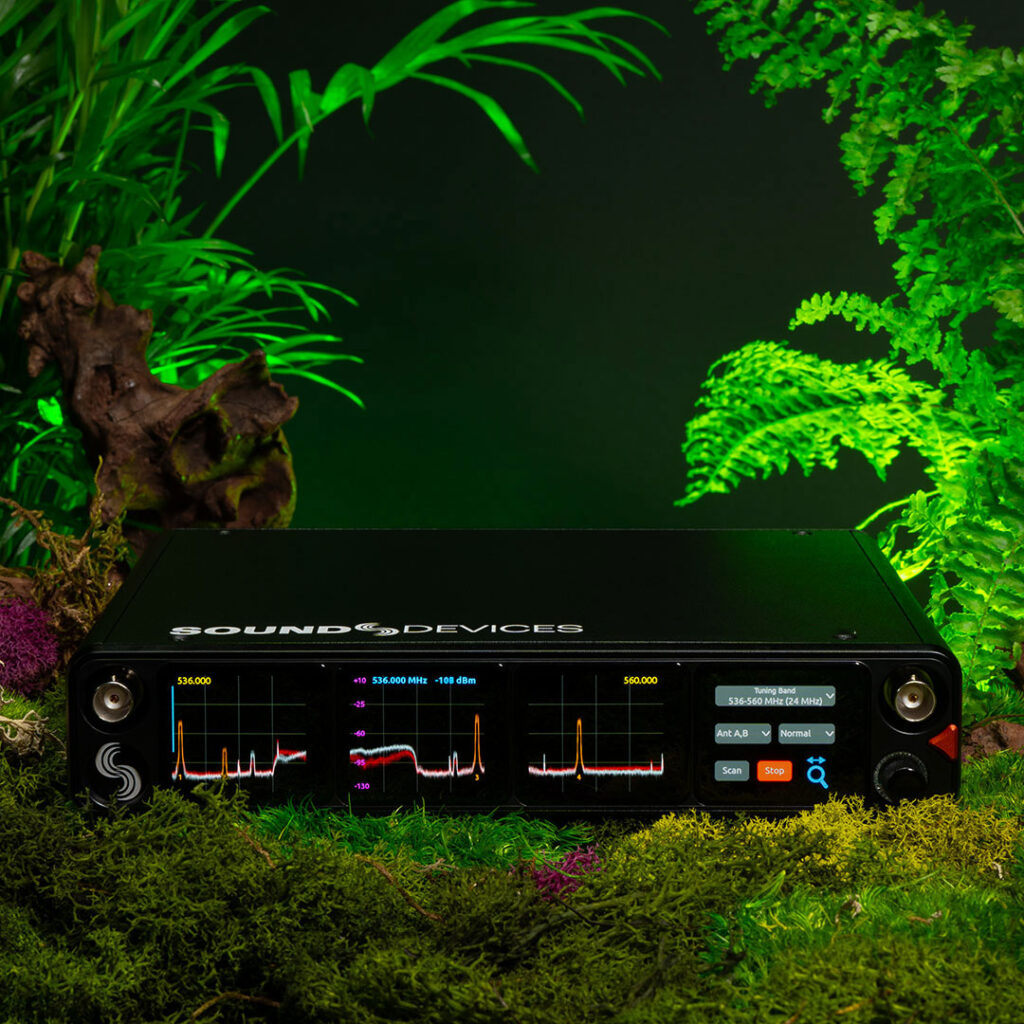

Real-time RF monitoring

RTSA

The integrated Real Time Spectrum Analyzer allows users to view the changing RF environment directly from the Astral ARX8. This helps with frequency coordination while receiver channels remain active.

Automatic frequency assignment

AutoAssign

AutoAssign scans the selected tuning band for clean frequencies and assigns them across multiple receiver channels. When used with NexLink-compatible transmitters, those frequencies can be pushed automatically to the linked transmitters.
