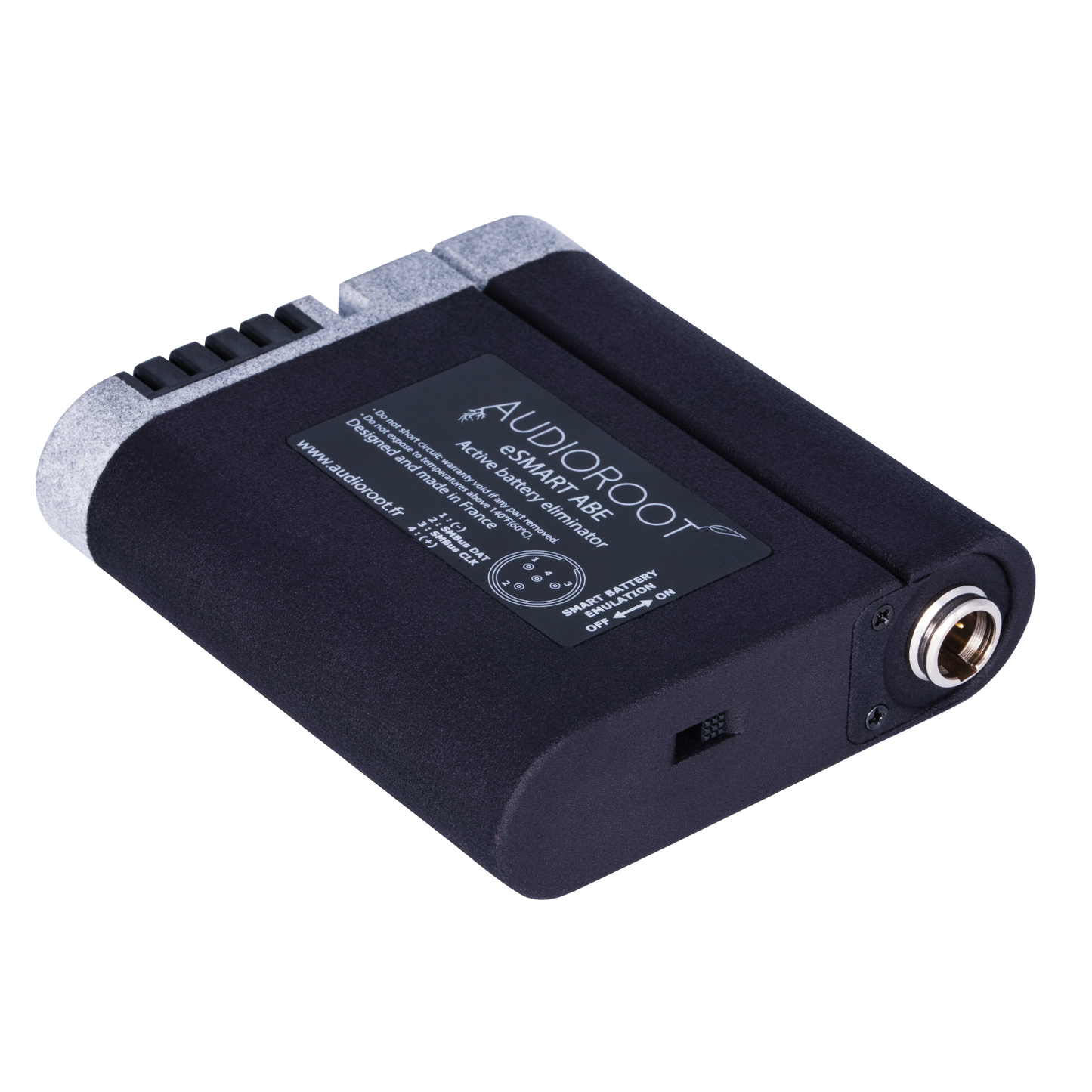

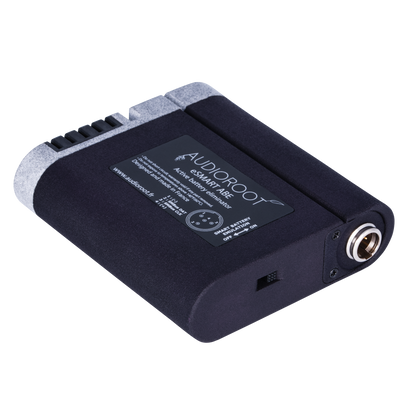

  • Audioroot eSMART ABE smart battery connector view

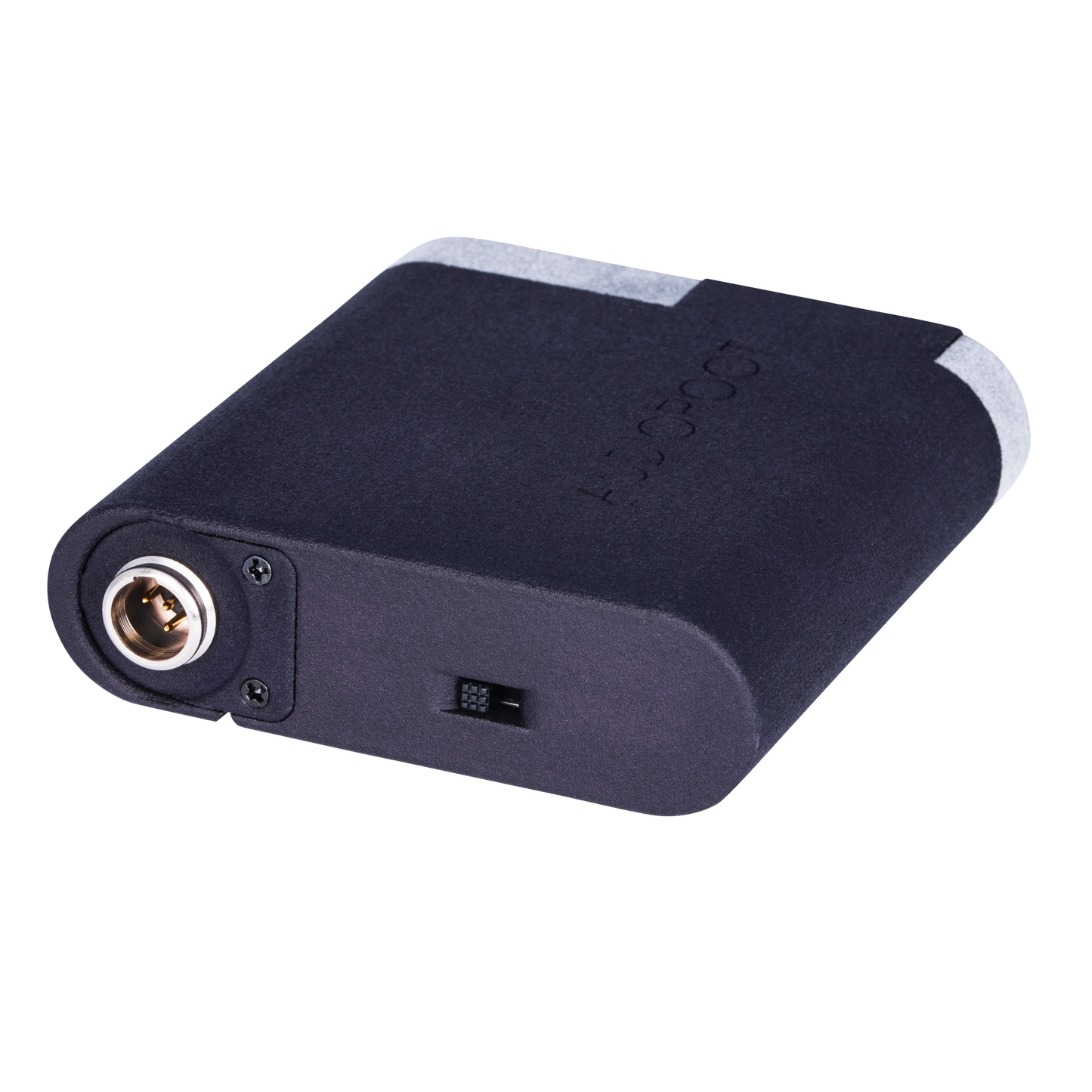

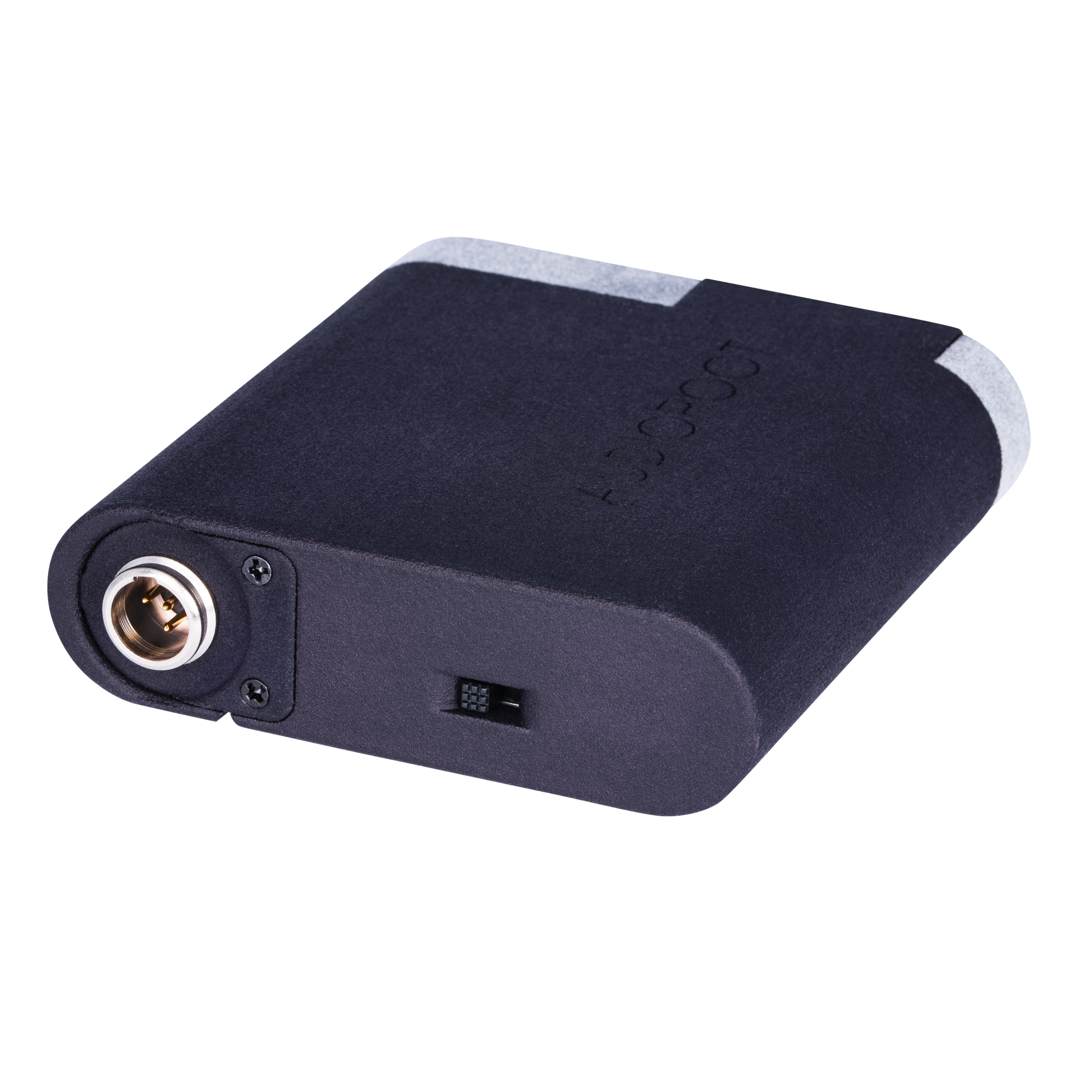

  • Audioroot eSMART ABE TA4M input and emulator switch
  • Audioroot eSMART ABE connected to Audioroot eSMART power distributor

Audioroot

Audioroot eSMART ABE Active Battery Eliminator

• Active battery eliminator for smart-battery powered equipment.
• TA4M input accepts a suitable external DC source or SMBus-compatible smart battery.
• Standard 5-pin smart-battery output connector carries DC plus SMBus clock/data.
• Integrated smart-battery emulator for compatible Audioroot eSMART power distributors.
• Displays voltage, current, power and temperature when emulation is active.
• Recommended input voltage: 15V DC; maximum input voltage: 18V DC.
• Maximum recommended current: 5A.
• Compact Li-48neo/Li-49Wh-size housing at only 67g.

Need help choosing?

Choose the eSMART ABE when you need to run equipment designed for a small-format smart battery from mains power, a regulated external DC source or a larger smart battery. Pair it with the PS-15-36W for lighter-duty portable setups, or the PS-15-90W when you need the higher available current.
£159.99 (£133.33 ex VAT)
£159.99 (£133.33 ex VAT)
Tax included. Shipping calculated at checkout.

The Audioroot eSMART ABE is a compact active battery eliminator that lets equipment designed for smart batteries run from an alternative DC power source. Connect a suitable AC/DC power supply, wall adapter or external battery to the TA4M input and the ABE presents a standard 5-pin smart-battery interface to the connected equipment.

The ABE also includes Audioroot's smart-battery emulation circuit. When used with compatible eSMART power distributors, it can provide useful voltage, current, power and temperature information even when the incoming DC source does not provide SMBus telemetry. Alternatively, connect a real SMBus-compatible battery through the TA4M input to use larger-capacity smart batteries with equipment normally designed for small-format batteries such as the Li-48neo and Li-49Wh.

Choosing your type

Choose the eSMART ABE when you need to run equipment designed for a small-format smart battery from mains power, a regulated external DC source or a larger smart battery. Pair it with the PS-15-36W for lighter-duty portable setups, or the PS-15-90W when you need the higher available current.

Specifications

Product Type

Active smart battery eliminator

Input Connector

TA4M

Output Connector

5-pin standard smart battery

Recommended Input

15V DC

Maximum Input

18V DC

Maximum Current

5A recommended maximum

Telemetry

SMBus clock/data + internal emulator

Emulation Data

Voltage, current, power, temperature

Dimensions

88 × 78 × 22.7mm

Weight

67g

Warranty

1 year

Country of Origin

France

Compatibility

• Audioroot eSMART BG-DH MKII
• Audioroot eSMART BG-DU
• Audioroot eSMART BG-DU-REG
• Audioroot eSMART K-ART
• Equipment using the standard 5-pin smart-battery interface
• Audioroot PS-15-36W 15V/2.4A power supply
• Audioroot PS-15-90W 15V/6A power supply
• Larger SMBus-compatible smart batteries connected through a correctly wired 4-conductor TA4 cable

Dimensions

Input

TA4M

Output

5-Pin Smart

Voltage

15V Recommended

Max Current

5A

Weight

67g

What’s in the box?

• 1x Audioroot eSMART ABE Active Battery Eliminator
• Power supply and TA4 input cable are not included unless specified separately

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• The eSMART ABE is not compatible with the Aaton Cantar Mini.
• Maximum input voltage is 18V DC; Audioroot recommends 15V DC operation.
• Maximum recommended current is 5A.
• Enable the internal emulator when using a basic external DC source with a compatible Audioroot distributor.
• Disable the emulator when a real SMBus-compatible battery is connected with power and telemetry wiring.
• In emulation mode, cycle count, capacity and runtime figures are generated values rather than real battery data.

Audioroot eSMART ABE Active Battery Eliminator

£159.99

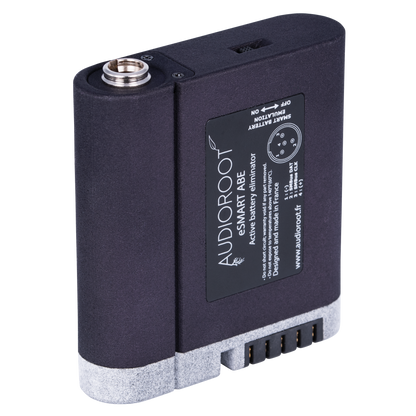

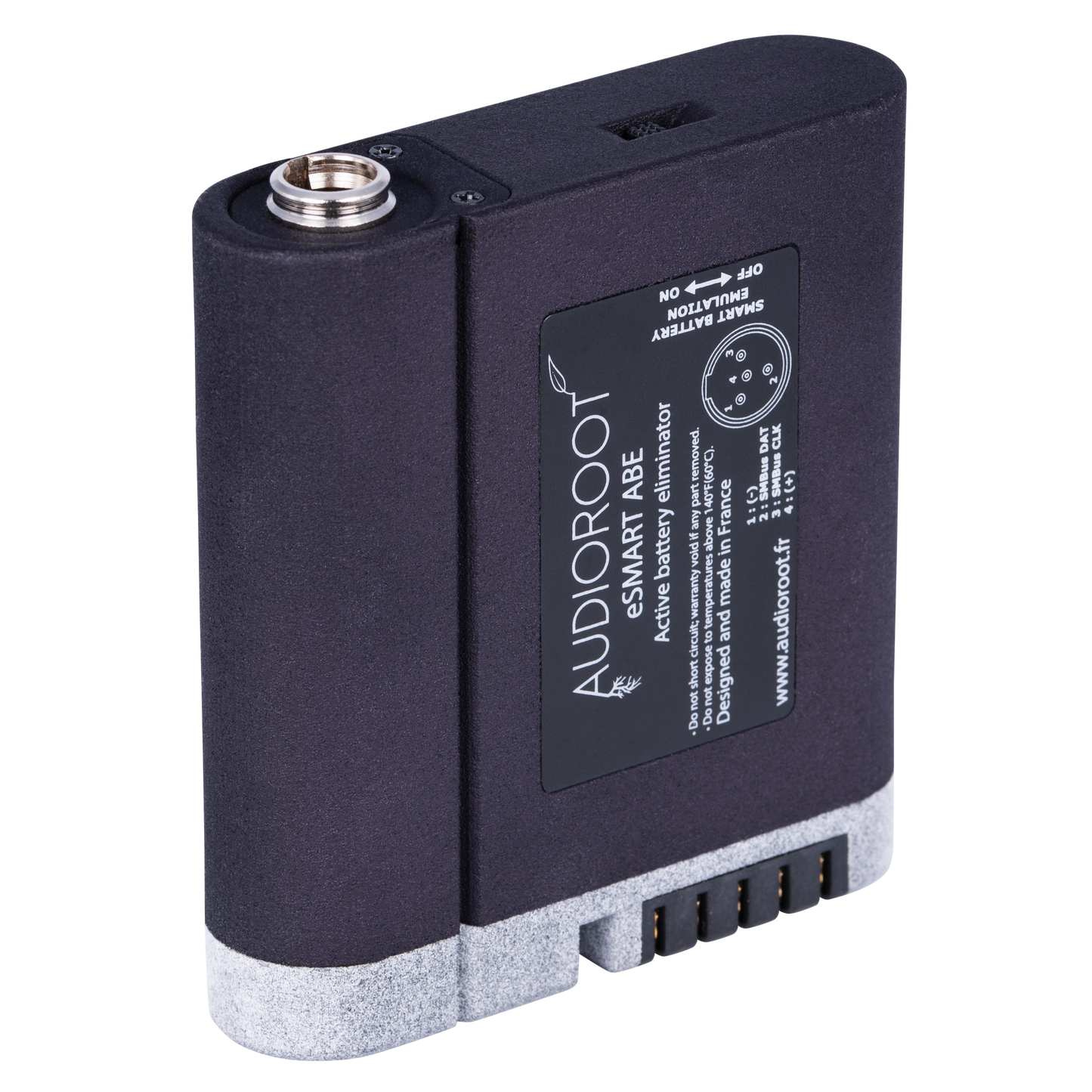

Audioroot eSMART ABE active battery eliminator

TA4M Input • Smart Battery Output • 5A Max

Run Smart-Battery Equipment from External DC

The eSMART ABE replaces a small-format smart battery with a compact powered interface, allowing compatible equipment to run from a suitable external DC source or larger smart battery.

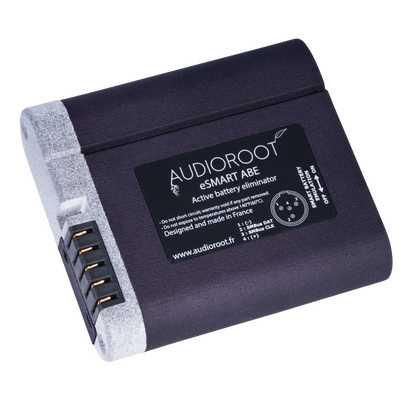

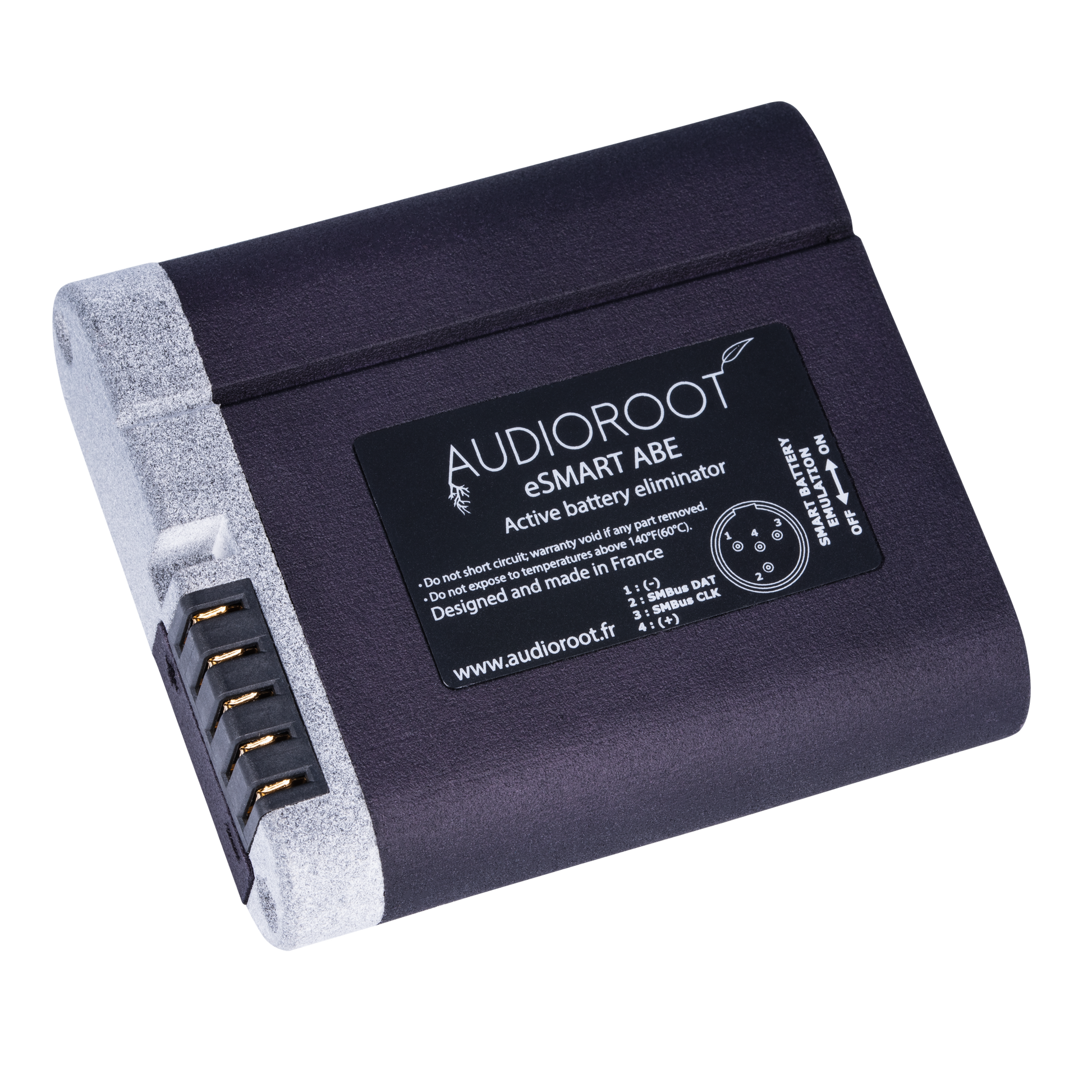

Audioroot eSMART ABE active battery eliminator angled view

15V Recommended • 18V Max • 5A

Integrated Smart-Battery Emulation

With the internal emulator enabled, compatible Audioroot eSMART distributors can display voltage, current, power and temperature data even when the external source does not provide SMBus telemetry.

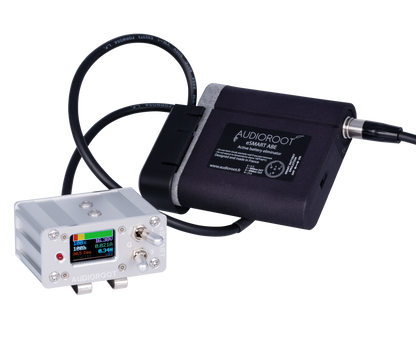

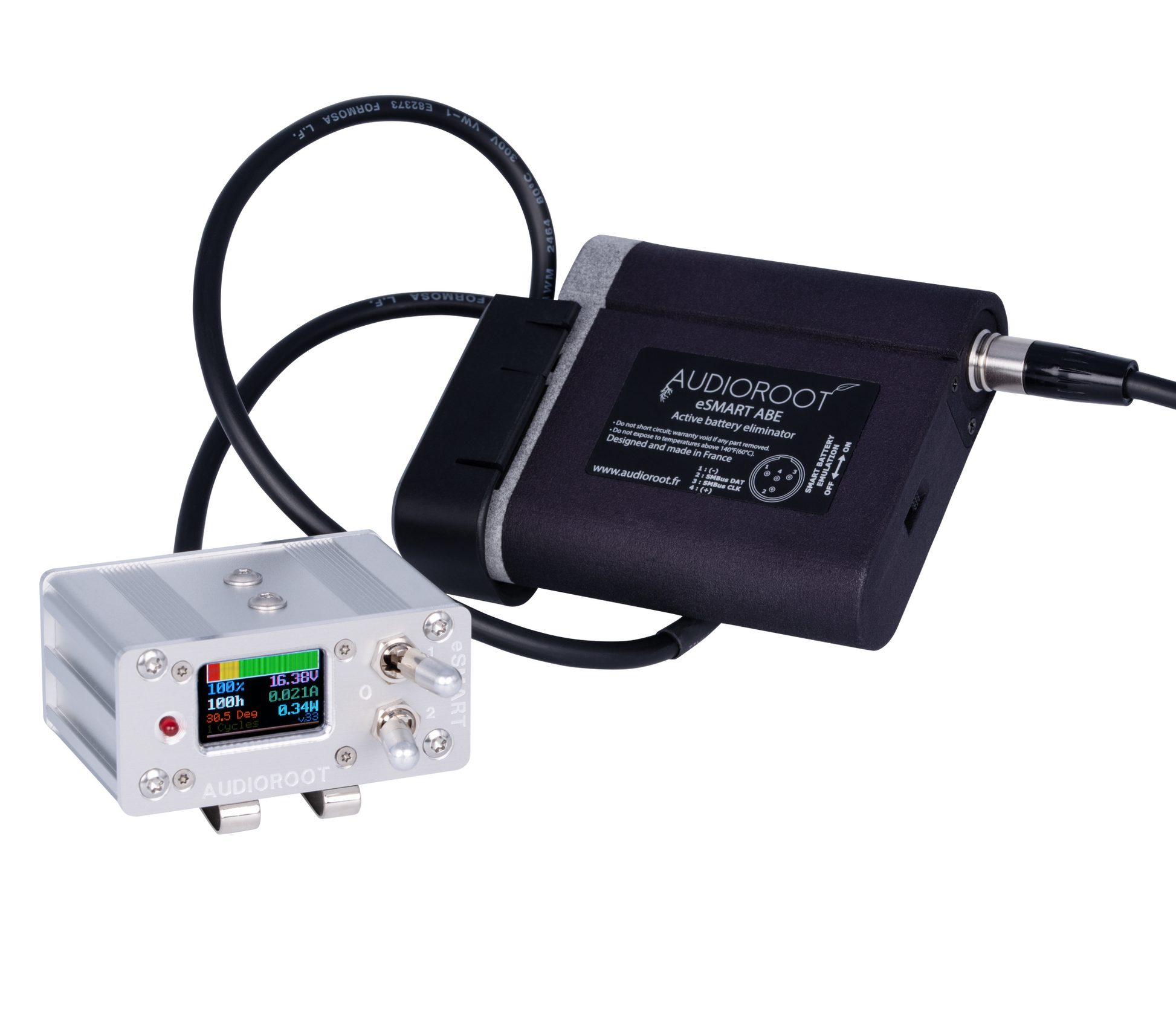

Audioroot eSMART ABE connected to Audioroot eSMART power distributor

88 × 78 × 22.7mm • 67g

Compact Smart-Battery Form Factor

The ABE is the same compact format as Audioroot's Li-48neo and Li-49Wh batteries, making it a practical way to integrate mains power or higher-capacity battery sources into portable location-sound systems.
