• Audioroot eSMART BG-DH MKII smart power distributor
  • Audioroot eSMART BG-DH MKII rear connections

Audioroot

Audioroot eSMART BG-DH MKII Compact Smart Battery Power Distributor

• Six Hirose-compatible DC outputs in a compact bag-friendly enclosure.
• 96 × 64 colour OLED with wide viewing angle for smart battery information.
• Three 2.5A resettable-fused output circuits plus auxiliary and SMBus pass-through outputs.
• Low-battery LED warning and locking power switches.

Need help choosing?

Choose the BG-DH MKII when you use Audioroot eSMART batteries and want a very compact six-output distributor with proper smart-battery data. Choose BG-DU for broader battery compatibility and its internal universal fuel-gauge functions.
£228.00 (£190.00 ex VAT)
£228.00 (£190.00 ex VAT)
Tax included. Shipping calculated at checkout.

The Audioroot eSMART BG-DH MKII combines smart-battery monitoring with compact DC power distribution for location sound bags. A colour OLED provides an easy-to-read view of compatible battery information, while six Hirose-compatible outputs distribute power to recorders, receivers and other accessories.

Three switched output groups provide practical control over connected devices. Protected outputs use resettable 2.5A polyswitch fuses, while dedicated auxiliary and SMBus pass-through connections support more specialised workflows.

Choosing your type

Choose the BG-DH MKII when you use Audioroot eSMART batteries and want a very compact six-output distributor with proper smart-battery data. Choose BG-DU for broader battery compatibility and its internal universal fuel-gauge functions.

Specifications

Input

1x Smart Battery / SMBus

Outputs

6x Hirose-compatible

Fused Outputs

3 circuits, 2.5A resettable

Display

96 × 64 colour OLED

Low Battery Warning

LED below approx. 10%

Dimensions

65 × 50 × 30mm

Weight

130g

Warranty

1 year

Compatibility

• Audioroot eSMART Li-48neo, Li-96neo, Li-49Wh and Li-98Wh.
• Compatible smart battery sources using the correct four-conductor input lead.
• Professional location sound equipment powered from Hirose-compatible DC leads.

Dimensions

Input

1 Smart

Outputs

6 Hirose

Protection

2.5A resettable

Display

Colour OLED

Weight

130g

What’s in the box?

• 1x Audioroot eSMART BG-DH MKII power distributor
• 1x Belt clip

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• A compatible smart battery and correct SMBus-capable input cable are required for full telemetry.
• Observe the 2.5A protection limit on fused output circuits.
• Battery and equipment output cables are sold separately.

Audioroot eSMART BG-DH MKII Compact Smart Battery Power Distributor

£228.00

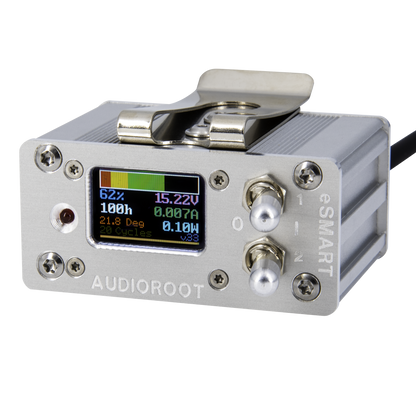

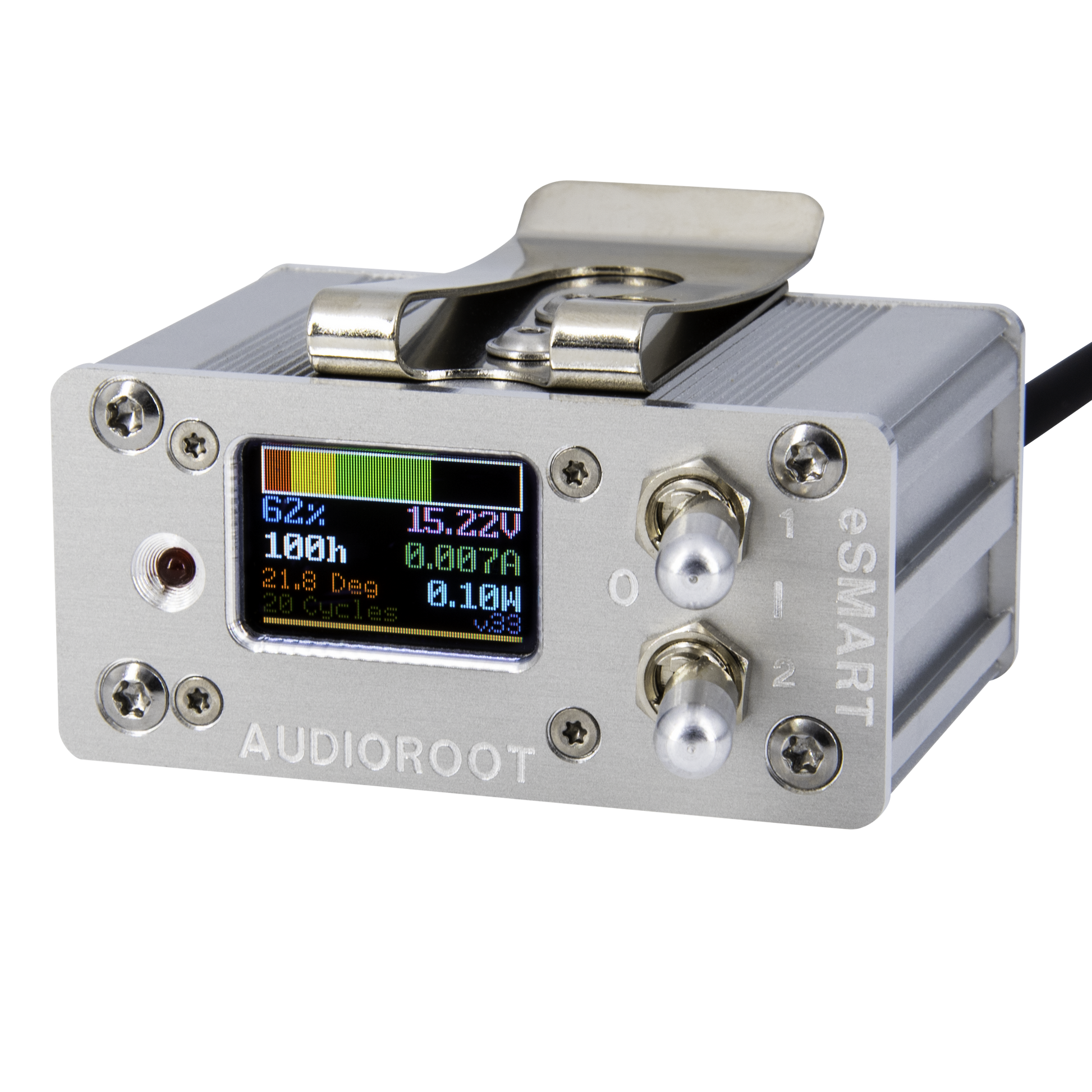

Audioroot eSMART BG-DH MKII smart power distributor

6 Hirose Outputs • Colour OLED • 130g

Smart Distribution in a Tiny Footprint

The BG-DH MKII is purpose-built for eSMART battery users who want compact distribution and detailed battery monitoring.

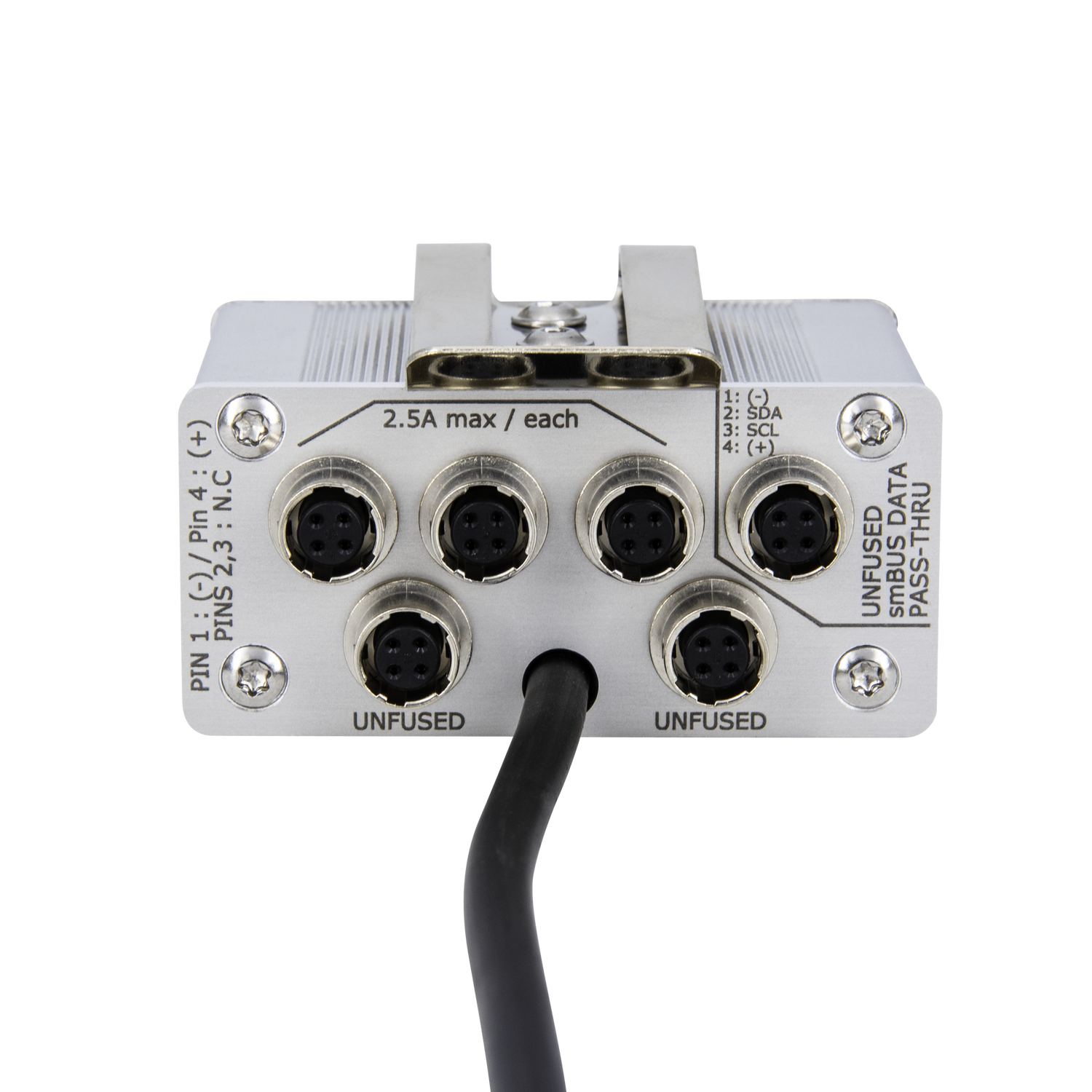

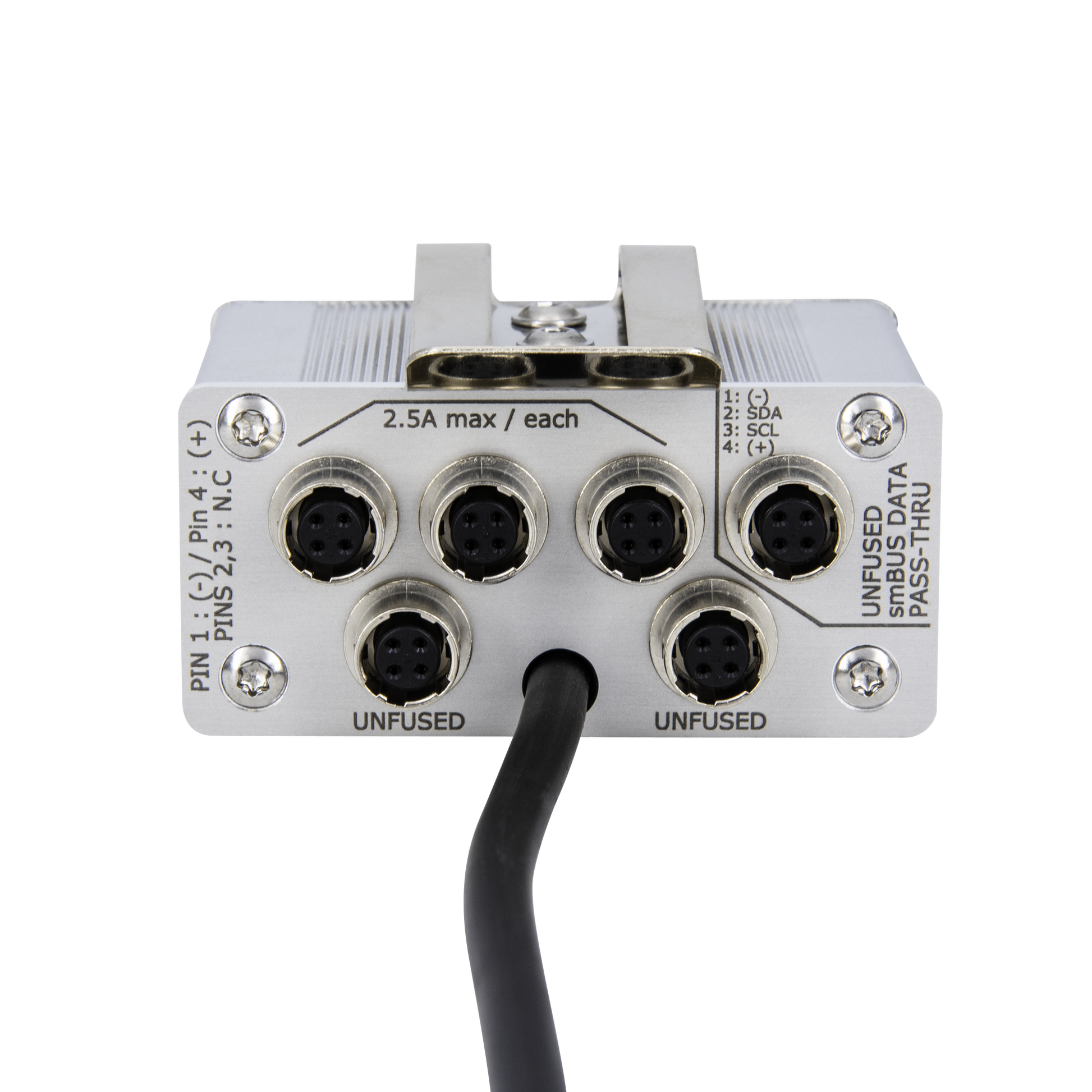

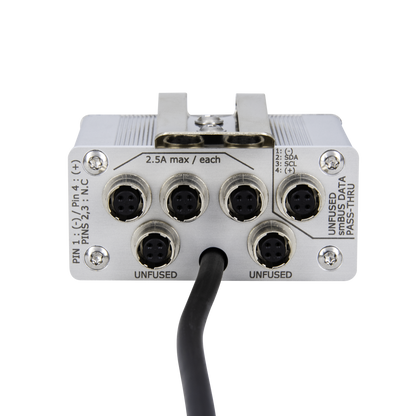

Audioroot eSMART BG-DH MKII rear connections

SMBus Colour OLED

Smart Battery Information at a Glance

The colour OLED reads compatible SMBus battery data and is designed to stay legible from a wide range of viewing angles inside a sound bag.
