Audioroot

Audioroot eSMART BG-DU Universal Power Distributor with Fuel Gauge

• Eight DC outputs controlled by three locking switches.
• Colour OLED fuel gauge supports smart batteries and can learn conventional battery capacity using an internal coulomb counter.
• Primary outputs protected by 2.5A resettable fuses.
• BG-DU-REG variant adds isolated regulated 12V and 9V outputs.

Choose your regulated outputs:

Need help choosing?

Choose the standard BG-DU for flexible battery compatibility and intelligent fuel-gauging. Choose BG-DU-REG when you also need isolated regulated 12V/9V rails for sensitive or voltage-specific equipment.
£298.80 (£249.00 ex VAT)
£298.80 (£249.00 ex VAT)
Tax included. Shipping calculated at checkout.

The Audioroot eSMART BG-DU is a universal sound-bag power distributor with an integrated colour fuel gauge. Unlike distributors designed only around one battery family, the BG-DU can work with a broad range of DC battery sources while its internal coulomb counter learns and tracks battery capacity when full SMBus data is unavailable.

Eight DC outputs are controlled by three locking switches, with resettable protection on the primary outputs. The optional BG-DU-REG version adds isolated regulated outputs for equipment that benefits from stable 12V and 9V rails.

Choosing your type

Choose the standard BG-DU for flexible battery compatibility and intelligent fuel-gauging. Choose BG-DU-REG when you also need isolated regulated 12V/9V rails for sensitive or voltage-specific equipment.

Specifications

Outputs

8

Controls

3 locking switches

Maximum Current

5A total

Protection

2.5A resettable on protected outputs

Standard Input Range

Approx. 6–24V DC

REG Input Range

Approx. 11–18V DC

Standard Dimensions

85 × 75 × 30mm

Standard Weight

129g

REG Dimensions

85 × 120 × 30mm

REG Weight

300g

Warranty

1 year

Compatibility

• Standard BG-DU: battery sources approximately 6–24V DC.
• BG-DU-REG: battery sources approximately 11–18V DC.
• Full smart-battery data requires the correct four-conductor SMBus-capable input cable.

Dimensions

Outputs

8

Max Current

5A

Fuel Gauge

Colour OLED

REG Option

12V + 9V

Standard Weight

129g

What’s in the box?

• 1x Audioroot eSMART BG-DU power distributor in selected version
• 1x Belt clip

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• Use a four-conductor eHRS4-OUT-4W or equivalent smart-data lead when SMBus telemetry is required; a two-wire lead carries power only.
• Maximum total current is 5A.
• The REG version is physically larger and includes isolated regulated outputs; select the correct variant for your rig.

Audioroot eSMART BG-DU Universal Power Distributor with Fuel Gauge

£298.80

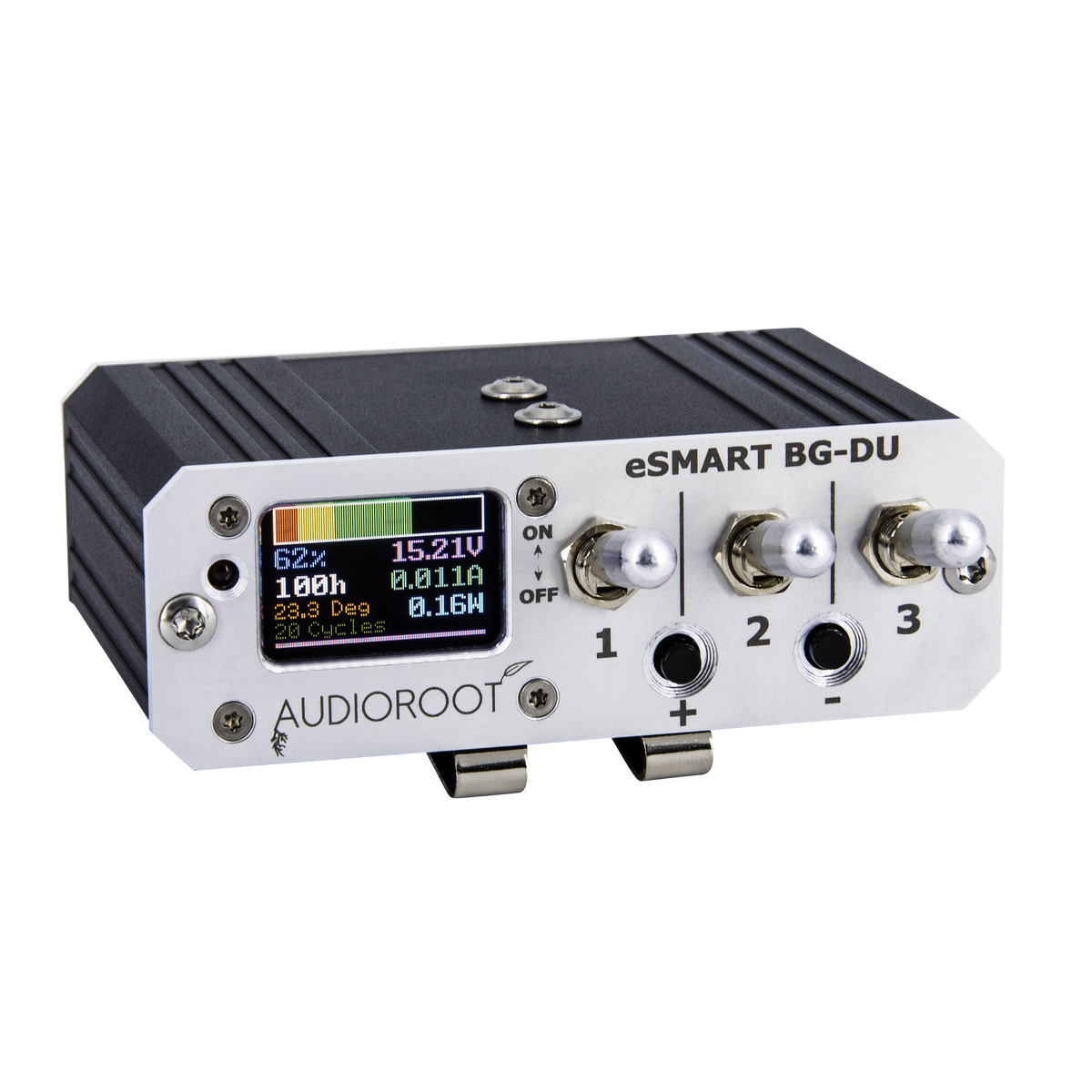

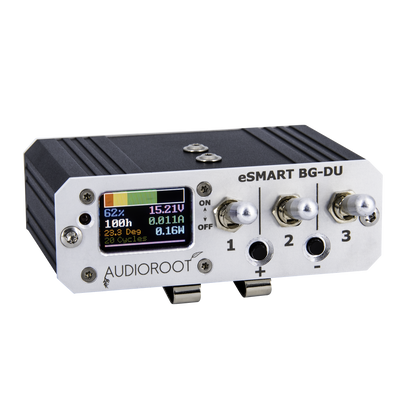

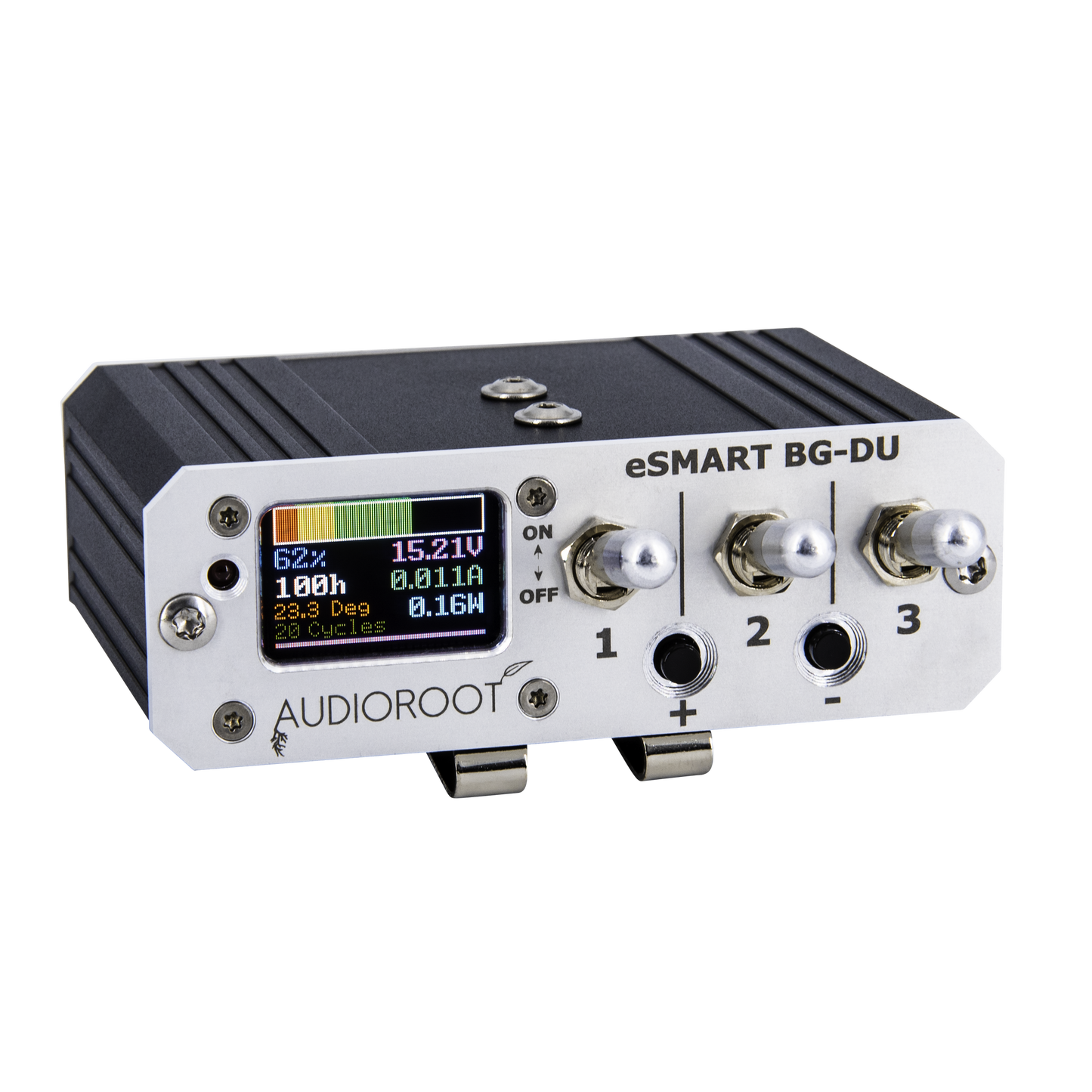

Audioroot eSMART BG-DU universal power distributor

8 Outputs • Colour Fuel Gauge • Optional Regulation

One Distributor for Mixed Battery Systems

The BG-DU is a flexible choice for users who work across smart batteries, conventional packs and larger cart batteries.

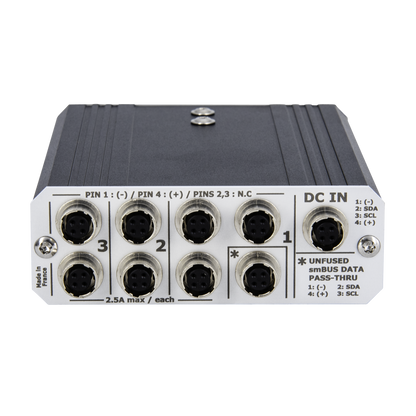

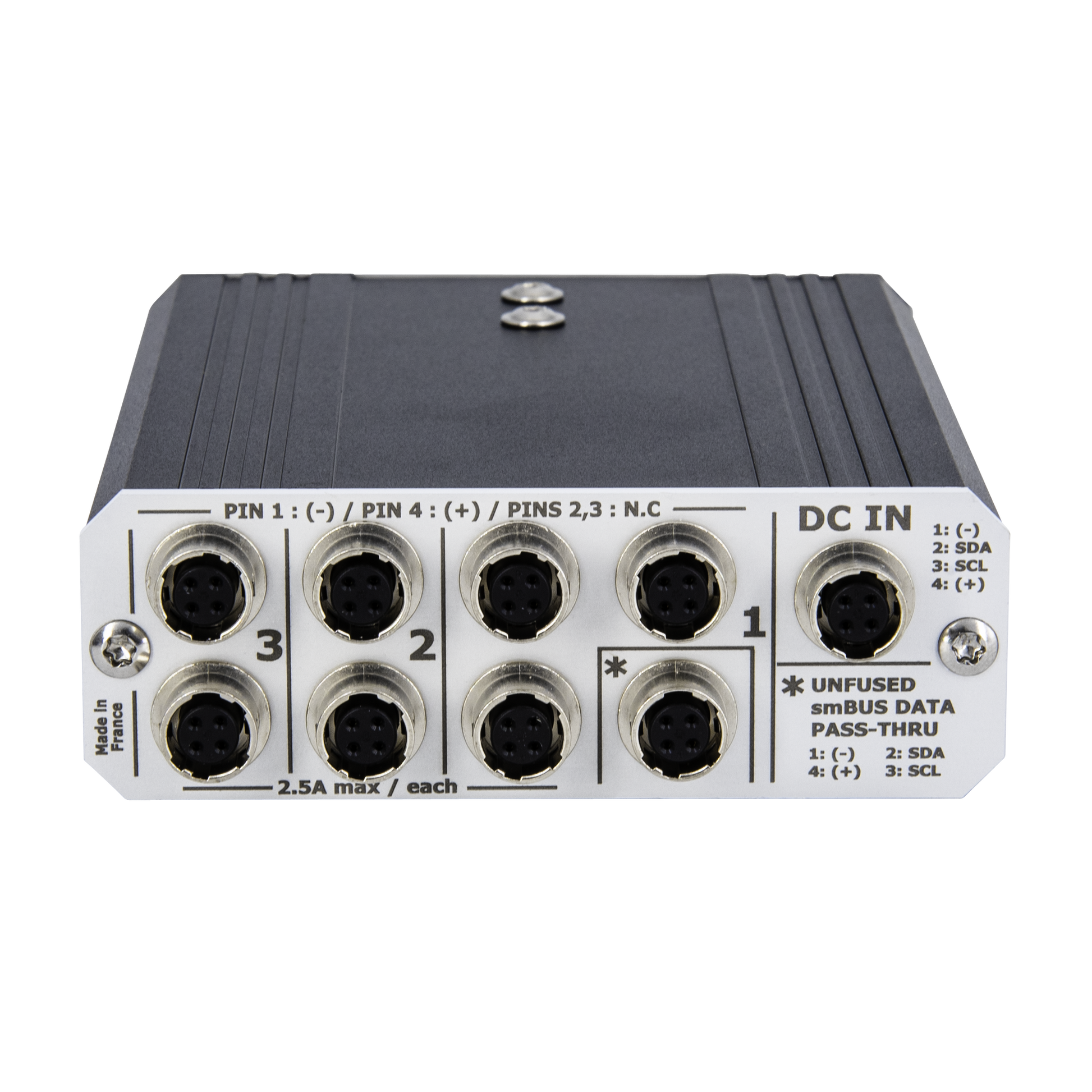

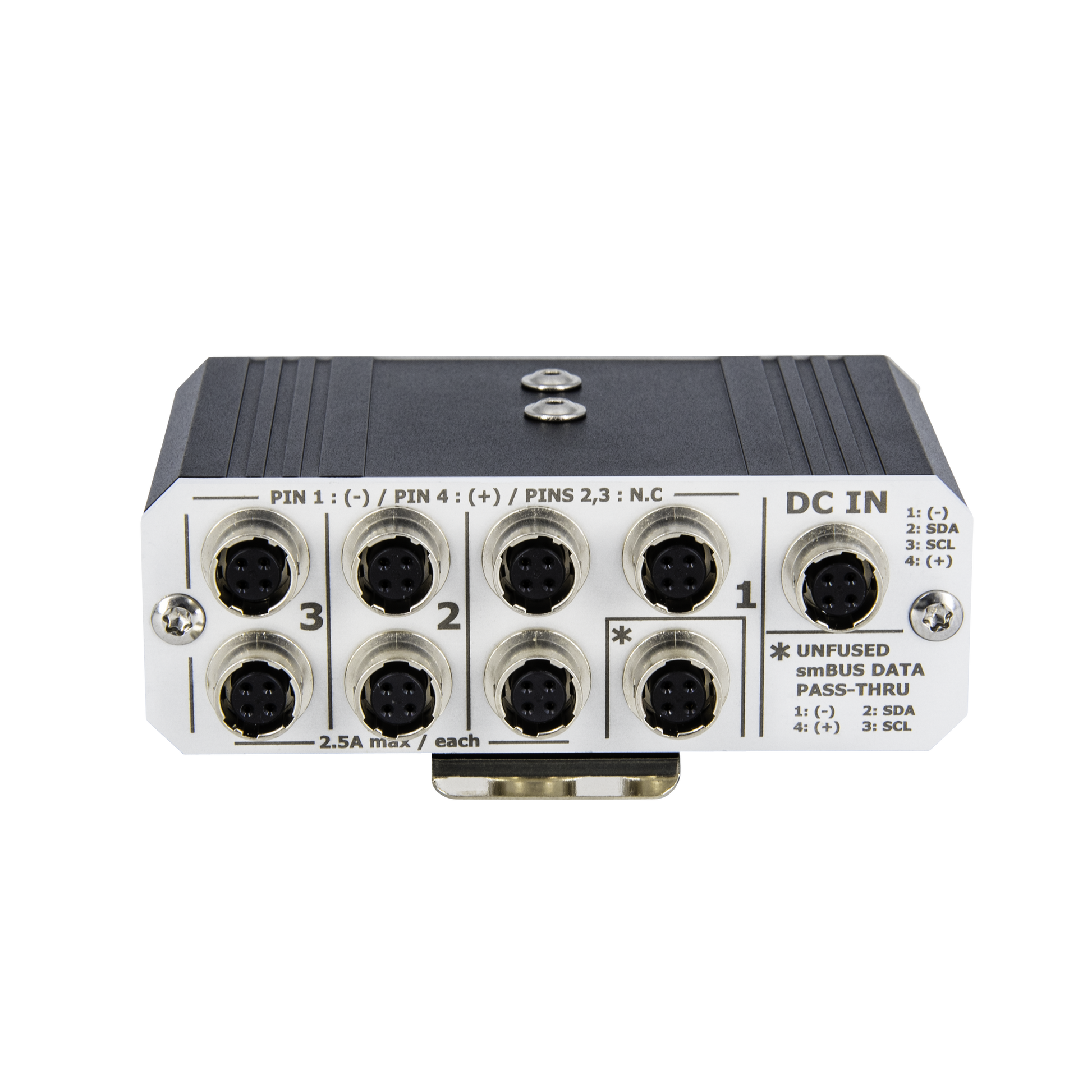

Audioroot eSMART BG-DU rear connections

SMBus + Coulomb Counter

Universal Battery Fuel Gauging

The BG-DU can use SMBus telemetry from compatible smart batteries or its own coulomb counter to estimate capacity and runtime from conventional sources.

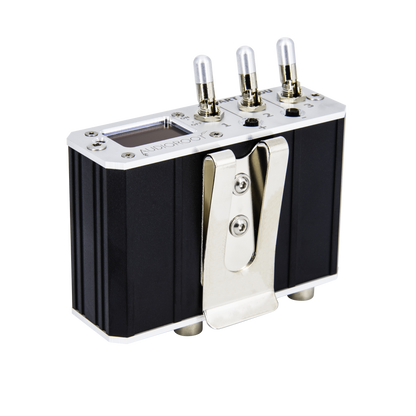

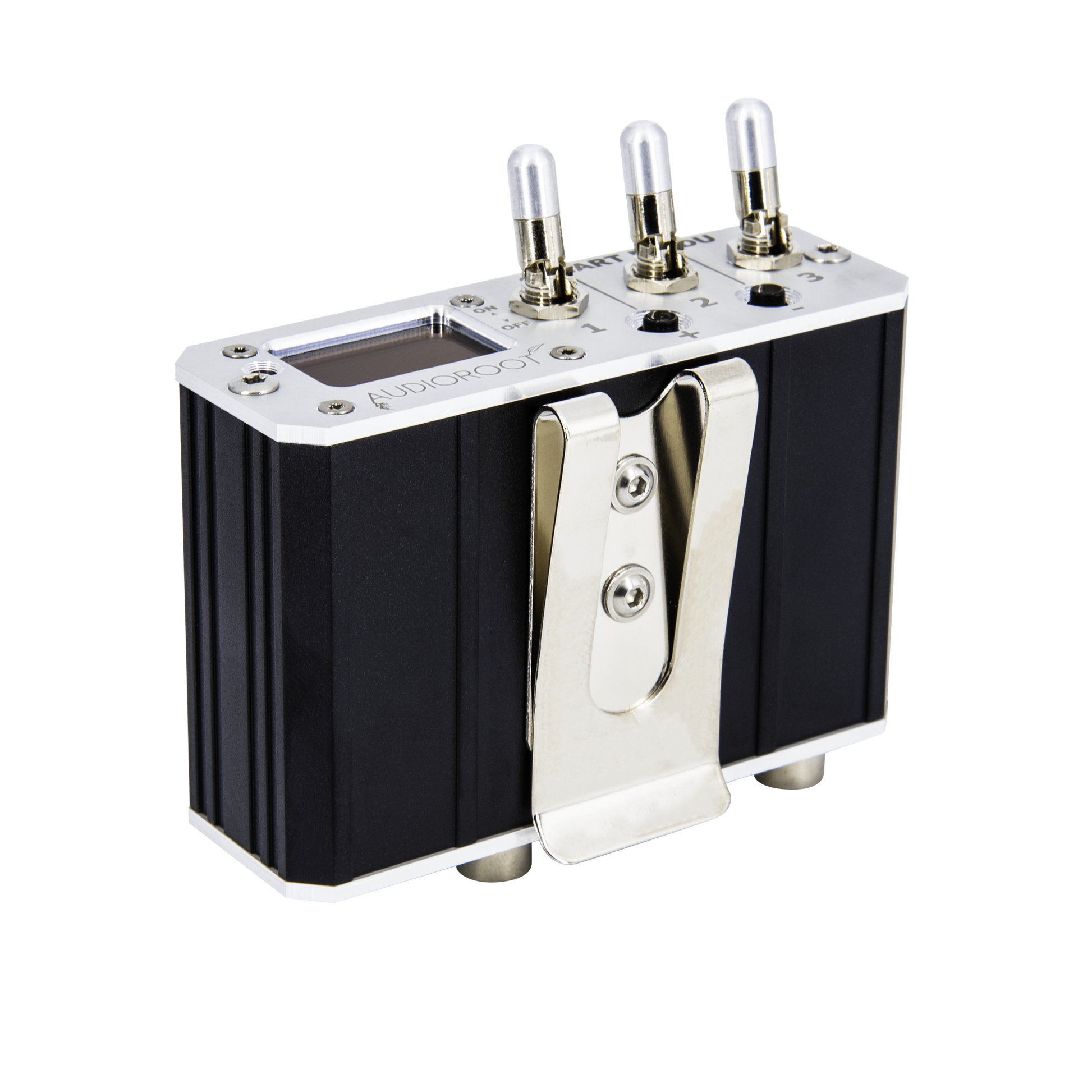

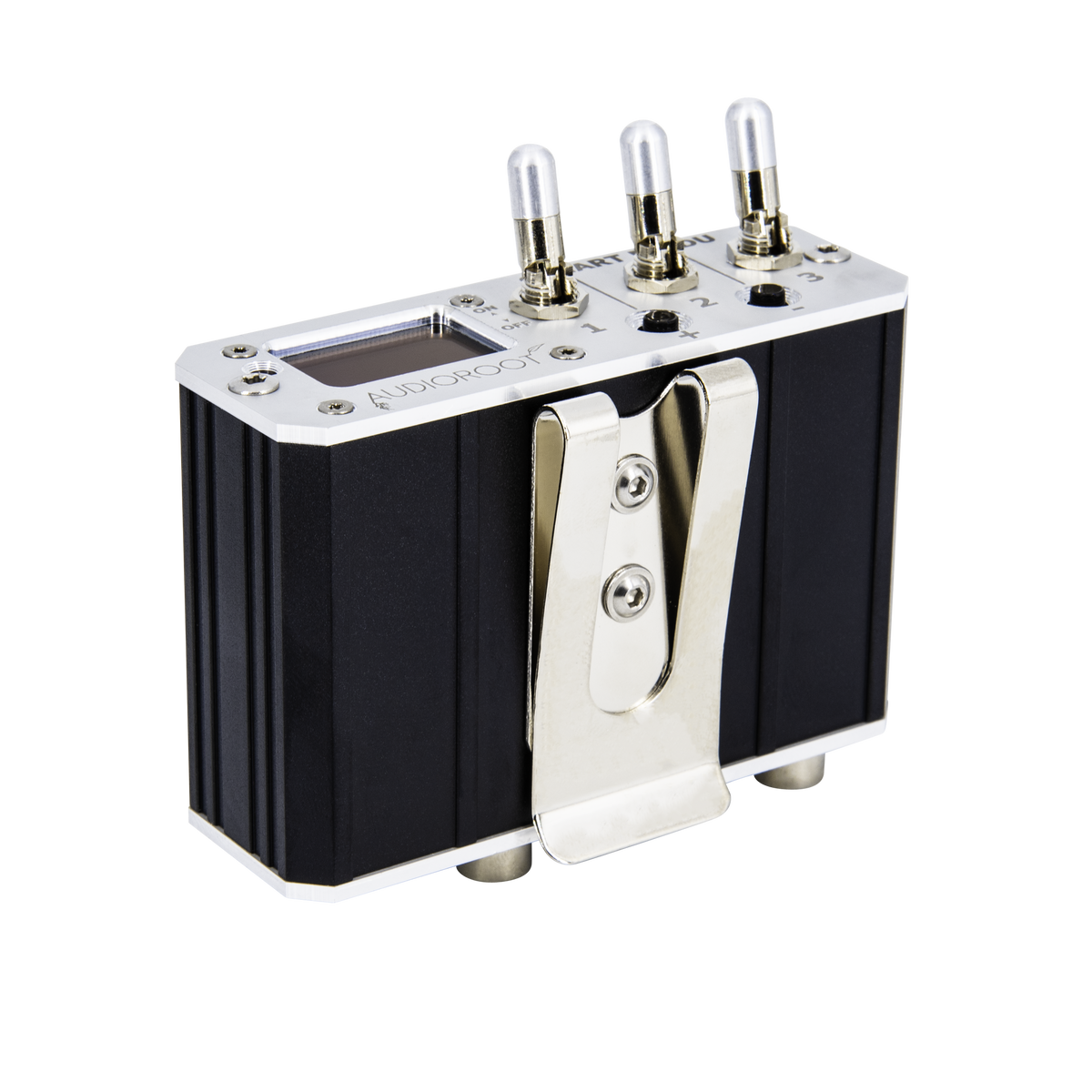

Audioroot eSMART BG-DU belt clip view

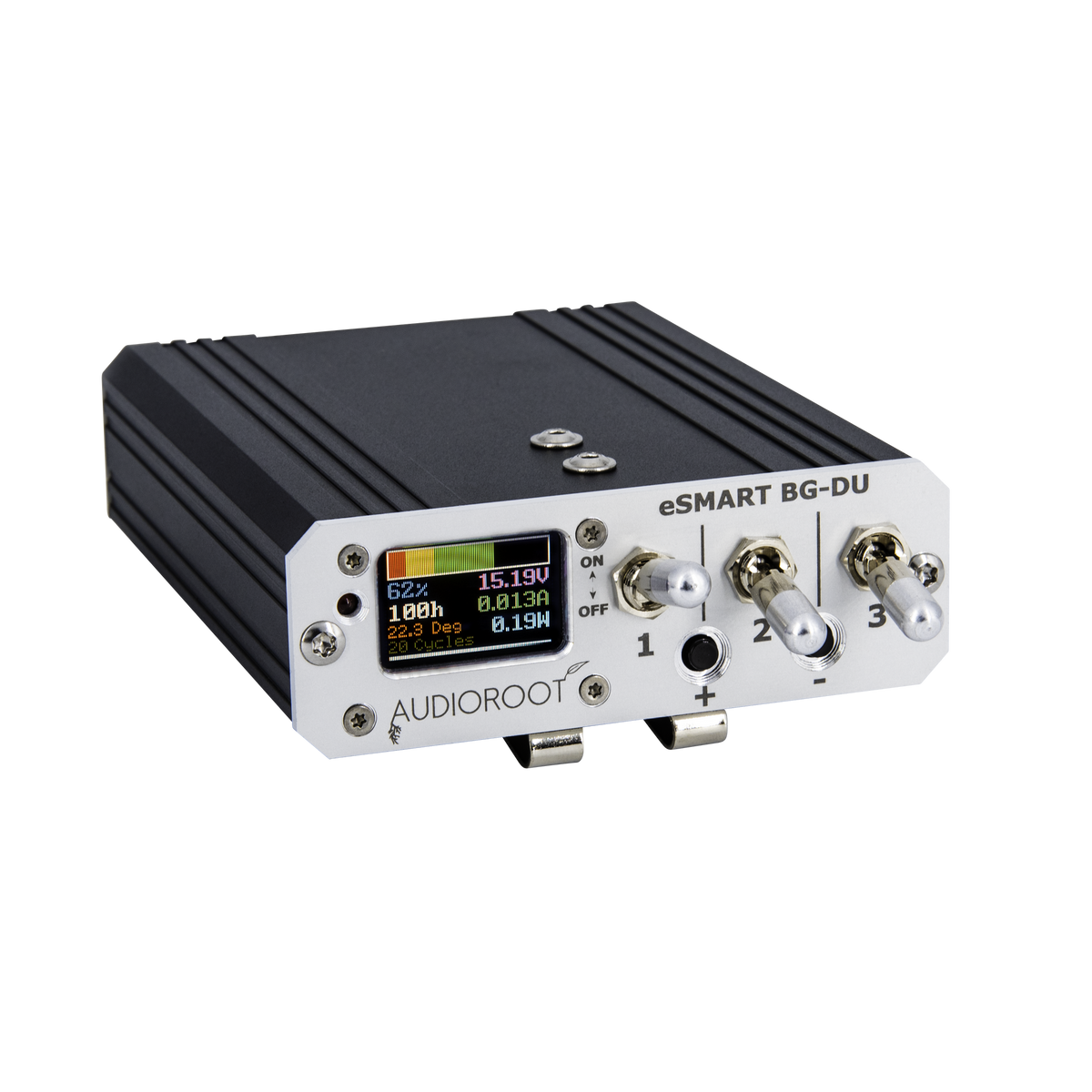

BG-DU-REG Option

Optional Regulated Outputs

The BG-DU-REG version adds isolated regulated outputs for equipment that needs a stable supply independent of battery voltage.
