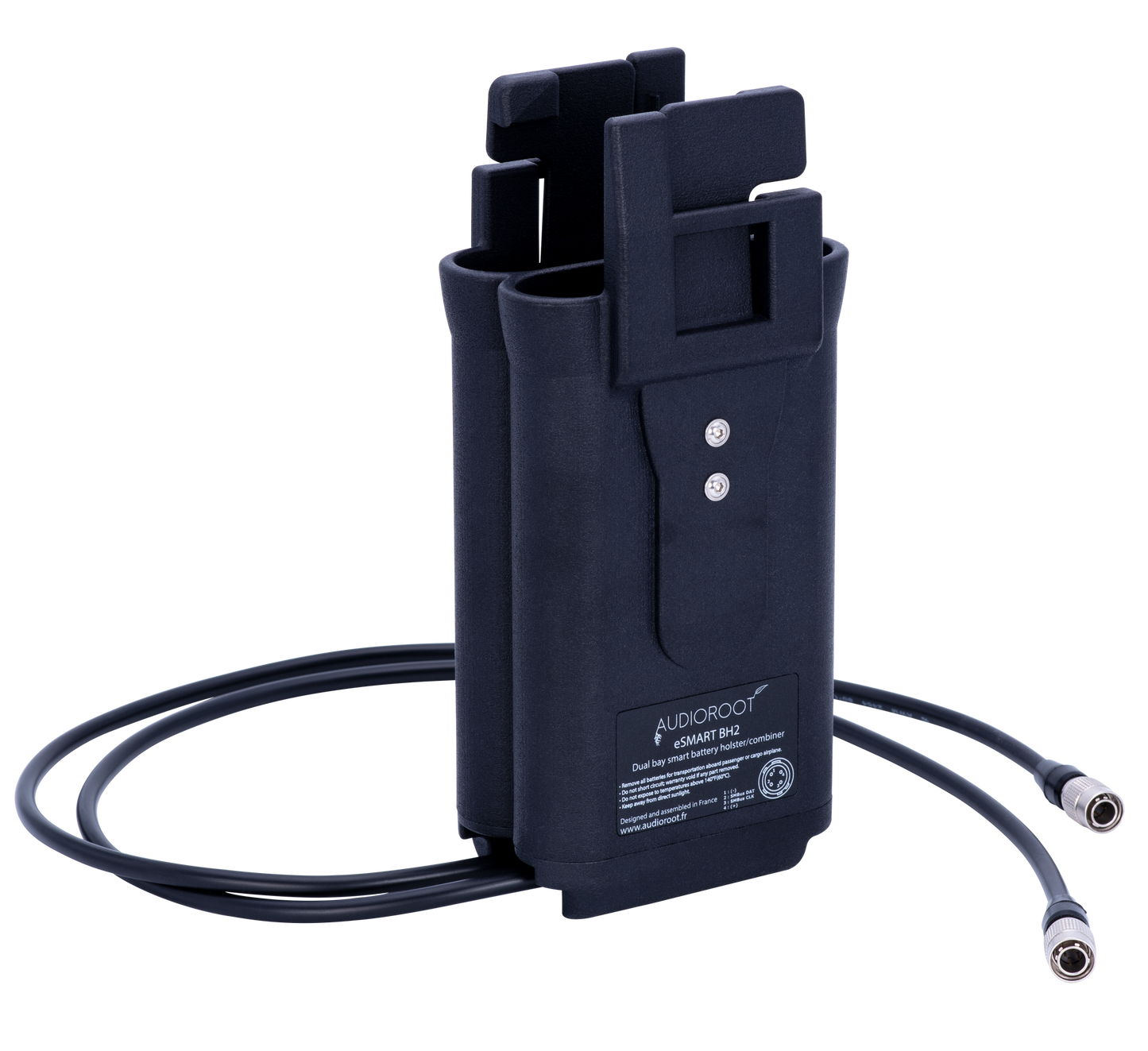

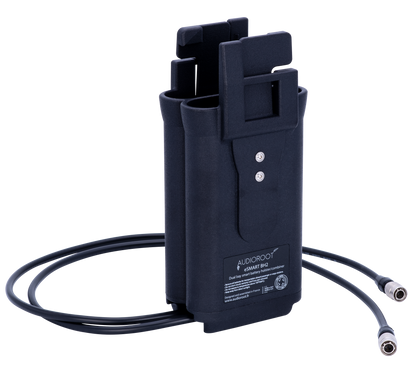

• Audioroot eSMART BH2 dual smart battery holder direct HRS4 version

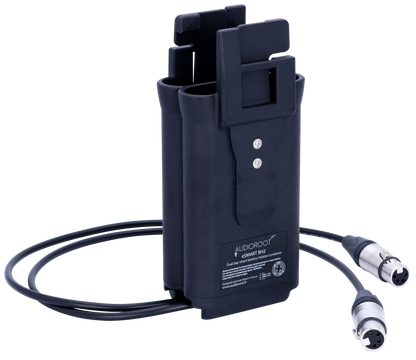

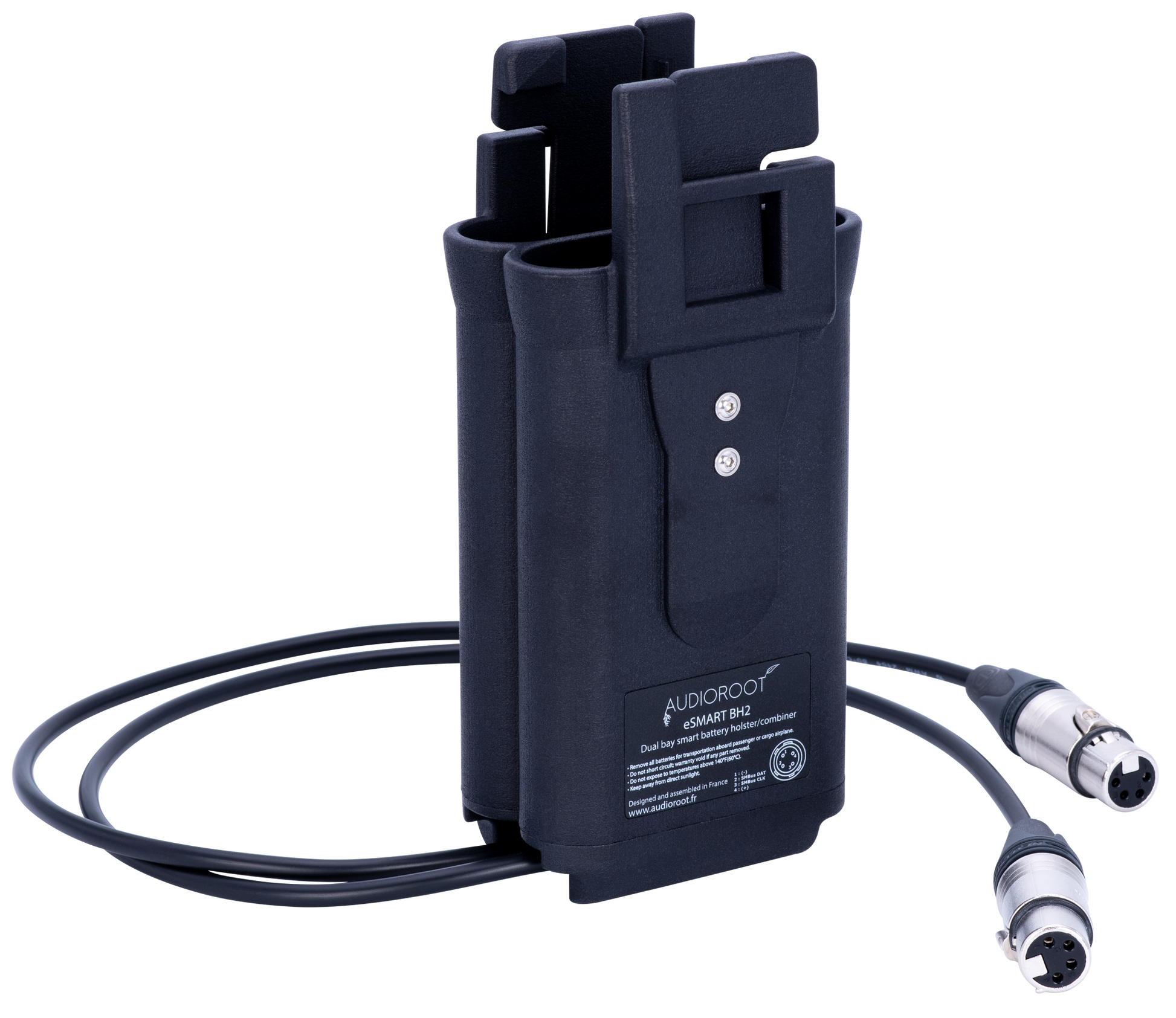

  • Audioroot eSMART BH2 direct XLR4F version

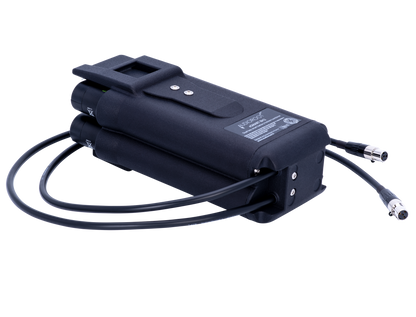

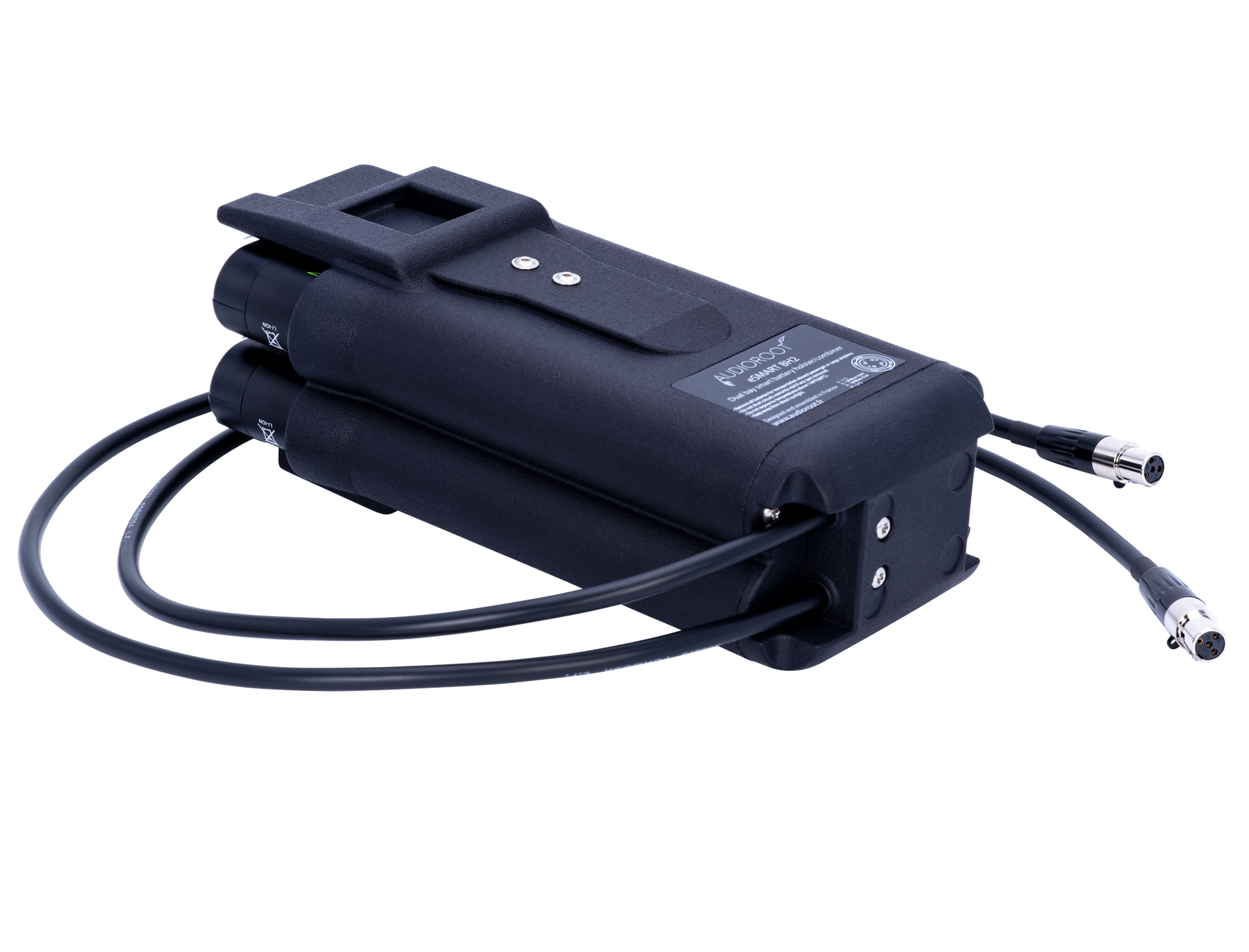

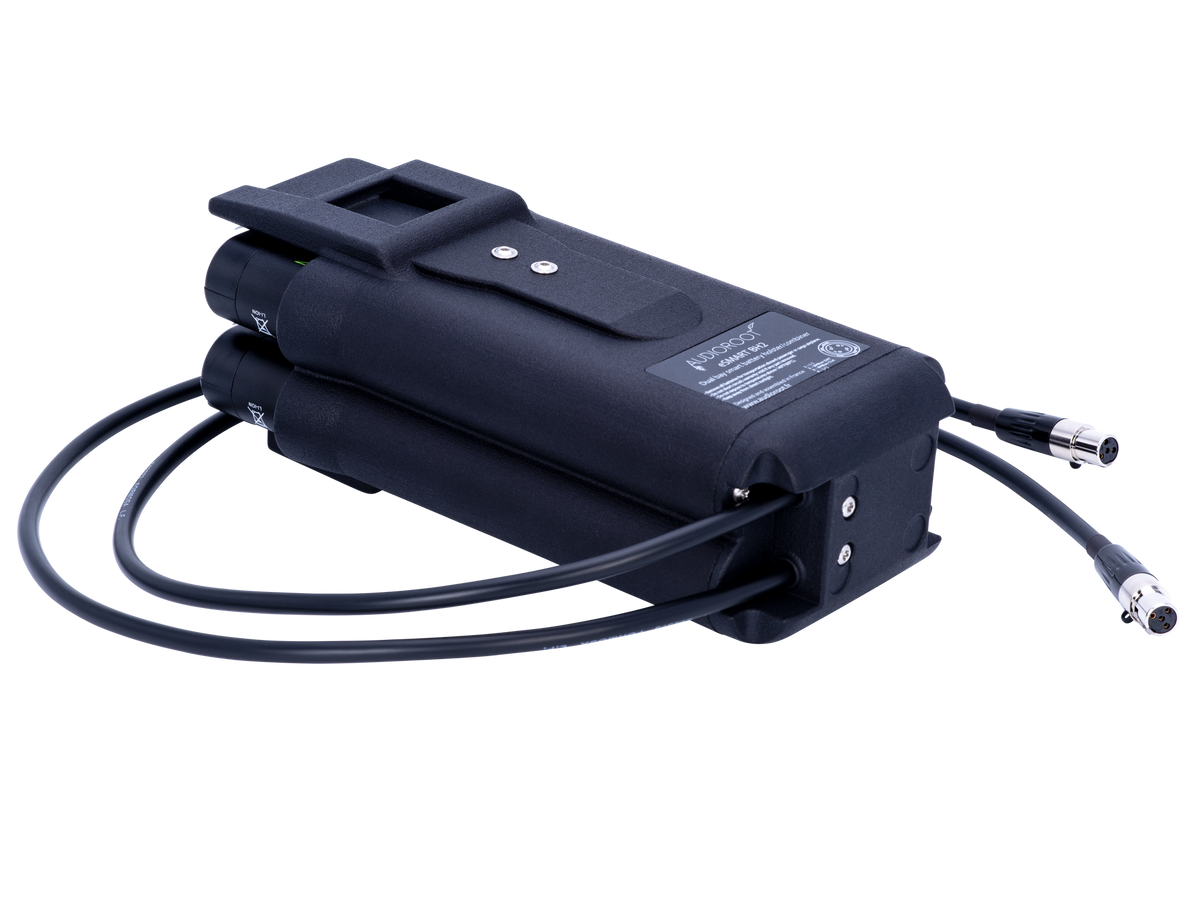

  • Audioroot eSMART BH2 direct TA4F version
  • Audioroot eSMART BH2 direct system shown with TRIO

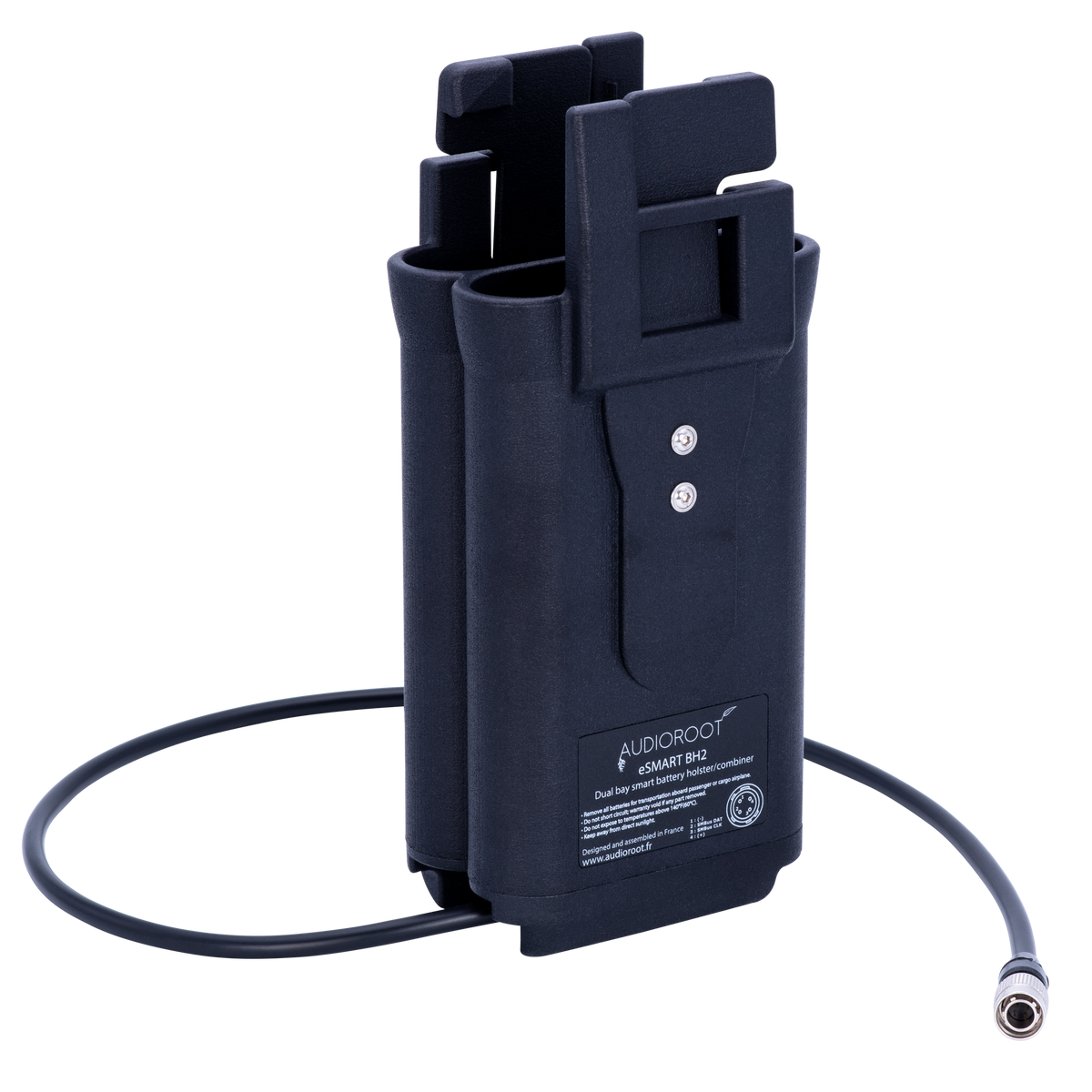

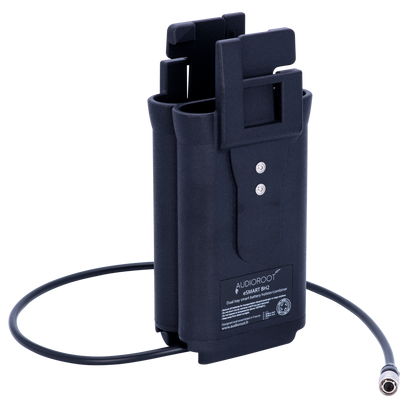

  • Audioroot eSMART BH2 combined HRS4 version
  • Audioroot eSMART BH2 combined system with BG-DU

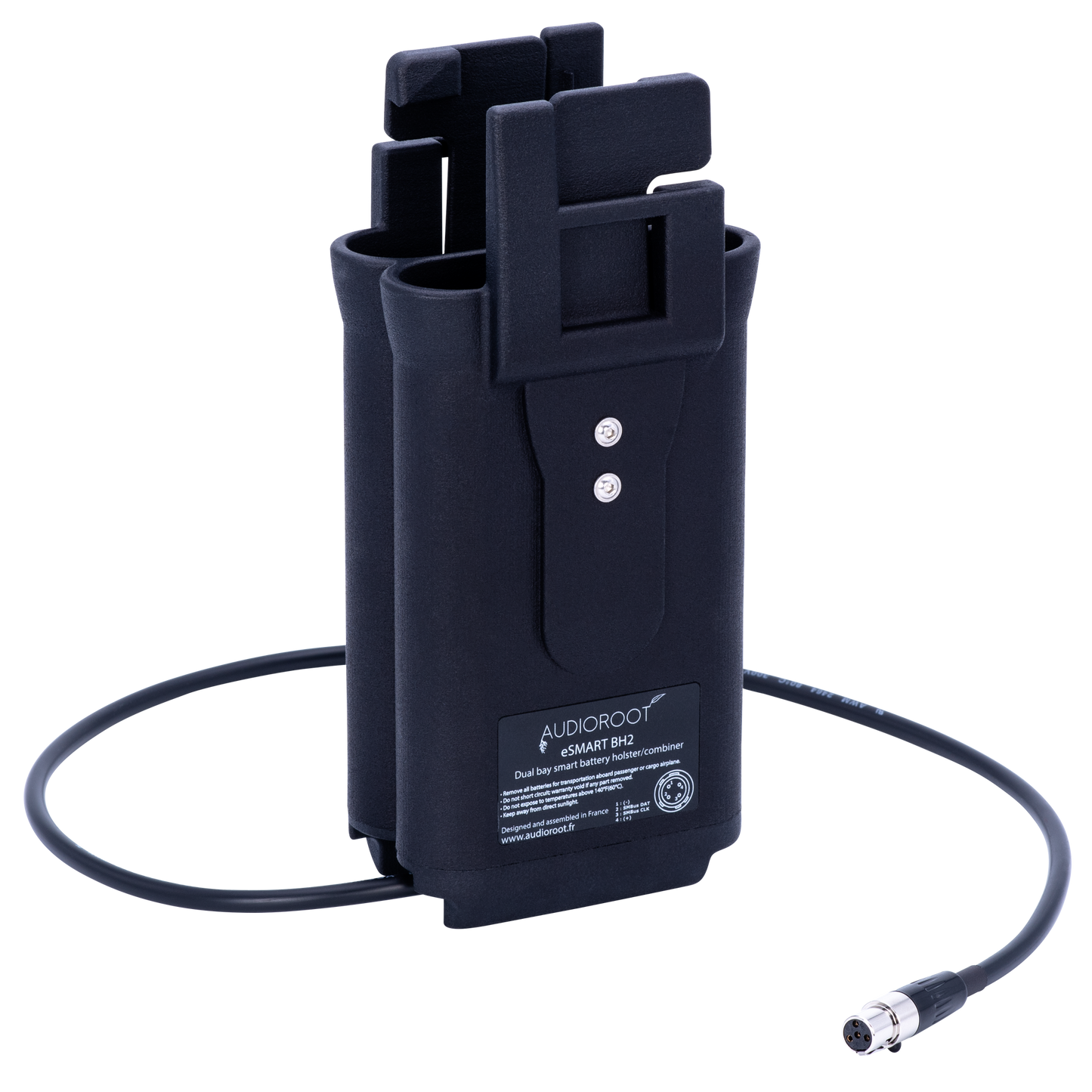

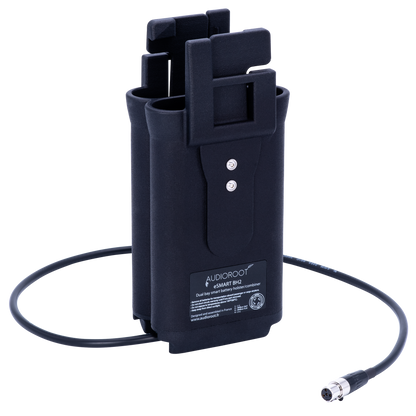

  • Audioroot eSMART BH2 combined TA4F version

Audioroot

Audioroot eSMART BH2 Dual Smart Battery Holder / Combiner

• Two spring-loaded battery slots for eSMART Li-96neo / Li-98Wh batteries.
• Direct configuration provides two independent smart power/data leads.
• Combined configuration actively combines battery power and telemetry into one smart output.
• D-TAP provides an additional combined power output.
• Standard 60cm HRS4, TA4F or XLR4F output options.

Choose your output type:
Choose your output connector:

Need help choosing?

Choose Direct when your power distributor has two independent battery inputs and you want each battery presented separately. Choose Combined when you need both batteries to behave as one actively combined smart source into a single input.
£299.00 (£249.17 ex VAT)
£299.00 (£249.17 ex VAT)
Tax included. Shipping calculated at checkout.

The Audioroot eSMART BH2 is a dual holder, holster and combiner for long-format eSMART Li-96neo and Li-98Wh batteries. Two spring-loaded slots secure the batteries in a compact wearable assembly, while a reversible belt/bag clip and D-TAP output make it practical for mobile production sound rigs.

The Direct version provides two independent four-conductor smart-battery leads, one from each battery, making it ideal for multi-input distributors such as the eSMART TRIO. The Combined version actively combines both battery power and telemetry into a single smart output for single-input systems such as the BG-DU.

Choosing your type

Choose Direct when your power distributor has two independent battery inputs and you want each battery presented separately. Choose Combined when you need both batteries to behave as one actively combined smart source into a single input.

Specifications

Battery Slots

2

Output Modes

Direct / Actively Combined

Connector Options

HRS4 / TA4F / XLR4F

Standard Cable Length

60cm

Additional Output

D-TAP

Dimensions

71 × 90 × 193mm

Weight Empty

250g

Weight with 2 Batteries

Approx. 1150g

Warranty

1 year

Compatibility

• Audioroot eSMART Li-96neo and Li-98Wh batteries.
• Direct versions are ideal for multi-input distributors such as eSMART TRIO.
• Combined versions are ideal for a single-input smart distributor such as BG-DU.
• XLR4 versions can suit K-ART and other correctly wired XLR4 power systems.

Dimensions

Battery Slots

2

Modes

Direct / Combined

Cable

60cm standard

Empty Weight

250g

Dimensions

71×90×193mm

What’s in the box?

• 1x Audioroot eSMART BH2 dual holder/combiner
• Integrated 60cm output lead(s) according to selected configuration
• 1x Reversible belt/bag clip

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• Batteries are not included.
• Direct and Combined versions behave differently; choose the correct output type for your distributor.
• Standard catalogue variants use 60cm cables; custom builds and lengths are available separately.

Audioroot eSMART BH2 Dual Smart Battery Holder / Combiner

£299.00

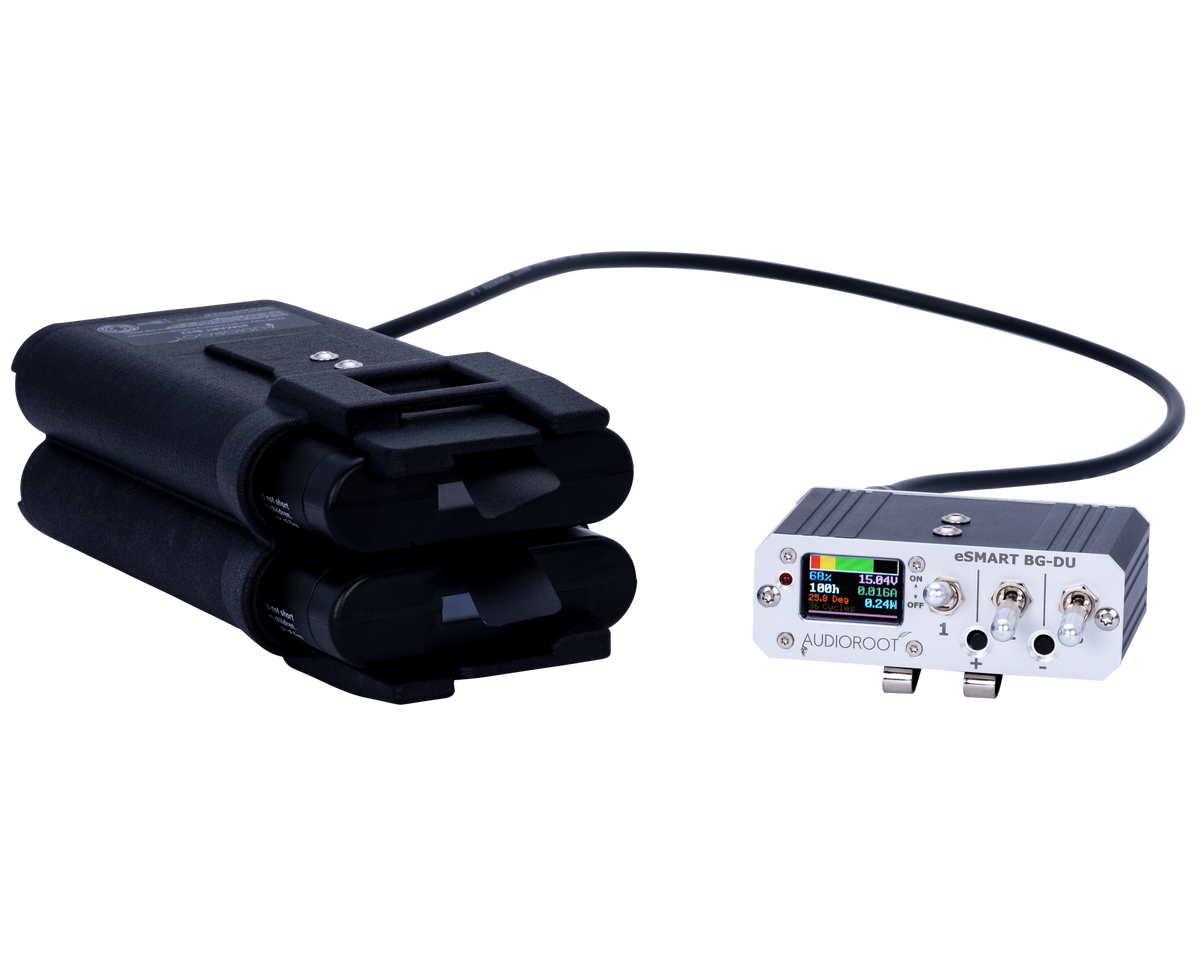

Audioroot eSMART BH2 combined system with BG-DU

2 Battery Slots • D-TAP • Direct or Combined

Two Smart Batteries, One Wearable System

BH2 is a flexible battery platform for larger bag rigs, offering either independent dual outputs or an actively combined smart source.

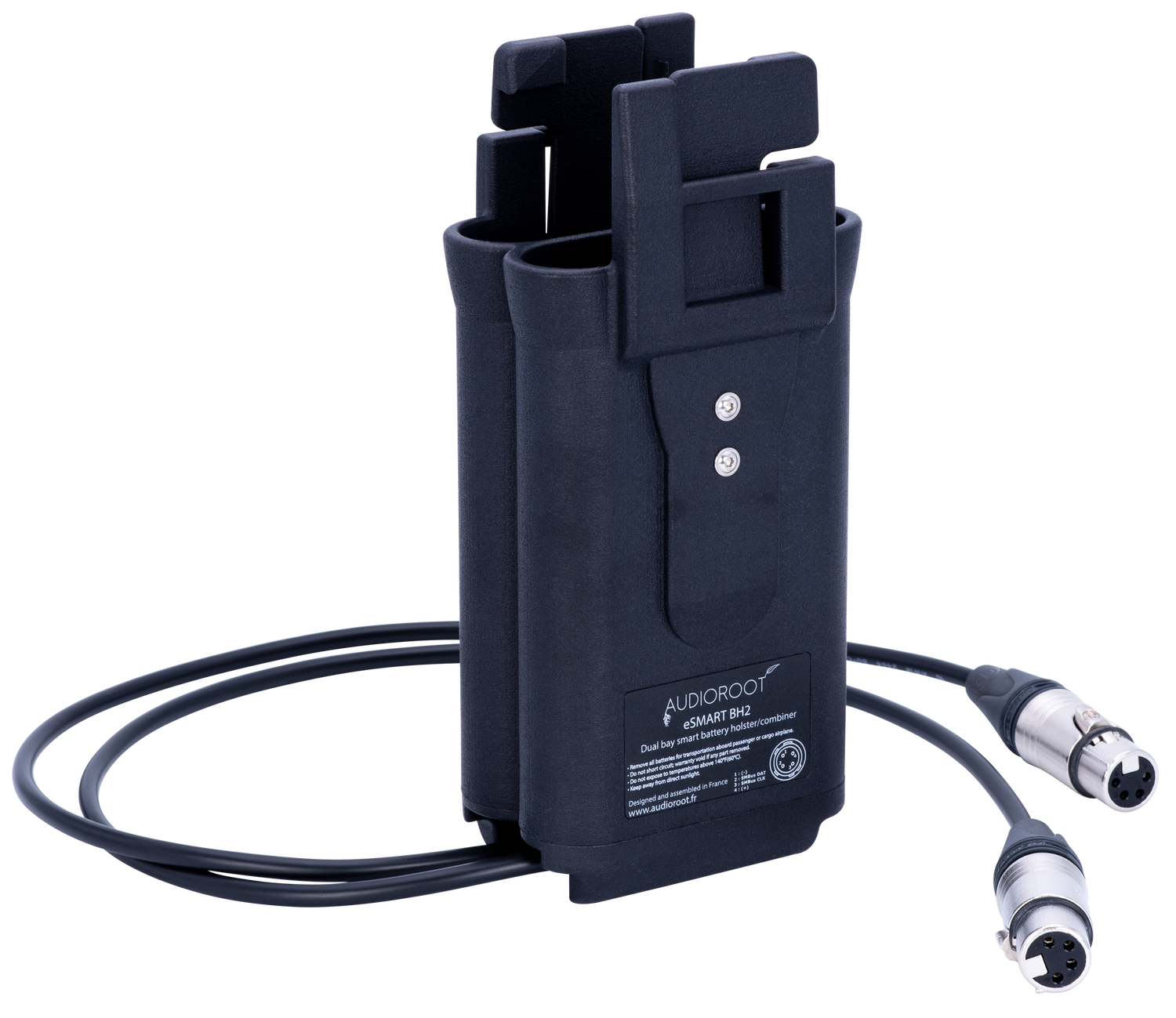

Audioroot eSMART BH2 direct XLR4F version

Direct or Combined Output

Direct or Actively Combined

Direct variants keep the two batteries independent for multi-input distribution, while Combined variants merge power and smart telemetry into one output for single-input systems.

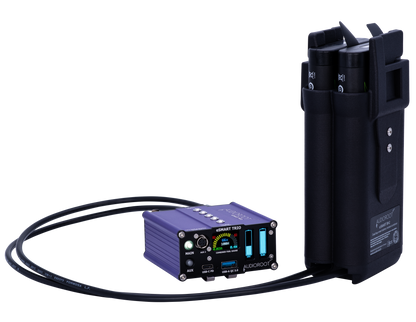

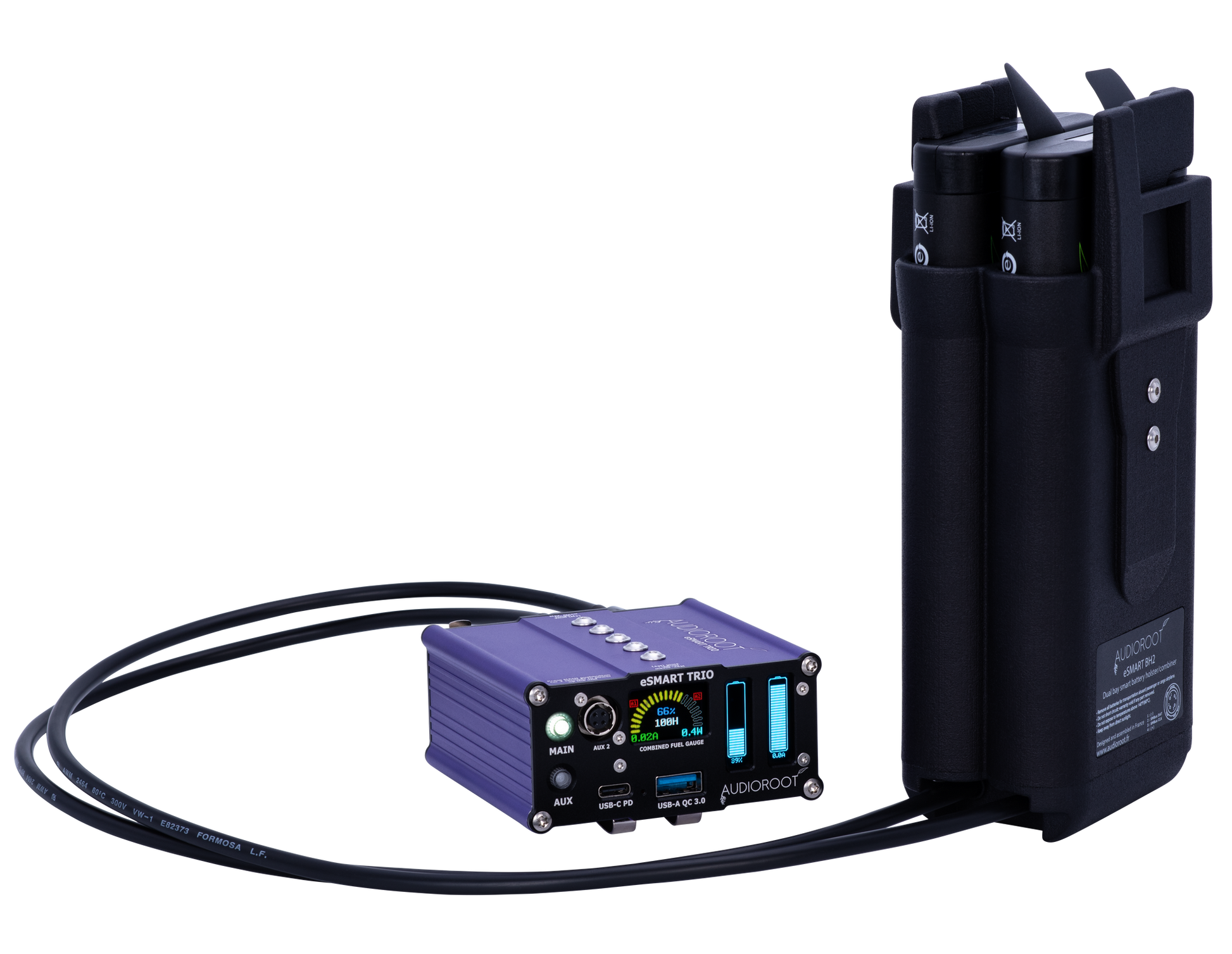

Audioroot eSMART BH2 direct system shown with TRIO

2 Smart Battery Slots

Double the Battery Capacity on the Bag

Two secure long-format battery slots provide a practical way to carry greater energy capacity while maintaining professional power and SMBus connectivity.
