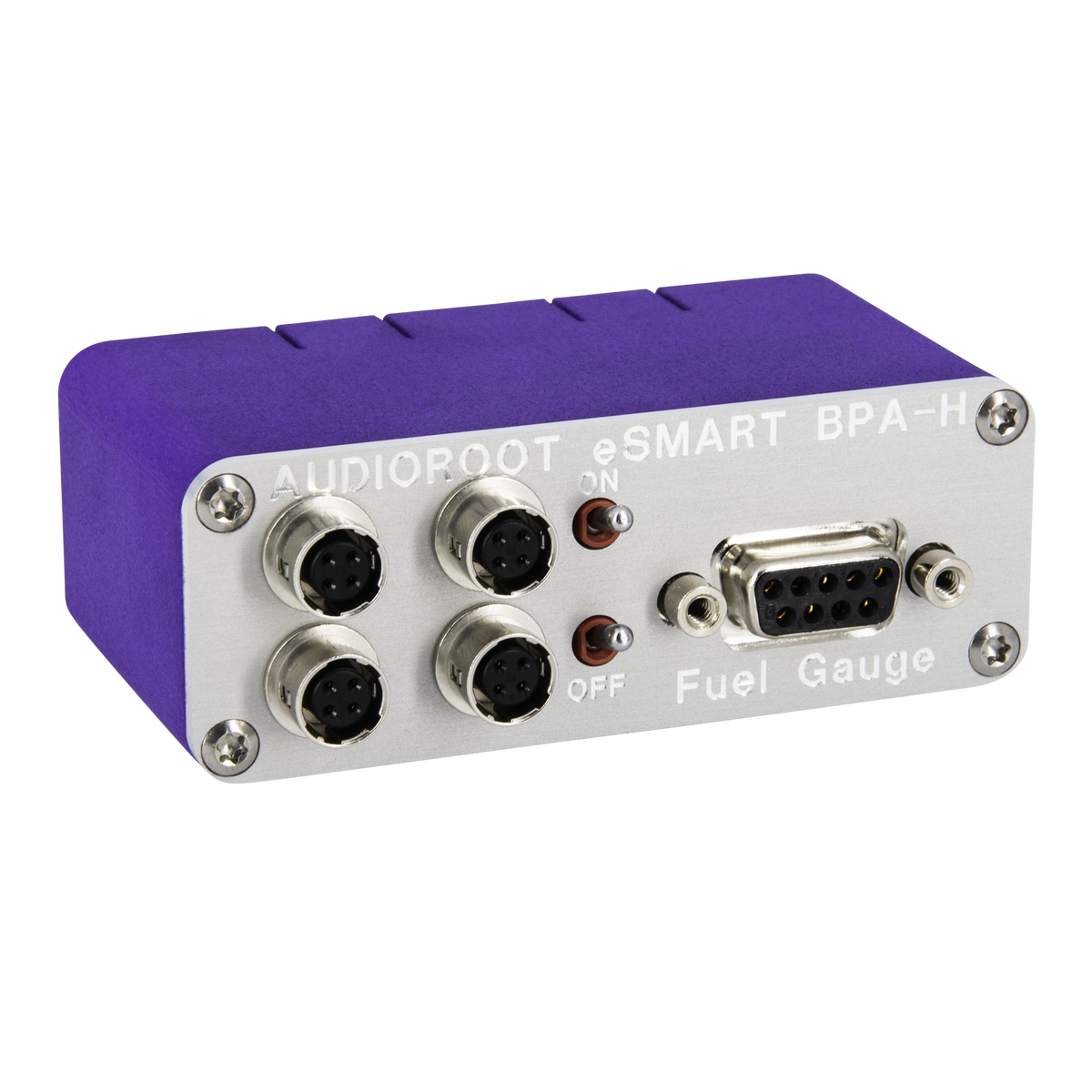

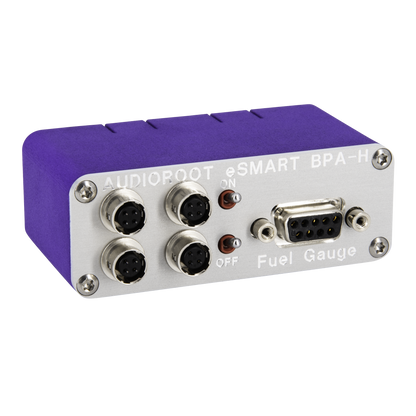

Audioroot eSMART BPA-H Hirose Power Adaptor for Smart Batteries

• Direct-mount adaptor for Audioroot eSMART lithium batteries.
• Four Hirose-compatible outputs switchable two by two.
• 2.5A resettable fuse on each output.
• Serial output for optional eSMART BG fuel gauge.
• Compact 77g aluminium design.

Need help choosing?

Choose the BPA-H if your location bag is wired around Hirose power cables. Choose the standard BPA if you use Switchcraft 760-series outputs instead.
£145.00 (£120.83 ex VAT)
£145.00 (£120.83 ex VAT)
Tax included. Shipping calculated at checkout.

The Audioroot eSMART BPA-H is a compact direct-mount power adaptor for eSMART lithium batteries. It provides four Hirose-compatible DC outputs arranged in two switchable pairs, giving a small production sound rig a clean way to distribute battery power without a separate distro box.

Each output is protected by a 2.5A resettable fuse, while a serial output can connect to the optional eSMART BG fuel gauge for external battery monitoring.

Choosing your type

Choose the BPA-H if your location bag is wired around Hirose power cables. Choose the standard BPA if you use Switchcraft 760-series outputs instead.

Specifications

Battery Interface

Direct eSMART battery mount

Outputs

4x Hirose-compatible

Switching

2 groups of 2

Protection

2.5A resettable per output

Fuel Gauge Port

Serial output for optional BG

Dimensions

83 × 50 × 30mm

Weight

77g

Warranty

1 year

Compatibility

• Audioroot eSMART Li-48neo, Li-96neo, Li-49Wh and Li-98Wh.
• Professional equipment powered from correctly wired Hirose-compatible DC leads.

Dimensions

Outputs

4 Hirose

Switching

2 + 2

Protection

2.5A each

Weight

77g

Size

83×50×30mm

What’s in the box?

• 1x Audioroot eSMART BPA-H power adaptor

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• Battery is not included.
• Each output is protected at 2.5A.
• Output cables to connected equipment are sold separately.

Audioroot eSMART BPA-H Hirose Power Adaptor for Smart Batteries

£145.00
Audioroot eSMART BPA-H Hirose power adaptor

4 Hirose Outputs • 2 Switch Groups • 77g

Compact Hirose Power From an eSMART Battery

A very compact power distribution option for small professional audio bags.

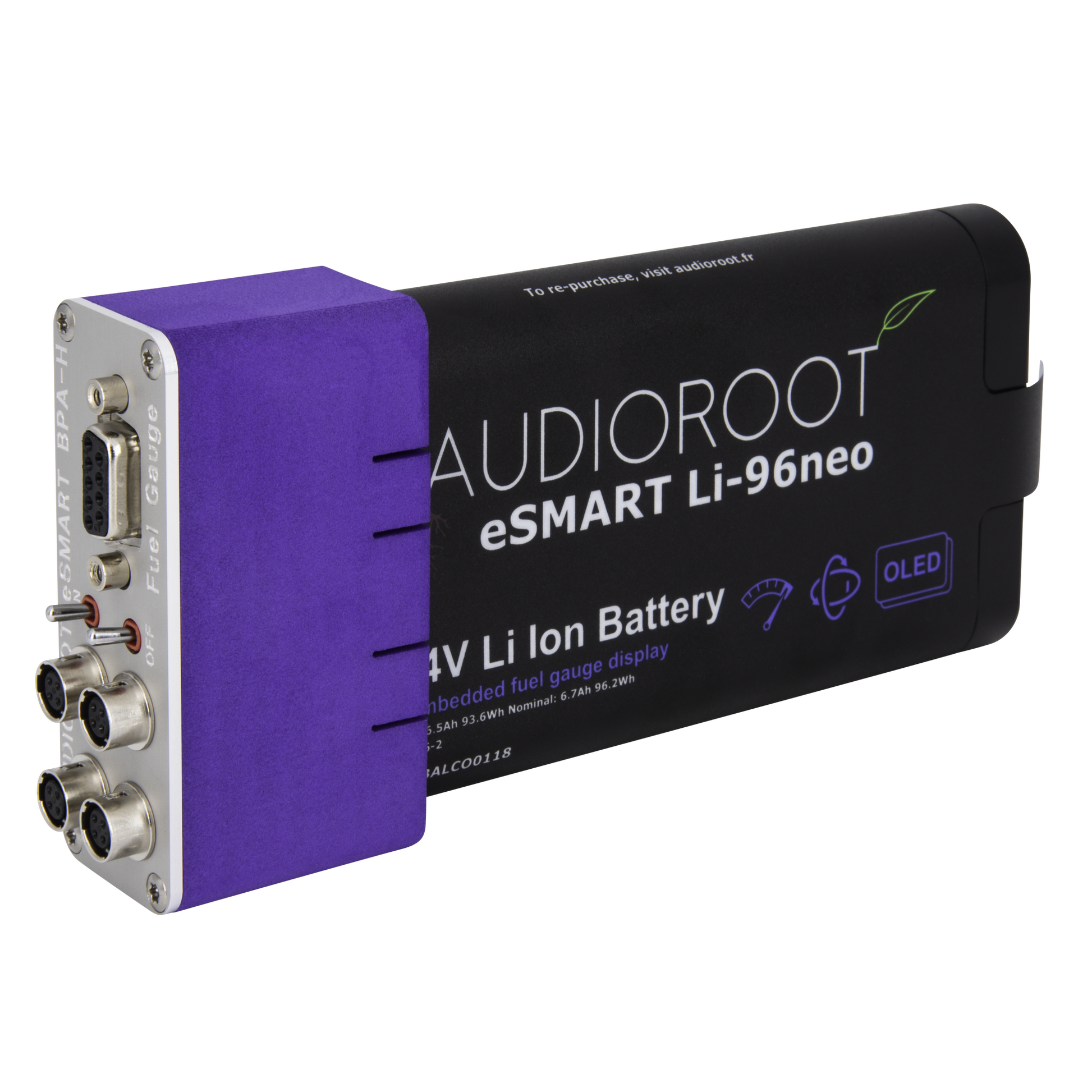

Audioroot eSMART BPA-H battery-side view

Battery-Mounted Hirose Distribution

Direct Battery-Mounted Distribution

Mounting the BPA-H directly onto the smart battery keeps a small rig compact and reduces the number of separate boxes and interconnects in the bag.
