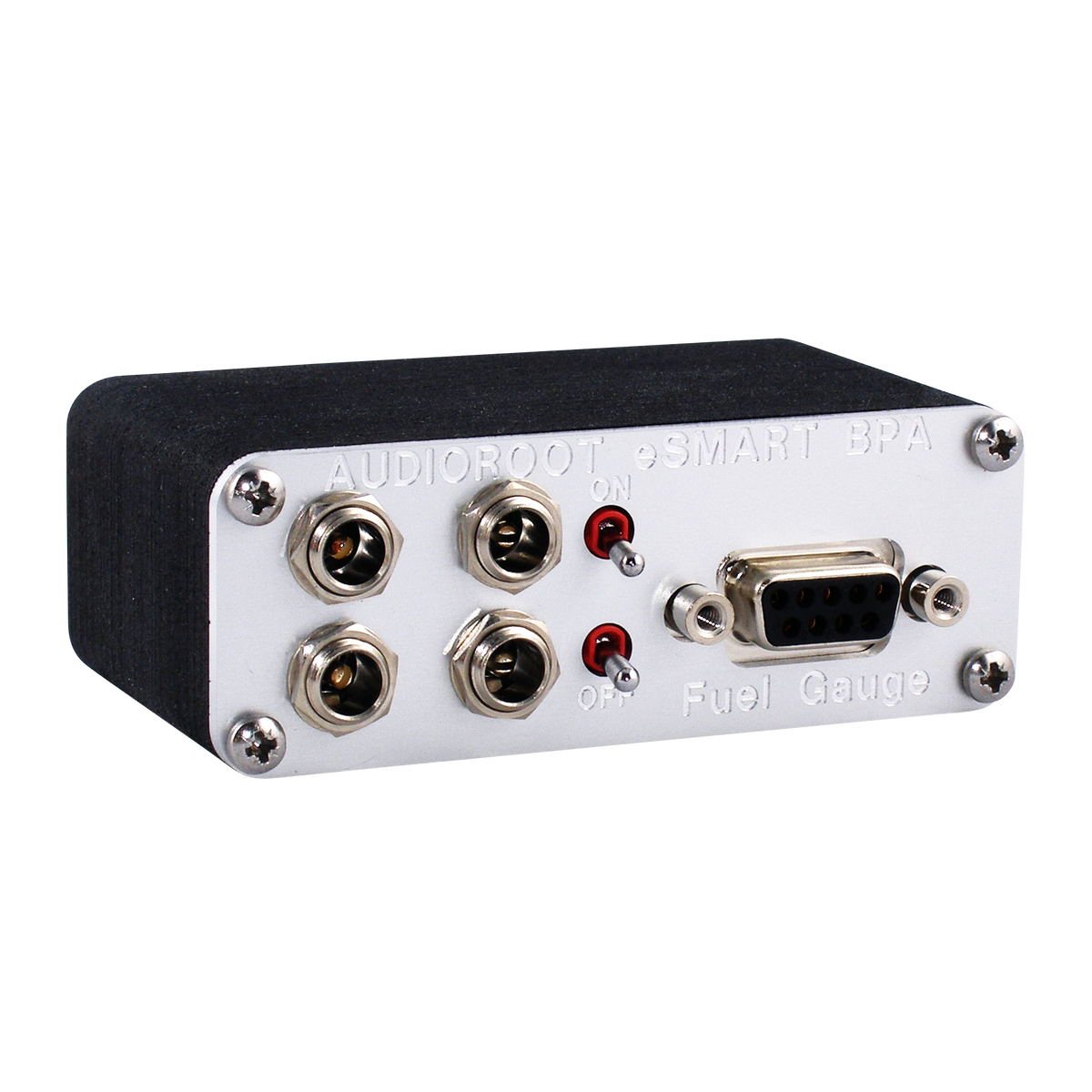

• Audioroot eSMART BPA Switchcraft power adaptor

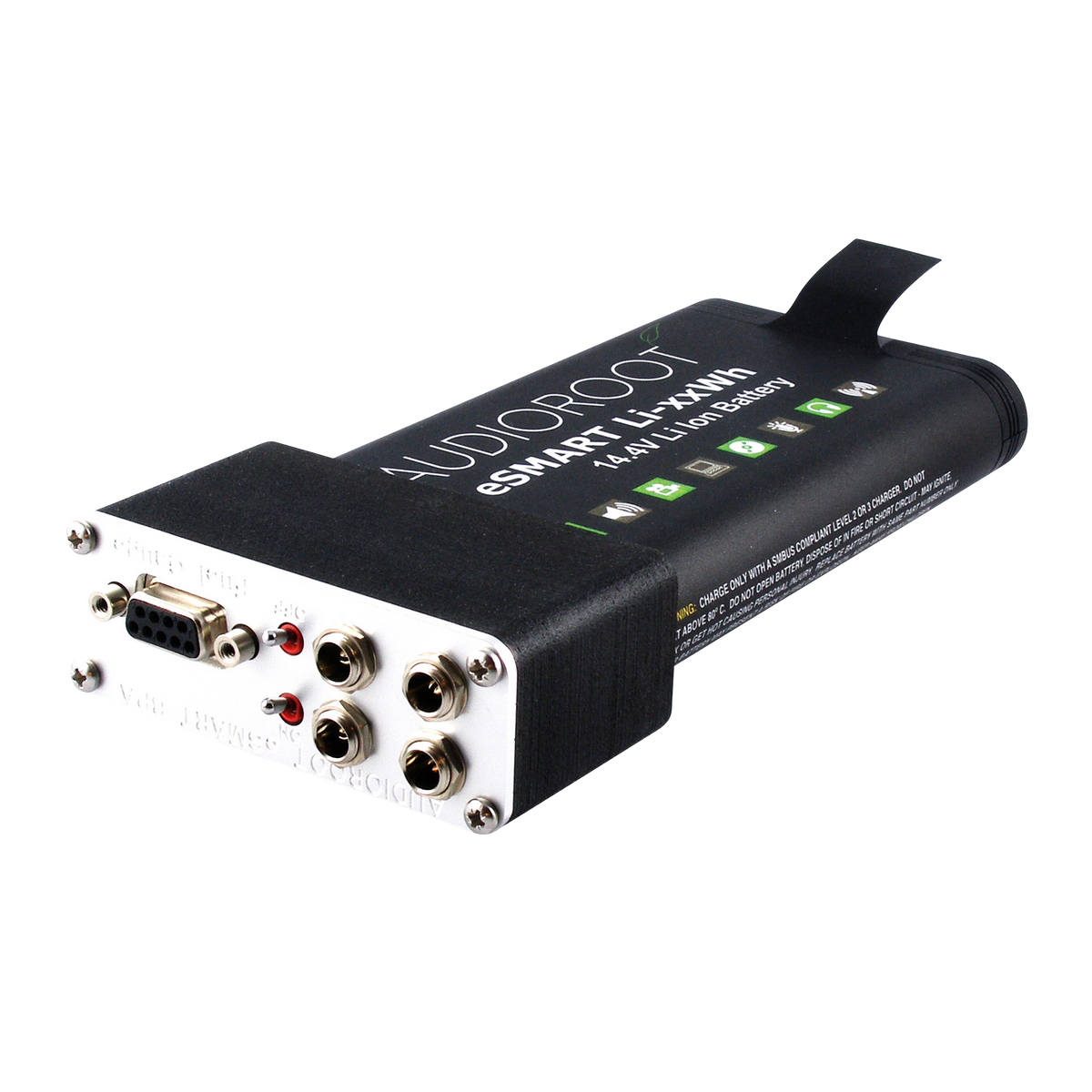

  • Audioroot eSMART BPA battery-side view

Audioroot

Audioroot eSMART BPA Switchcraft Power Adaptor for Smart Batteries

• Direct-mount power adaptor for Audioroot eSMART lithium batteries.
• Four Switchcraft 760-series outputs, switchable two by two.
• 2.5A resettable fuse protection on each output.
• Serial output for optional eSMART BG fuel gauge.

Need help choosing?

Choose the BPA if your bag uses Switchcraft 760-series power cables. Choose the BPA-H for the same compact battery-mounted concept with Hirose-compatible outputs.
£125.00 (£104.17 ex VAT)
£125.00 (£104.17 ex VAT)
Tax included. Shipping calculated at checkout.

The Audioroot eSMART BPA mounts directly to a compatible eSMART lithium battery and turns it into a compact four-output power source. Four Switchcraft 760-series outputs are arranged in two switchable pairs, making the BPA a simple way to power a small location sound setup directly from the battery.

Each output is protected by a 2.5A resettable fuse, and a serial connection supports the optional Audioroot eSMART BG fuel gauge for external battery monitoring.

Choosing your type

Choose the BPA if your bag uses Switchcraft 760-series power cables. Choose the BPA-H for the same compact battery-mounted concept with Hirose-compatible outputs.

Specifications

Battery Interface

Direct eSMART battery mount

Outputs

4x Switchcraft 760-series

Switching

2 groups of 2

Protection

2.5A resettable per output

Fuel Gauge Port

Serial output for optional BG

Dimensions

83 × 50 × 30mm

Weight

77g

Warranty

1 year

Compatibility

• Audioroot eSMART Li-48neo, Li-96neo, Li-49Wh and Li-98Wh.
• Equipment using compatible Switchcraft 760-series power leads.

Dimensions

Outputs

4 Switchcraft

Switching

2 + 2

Protection

2.5A each

Weight

77g

Size

83×50×30mm

What’s in the box?

• 1x Audioroot eSMART BPA power adaptor

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• Battery is not included.
• Each output is protected at 2.5A.
• Use correctly wired Switchcraft power cables for connected equipment.

Audioroot eSMART BPA Switchcraft Power Adaptor for Smart Batteries

£125.00
Audioroot eSMART BPA Switchcraft power adaptor

4 Outputs • 2 Switch Groups • 77g

Turn an eSMART Battery Into a Mini Distro

A compact direct-to-battery solution for small production sound bags.

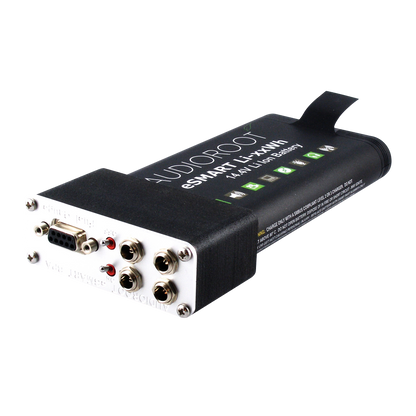

Audioroot eSMART BPA battery-side view

4 Battery-Mounted Outputs

Four Outputs Directly on the Battery

The BPA removes the need for a separate distribution box in smaller rigs by attaching directly to the eSMART battery connector.
