• Audioroot eSMART DUO compact smart power distributor
  • Audioroot eSMART DUO rear input and output connections
  • Audioroot eSMART DUO side and belt clip view

Audioroot

Audioroot eSMART DUO Compact Dual-Input Smart Power Distributor

• Two smart battery inputs with hot-swap operation.
• Six Hirose-compatible DC outputs: four main and two auxiliary.
• 96 × 64 colour OLED with multiple display layouts and battery alarms.
• User-replaceable input cable modules; DUO-CAB-TT dual TA4M module fitted as standard.

Need help choosing?

Choose the DUO for a compact two-battery sound-bag system with smart monitoring and six Hirose outputs. Choose the TRIO if you need a third source input, more DC outputs and integrated USB power.
£311.99 (£259.99 ex VAT)
£311.99 (£259.99 ex VAT)
Tax included. Shipping calculated at checkout.

The Audioroot eSMART DUO is a compact dual-input smart power distributor for professional location sound bags. It accepts two smart battery sources and provides six Hirose-compatible DC outputs, giving recordists a small, intelligent distribution system with colour OLED monitoring and hot-swap capability.

The standard unit is supplied with the DUO-CAB-TT input module fitted, providing two TA4M battery inputs. Audioroot’s user-replaceable input modules allow the DUO to be adapted later for battery cups, USB-C input or other supported configurations.

Choosing your type

Choose the DUO for a compact two-battery sound-bag system with smart monitoring and six Hirose outputs. Choose the TRIO if you need a third source input, more DC outputs and integrated USB power.

Specifications

Battery Inputs

2

Standard Input Module

DUO-CAB-TT: 2x TA4M

DC Outputs

6x Hirose-compatible

Display

96 × 64 colour OLED

Controls

2 locking toggle switches

Dimensions

63.5 × 32 × 80mm

Weight

170g with dual TA4M inputs

Mounting

Belt clip included

Warranty

1 year

Compatibility

• Audioroot eSMART smart batteries and compatible smart battery combiners.
• Audioroot DUO-CAB interchangeable input modules.
• Compatible with professional 12V location sound equipment using correctly wired Hirose power leads.

Dimensions

Inputs

2

Outputs

6 Hirose

Display

Colour OLED

Input Module

Replaceable

Weight

170g

What’s in the box?

• 1x Audioroot eSMART DUO power distributor
• 1x DUO-CAB-TT dual TA4M input module, pre-installed
• 1x Belt clip

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• Smart battery sources are required for full fuel-gauge and telemetry functionality.
• DUO-CAB-TT with 2x TA4M inputs is the standard pre-installed configuration.
• Batteries and device output cables are not included.

Audioroot eSMART DUO Compact Dual-Input Smart Power Distributor

£311.99

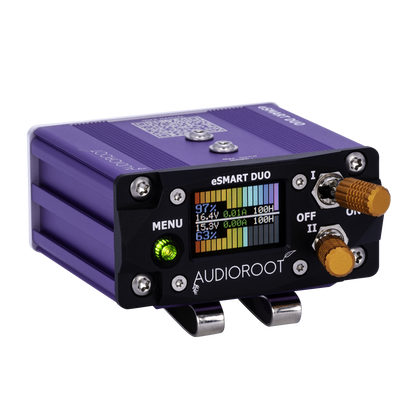

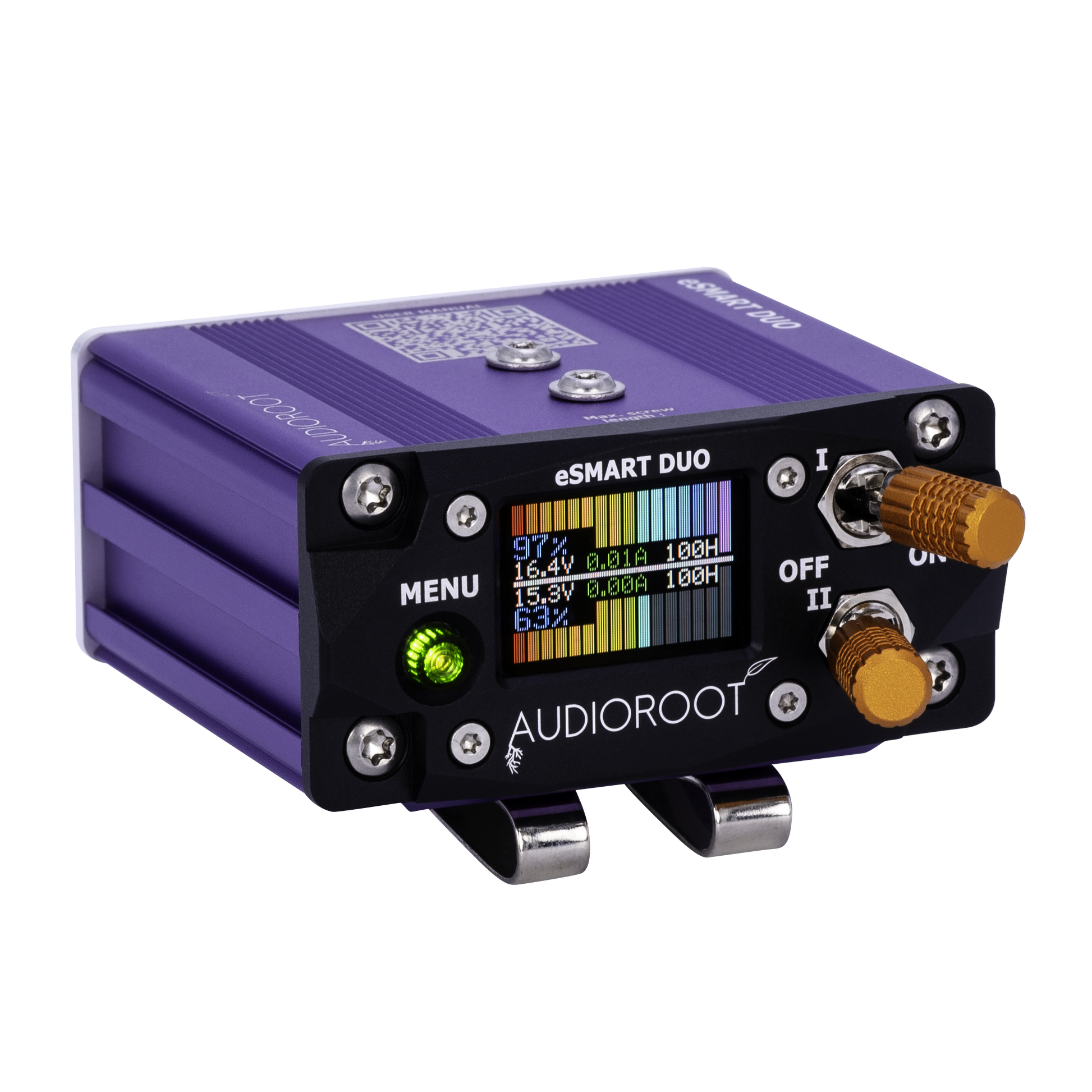

Audioroot eSMART DUO compact smart power distributor

2 Inputs • 6 Hirose Outputs • Colour OLED

A Small Smart Power Hub

The DUO is a strong everyday choice for recordists who want smart battery telemetry and reliable two-source power distribution in a very compact enclosure.

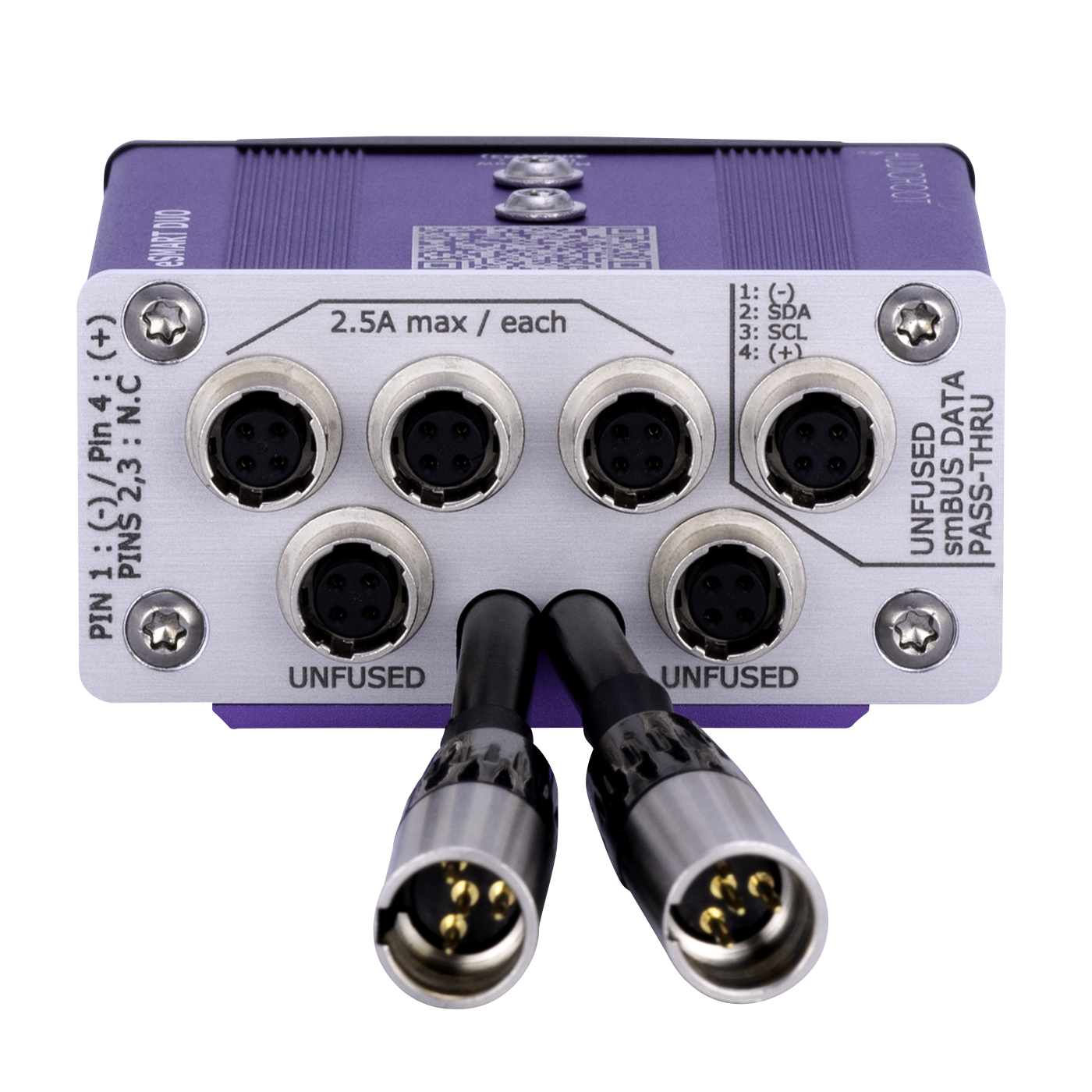

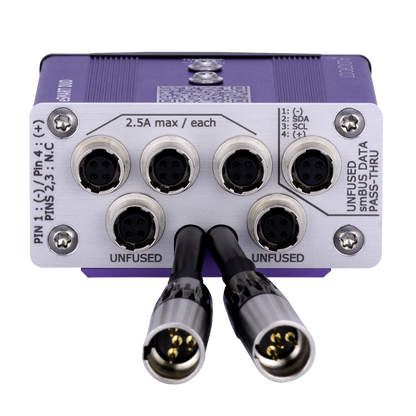

Audioroot eSMART DUO rear input and output connections

2 Smart Battery Inputs

Compact Dual-Battery Distribution

Two smart battery inputs provide redundancy and hot-swap flexibility without taking up much room in a production sound bag.

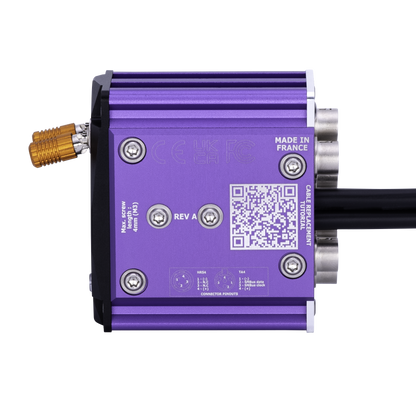

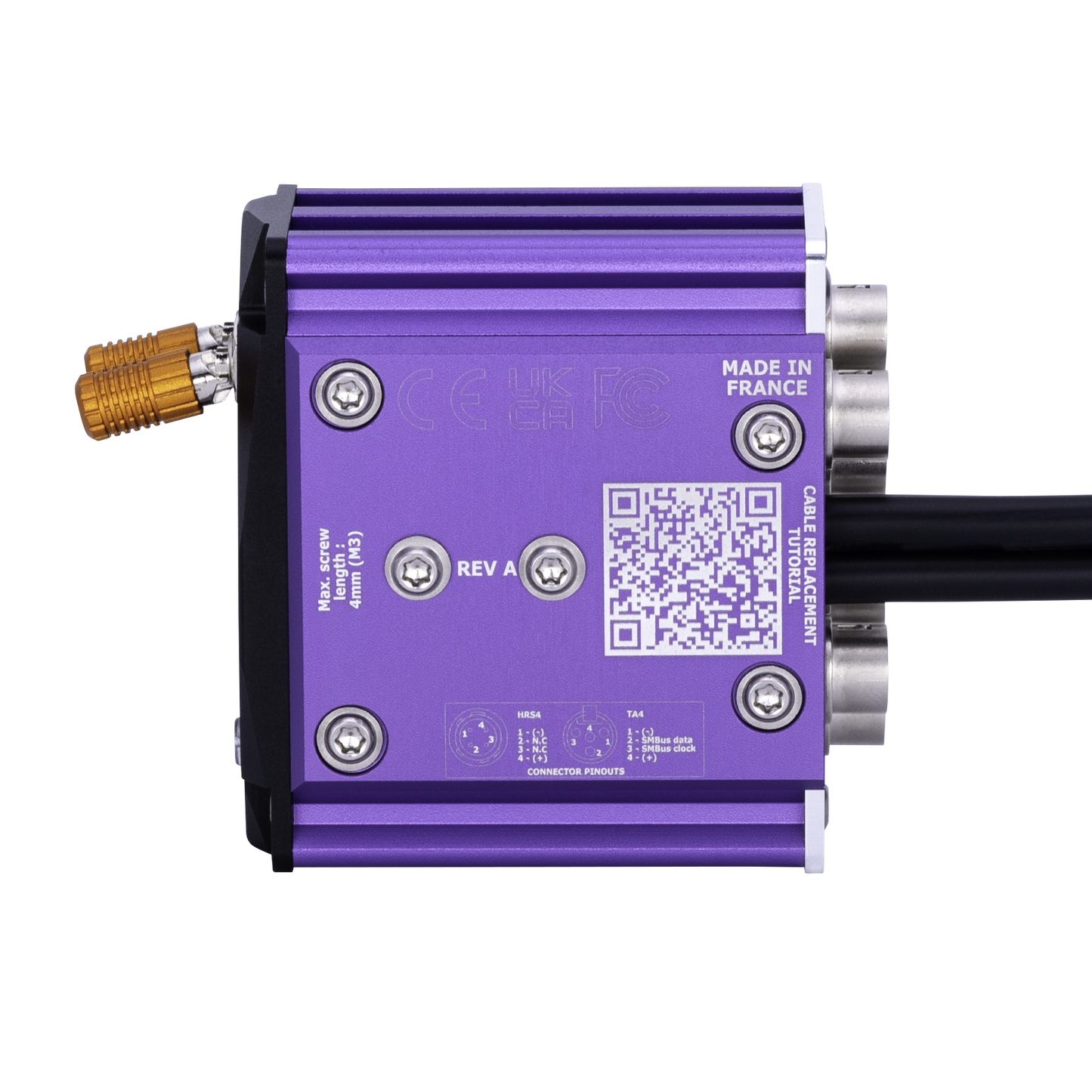

Audioroot eSMART DUO side and belt clip view

User-Replaceable Rear Harness

Replaceable Input Architecture

The rear input harness can be replaced by the user, allowing the DUO to evolve with different battery cups, TA4 connectors or supported USB-C input modules.
