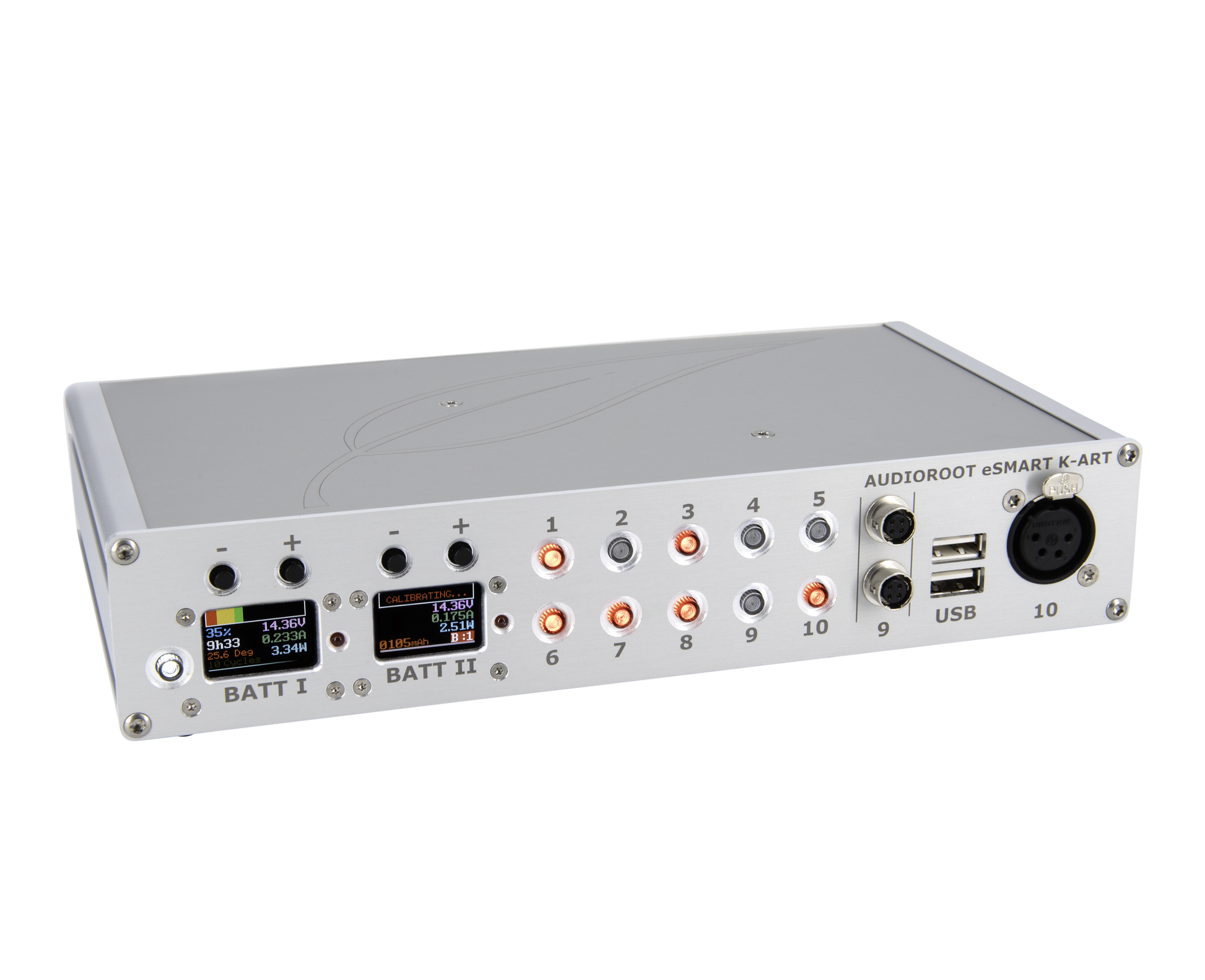

• Audioroot eSMART K-ART cart power distribution system

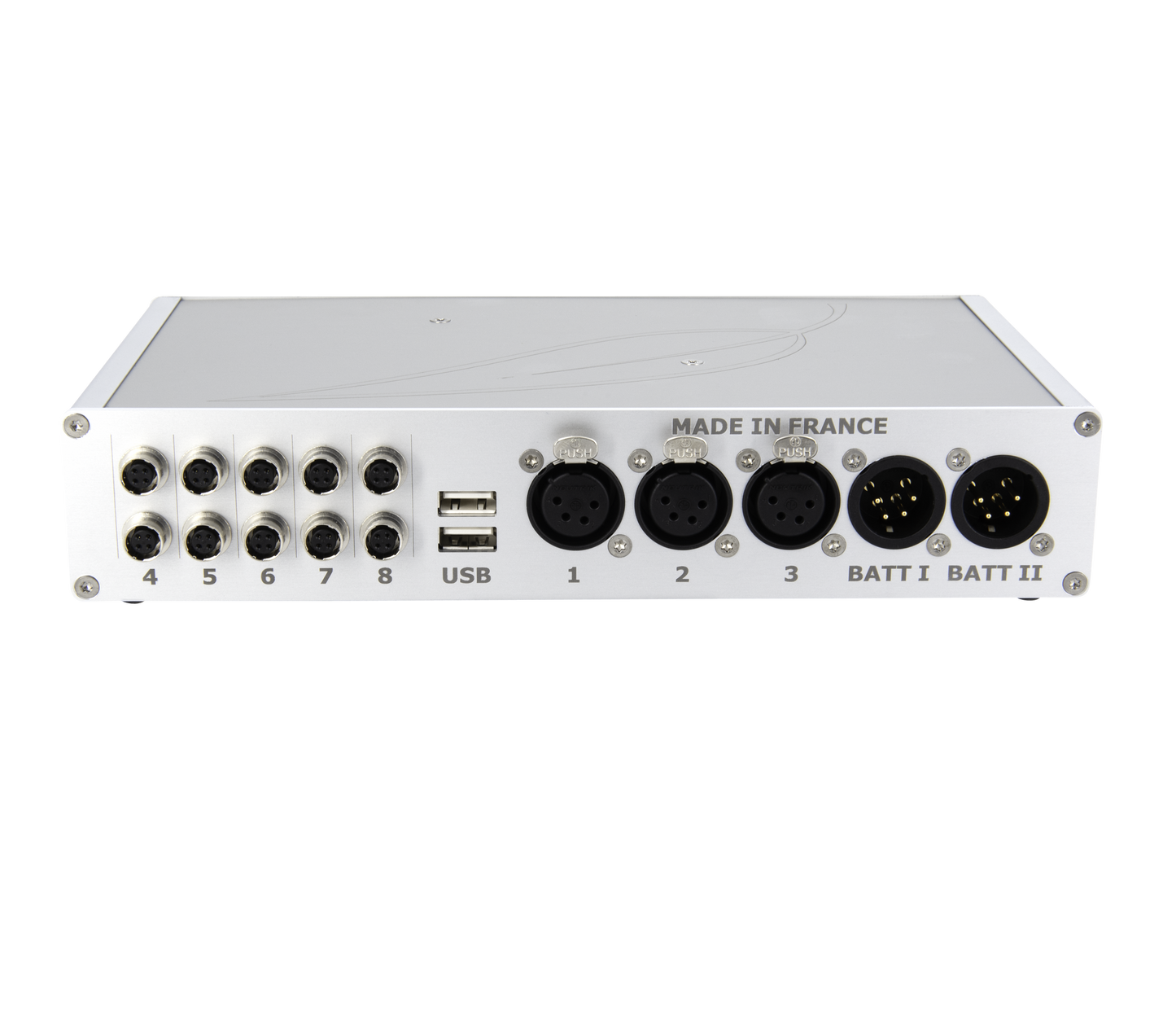

  • Audioroot eSMART K-ART rear power connections

Audioroot

Audioroot eSMART K-ART Dual-Battery Cart Power Distribution System

• Dual battery inputs for professional cart power systems.
• 16 DC outputs: 12 Hirose-compatible and 4 XLR4.
• Four isolated 5V USB outputs.
• Dual OLED battery meters and ten illuminated switchable DC paths plus main switch.
• Supports optional internal regulated/isolated DC/DC converter modules.

Need help choosing?

Choose the K-ART for a proper sound-cart installation with many DC loads, dual batteries and extensive front-panel switching. For a bag rig, the TRIO, DUO or BG-DU will normally be smaller and more appropriate.
£765.53 (£637.94 ex VAT)
£765.53 (£637.94 ex VAT)
Tax included. Shipping calculated at checkout.

The Audioroot eSMART K-ART is a high-capacity power distribution system designed for sound carts and larger production rigs. Dual battery inputs feed sixteen DC outputs and four isolated USB outputs, with extensive front-panel switching and two OLED battery meters providing clear control over a complex cart power setup.

Twelve Hirose-compatible outputs are arranged in switchable pairs, while four XLR4 outputs can be controlled independently. The chassis can also accept optional internal regulated and galvanically isolated DC/DC converter modules, allowing the K-ART to be tailored for equipment requiring dedicated regulated rails.

Choosing your type

Choose the K-ART for a proper sound-cart installation with many DC loads, dual batteries and extensive front-panel switching. For a bag rig, the TRIO, DUO or BG-DU will normally be smaller and more appropriate.

Specifications

Battery Inputs

2

Hirose Outputs

12

XLR4 Outputs

4

USB Outputs

4 isolated 5V

Hirose Protection

2.5A each

XLR Protection

4A each

Battery Input Rating

8A each

Dimensions

228 × 120 × 44mm

Weight

700g

Optional DC/DC Modules

Up to 4

Warranty

1 year

Compatibility

• Battery systems in the supported 11–18V range, including Li-ion, LiFePO4, NiMH and SLA systems.
• Audioroot eSMART batteries and larger eSMART LiFePO4 battery systems with suitable leads.
• Professional sound-cart equipment using Hirose and XLR4 DC power connections.

Dimensions

Battery Inputs

2

DC Outputs

16

USB Outputs

4

Expansion

4 DC/DC modules

Weight

700g

What’s in the box?

• 1x Audioroot eSMART K-ART power distribution system

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• Optional DC/DC converter modules and external power supplies are sold separately.
• Observe individual output protection limits: Hirose outputs are 2.5A fused and XLR outputs 4A fused.
• Each battery input is rated up to 8A.

Audioroot eSMART K-ART Dual-Battery Cart Power Distribution System

£765.53

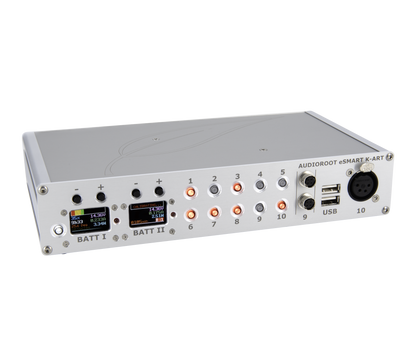

Audioroot eSMART K-ART cart power distribution system

2 Battery Inputs • 16 DC Outputs • 4 USB

A Central Power Hub for the Cart

Designed for larger production sound systems, K-ART brings battery monitoring, switching and distribution into one robust cart-friendly enclosure.

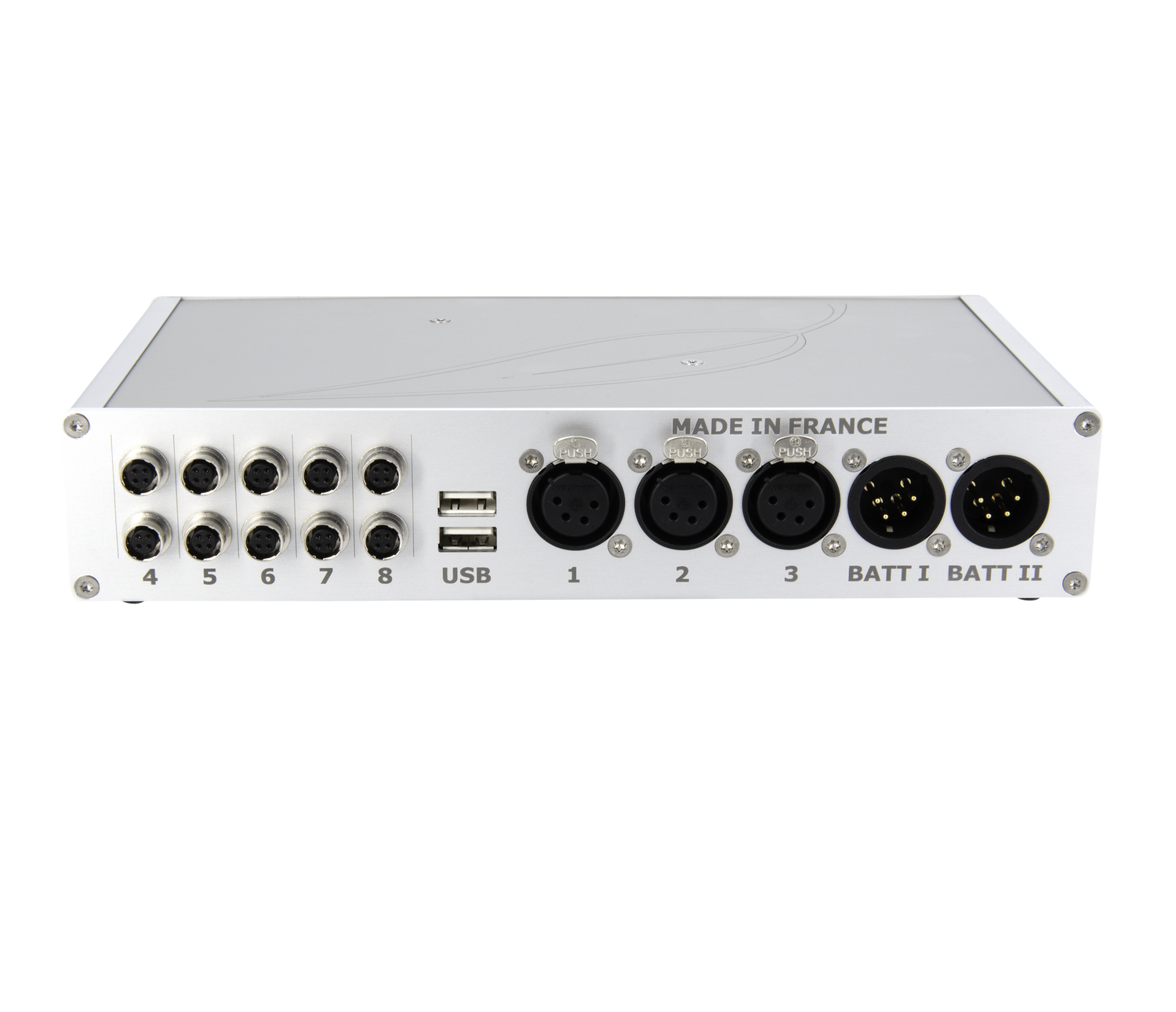

Audioroot eSMART K-ART rear power connections

12 Hirose • 4 XLR4 Outputs

Sixteen DC Outputs for Sound Carts

The K-ART combines twelve Hirose-compatible outputs with four XLR4 outputs, giving larger production rigs a central and controllable power architecture.
