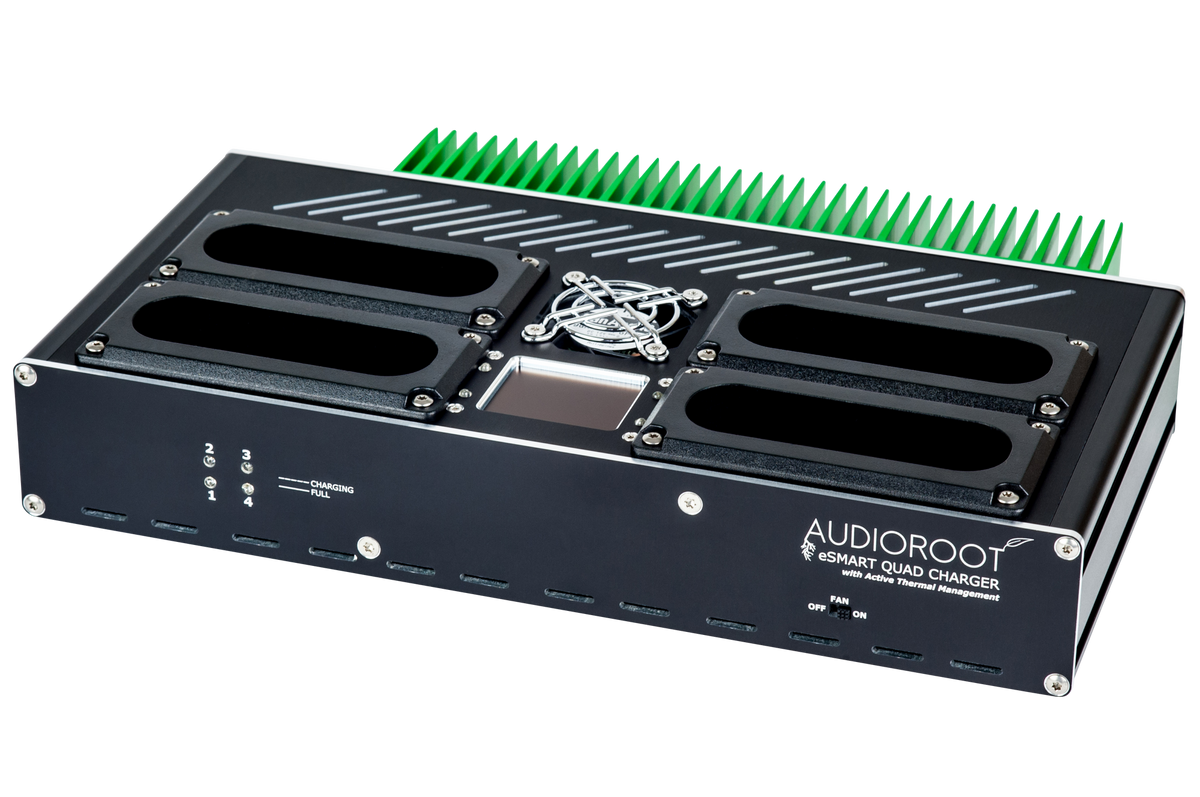

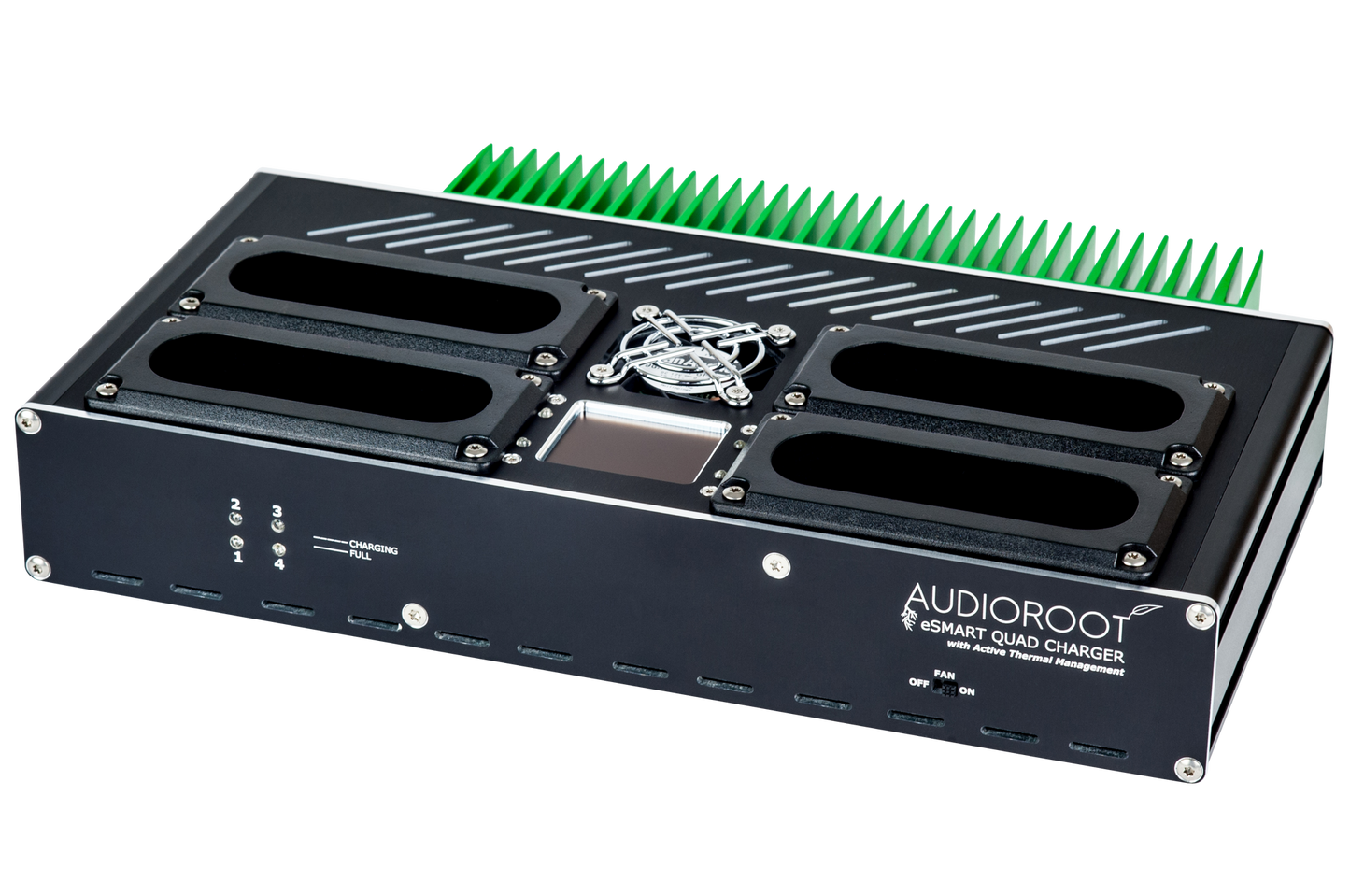

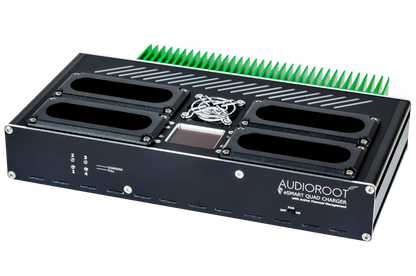

• Audioroot eSMART QUAD four-bay smart battery charger
  • Audioroot eSMART QUAD charger with four smart batteries fitted
  • Rear view of Audioroot eSMART QUAD charger with IEC mains input
  • Audioroot eSMART QUAD full-colour OLED charging display

Audioroot

Audioroot eSMART QUAD Four-Bay Smart Battery Charger with OLED Display

• Simultaneous four-bay charging with up to 2.0A available per battery bay.
• 160 × 128 full-colour OLED for live battery capacity, current, voltage, temperature and cycle information.
• Active Thermal Management with PWM-controlled fan and user-selectable silent mode.

Need help choosing?

Choose the QUAD when you routinely rotate four or more eSMART batteries and want to charge multiple packs together. For smaller location kits, the DUAL is more compact and completely fanless.
£592.16 (£493.47 ex VAT)
£592.16 (£493.47 ex VAT)
Tax included. Shipping calculated at checkout.

The Audioroot eSMART QUAD is a four-bay simultaneous smart battery charger for larger professional sound kits and battery fleets. Each bay can deliver up to 2.0A while the 160 × 128 colour OLED display provides live charging information for the connected smart batteries.

Active Thermal Management combines a PWM-controlled fan with automatic current management to balance charging performance, temperature and acoustic noise. The front-panel fan switch allows silent operation when required, while the rugged CNC-machined and extruded aluminium enclosure and direct universal mains input make the QUAD a practical charging hub for studio, prep and location work.

Choosing your type

Choose the QUAD when you routinely rotate four or more eSMART batteries and want to charge multiple packs together. For smaller location kits, the DUAL is more compact and completely fanless.

Specifications

Battery Bays

4

Maximum Charge Current

2.0A per bay

Display

160 × 128 full-colour OLED

Cooling

PWM fan with silent mode

Acoustic Noise

10–28dBA with fan enabled

AC Input

90–240VAC

Power

Up to 150W

Mains Connector

IEC C14

Dimensions

270 × 176 × 53mm

Weight

1.6kg

Warranty

1 year

Compatibility

• Audioroot eSMART Li-48neo
• Audioroot eSMART Li-96neo
• Audioroot eSMART Li-49Wh
• Audioroot eSMART Li-98Wh

Dimensions

Bays

4

Charge Current

2.0A / bay

Display

160×128 OLED

Cooling

Switchable fan

Weight

1.6kg

What’s in the box?

• 1x Audioroot eSMART QUAD Four-Bay Smart Battery Charger

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• Batteries are not included.
• The fan can be disabled for quiet environments; the charger may reduce maximum charging current to control heat in fanless mode.
• Mains input is via IEC C14 and must be connected using a suitably rated local power lead.

Audioroot eSMART QUAD Four-Bay Smart Battery Charger with OLED Display

£592.16

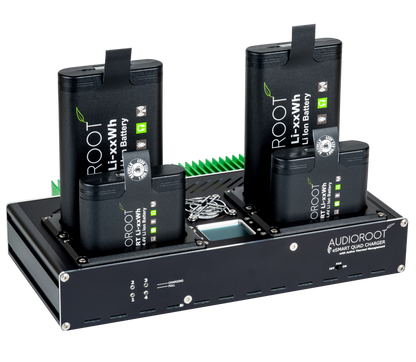

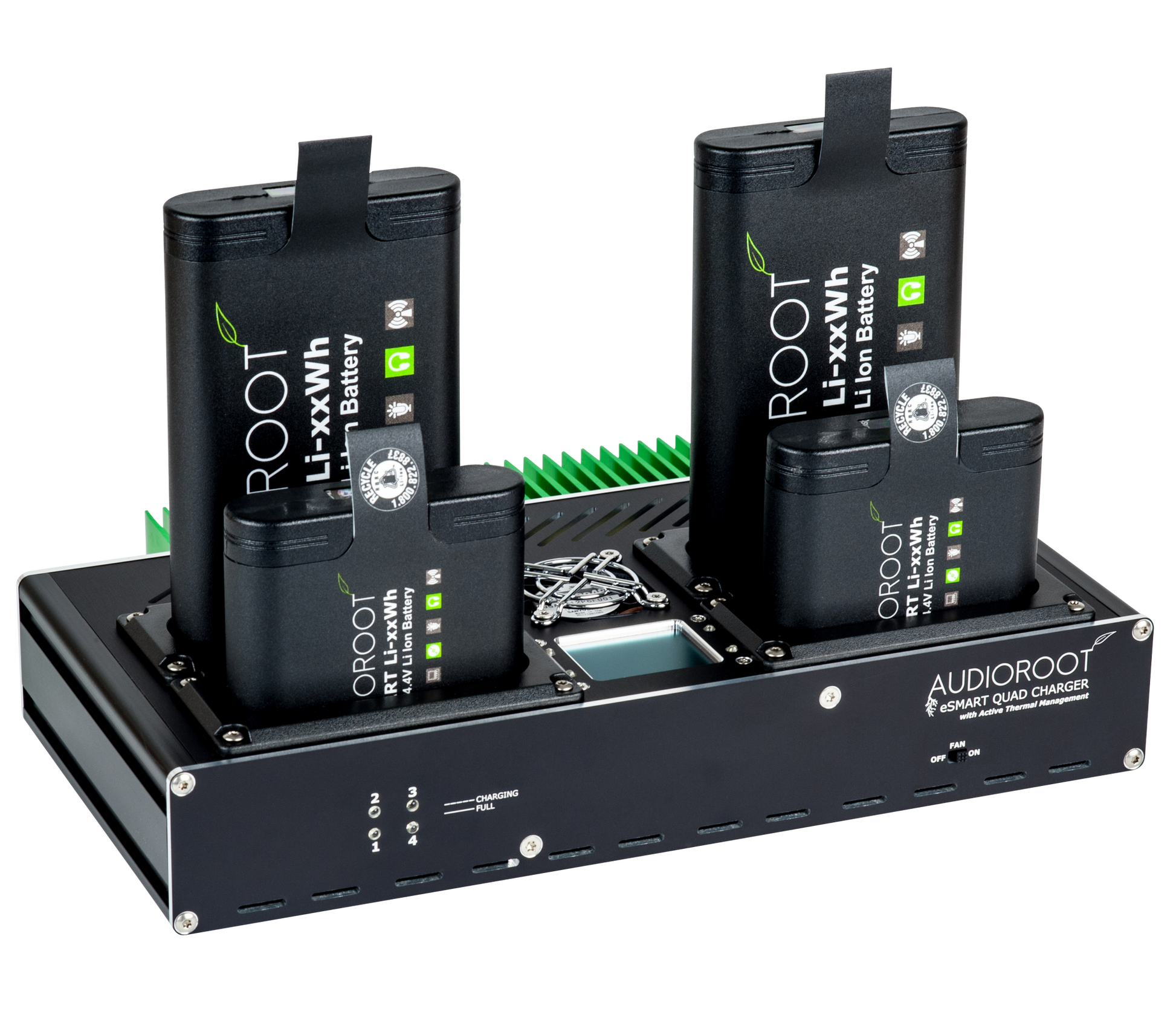

Audioroot eSMART QUAD charger with four smart batteries fitted

4 Bays • Full-Colour OLED • Thermal Management

Central Charging for Larger Sound Kits

The QUAD combines four simultaneous charging bays with direct universal mains input and a rugged aluminium chassis for professional prep rooms and location workflows.

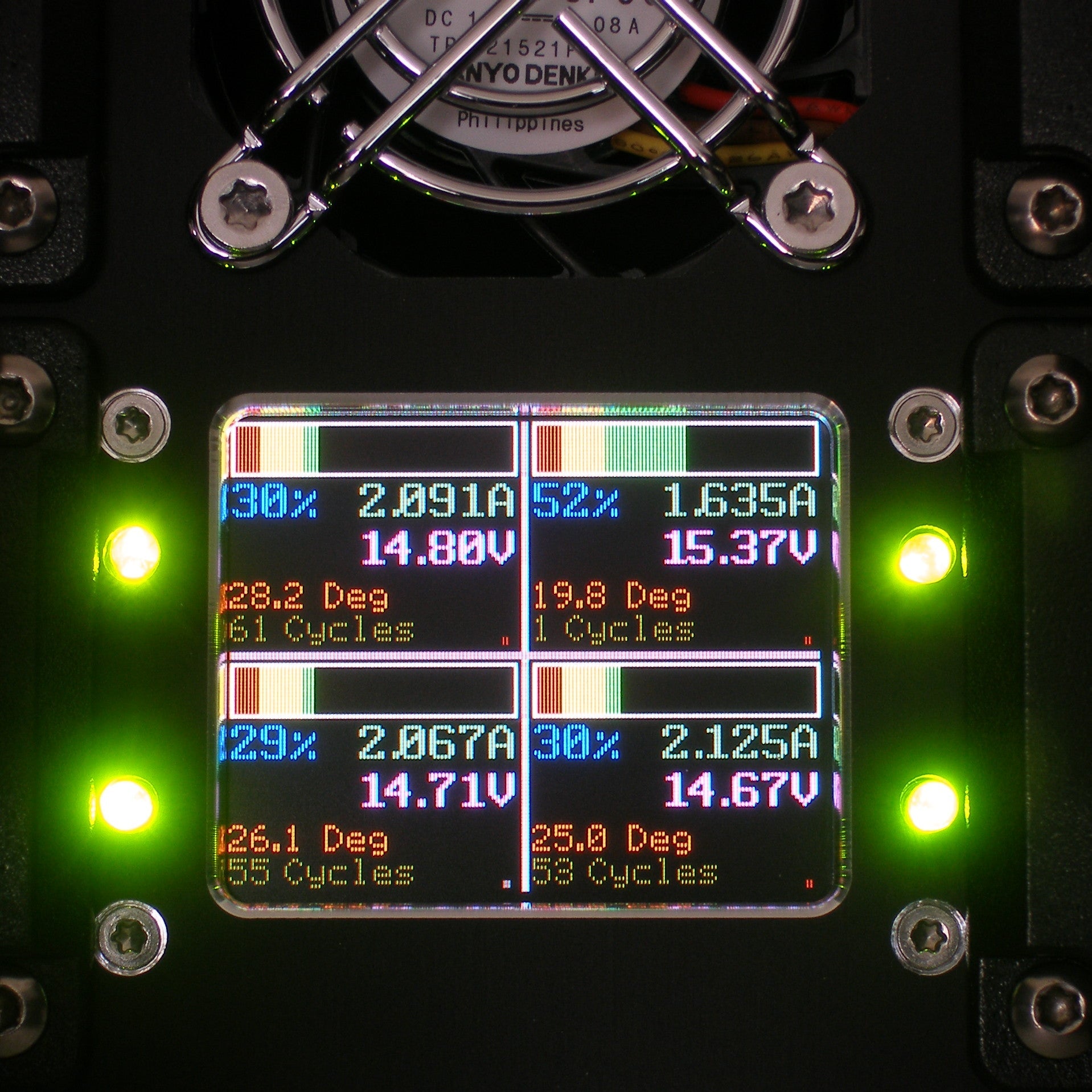

Audioroot eSMART QUAD full-colour OLED charging display

Four-Bay Simultaneous Charging

Four independent smart-battery bays provide up to 2.0A per bay, reducing turnaround time for larger location sound battery fleets.

Rear view of Audioroot eSMART QUAD charger with IEC mains input

Active Thermal Management

The charger dynamically balances fan speed, internal temperature and charging current. A front-panel switch can disable the fan when acoustic silence takes priority.
