• Audioroot eSMART TRIO advanced smart power distributor
  • Audioroot eSMART TRIO power distributor rear and side view
  • Audioroot eSMART TRIO power distributor connection view

Audioroot

Audioroot eSMART TRIO Advanced Three-Input Smart Power Distributor

• Three smart-battery inputs with hot-swap operation and automatic source priority.
• Seven Hirose-compatible DC outputs plus one TA4F output with aggregated SMBus data.
• USB-C PD up to 45W and USB-A QC3 up to 15W.
• Three displays provide detailed source, battery and system information.

Need help choosing?

Choose the TRIO when you want maximum resilience in a sound bag: three battery inputs, hot-swapping, smart telemetry and both DC and USB power. The DUO is the smaller choice when two smart battery inputs and six Hirose outputs are enough.
£491.80 (£409.83 ex VAT)
£491.80 (£409.83 ex VAT)
Tax included. Shipping calculated at checkout.

The Audioroot eSMART TRIO is an advanced portable power distributor built for demanding location sound rigs. Three smart battery inputs can be hot-swapped while the unit automatically manages source priority, giving a bag or compact cart a resilient power architecture without interrupting connected equipment.

Power is available from seven Hirose-compatible DC outputs plus a TA4F output, while USB-C Power Delivery and USB-A Quick Charge ports cover modern accessories and mobile devices. Three displays provide detailed battery and system information, including smart-battery telemetry when compatible SMBus sources are connected.

Choosing your type

Choose the TRIO when you want maximum resilience in a sound bag: three battery inputs, hot-swapping, smart telemetry and both DC and USB power. The DUO is the smaller choice when two smart battery inputs and six Hirose outputs are enough.

Specifications

Battery Inputs

3

DC Outputs

7x Hirose + 1x TA4F

USB Outputs

USB-C PD + USB-A QC3

USB-C Output

Up to 45W

USB-A Output

Up to 15W

Maximum Total Load

11.5A / 165W @ 14.4V

Recommended Load with 2054 Batteries

8A max

TA4F Output

5A max

Hirose Outputs

2.5A each

Dimensions

83 × 40 × 94mm

Weight

300g

Warranty

1 year

Compatibility

• Audioroot eSMART smart batteries and compatible battery couplers/combiners.
• Can operate from non-smart sources, with reduced battery information limited principally to voltage.
• Ideal for professional location sound bags and compact cart systems.

Dimensions

Inputs

3

DC Outputs

8

USB-C

45W PD

Max Power

165W

Weight

300g

What’s in the box?

• 1x Audioroot eSMART TRIO power distributor
• 1x Removable belt clip

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• Batteries and external input cables are sold separately unless specifically stated.
• Maximum total load is 11.5A / 165W at 14.4V; observe the output limits for individual connectors.
• USB-C output capability depends on the connected device and negotiated USB Power Delivery profile.

Audioroot eSMART TRIO Advanced Three-Input Smart Power Distributor

£491.80

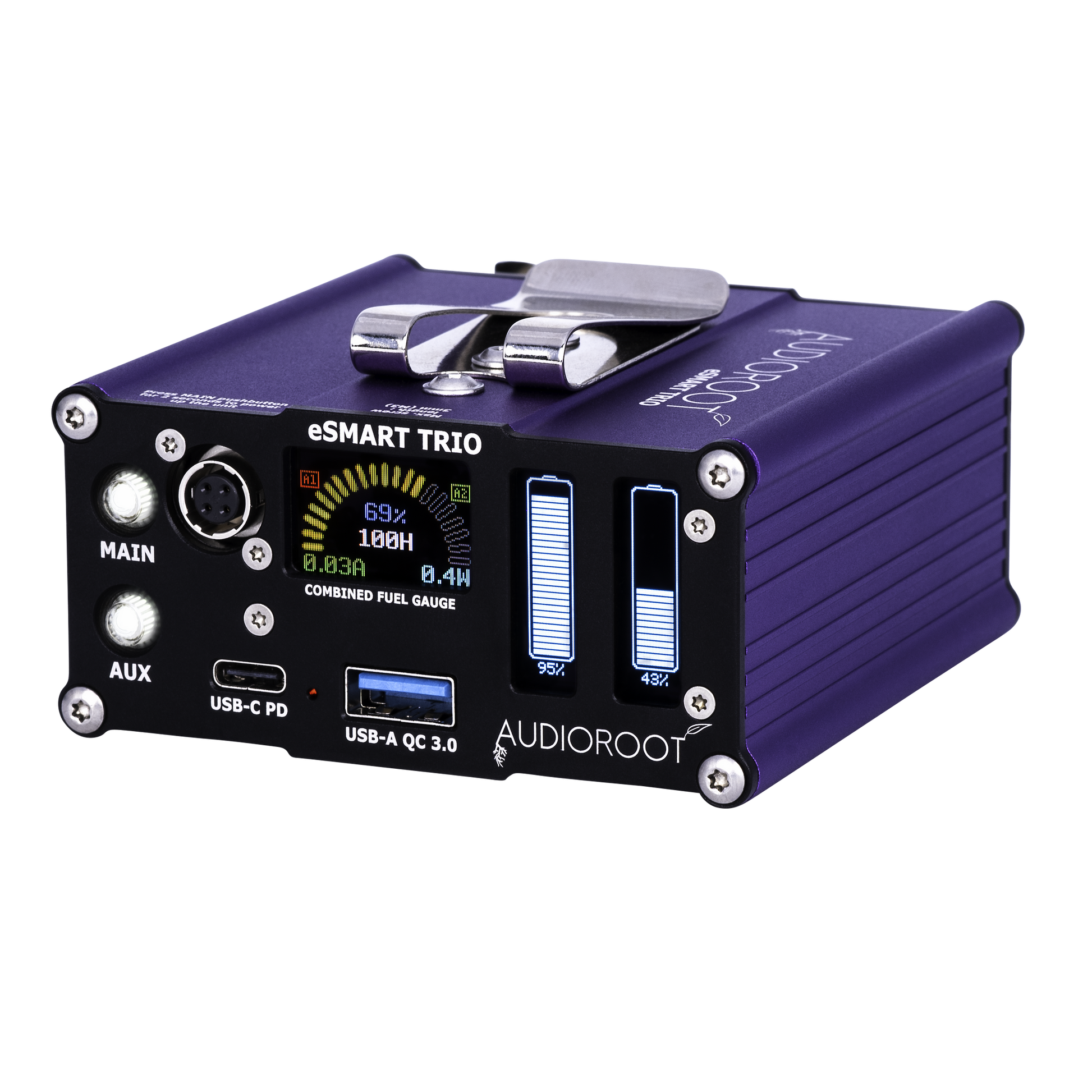

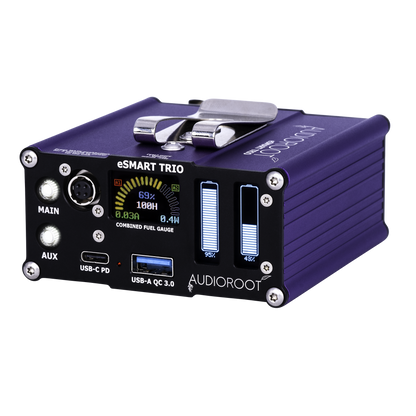

Audioroot eSMART TRIO advanced smart power distributor

3 Inputs • 8 DC Outputs • USB-C PD

Advanced Power Management for Location Sound

Smart-battery telemetry, hot-swapping and multiple display views make the TRIO a comprehensive portable power hub.

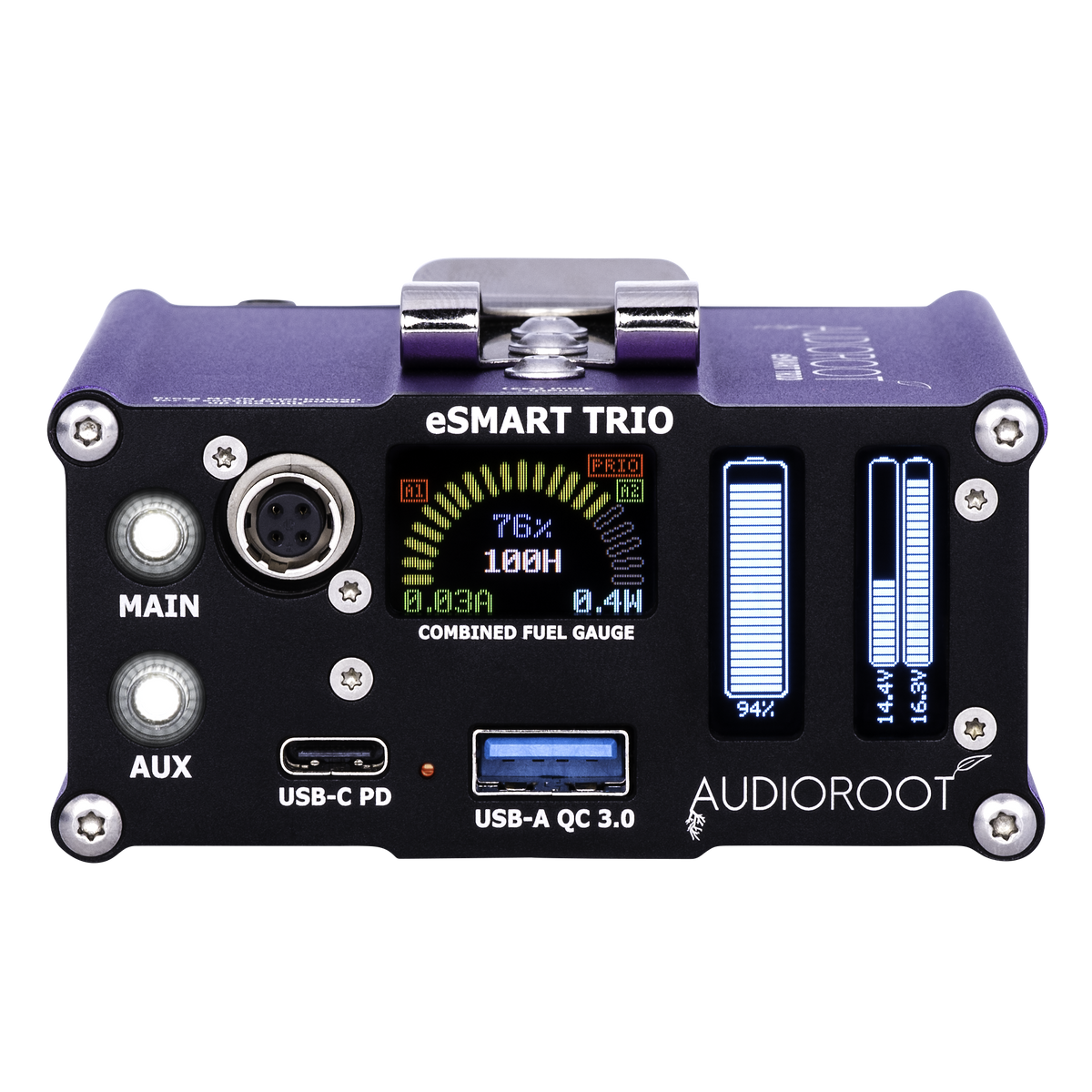

Audioroot eSMART TRIO power distributor rear and side view

3 Smart Battery Inputs

Three Inputs, Continuous Power

The TRIO can work from up to three battery sources and automatically manages priority between them, allowing depleted batteries to be replaced without shutting down the rig.

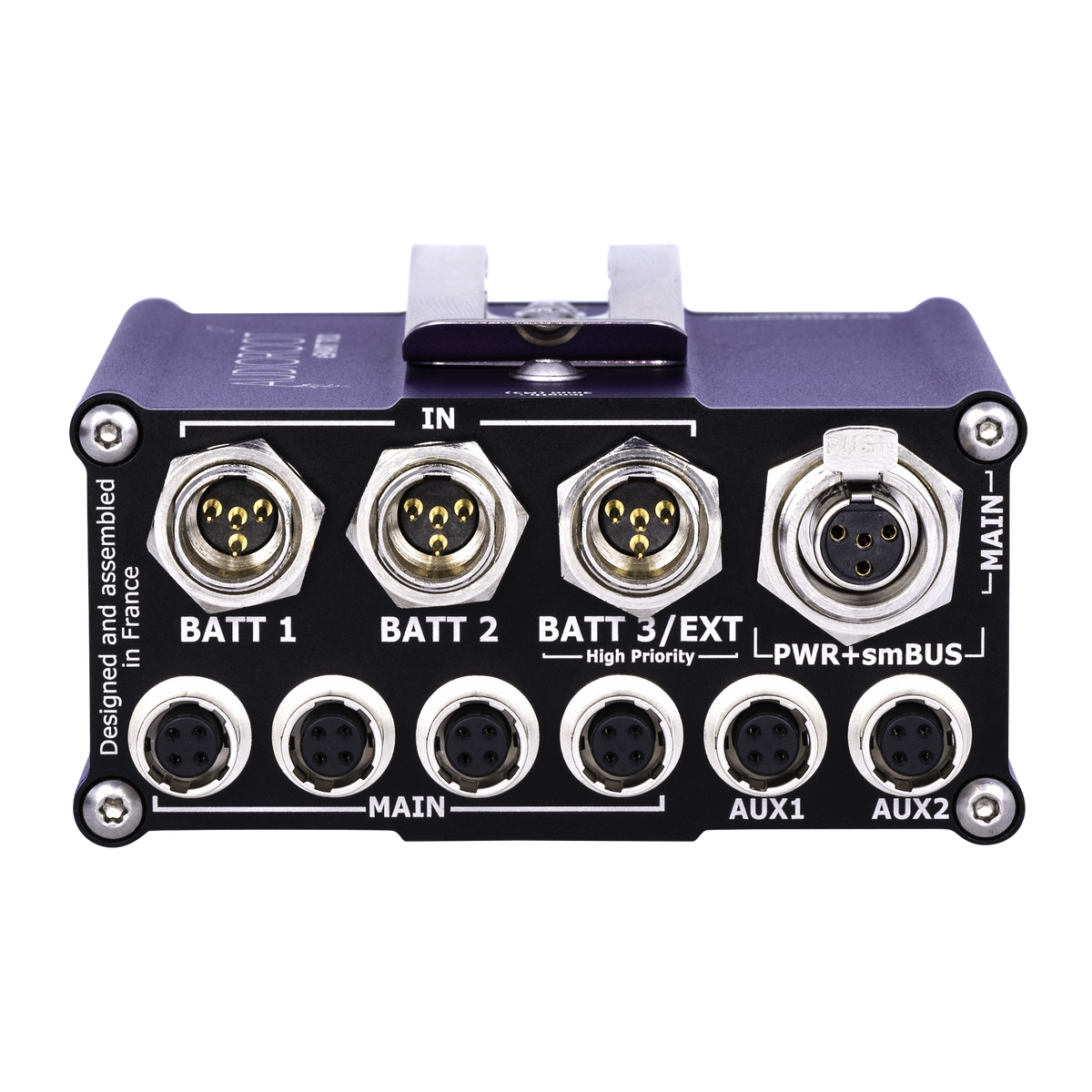

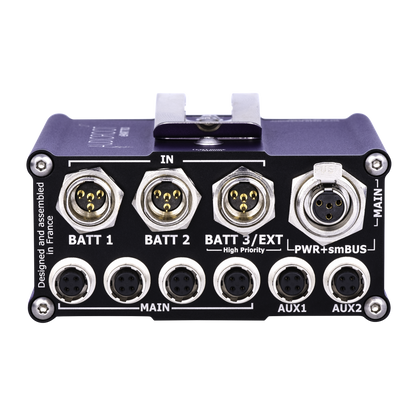

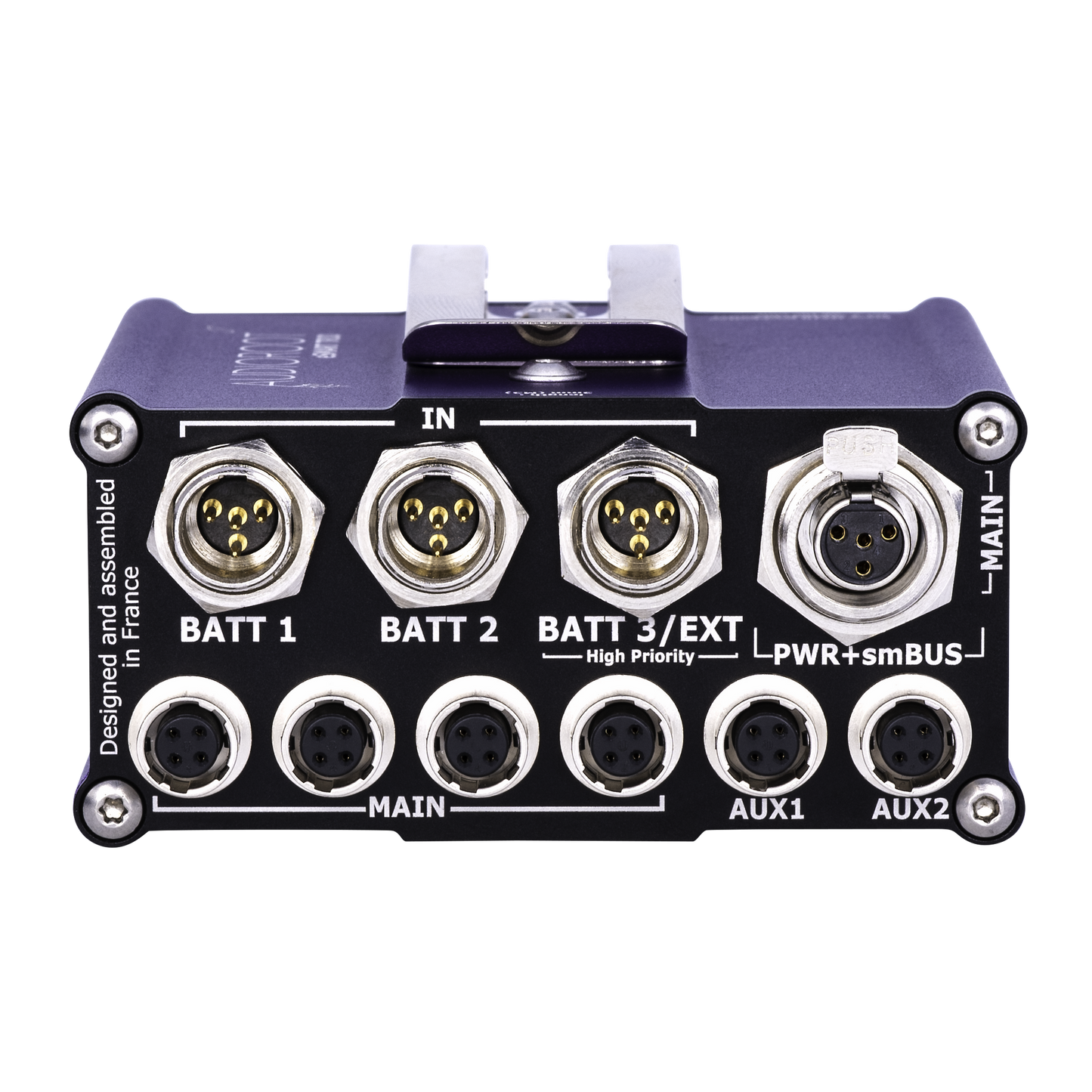

Audioroot eSMART TRIO power distributor connection view

7 Hirose • TA4F • USB-C • USB-A

DC and USB Distribution in One Unit

Seven Hirose-compatible outputs, a TA4F output, USB-C Power Delivery and USB-A Quick Charge provide a versatile mix of outputs for a modern production sound bag.
