Audioroot vmDBOX-HRS-cc Compact Hirose Power Distributor with OLED Energy Meter

• Six Hirose-compatible DC outputs in a compact enclosure.
• OLED meter displays voltage, current, power, Ah, Wh, estimated runtime and internal temperature.
• Five 2.5A resettable-fused outputs plus one unrestricted output.
• Wide 5–24V DC input range and up to 7A total load.

Need help choosing?

Choose vmDBOX-HRS-cc when you want a simple six-output Hirose distro but also want live current, power and consumed-energy information. vmDBOX-HRS is the simpler LED-voltmeter version.
£172.80 (£144.00 ex VAT)
£172.80 (£144.00 ex VAT)
Tax included. Shipping calculated at checkout.

The Audioroot vmDBOX-HRS-cc is a compact six-output Hirose power distributor with a built-in OLED energy meter. Designed for location sound bags, it monitors input voltage and current as well as accumulated Ah/Wh data, estimated runtime and internal temperature.

Five outputs are protected by 2.5A resettable fuses, with a sixth unrestricted output for higher-current or specialised connections. Its broad 5–24V DC input range makes it useful with many professional battery and PSU systems.

Choosing your type

Choose vmDBOX-HRS-cc when you want a simple six-output Hirose distro but also want live current, power and consumed-energy information. vmDBOX-HRS is the simpler LED-voltmeter version.

Specifications

Input Range

5–24V DC

Outputs

6x Hirose-compatible

Protected Outputs

5x 2.5A resettable

Unrestricted Outputs

1

Maximum Load

7A

Meter

OLED V/A/W/Ah/Wh/runtime/temp

Dimensions

65 × 50 × 30mm

Weight

119g

Warranty

1 year

Compatibility

• Battery and PSU sources from approximately 5–24V DC.
• Professional location sound equipment using correctly wired Hirose power cables.
• Useful with both battery-powered bags and externally powered prep/cart setups.

Dimensions

Outputs

6 Hirose

Input

5–24V

Max Load

7A

Meter

OLED energy

Weight

119g

What’s in the box?

• 1x Audioroot vmDBOX-HRS-cc power distributor
• 1x Removable belt clip

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• Maximum total load is 7A.
• Five outputs are protected at 2.5A; the unrestricted output should be used with appropriate care and cabling.
• Input and equipment output cables are sold separately.

Audioroot vmDBOX-HRS-cc Compact Hirose Power Distributor with OLED Energy Meter

£172.80

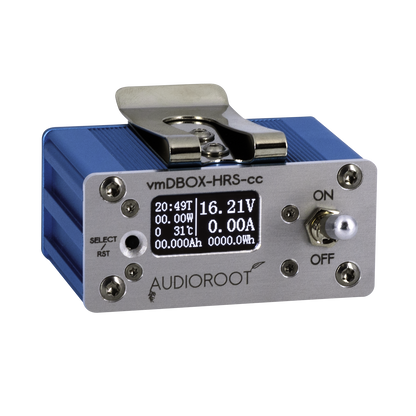

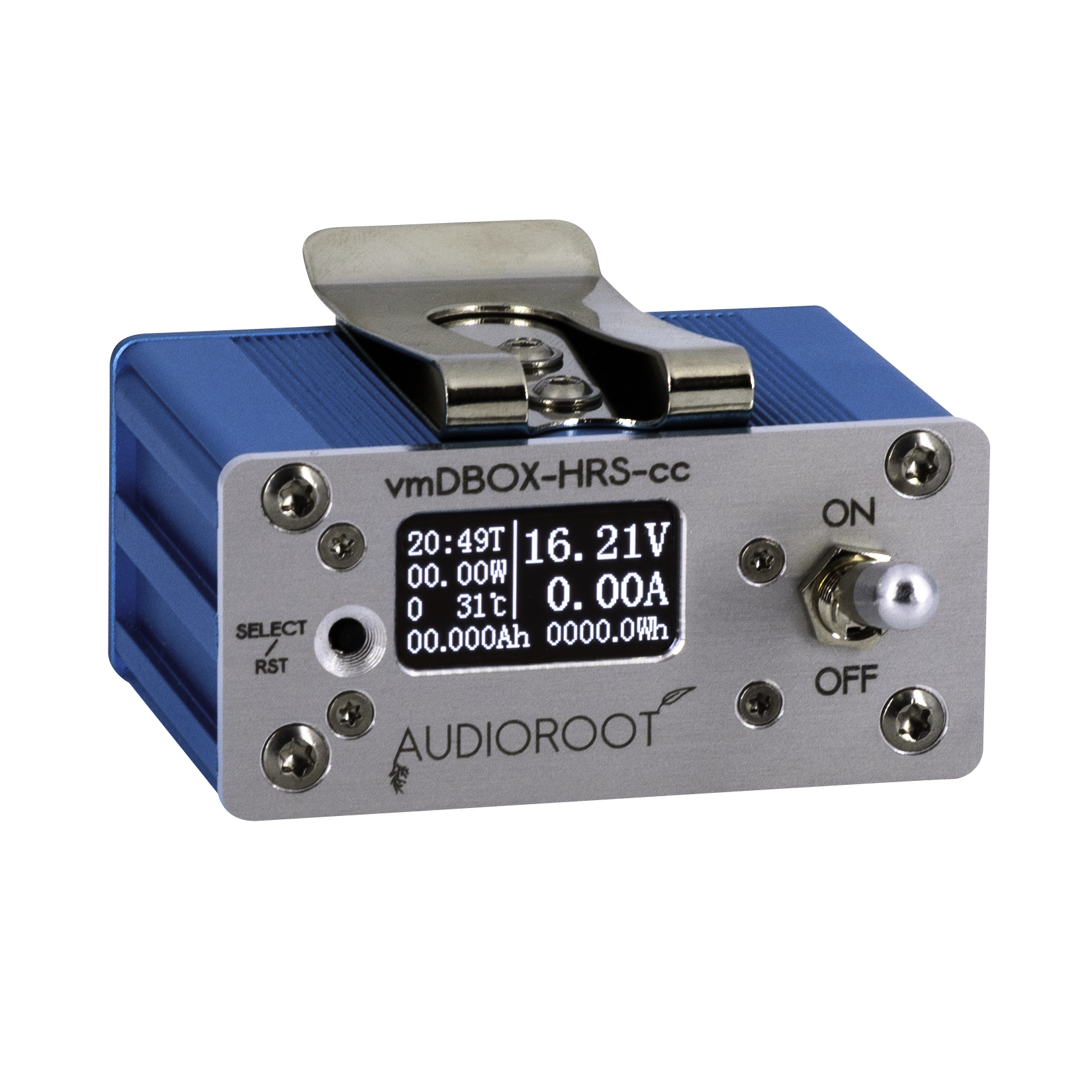

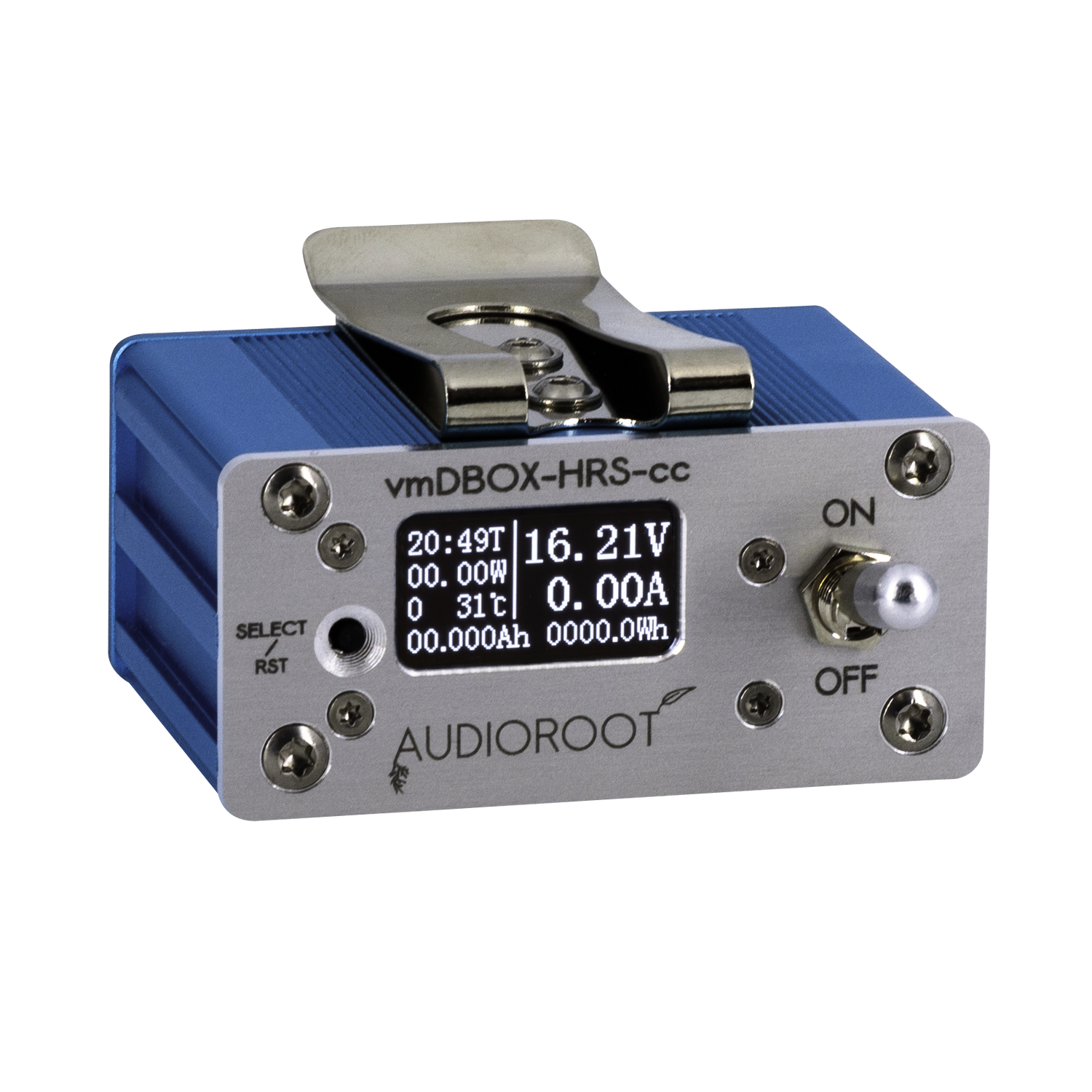

Audioroot vmDBOX-HRS-cc compact Hirose power distributor

6 Hirose Outputs • OLED Meter • 5–24V

Power Monitoring Built Into the Distro

A strong choice for bag users who want useful electrical data without moving to a full smart-battery distribution platform.

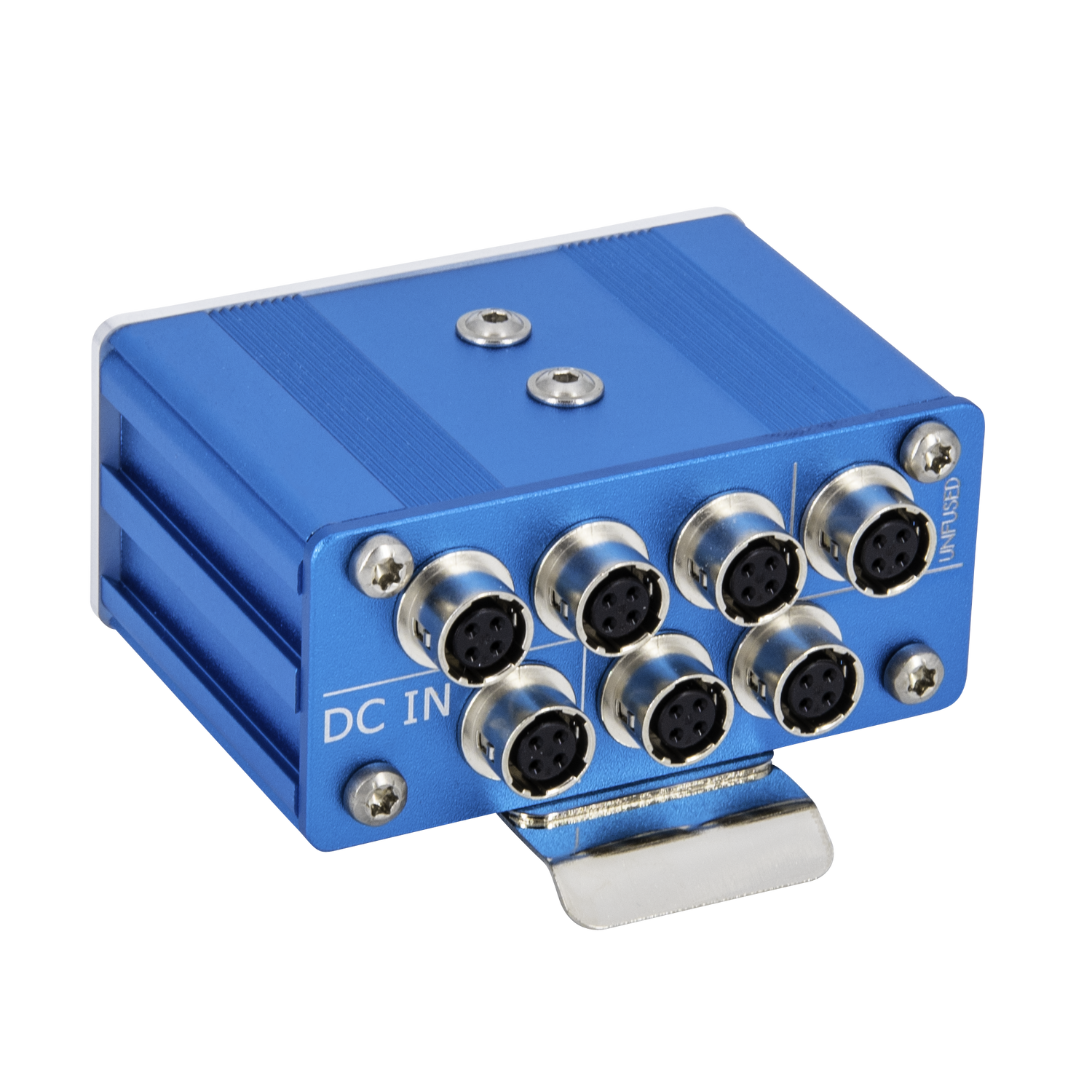

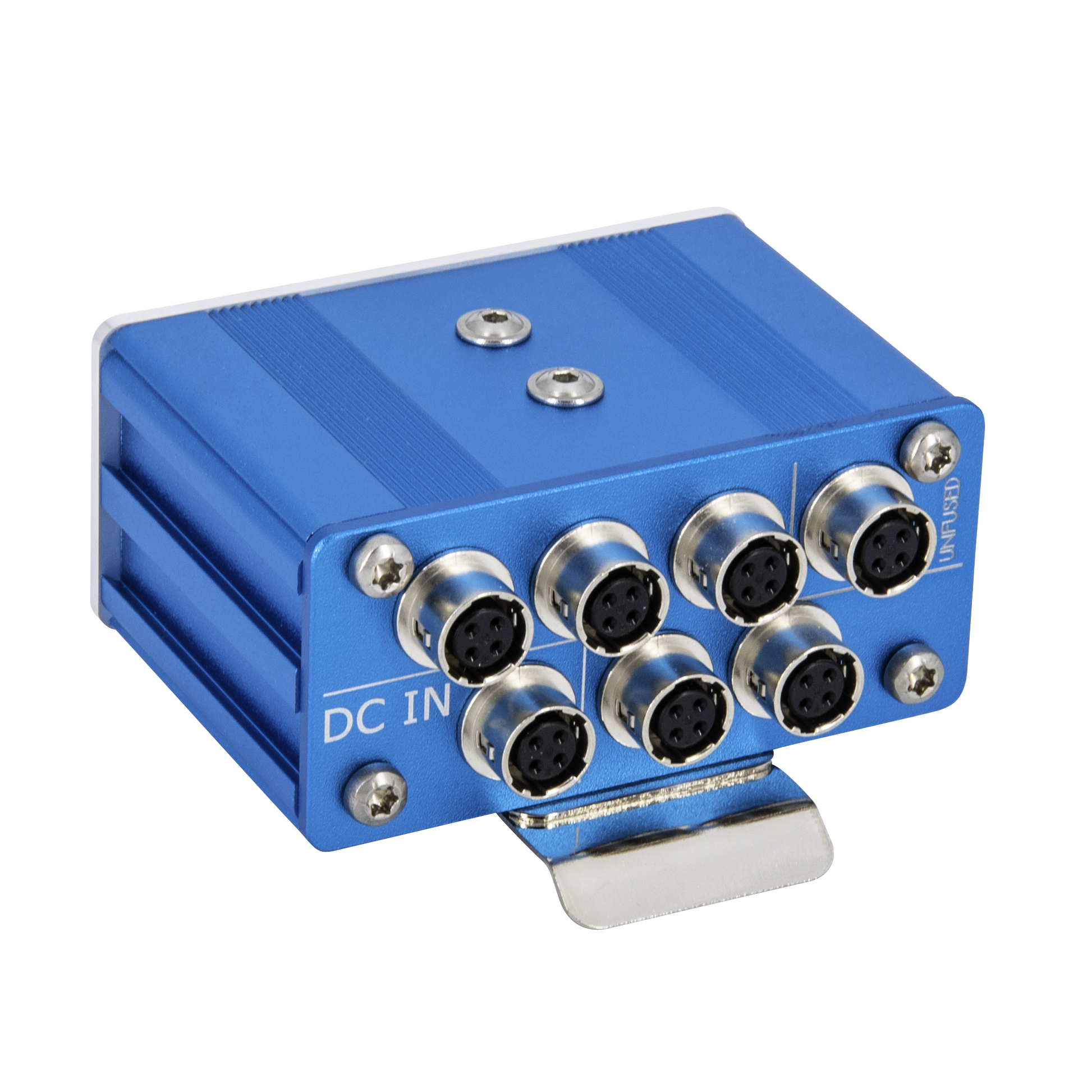

Audioroot vmDBOX-HRS-cc rear Hirose connections

OLED V / A / W / Ah / Wh Metering

More Than a Voltmeter

The OLED meter tracks current draw, power, accumulated Ah/Wh and estimated runtime, making it easier to understand how a complete bag is using its power source.
