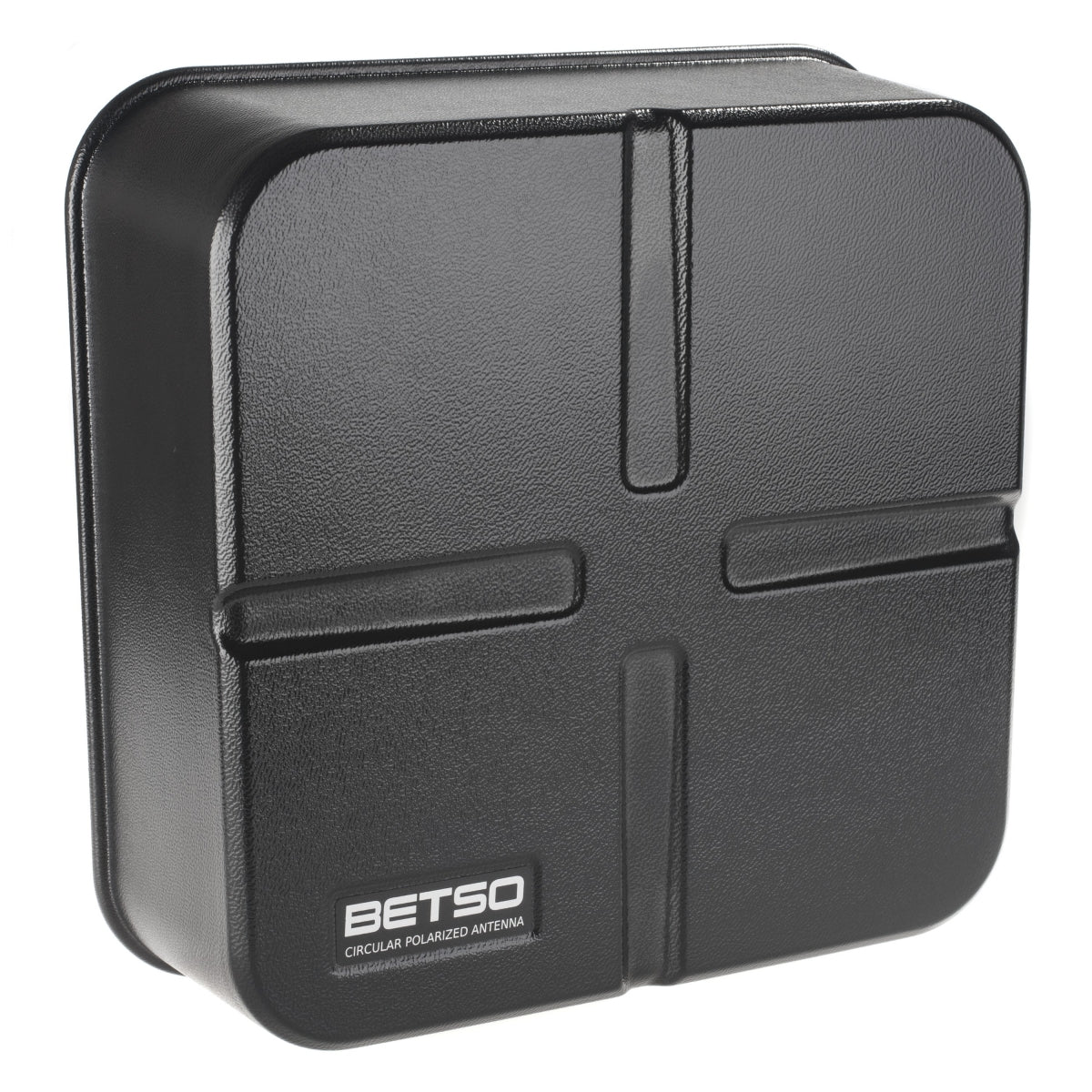

BETSO CPAA-18 Circularly Polarised Active Antenna

• Circularly polarised 470–850MHz active antenna.
• -9 to +18dB adjustable amplifier with <0.75dB noise figure.
• Cardioid directivity, 5–20V coax power and multiple mounting options.

Need help choosing?

Choose CPAA-18 when transmitter orientation changes frequently or the RF path contains reflections. Choose SHARKIE for a lighter linear-polarized directional antenna.
£642.82 (£535.68 ex VAT)
£642.82 (£535.68 ex VAT)
Tax included. Shipping calculated at checkout.

The CPAA-18 is a 470–850MHz circularly polarised active receiver antenna with -9 to +18dB variable gain and an ultra-low-noise amplifier.

Circular polarization reduces sensitivity to transmitter antenna orientation and can improve reception in reflective environments. Strong filtering, weather-resistant construction and flexible mounting suit larger wireless deployments.

Choosing your type

Choose CPAA-18 when transmitter orientation changes frequently or the RF path contains reflections. Choose SHARKIE for a lighter linear-polarized directional antenna.

Specifications

Band

470–850MHz

Type

Active circular-polarized

Gain

7.5dB avg / 8.5dB peak

Pattern

Cardioid

Polarization

Circular

Amplifier Gain

-9 to +18dB

Noise Figure

<0.75dB

OIP3

>34dBm

Power

5–20V via coax

Current

35mA

Mount

1/4in / 3/8in + 4x M4

Dimensions

315 x 315 x 110mm

Weight

1.4kg

Compatibility

• Professional UHF diversity receivers and RF distribution covering 470–850MHz
• BETSO RF OCTOPUS / En2 HEXAPACK
• 1/4in / 3/8in stands and compatible permanent mounts

Dimensions

Band

470–850MHz

Polarization

Circular

Gain

-9 to +18dB

Noise

<0.75dB

Weight

1.4kg

What’s in the box?

• 1x BETSO CPAA-18 Active Antenna

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

This product includes a 1-year Betso manufacturer warranty against defects in materials and workmanship under normal use.

For help with a fault or warranty claim, please visit our Returns & Warranty page and fill out the warranty form.

Soundkit will then help handle the warranty process with Betso on your behalf.

This manufacturer warranty does not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation or normal wear-and-tear items such as cables and accessories.

This manufacturer warranty is in addition to your statutory rights.

Important Notes

• Requires 5–20V DC antenna power through coax.
• Circular polarization does not replace correct RF planning.
• Set gain to suit cable loss and receiver headroom.
• Optional CPAA-18 pouch sold separately.
• BETSO products carry a 1-year warranty.
