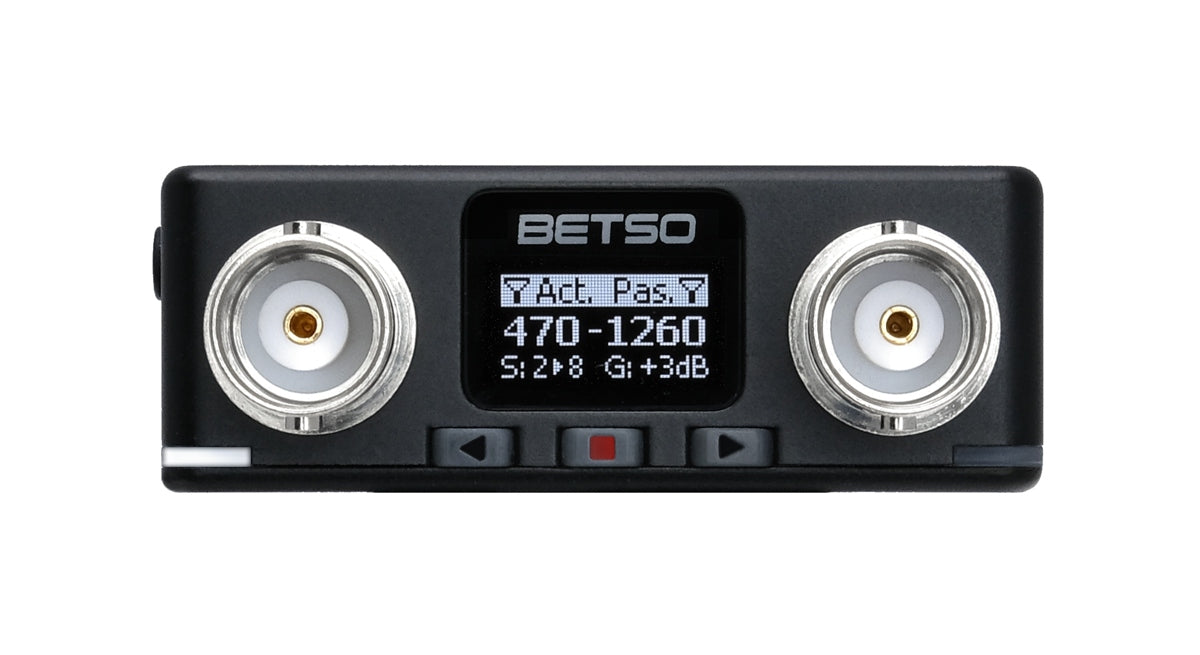

• BETSO RF OCTOPUS Splitter, Combiner & Diagnostic Tool

BETSO

BETSO RF OCTOPUS Splitter, Combiner & Diagnostic Tool

• 470–1260MHz RF distributor with 2:8, 1:8 and combiner/splitter modes.
• Selectable 700/960/1260MHz filters and -10 to +10dB gain.
• Built-in coax attenuation tester and individually switchable active-antenna power.

Need help choosing?

Choose RF OCTOPUS when you need configurable RF splitting plus field cable diagnostics in one compact device.
£646.80 (£539.00 ex VAT)
£646.80 (£539.00 ex VAT)
Tax included. Shipping calculated at checkout.

The RF OCTOPUS is a compact 470–1260MHz RF splitter, combiner and diagnostic tool with selectable filtering, variable gain and active-antenna power control.

It supports 2:8 diversity splitting, 1:8 splitting and combiner/splitter operation, with selectable low-pass filtering. A built-in cable-loss tester and individually switchable antenna power make it a powerful RF utility.

Choosing your type

Choose RF OCTOPUS when you need configurable RF splitting plus field cable diagnostics in one compact device.

Specifications

Band

470–1260MHz

Filters

700 / 960 / 1260MHz LPF

Modes

2:8 / 1:8 / combiner-splitter

Gain

-10 to +10dB

Impedance

50Ω

Noise Figure

<0.8dB

OIP3

>+40dBm

Isolation

>21dB typical

Inputs

BNC

Outputs

SMA

Power

6–18V DC

Current

<100mA @ 12V

Cable Test

0 to -35dB

Dimensions

75 x 48 x 17.8mm

Weight

110g

Compatibility

• BETSO BOWTIE / SHARKIE / CPAA-18
• Professional wireless receivers using compatible RF cabling
• Sound bags and carts requiring RF distribution

Dimensions

Band

470–1260MHz

Outputs

Up to 8

Gain

-10 to +10dB

Weight

110g

Cable Test

Built In

What’s in the box?

• 1x BETSO RF OCTOPUS
• 1x Removable belt clip

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

This product includes a 1-year Betso manufacturer warranty against defects in materials and workmanship under normal use.

For help with a fault or warranty claim, please visit our Returns & Warranty page and fill out the warranty form.

Soundkit will then help handle the warranty process with Betso on your behalf.

This manufacturer warranty does not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation or normal wear-and-tear items such as cables and accessories.

This manufacturer warranty is in addition to your statutory rights.

Important Notes

• BNC inputs and SMA outputs.
• Requires 6–18V DC via HRS-compatible 4-pin connector.
• Active-antenna power is switchable and overload monitored.
• Cable-loss test measures attenuation, not cable impedance.
• BETSO products carry a 1-year warranty.
