Deity

BF1 Butterfly Wideband Antenna Kit

• Passive wideband butterfly antenna kit covering 470MHz–1GHz.
• Omnidirectional pickup pattern with 50Ω BNC connection for wireless microphone systems.
• Includes 2 antennas, mounting arms, RF cables and carrying case for location or stage setups.

Need help choosing?

Choose the BF1 if you need a compact passive wideband antenna kit for UHF wireless microphone systems. It is ideal for THEOS Global OneBand setups, mixed-frequency wireless kits, antenna splitters and stage or location sound workflows where omnidirectional RF pickup is useful.
£289.00 (£240.83 ex VAT)
£289.00 (£240.83 ex VAT)
Tax included. Shipping calculated at checkout.
  • Next-day UK delivery
  • Authorised UK stockist
  • Trusted by industry experts
Awaiting stock, shipping soon

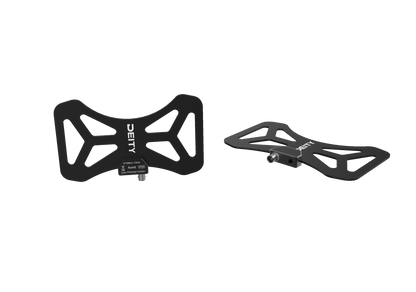

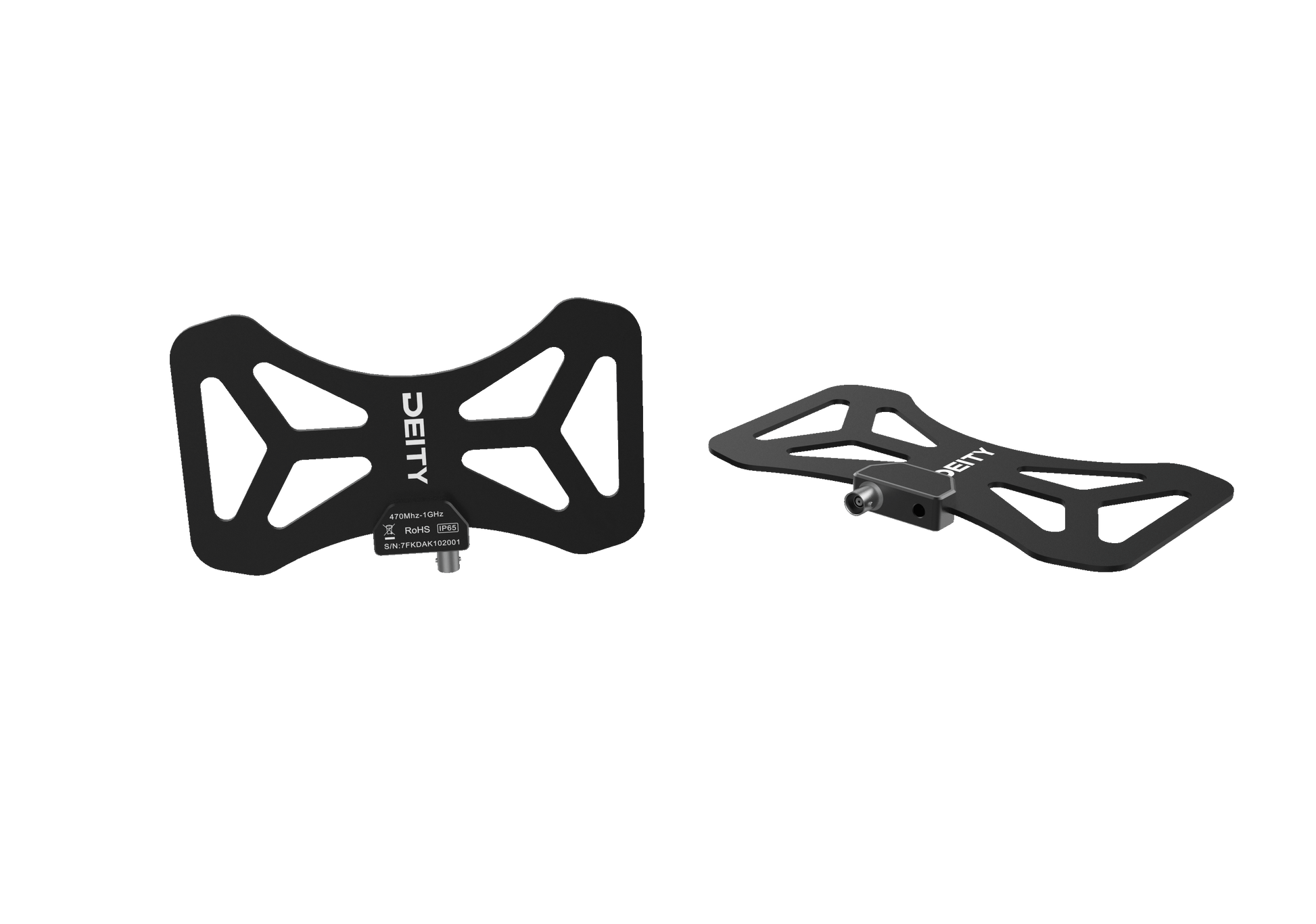

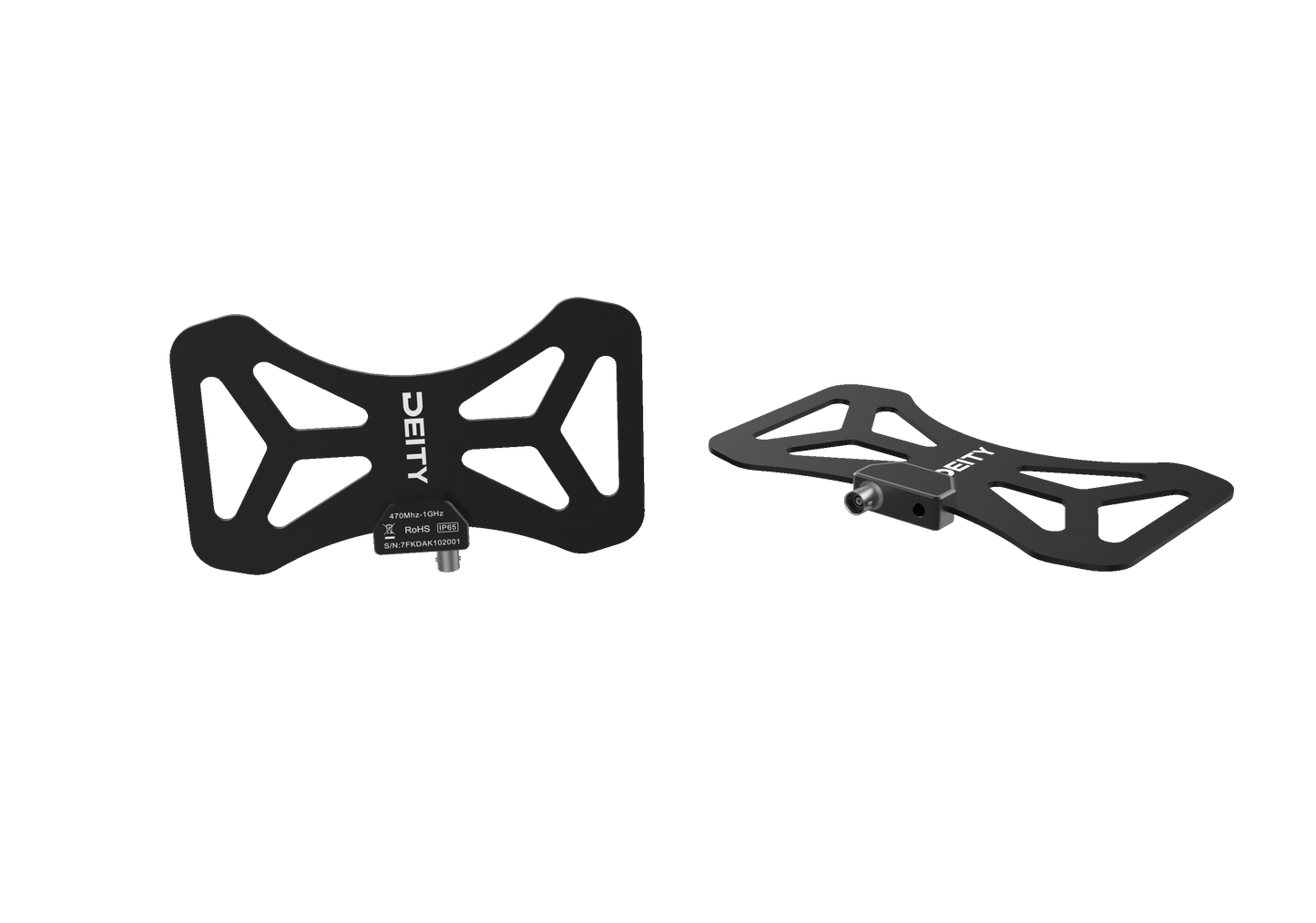

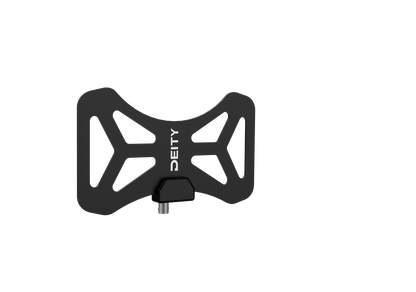

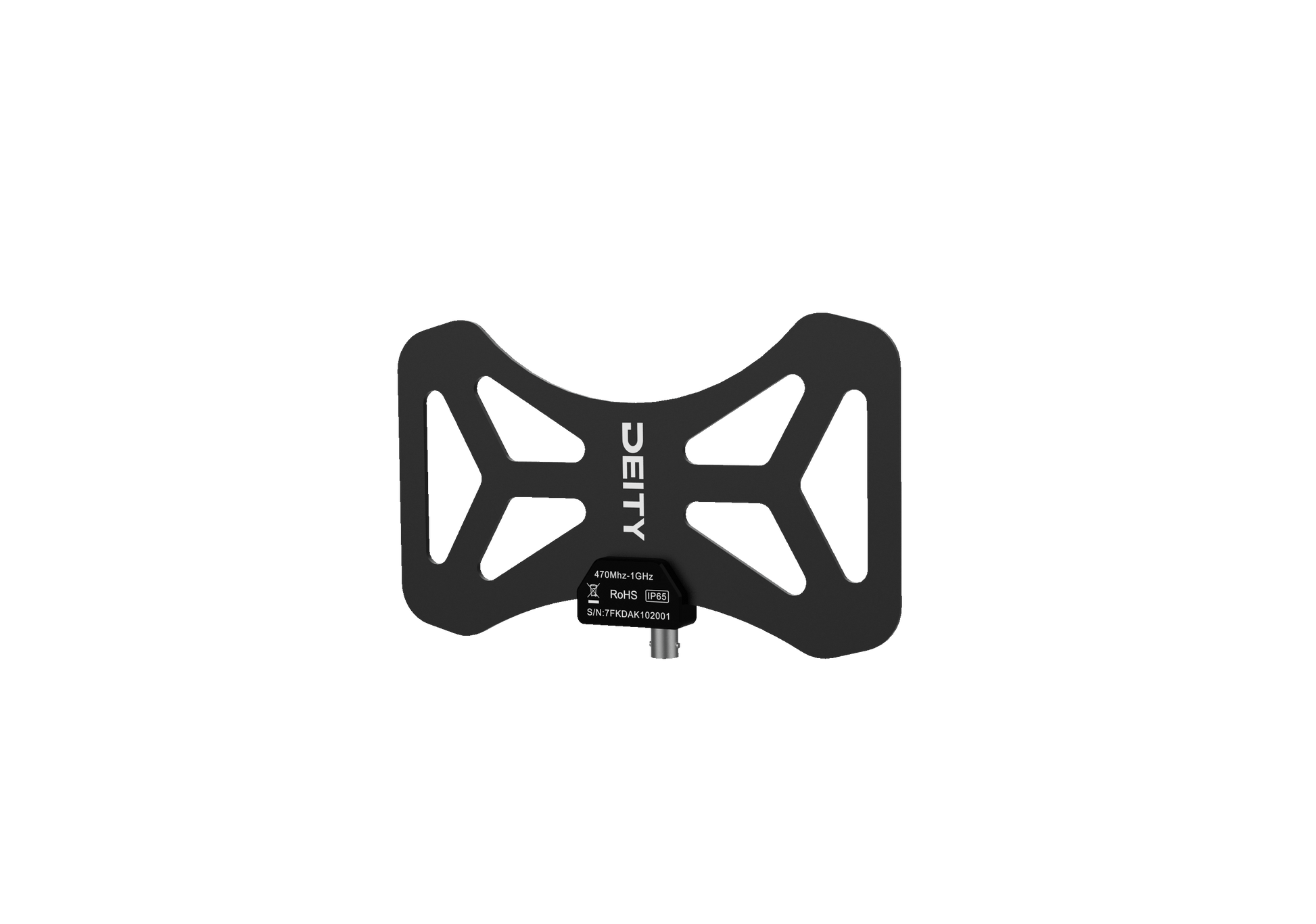

The BF1 Butterfly Wideband Antenna Kit is a passive wideband bow-tie antenna kit for wireless microphone systems, film sets, stage applications and professional RF workflows.

Covering 470MHz–1GHz with a 50Ω BNC connector and omnidirectional pickup pattern, the BF1 is designed to support Deity THEOS Global OneBand setups as well as other UHF wireless systems. The kit includes two antennas, mounting arms, BNC cables, BNC to SMA cables and a carrying case for practical location or stage use.

Choosing your type

Choose the BF1 if you need a compact passive wideband antenna kit for UHF wireless microphone systems. It is ideal for THEOS Global OneBand setups, mixed-frequency wireless kits, antenna splitters and stage or location sound workflows where omnidirectional RF pickup is useful.

Specifications

Antenna Type

Passive antenna

Frequency Range

470MHz–1GHz

Average +2.2dBi

Gain

Input Impedance

50Ω

RF Connector

BNC

Standing Wave Ratio

<1.5, 550MHz–750MHz

Built-In Filter

None

Pickup Pattern

Omnidirectional

Polarization

Linear

Mounting

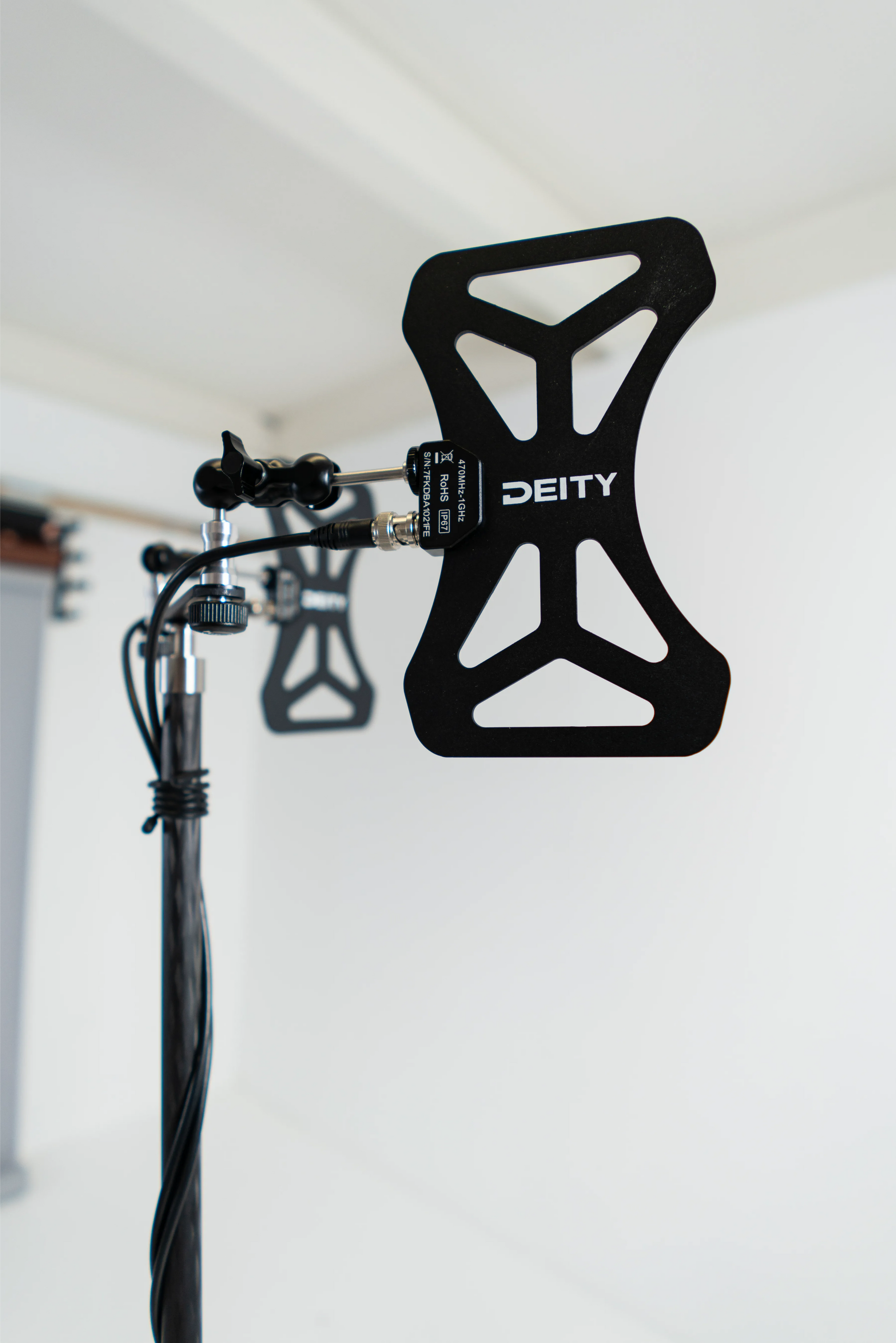

1/4in threaded mount

Material

Composite fibreglass

Weather Sealing

IP65 weather-sealed BNC mount

Dimensions

190mm x 118mm x 14mm

Weight

Approx. 95g excluding cable / 98g antenna only

Included Kit

2 antennas, 2 mounting arms, BNC cables, SMA cables and case

Compatibility

• Deity THEOS ecosystem
• UHF wireless microphone systems
• Antenna splitters and RF distribution systems
• Wireless receivers with BNC antenna inputs
• Wireless receivers using SMA inputs via included cables
• Film set wireless audio workflows
• Stage and theatre wireless systems
• Live event RF setups

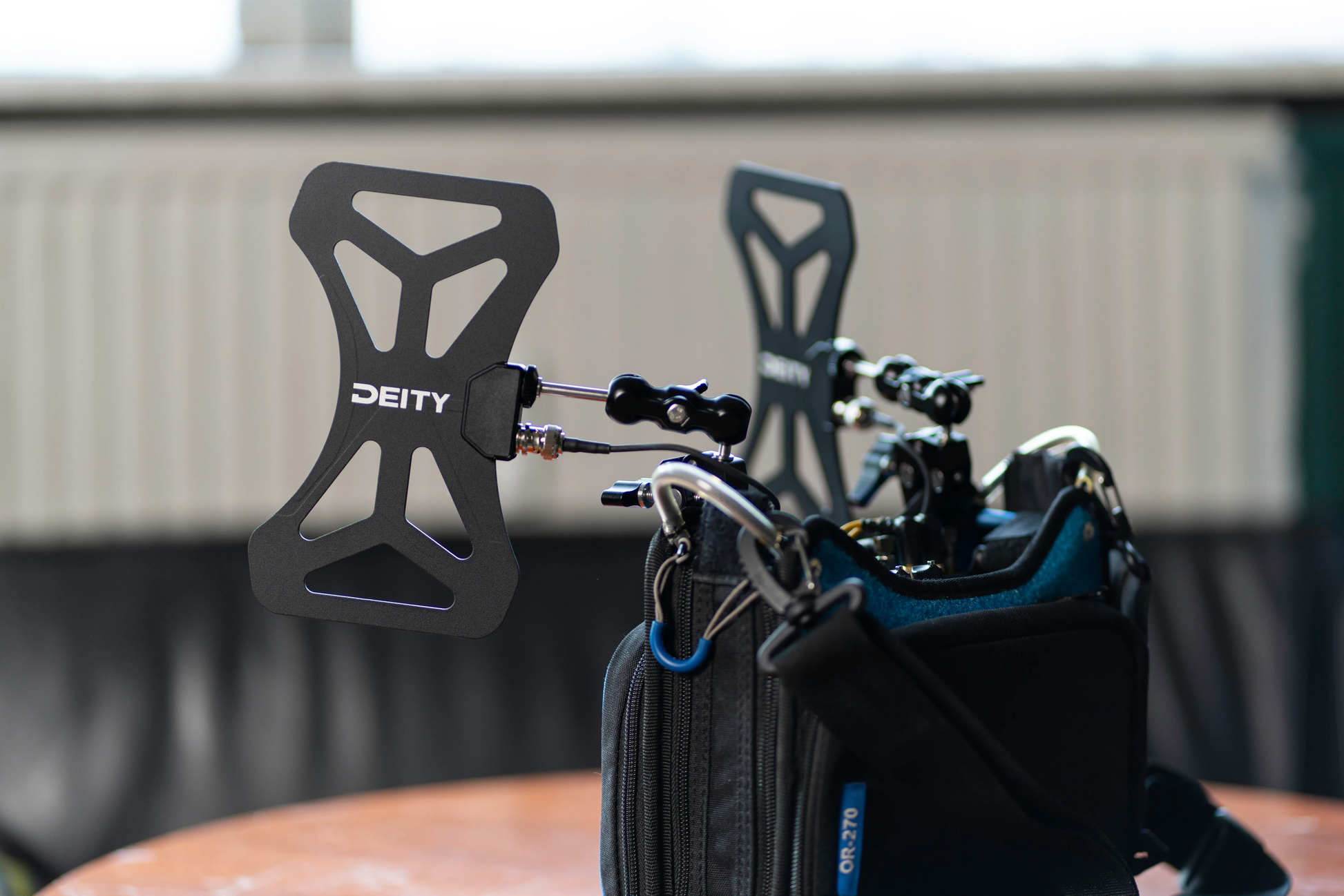

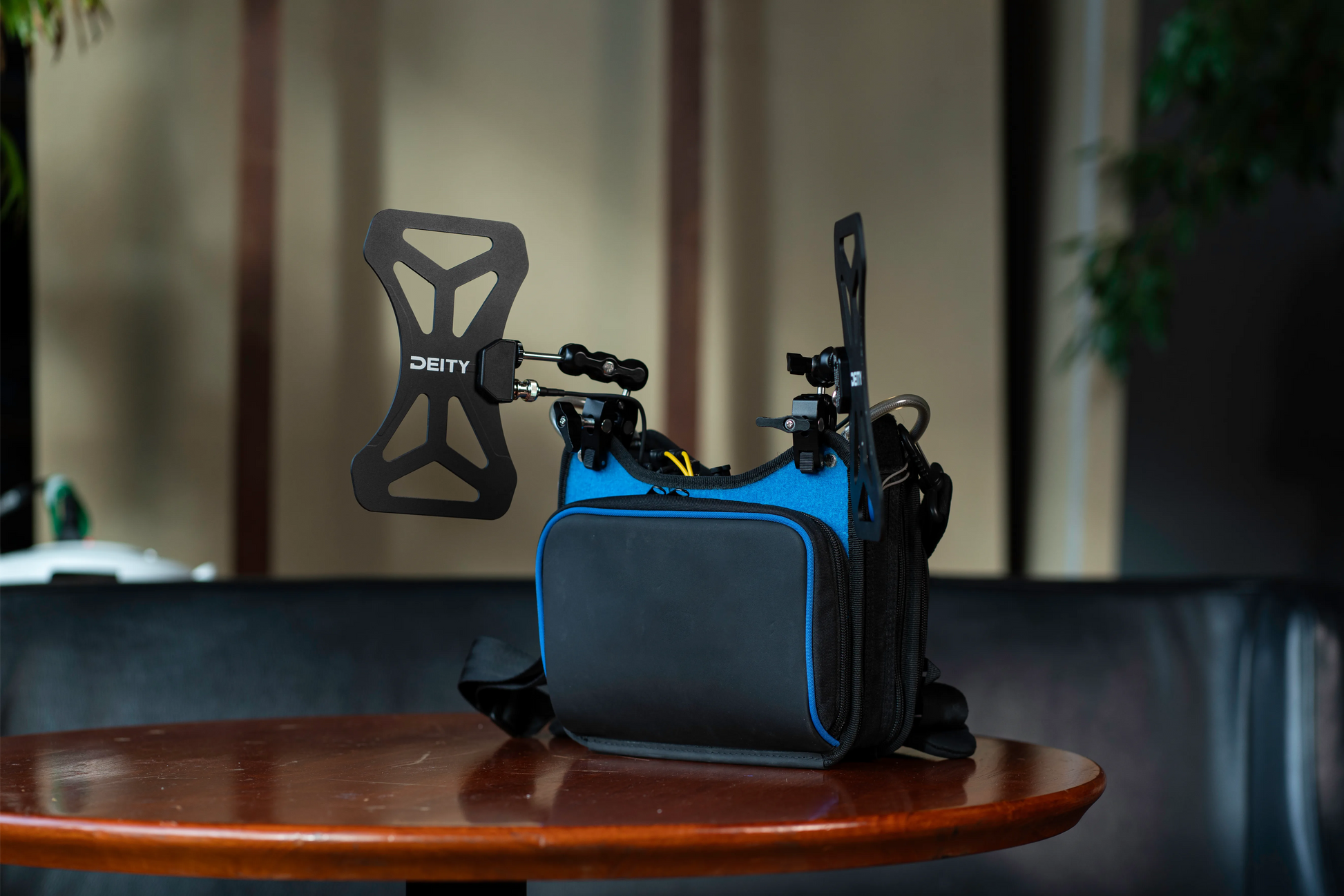

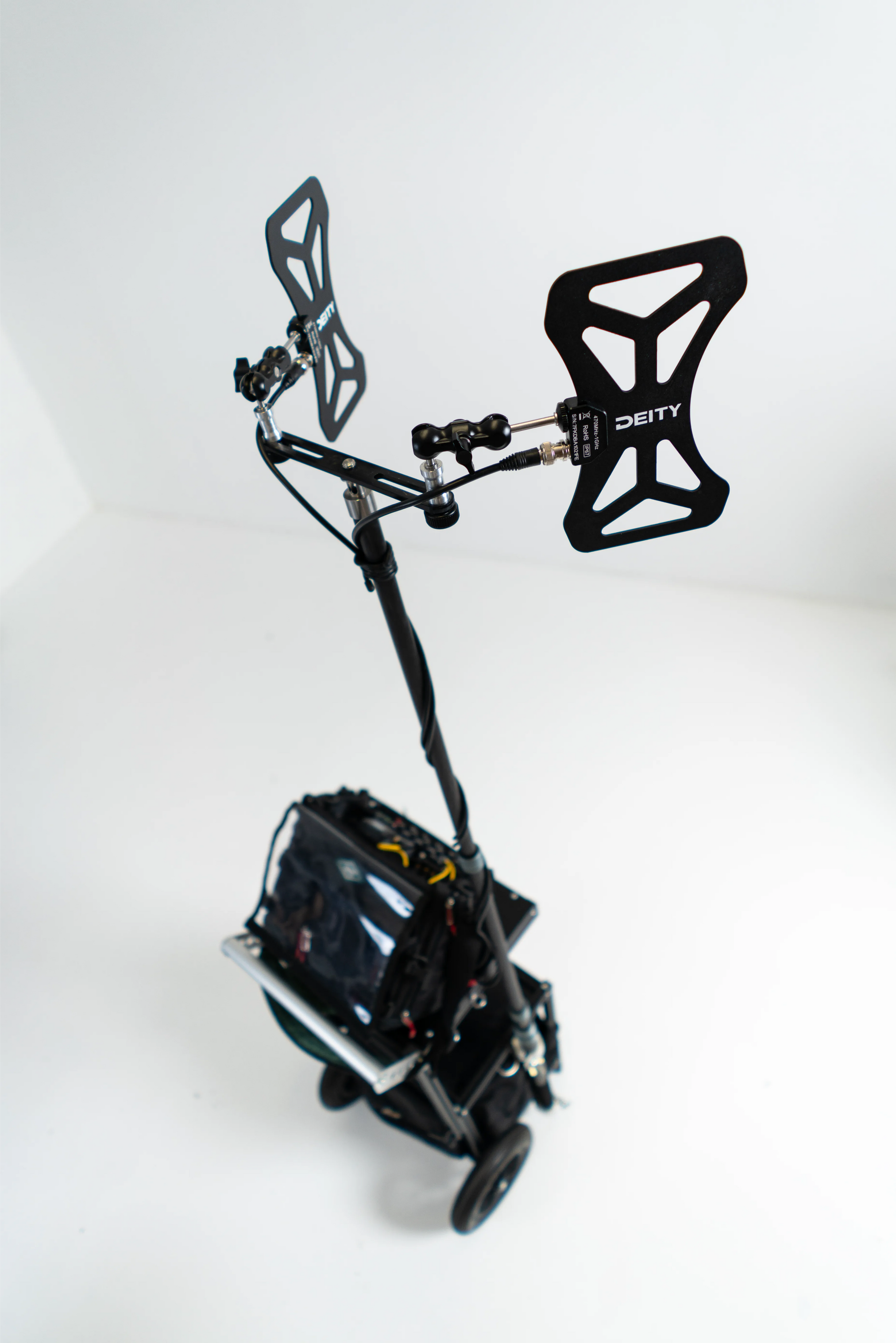

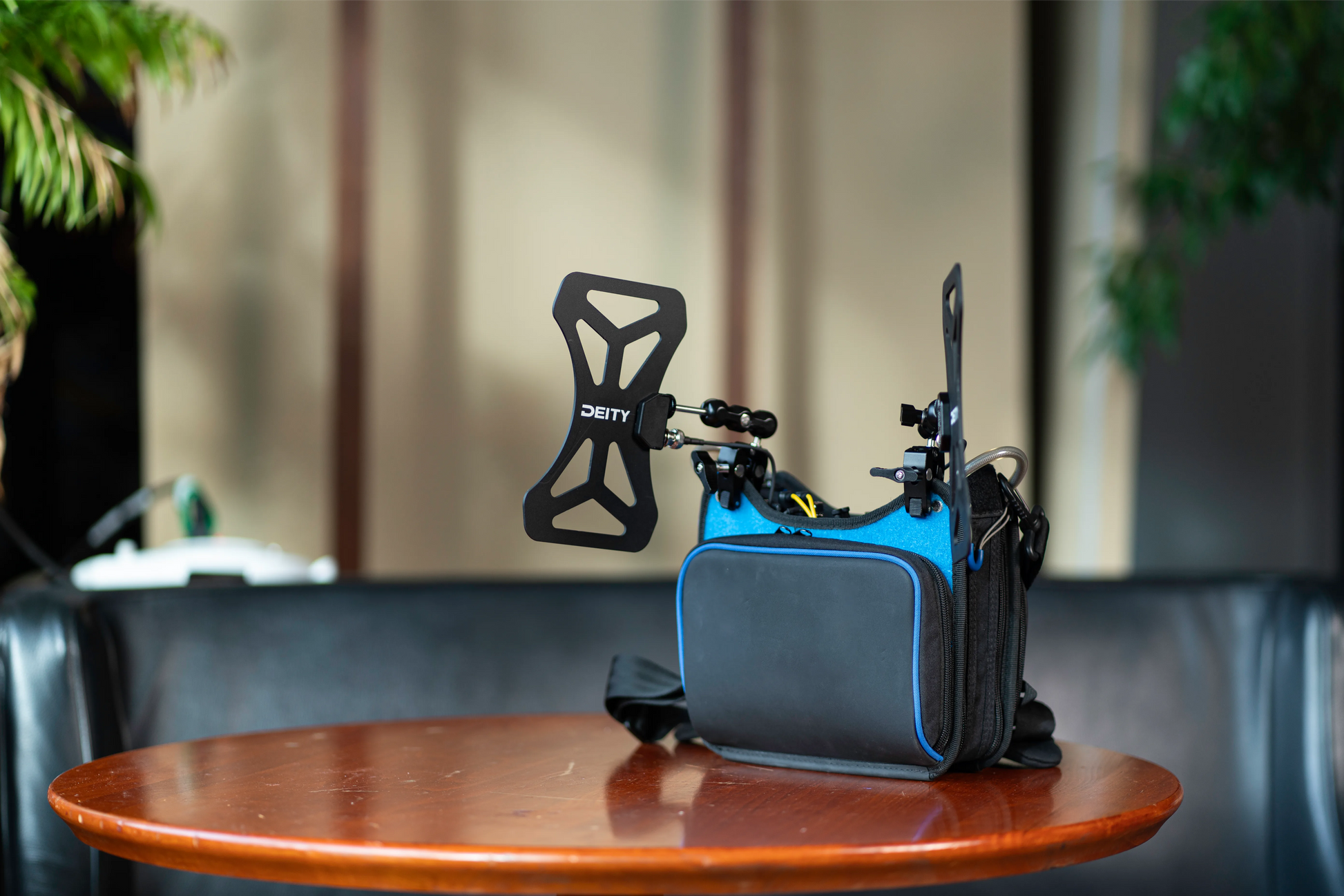

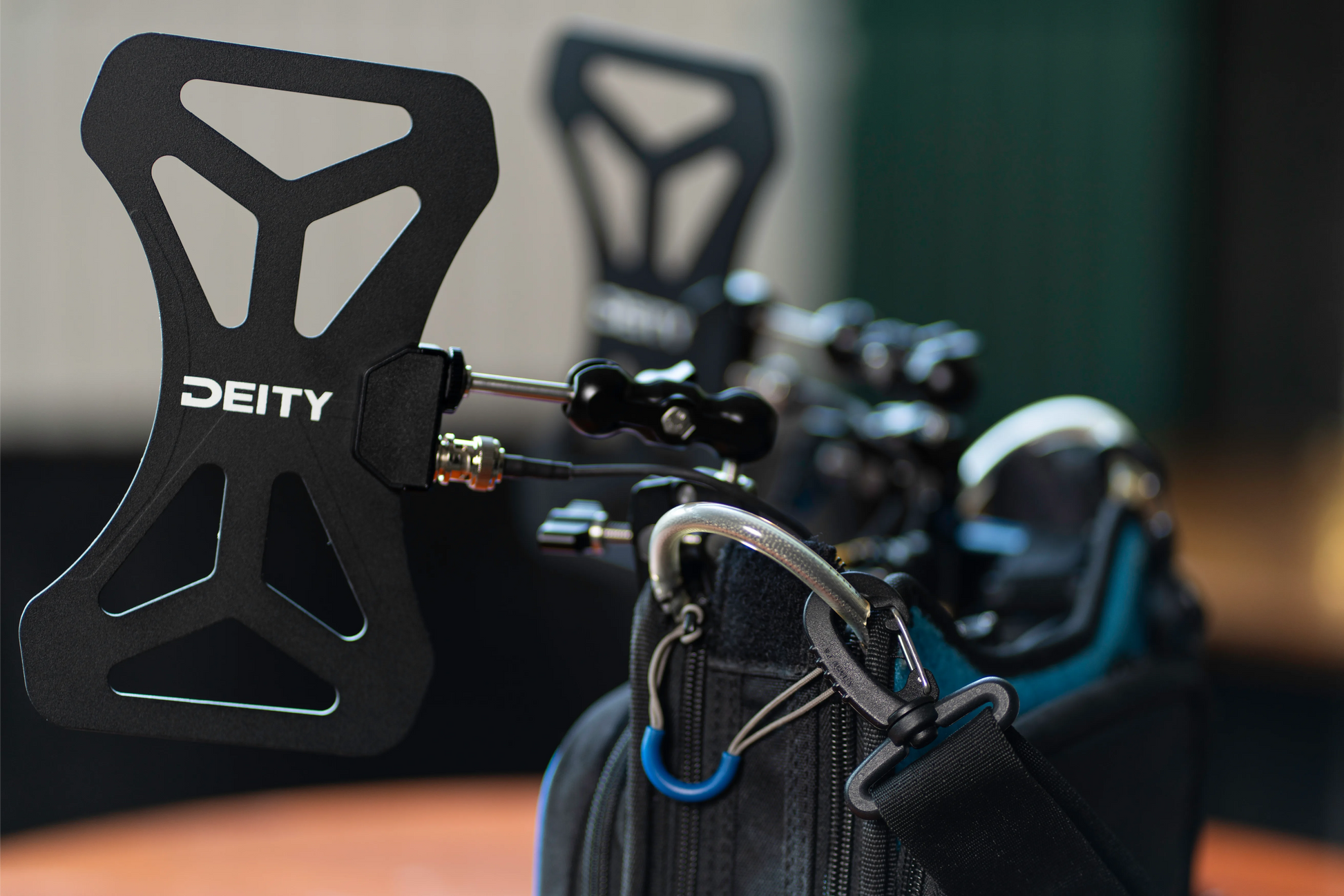

• Location sound carts and bags
• 470MHz–1GHz wireless systems
• Global OneBand wireless workflows

Dimensions

Length

190mm / 7.5in

Width

118mm / 4.5in

Depth

14mm / 0.6in

Weight

Approx. 95g excluding cable / 98g antenna only

What’s in the box?

• 2x BF1 Antennas
• 2x Articulating Mounting Arms / Antenna Clamp Mounts
• 2x BNC to BNC Cables
• 2x BNC to Right-Angle SMA Cables
• 1x Carrying Case / Antenna Pouch

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

2-year warranty + optional 6-month extension

This product includes a 2-year Deity manufacturer warranty against defects in materials and workmanship under normal use.

The warranty can be extended by an additional 6 months by registering the product with Deity.

For help with a fault or warranty claim, please visit our Returns & Warranty page and fill out the warranty form.

Soundkit will then help handle the warranty process with Deity on your behalf.

This manufacturer warranty does not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation or normal wear-and-tear items such as cables and accessories.

This manufacturer warranty is in addition to your statutory rights.

Important Notes

• Passive antenna design; no power is required.
• Designed for 470MHz–1GHz UHF wireless systems; usable frequencies depend on the connected wireless equipment and local regulations.
• The BNC mount is described as IP65 weather sealed for outdoor or permanent install use.
• Deity Stereo Antenna Bar / AMB1 accessories are not included unless purchased separately.
• Kit contents may be listed as carrying case or antenna pouch depending on supplier wording.

Technical Downloads

For up to date manuals, product documents and more in depth specifications, please refer to the official Deity Manuals page

BF1 Butterfly Wideband Antenna Kit

£289.00

Wideband UHF Coverage

Covers 470MHz–1GHz

The BF1 wideband butterfly antenna supports Deity THEOS Global OneBand workflows and other UHF wireless systems across 470MHz–1GHz.

Omnidirectional Pickup

Useful for Stage and Location RF

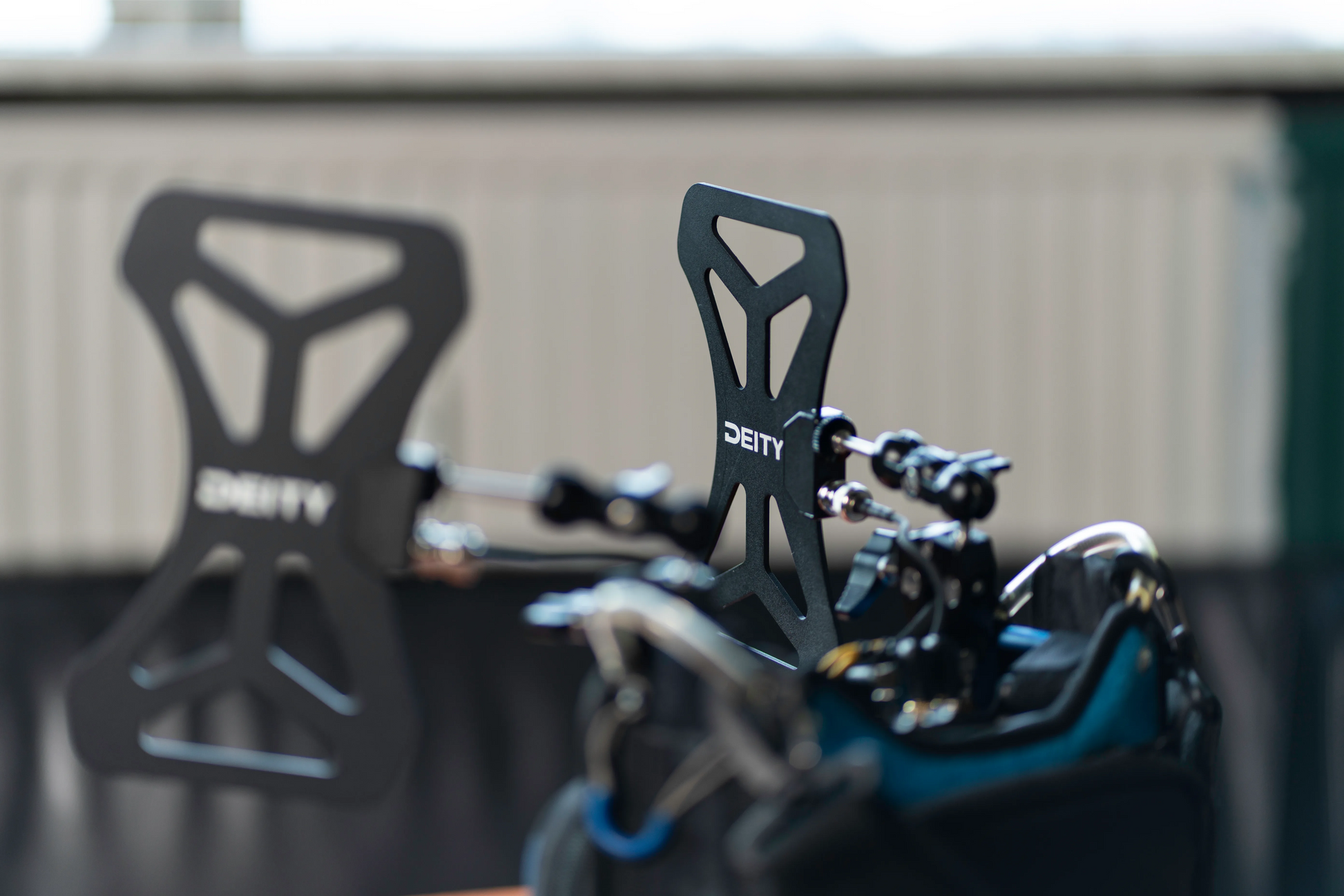

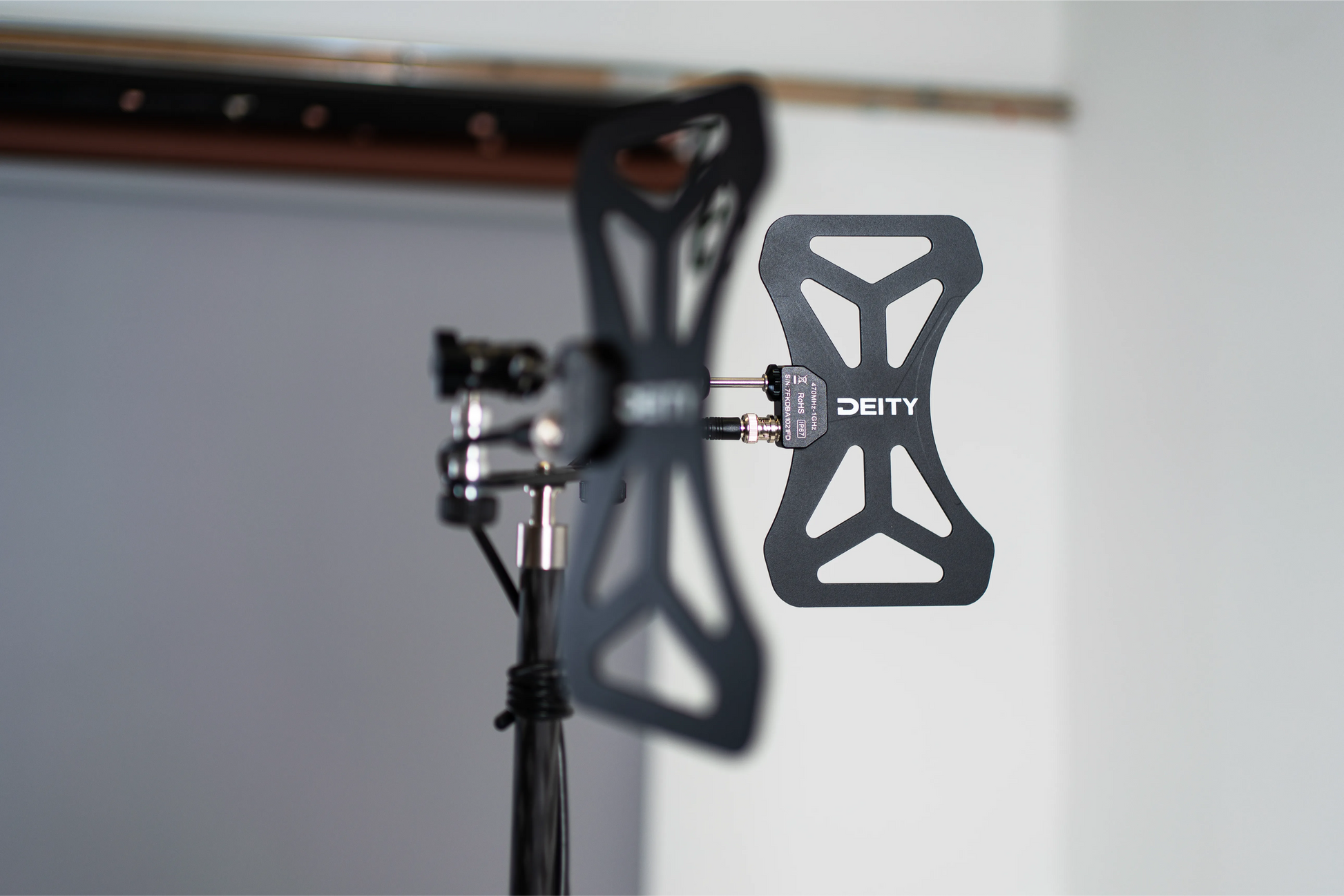

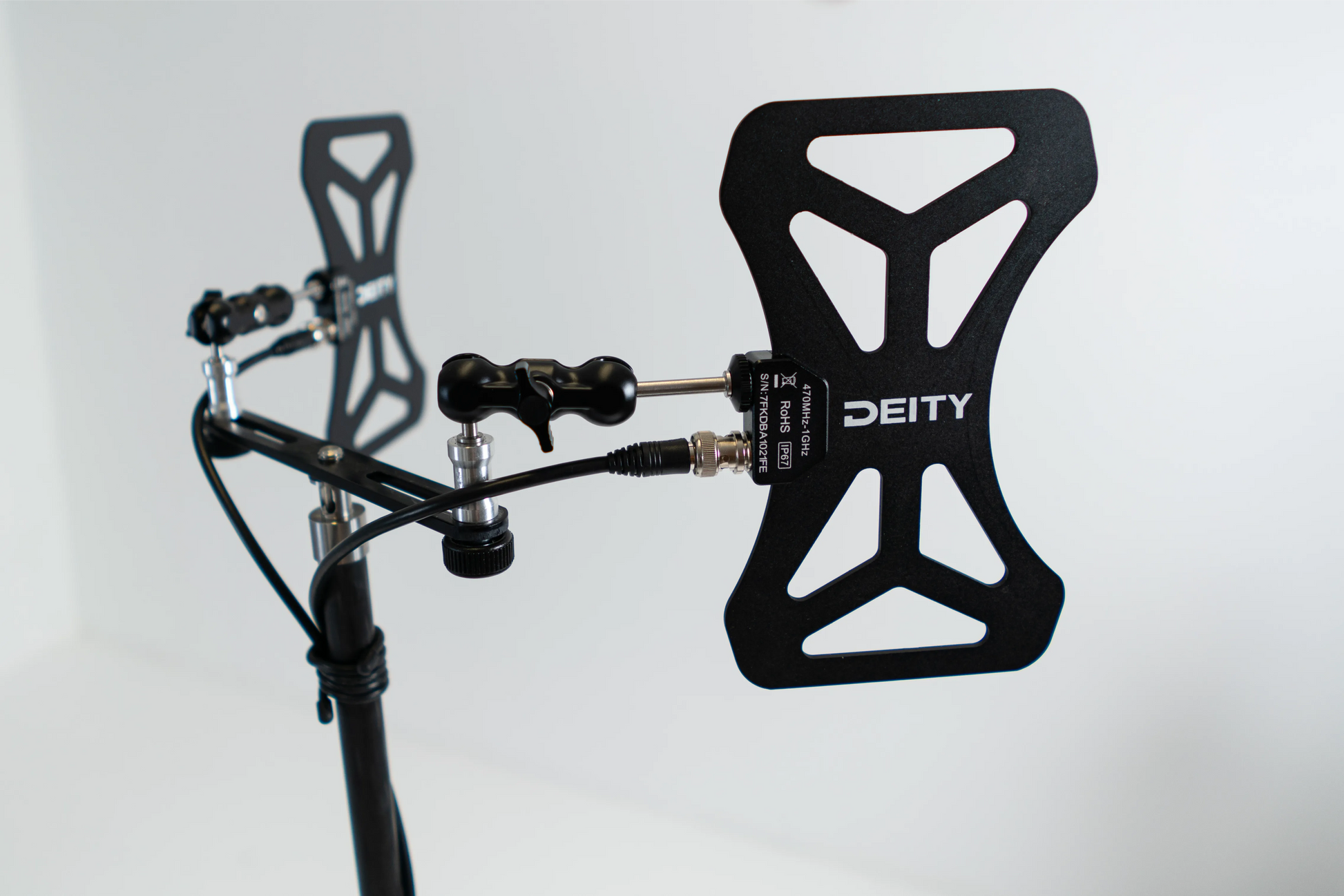

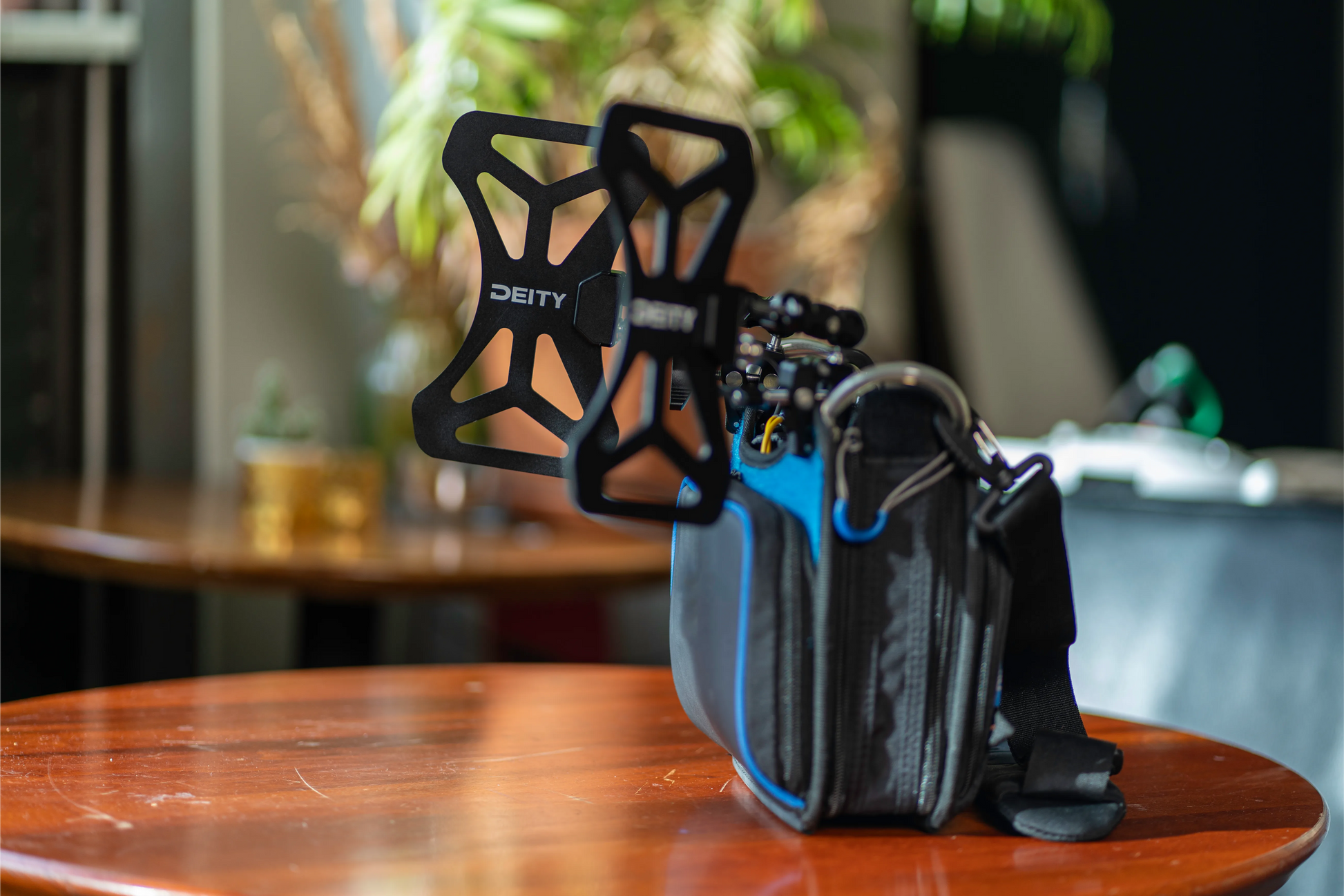

The passive omnidirectional design is suited to film sets, stage applications, live events and wireless microphone systems where broad RF coverage is useful.

Complete Antenna Kit

Includes Antennas, Mounts and Cables

The kit includes two BF1 antennas, mounting arms, BNC cables, BNC to right-angle SMA cables and a carrying case or pouch for transport.
