Wisycom

BPA54 Stand-Alone Rear Panel for MCR54

• Stand-alone rear panel for Wisycom MCR54 and MCR54-DUAL receivers.
• 2x 5-pin mini-XLR male outputs for analogue or AES digital audio.
• 1x 4-pin Hirose connector for external DC power.

Need help choosing?

Choose the BPA54 when you want to operate an MCR54 or MCR54-DUAL as a stand-alone receiver with direct audio outputs and external Hirose power. If the MCR54 will live in a Sound Devices SuperSlot, MRK16, Unislot camera or Sony camera slot, use the corresponding Wisycom slot-in kit instead. If you want a battery-powered stand-alone solution, the BCA54 is the battery-module alternative.
£190.49 (£158.74 ex VAT)
£190.49 (£158.74 ex VAT)
Tax included. Shipping calculated at checkout.
  • Next-day UK delivery
  • Authorised UK stockist
  • Trusted by industry experts
Awaiting stock, shipping soon

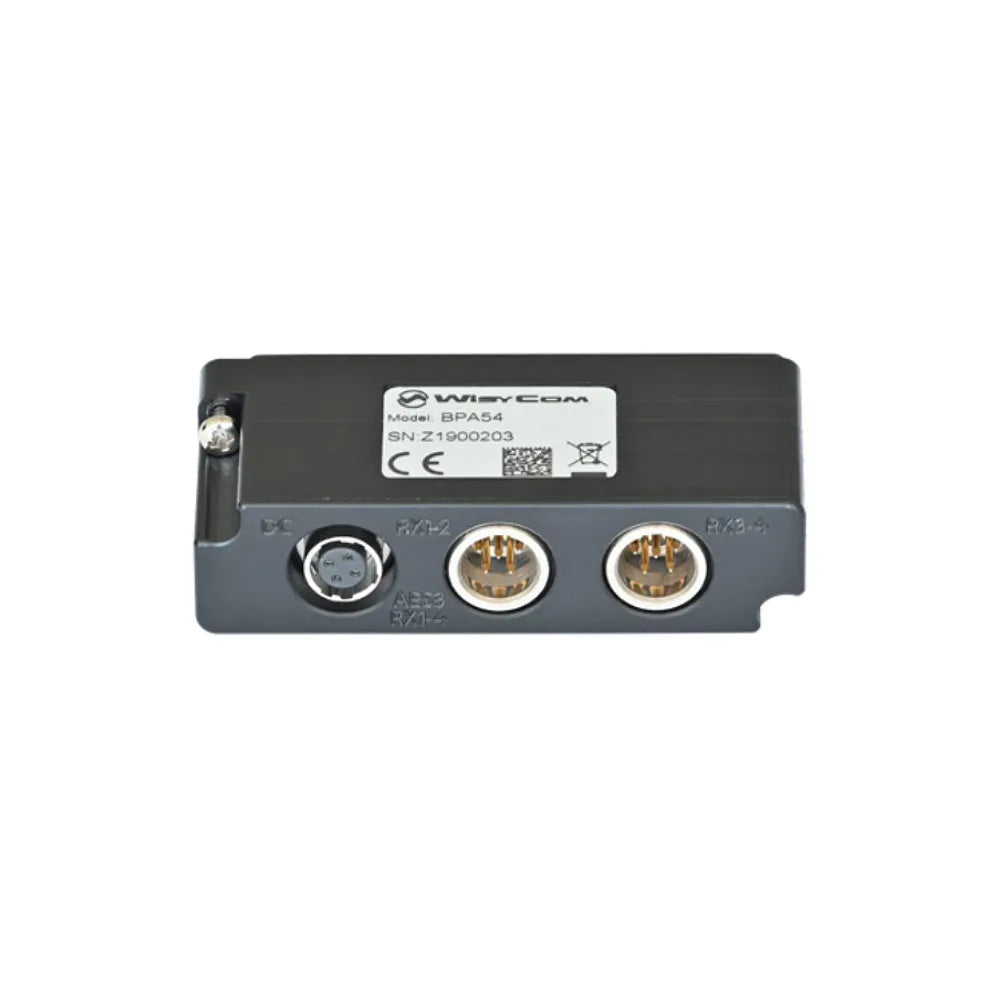

The BPA54 converts the Wisycom MCR54 or MCR54-DUAL into a stand-alone receiver with dual 5-pin mini-XLR audio outputs and Hirose DC power.

Two 5-pin mini-XLR male outputs carry up to four analogue channels or four AES digital channels from an MCR54, while a 4-pin Hirose connector provides external DC power. The rear panel is ideal when you want to use the receiver outside a camera or SuperSlot/Unislot installation.

Choosing your type

Choose the BPA54 when you want to operate an MCR54 or MCR54-DUAL as a stand-alone receiver with direct audio outputs and external Hirose power. If the MCR54 will live in a Sound Devices SuperSlot, MRK16, Unislot camera or Sony camera slot, use the corresponding Wisycom slot-in kit instead. If you want a battery-powered stand-alone solution, the BCA54 is the battery-module alternative.

Specifications

Accessory Type

Stand-alone receiver rear panel

Compatible Receiver

Wisycom MCR54

Additional Compatibility

Wisycom MCR54-DUAL

Audio Output Connectors

2x 5-pin mini-XLR male

MCR54 Analogue Outputs

Up to 4 channels

MCR54 Digital Outputs

Up to 4 AES channels

MCR54-DUAL Channels

2 receiver channels

Power Connector

4-pin Hirose

Power Function

External DC input

Operating Configuration

Stand-alone

Slot-In Function

No - use dedicated slot-in kit

Audio Breakout Cable

Not included

Receiver Included

No

Manufacturer

Wisycom

Product Family

MCR54 Accessories

Compatibility

• Wisycom MCR54 4-Channel True Diversity Receiver
• Wisycom MCR54-DUAL Receiver
• Compatible external DC power sources using 4-pin Hirose
• Wisycom mini-XLR audio breakout cables such as CAM50-series cables where appropriate

Dimensions

Audio Outputs

2x 5-Pin Mini-XLR

MCR54 Audio

4 Analogue / 4 AES

Power Input

4-Pin Hirose

Receiver Fit

MCR54 / MCR54-DUAL

Configuration

Stand-Alone

What’s in the box?

• 1x Wisycom BPA54 Stand-Alone Rear Panel
• MCR54 receiver, power cable and audio breakout cables are not included

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Important Notes

• This is the rear panel only; the MCR54/MCR54-DUAL receiver is not included.
• With MCR54, the two mini-XLR outputs can carry four analogue channels or four AES digital channels.
• Wisycom documentation notes that MCR54-DUAL operation is limited to two receiver channels.
• Audio breakout cables are not included unless explicitly stated separately.
• Choose a slot-in rear panel instead if the receiver is being installed directly into a compatible camera, SuperSlot or Unislot system.

BPA54 Stand-Alone Rear Panel for MCR54

£190.49

Rear Panel Accessory

Convert Your MCR54 to Stand-Alone Use

Fit the BPA54 when you need direct audio outputs and external power instead of a SuperSlot, Unislot or camera-specific rear panel. It is compatible with both MCR54 and MCR54-DUAL receivers.
