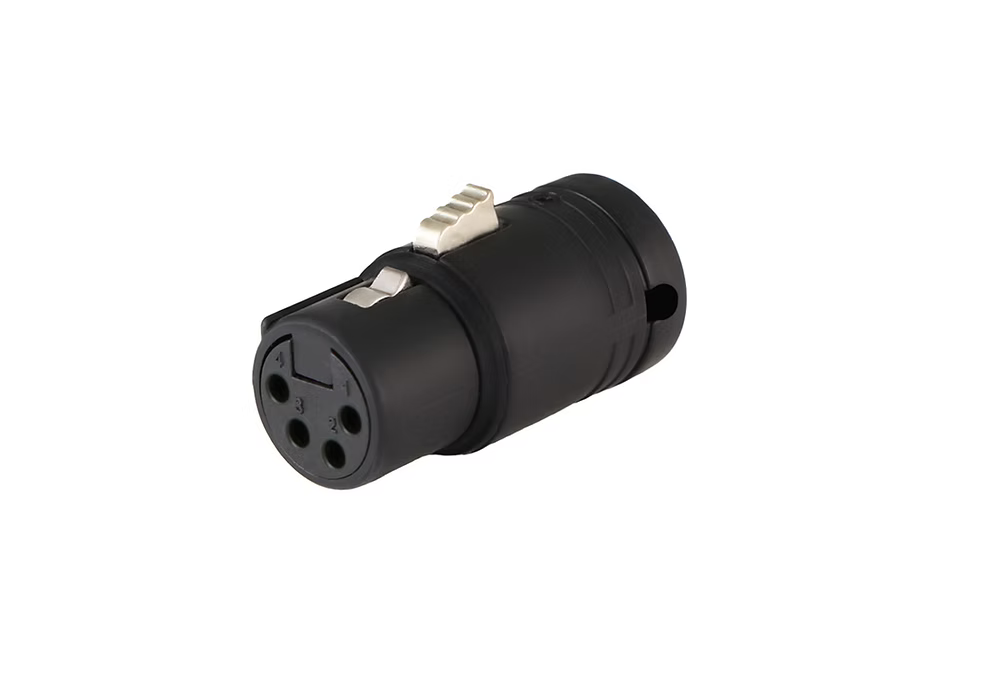

• A-Shell low-profile right-angle XLR 4-pin female connector, black

Cable Techniques

Cable Techniques Low-Profile Right Angle XLR 4-Pin Female – A-Shell

• Compact low-profile 4-pin female XLR connector with adjustable right-angle cable exit.
• A-Shell outlet adjusts through a 120° swing around the 3 o'clock or 9 o'clock side.
• Standard black cap accepts slim cable up to 3.8mm outside diameter.
• Matte-black zinc die-cast shell with solder termination and gold-coloured contacts.

Need help choosing?

This is the CT-AX4F-K A-Shell 4-pin female XLR with black Standard cap for cable up to 3.8mm OD. If you need a different pin count, gender or cable-exit orientation, check the connector model before ordering.
£14.99 (£12.49 ex VAT)
£14.99 (£12.49 ex VAT)
Tax included. Shipping calculated at checkout.

The Cable Techniques CT-AX4F-K is a low-profile right-angle 4-pin female XLR connector designed for compact location-sound, broadcast and camera cabling. The A-Shell design provides an adjustable cable exit with a 120° swing around the 3 o'clock or 9 o'clock side of the connector.

This version is supplied with the black Standard cap for cable up to 3.8mm outside diameter. It features a matte-black zinc die-cast shell, solder termination and gold-coloured contacts.

Choosing your type

This is the CT-AX4F-K A-Shell 4-pin female XLR with black Standard cap for cable up to 3.8mm OD. If you need a different pin count, gender or cable-exit orientation, check the connector model before ordering.

Specifications

Connector Type

4-pin XLR female

Shell Style

Low-profile right-angle A-Shell

Termination

Solder

Cable Outlet

Standard ≤3.8mm

Angle Adjustment

30°–150° and 210°–330°

Adjustment Swing

120°

Dimensions

37 x 18mm

Weight

1.2oz / approx. 34g

Shell Material

Zinc die-cast

Shell Colour

Matte black

Contact Material

Bronze

Voltage Rating

50V

Current Rating

10A

Thermal Range

-50°C to +80°C

Life

>1,000 operations

Compatibility

Suitable for slim cable up to 3.8mm OD, including:
• Belden 1804A
• Mogami W2901, W3031 and W2697
• Sommer Isopod SO-F22
• Other compatible slim microphone/location-sound cable up to 3.8mm OD

Dimensions

Connector

3-Pin Female XLR

Cable OD

≤3.8mm

Angle Swing

120°

Weight

34g

Termination

Solder

What’s in the box?

• 1x Cable Techniques CT-AX4F-K Low-Profile XLR 4-Pin Female A-Shell
• 1x 4-Pin Insert
• 2x Set Screws
• 1x Zip Tie
• 1x Black Standard Cap

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• This listing is specifically for model CT-AX4F-K: 4-pin female XLR, black cap, Standard cable outlet up to 3.8mm OD.
• Check your cable outside diameter before ordering; this version is not the Large-cap 3.8–6.0mm model.
• A-Shell refers to the adjustable cable-exit orientation around the 3 o'clock / 9 o'clock side.
