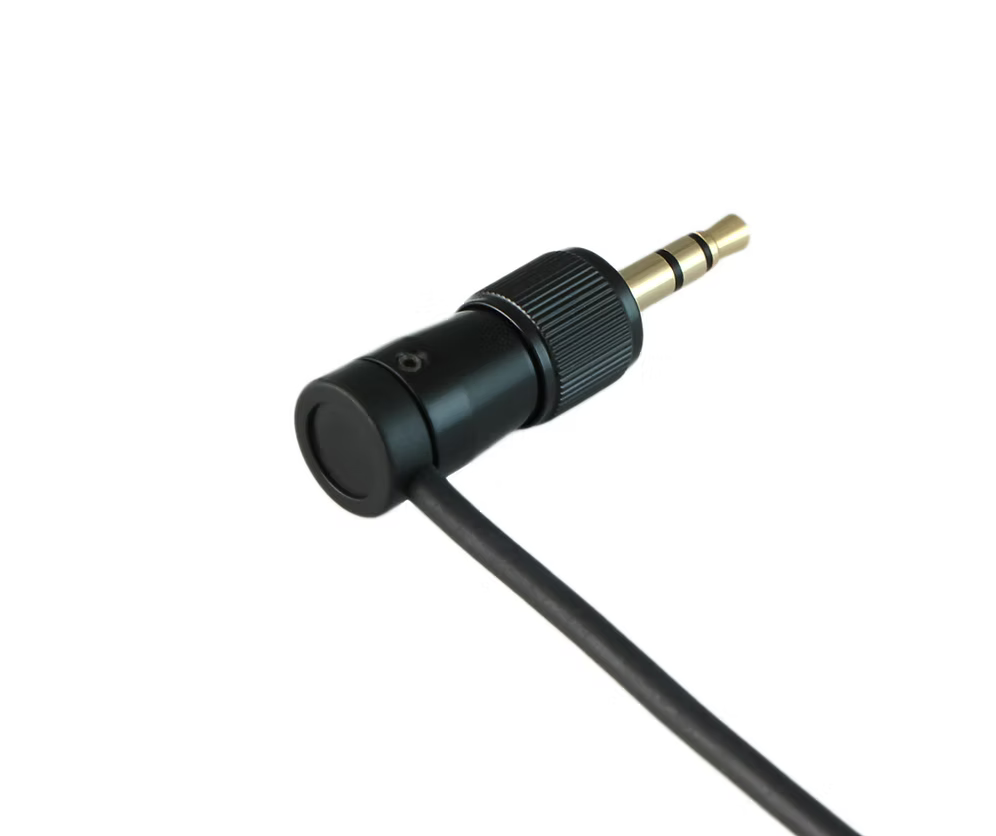

• Low-profile right-angle 3.5mm TRS screw-lock audio connector with black cable

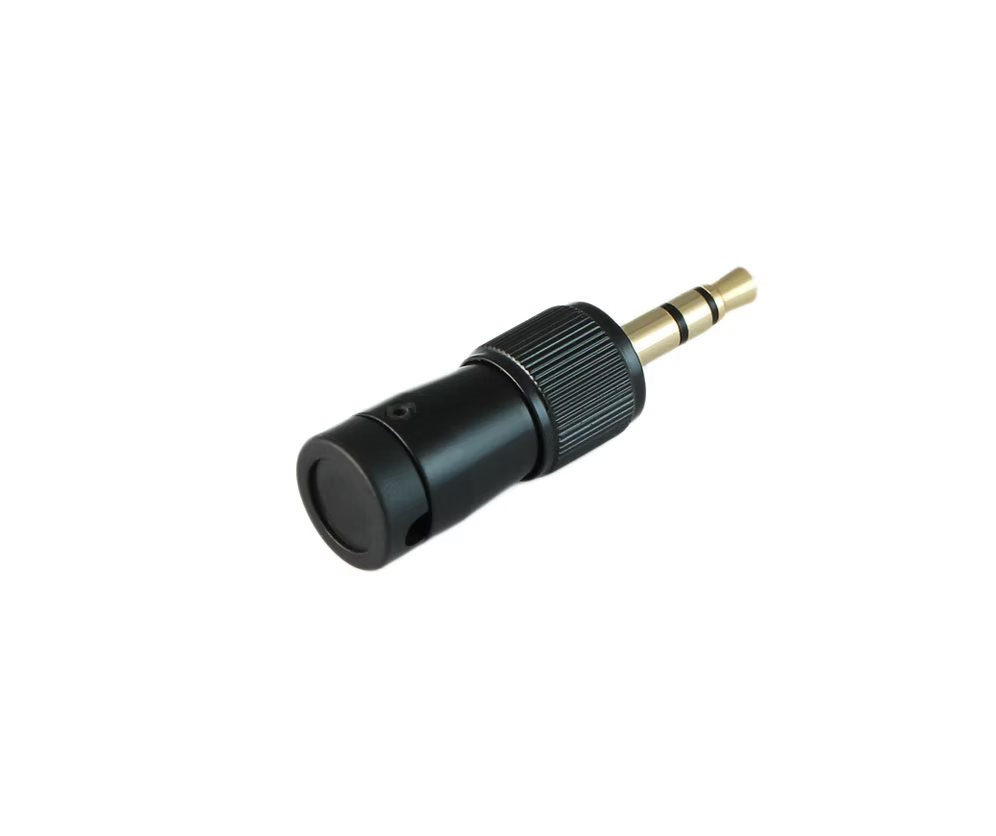

  • Low-profile 3.5mm TRS screw-lock audio plug, black with silver contact tip

Cable Techniques

Cable Techniques LPS Low-Profile Right Angle 3.5mm TRS Screw-Locking Connector

• Low-profile right-angle 3.5mm TRS connector with screw-locking collar.
• Suitable for compatible Sennheiser, Sony, Deity, RØDE and other locking 3.5mm wireless systems.
• Standard black cap accepts cable up to 3.2mm outside diameter.
• Compact 10 x 40mm body with gold-coloured contacts and 0.9mm hex set screws.

Need help choosing?

Choose this connector if your equipment uses a screw-locking 3.5mm TRS plug and your cable is up to 3.2mm OD. If you are unsure whether your transmitter or receiver uses this locking style, send us the equipment model and we can help confirm compatibility.
£11.99 (£9.99 ex VAT)
£11.99 (£9.99 ex VAT)
Tax included. Shipping calculated at checkout.

The Cable Techniques CT-LPS-T35-K is a low-profile right-angle 3.5mm TRS screw-locking connector for professional wireless, IFB and audio cable builds. It is designed for equipment using a locking 3.5mm TRS connection, including compatible Sennheiser, Sony, Deity and RØDE wireless systems.

This version is supplied with the black Standard cap for cable up to 3.2mm outside diameter. The connector uses a 3-conductor TRS plug with a screw-locking collar, black shell, gold-coloured contacts and 0.9mm hex set screws.

Choosing your type

Choose this connector if your equipment uses a screw-locking 3.5mm TRS plug and your cable is up to 3.2mm OD. If you are unsure whether your transmitter or receiver uses this locking style, send us the equipment model and we can help confirm compatibility.

Specifications

Connector Type

3.5mm TRS male

Shell Style

Screw-locking collar

Termination

Cable outlet up to 3.2mm

Cable Outlet

3-conductor TRS

Angle Adjustment

10 x 40mm (42mm overall length)

Adjustment Swing

0.2oz / approx. 6g

Dimensions

0.9mm hex set screw

Weight

1.2oz / approx. 34g

Shell Material

Zinc die-cast

Shell Colour

Matte black

Contact Material

Bronze

Voltage Rating

50V

Current Rating

10A

Thermal Range

-50°C to +80°C

Life

>1,000 operations

Compatibility

Typical applications include:
• Sennheiser G4 / G3 / 2000-series compatible locking 3.5mm connections
• Sony wireless systems using compatible locking 3.5mm TRS connectors
• Deity wireless systems using compatible locking 3.5mm TRS connectors
• RØDELink and other compatible locking 3.5mm systems
• Balanced or unbalanced 3-conductor TRS cable builds where the connector format matches

Dimensions

Connector

3.5mm TRS Locking

Cable OD

≤3.2mm

Dimensions

10 x 40mm

Weight

6g

Hex Size

0.9mm

What’s in the box?

• 1x Cable Techniques CT-LPS-T35-K Low-Profile 3.5mm TRS Screw-Locking Connector
• 1x Black Standard Cap
• Set Screws

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• This listing is specifically for model CT-LPS-T35-K: locking 3.5mm TRS, black Standard cap, cable outlet up to 3.2mm OD.
• Confirm your equipment uses a screw-locking 3.5mm TRS connector before ordering.
• TRS pin wiring varies by manufacturer and application; verify the required wiring for your cable build.
