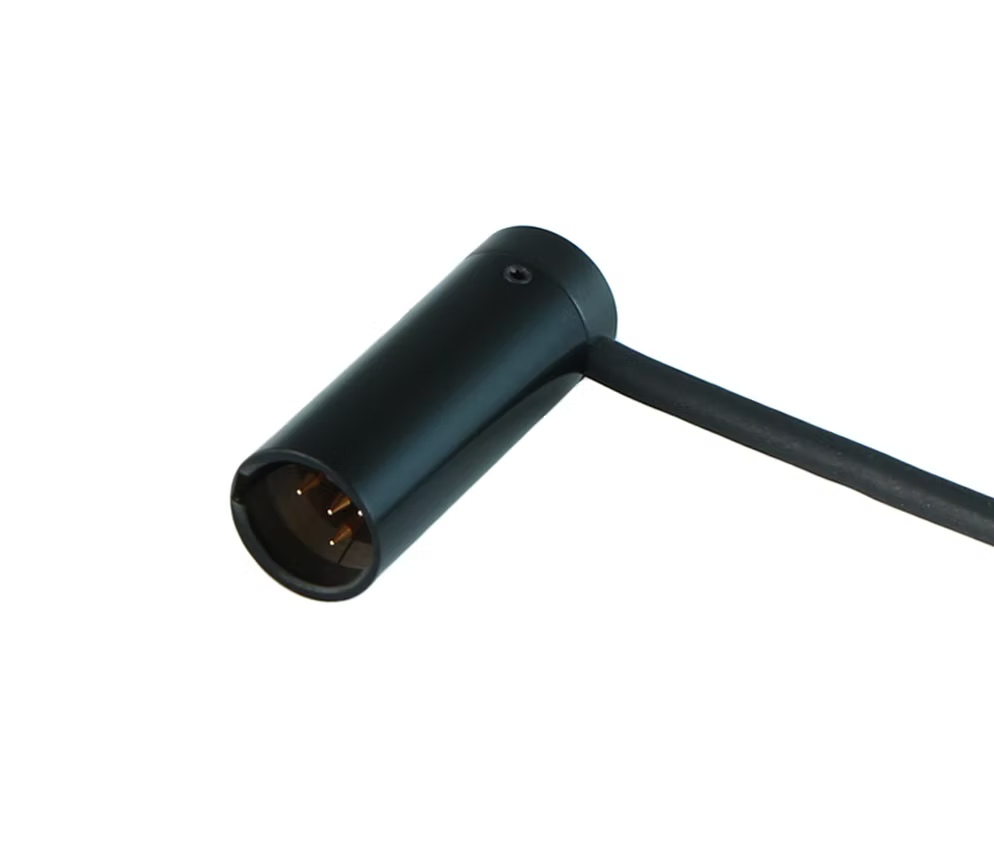

• Black right-angle 4-pin mini XLR male connector with attached cable

Cable Techniques

Cable Techniques LPS Low-Profile Right Angle 4-Pin Male Mini XLR

• Low-profile right-angle 4-pin male Mini XLR connector for compact audio and specialty cabling.
• Outlet can be positioned around 0° or 180° with additional side-exit adjustment.
• Standard black cap accepts cable up to 3.2mm outside diameter.
• Compact 10 x 25mm body with gold-coloured contacts and 0.9mm hex set screws.

Need help choosing?

Choose this connector if you need a low-profile 4-pin male Mini XLR with a Standard cap for cable up to 3.2mm OD. If your cable is thicker, use the Large-cap version instead. Confirm connector gender and pin count before ordering.
£11.99 (£9.99 ex VAT)
£11.99 (£9.99 ex VAT)
Tax included. Shipping calculated at checkout.

The Cable Techniques CT-LPS-4M-K is a low-profile right-angle 4-pin male Mini XLR connector designed for compact audio, power and specialty cabling. The cable outlet can be positioned around 0° or 180° using the release button, with additional side-exit adjustment for flexible routing in tight location-sound and camera rigs.

This version is supplied with the black Standard cap for cable up to 3.2mm outside diameter. It features a compact black shell, gold-coloured contacts and 0.9mm hex set screws for cap and outlet adjustment.

Choosing your type

Choose this connector if you need a low-profile 4-pin male Mini XLR with a Standard cap for cable up to 3.2mm OD. If your cable is thicker, use the Large-cap version instead. Confirm connector gender and pin count before ordering.

Specifications

Connector Type

4-pin Mini XLR male

Shell Style

Low-profile right angle

Termination

Cable outlet up to 3.2mm

Cable Outlet

0° / 180° outlet positioning

Angle Adjustment

10 x 25mm

Adjustment Swing

0.4oz / approx. 11g

Dimensions

0.9mm hex set screw

Weight

1.2oz / approx. 34g

Shell Material

Zinc die-cast

Shell Colour

Matte black

Contact Material

Bronze

Voltage Rating

50V

Current Rating

10A

Thermal Range

-50°C to +80°C

Life

>1,000 operations

Compatibility

Typical applications include:
• Compact audio and power cable assemblies using 4-pin Mini XLR connections
• Camera and location-sound rigs where a low-profile cable exit is useful
• Compatible equipment using 4-pin male Mini XLR connections
• DIY cable builds using suitable slim cable up to 3.2mm OD

Dimensions

Connector

4-Pin Male Mini XLR

Cable OD

≤3.2mm

Dimensions

10 x 25mm

Weight

11g

Hex Size

0.9mm

What’s in the box?

• 1x Cable Techniques CT-LPS-4M-K Low-Profile 4-Pin Male Mini XLR Connector
• 1x Black Standard Cap
• Set Screws

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• This listing is specifically for model CT-LPS-4M-K: 4-pin male Mini XLR, black Standard cap, cable outlet up to 3.2mm OD.
• Check cable outside diameter before ordering; the Large-cap version is intended for cable up to 5.0mm OD.
• The connector uses 0.9mm hex set screws for cap and outlet adjustment.
