• Black low-profile right-angle mini XLR male connector plug

Cable Techniques

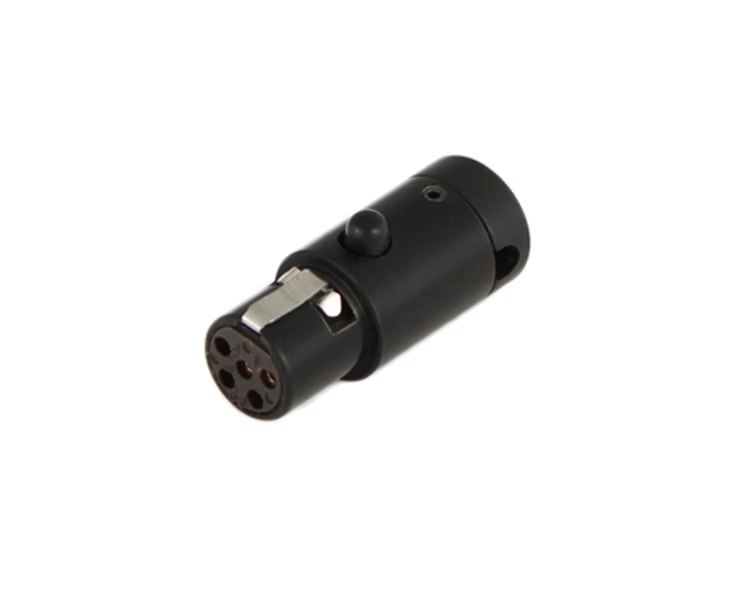

Cable Techniques LPS Low-Profile Right Angle TA5F Mini XLR

• Low-profile right-angle TA5F 5-pin female Mini XLR connector for professional location-sound cabling.
• Cable outlet can be set left or right with a 60° adjustment range.
• Standard black cap accepts cable up to 3.2mm outside diameter.
• Compact 10 x 25mm body with gold-coloured contacts and 0.9mm hex set screws.

Need help choosing?

Choose this connector if you need a low-profile TA5F 5-pin female Mini XLR with a Standard cap for cable up to 3.2mm OD. If your cable is thicker, use the Large-cap version instead. Always confirm the required pin wiring for the equipment being connected.
£11.99 (£9.99 ex VAT)
£11.99 (£9.99 ex VAT)
Tax included. Shipping calculated at checkout.

The Cable Techniques CT-LPS-TA5-K is a low-profile right-angle TA5F 5-pin female Mini XLR connector for compact professional location-sound and wireless cabling. Its side-exit cable path can be positioned left or right with a 60° adjustment range, helping keep cable runs tight around recorders, receivers and transmitters.

This version is supplied with the black Standard cap for cable up to 3.2mm outside diameter. It features a compact black shell, gold-coloured contacts and mini set-screws that secure the cap and outlet position.

Choosing your type

Choose this connector if you need a low-profile TA5F 5-pin female Mini XLR with a Standard cap for cable up to 3.2mm OD. If your cable is thicker, use the Large-cap version instead. Always confirm the required pin wiring for the equipment being connected.

Specifications

Connector Type

TA5F / 5-pin Mini XLR female

Shell Style

Low-profile right angle

Termination

Cable outlet up to 3.2mm

Cable Outlet

60° left/right adjustment

Angle Adjustment

10 x 25mm

Adjustment Swing

0.4oz / approx. 11g

Dimensions

0.9mm hex set screw

Weight

1.2oz / approx. 34g

Shell Material

Zinc die-cast

Shell Colour

Matte black

Contact Material

Bronze

Voltage Rating

50V

Current Rating

10A

Thermal Range

-50°C to +80°C

Life

>1,000 operations

Compatibility

Typical applications include:
• Lectrosonics SRc5P / SRb5P receiver outputs
• Sound Devices Scorpio inputs
• Zaxcom Nomad, Zax-Max, DEVA-24 and QRX receiver outputs
• Compatible Wisycom receiver outputs
• Lavalier / input cable builds for compatible Lectrosonics SMV, SMQV, SMWB and SMDWB transmitters
• Other equipment using compatible TA5F / 5-pin Mini XLR connections

Dimensions

Connector

TA5F

Cable OD

≤3.2mm

Dimensions

10 x 25mm

Weight

11g

Hex Size

0.9mm

What’s in the box?

• 1x Cable Techniques CT-LPS-TA5-K Low-Profile TA5F Mini XLR Connector
• 1x Black Standard Cap
• Set Screws

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• This listing is specifically for model CT-LPS-TA5-K: TA5F, black Standard cap, cable outlet up to 3.2mm OD.
• Check cable outside diameter before ordering; the Large-cap version is intended for cable up to 5.0mm OD.
• The connector uses 0.9mm hex set screws for cap and outlet adjustment.
