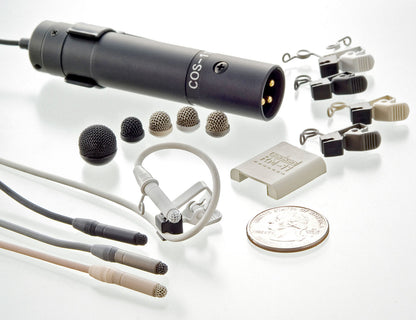

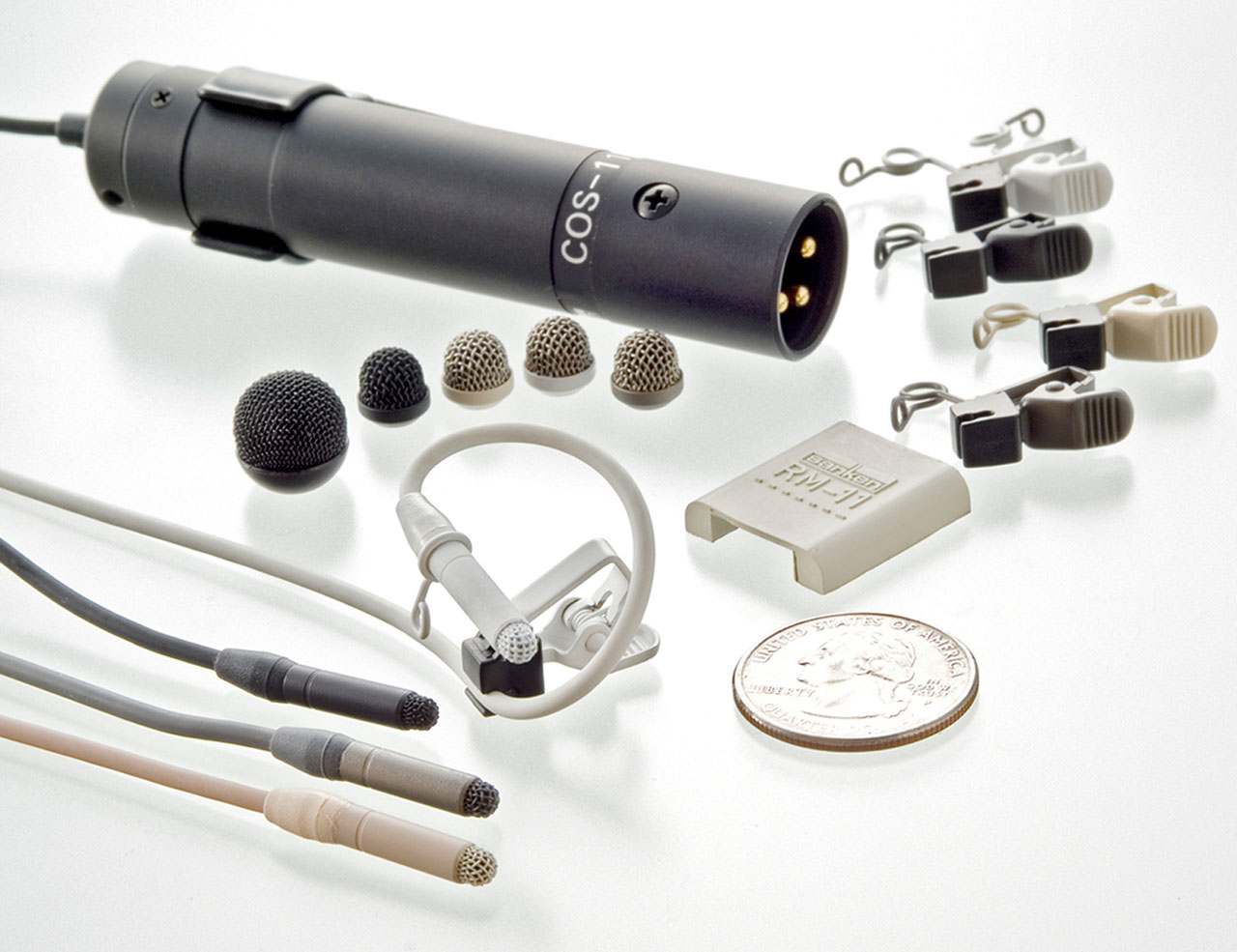

• Sanken COS-11D lavalier microphones in black, grey, beige and white with accessories

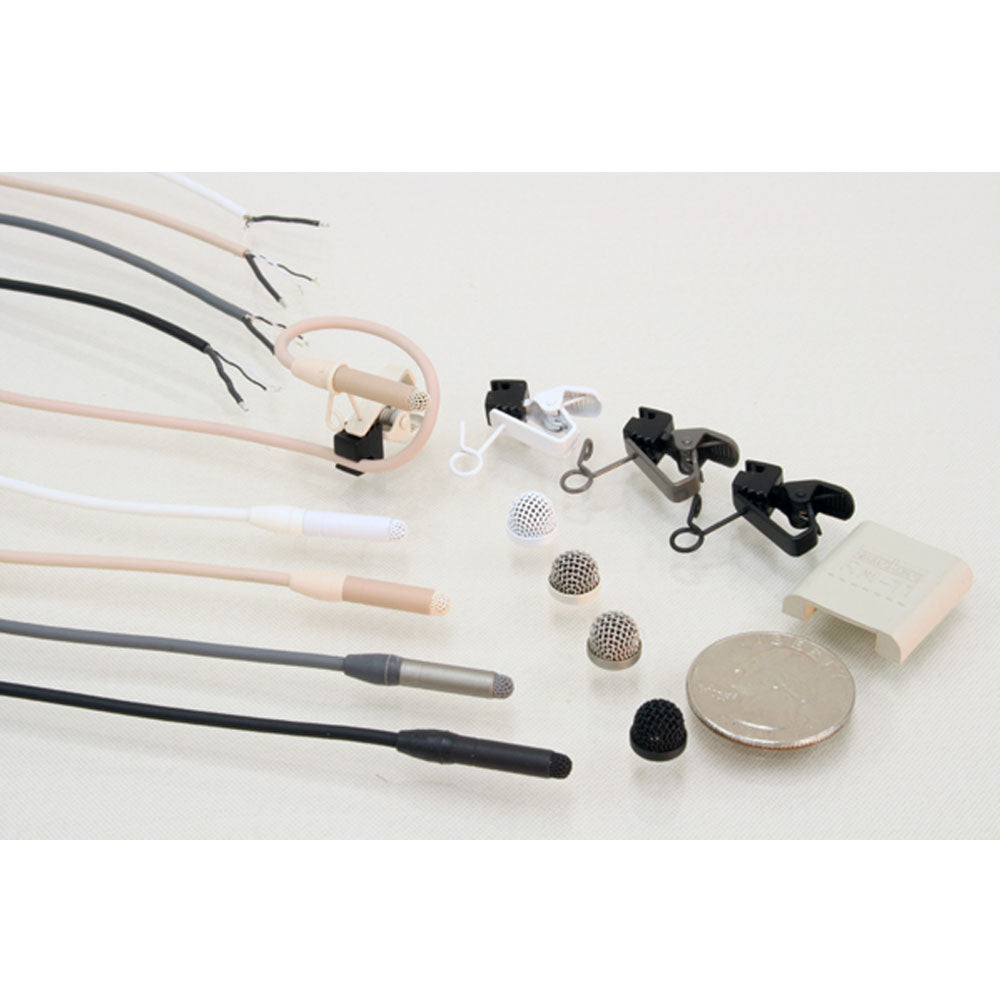

  • Sanken COS-11D lavalier microphones in black grey beige and white

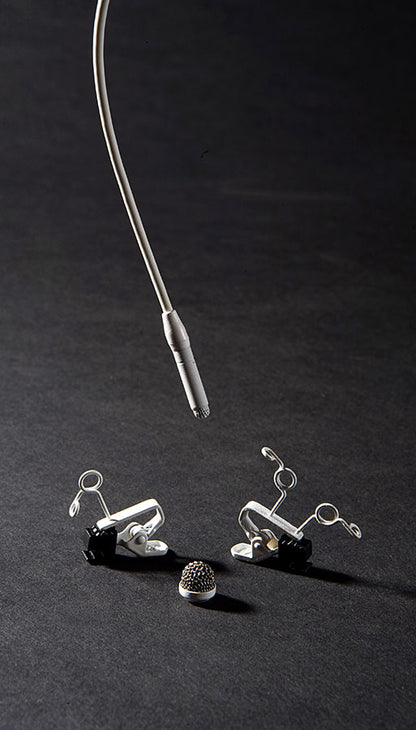

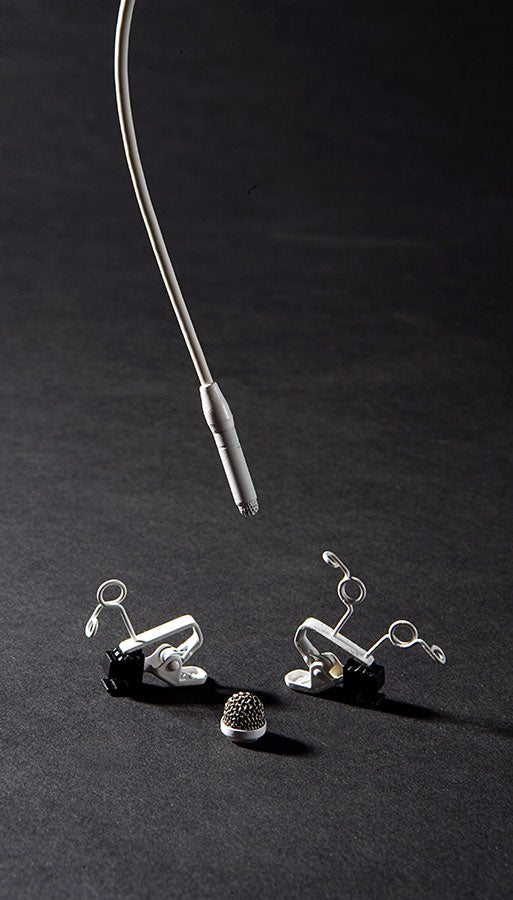

  • Sanken COS-11D lavalier microphone with holder clips and windscreen

Sanken

COS-11D Lavalier Microphone

• Ultra-miniature 4mm omnidirectional lavalier optimised for clear, natural dialogue.
• Increased immunity to digital-wireless RFI with robust moisture-resistant construction.
• Available in Black, Beige, Grey and White with transmitter-specific connector options.

Choose your colour:
Choose your connector:

Need help choosing?

First choose the colour that best suits the talent or costume: Black, Beige, Grey or White. Then match the connector to the transmitter. Wisycom MTP, Sound Devices A20 and suitable Sennheiser 5000/6000 packs use the 3-Pin Lemo option. Sennheiser Evolution systems use the Sennheiser-wired locking 3.5mm version, while Sony systems need either the Sony-wired locking 3.5mm or the separate 4-Pin Hirose version depending on the transmitter. Lectrosonics uses TA5F here; Micron uses the small 6-Pin Lemo; Audio Ltd 2020/2040 uses the large 6-Pin Lemo. If you are unsure, send us the exact transmitter model before ordering.
£300.00 (£250.00 ex VAT)
£300.00 (£250.00 ex VAT)
Tax included. Shipping calculated at checkout.
  • Next-day UK delivery
  • Authorised UK stockist
  • Trusted by industry experts
Awaiting stock, shipping soon

The COS-11D is an ultra-miniature omnidirectional lavalier microphone with excellent RF immunity, moisture resistance and transmitter-specific connectors.

A long-standing industry standard for film, television, broadcast and location sound, the COS-11D uses Sanken's vertical-diaphragm design to deliver clear, natural speech from a capsule only 4mm in diameter. Its water-resistant front mesh and rugged 2.1mm cable are built to handle perspiration, cosmetics and demanding production use. Select the microphone colour and the exact connector required by your wireless transmitter.

Choosing your type

First choose the colour that best suits the talent or costume: Black, Beige, Grey or White. Then match the connector to the transmitter. Wisycom MTP, Sound Devices A20 and suitable Sennheiser 5000/6000 packs use the 3-Pin Lemo option. Sennheiser Evolution systems use the Sennheiser-wired locking 3.5mm version, while Sony systems need either the Sony-wired locking 3.5mm or the separate 4-Pin Hirose version depending on the transmitter. Lectrosonics uses TA5F here; Micron uses the small 6-Pin Lemo; Audio Ltd 2020/2040 uses the large 6-Pin Lemo. If you are unsure, send us the exact transmitter model before ordering.

Specifications

Microphone Type

Ultra-miniature lavalier

Polar Pattern

Omnidirectional

Transducer

Pre-polarized condenser

Frequency Response

50Hz–20kHz

Sensitivity

8.9mV/Pa (-41dB) @ 1kHz

Equivalent Noise

<28dB-A

Signal-to-Noise Ratio

>66dB A-weighted

Maximum SPL

123dB SPL @ 1% THD

Output Impedance

700Ω @ 1kHz

Powering

+3V to +10V bias

Current Consumption

<0.3mA

Capsule Dimensions

4.0 x 16.1mm

Cable Length

1.8m

Cable Diameter

2.1mm

Available Colours

Black / Beige / Grey / White

Compatibility

• 3-Pin Lemo – Wisycom MTP Series, Sound Devices A20 Series, compatible Sennheiser 5000/6000 Series transmitters
• 3.5mm Locking – Sennheiser Evolution / compatible locking 3.5mm Sennheiser transmitters
• 3.5mm Locking – Sony UWP-D and compatible Sony transmitters using Sony-wired locking 3.5mm
• TA5F – Lectrosonics transmitters using compatible TA5 microphone wiring
• 6-Pin Lemo (Small) – Micron wireless transmitters
• 6-Pin Lemo (Large) – Audio Ltd 2020 / 2040 transmitters
• 4-Pin Hirose – compatible Sony UWP systems requiring the Hirose termination

Dimensions

Capsule

4 x 16.1mm

Frequency

50Hz–20kHz

Max SPL

123dB

Cable

1.8m / 2.1mm

Colours

Black / Beige / Grey / White

What’s in the box?

• 1x Sanken COS-11D Lavalier Microphone in selected colour and connector
• 1x HC-11 Holder Clip
• 1x WS-11 Metal Windscreen
• 1x RM-11 Rubber Mount (colour-appropriate version)
• 1x Carry / Storage Case
• Documentation

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Important Notes

• Select both the microphone colour and the correct connector for your exact wireless transmitter.
• Sennheiser and Sony locking 3.5mm connectors are wired differently and are not interchangeable.
• 3-Pin Lemo version is intended for compatible systems including Wisycom MTP, Sound Devices A20 and relevant Sennheiser 5000/6000 transmitters.
• Sony UWP 4-Pin Hirose is a different termination from the 3.5mm Sony version; confirm the transmitter connector before ordering.
• Connector compatibility can depend on transmitter generation and wiring standard, so contact us if your exact transmitter is not listed.

COS-11D Lavalier Microphone

£300.00

Transmitter Wiring Matters

Choose the Correct Connector

Select the connector for the exact transmitter system you use. Sennheiser and Sony locking 3.5mm connectors look similar but use different wiring and should not be treated as interchangeable.

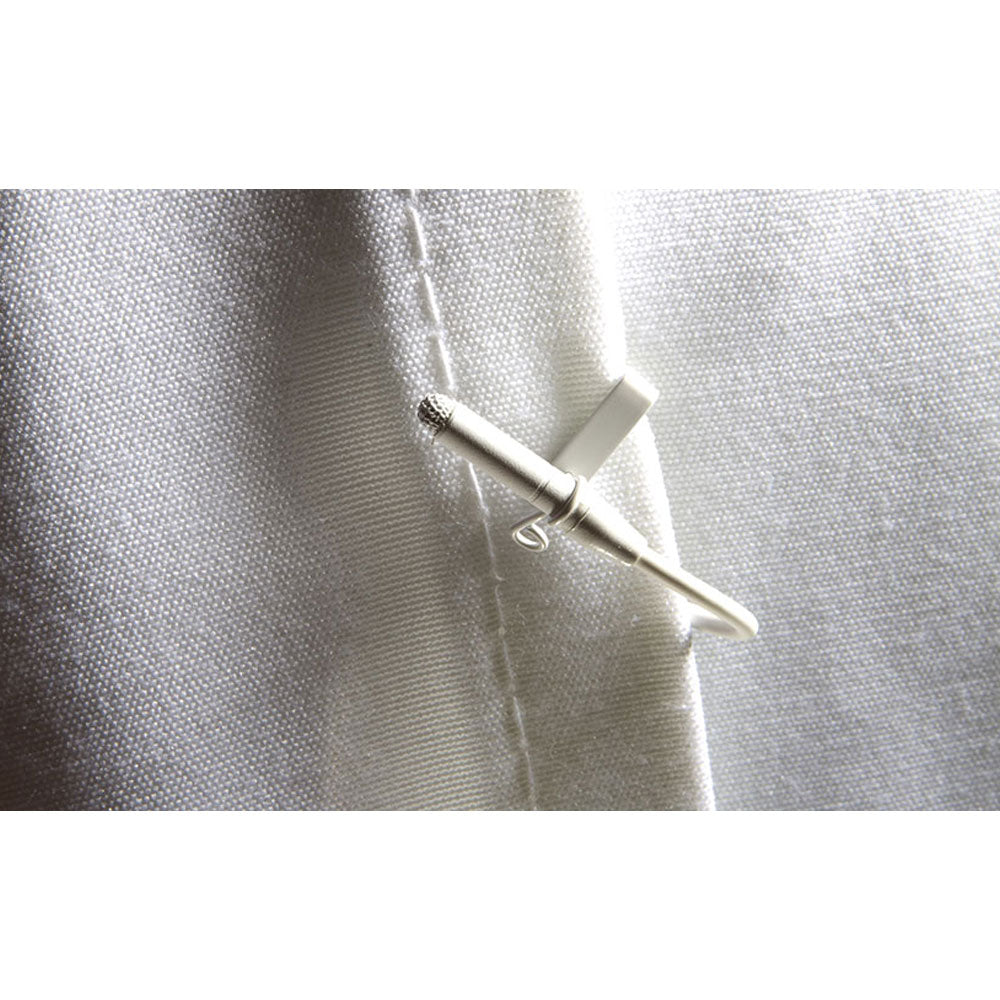

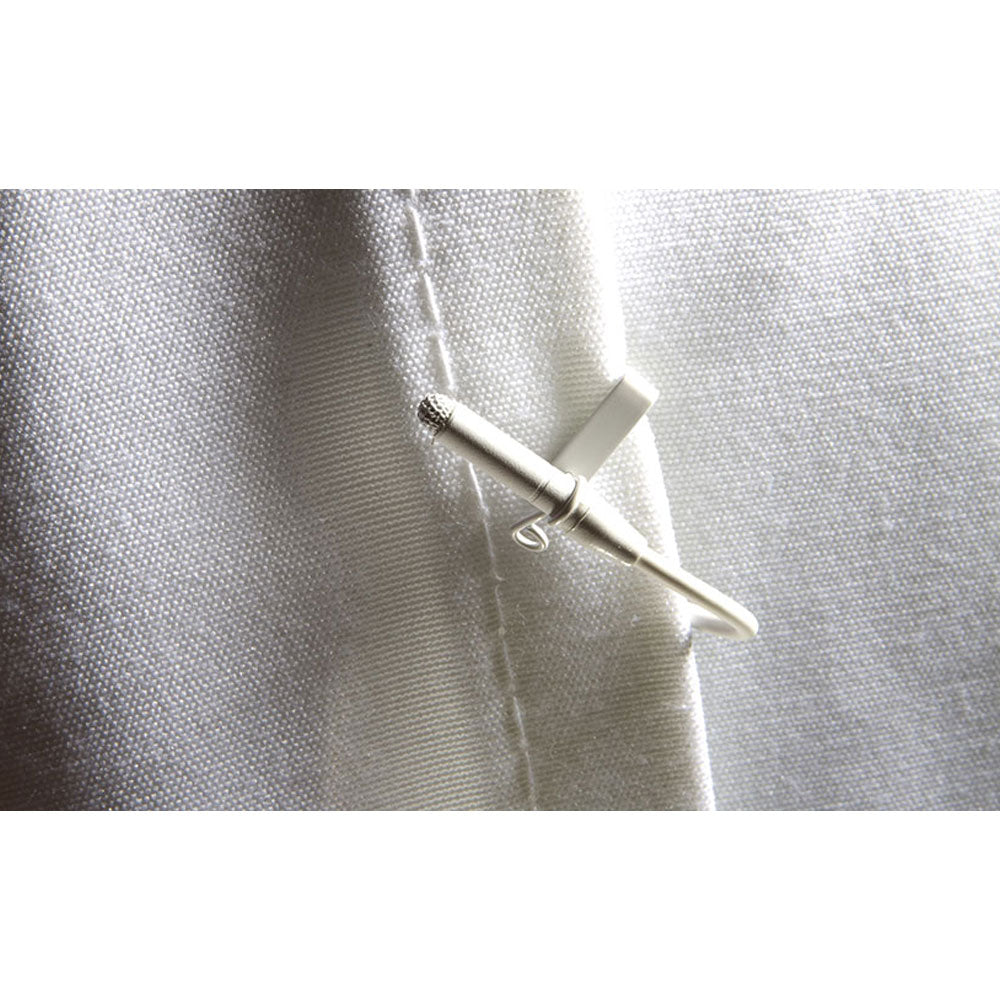

4mm Capsule

Small Enough to Hide

The 4 x 16.1mm capsule is easy to conceal in clothing, costume or hair while Sanken's vertical diaphragm provides a larger effective diaphragm area than the tiny housing would suggest.

RF + Moisture Resistant

Built for Modern Wireless Production

The COS-11D was developed to reduce interference from digital and hybrid wireless transmitters. A water-resistant front mesh and durable moisture-resistant cable help protect the microphone from sweat, makeup and challenging location conditions.
