Deity

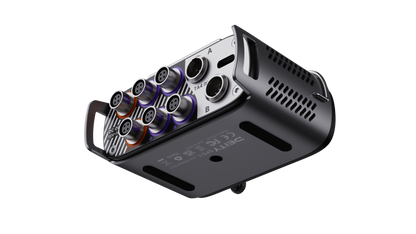

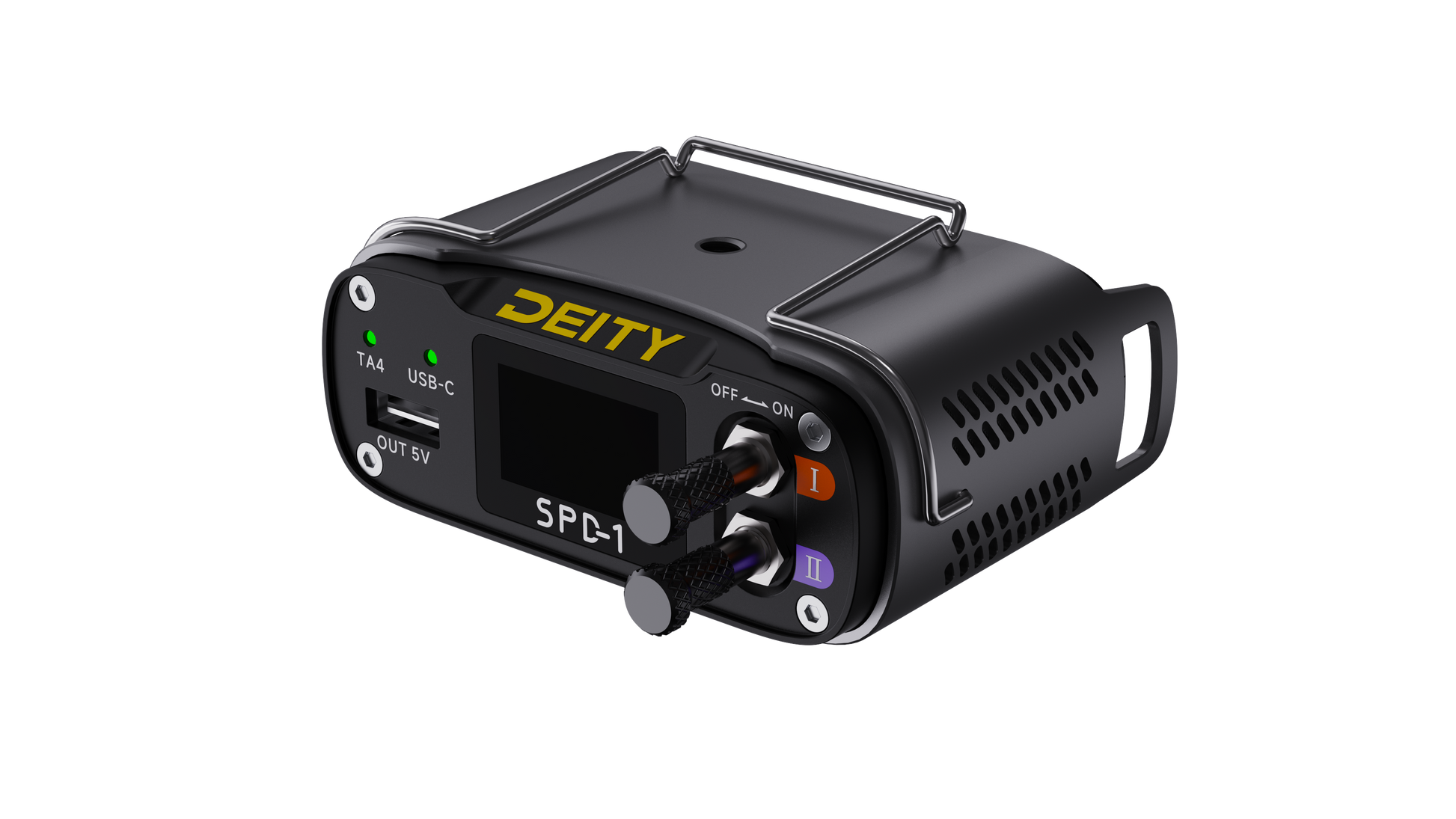

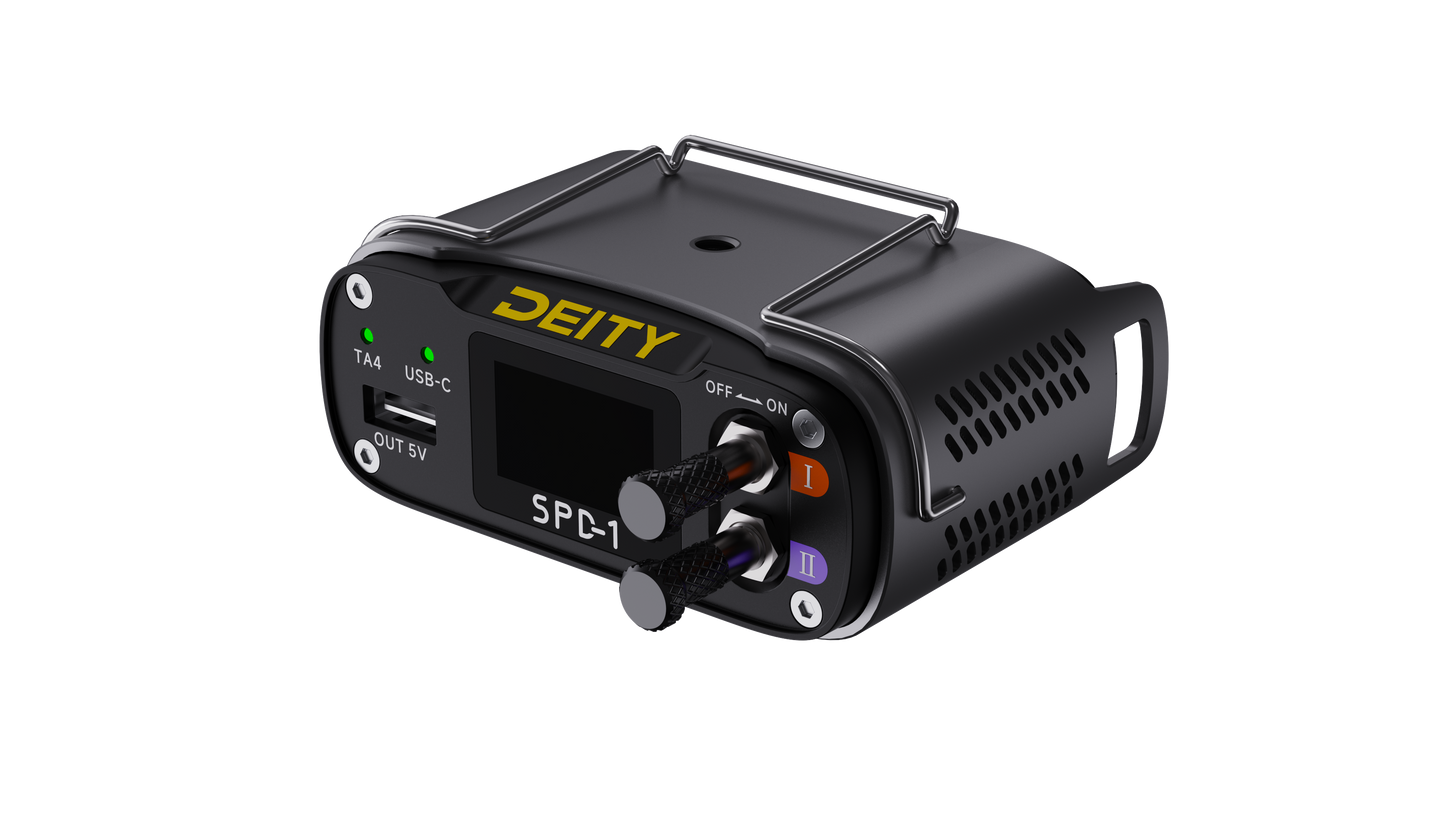

SPD-1 Power Distribution Box

• Power distribution box for professional sound bags and sound carts.
• Triple DC inputs support smart and non-smart batteries with hot-swappable operation.
• 1.1in colour screen displays battery telemetry, voltage and total power consumption.

Need help choosing?

Choose the SPD-1 if you need a compact power distribution box for a sound bag or sound cart. It is useful when you want smart battery telemetry, hot-swappable battery inputs, six 4-pin push power outputs, USB-A accessory power and locking switches for a more controlled production audio power setup.
£236.62 (£197.18 ex VAT)
£236.62 (£197.18 ex VAT)
Tax included. Shipping calculated at checkout.
  • Next-day UK delivery
  • Authorised UK stockist
  • Trusted by industry experts
Low stock! Only 1 left

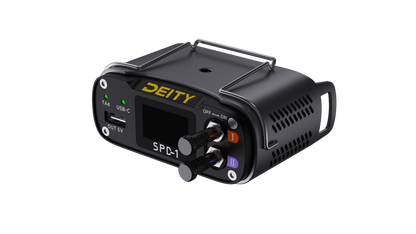

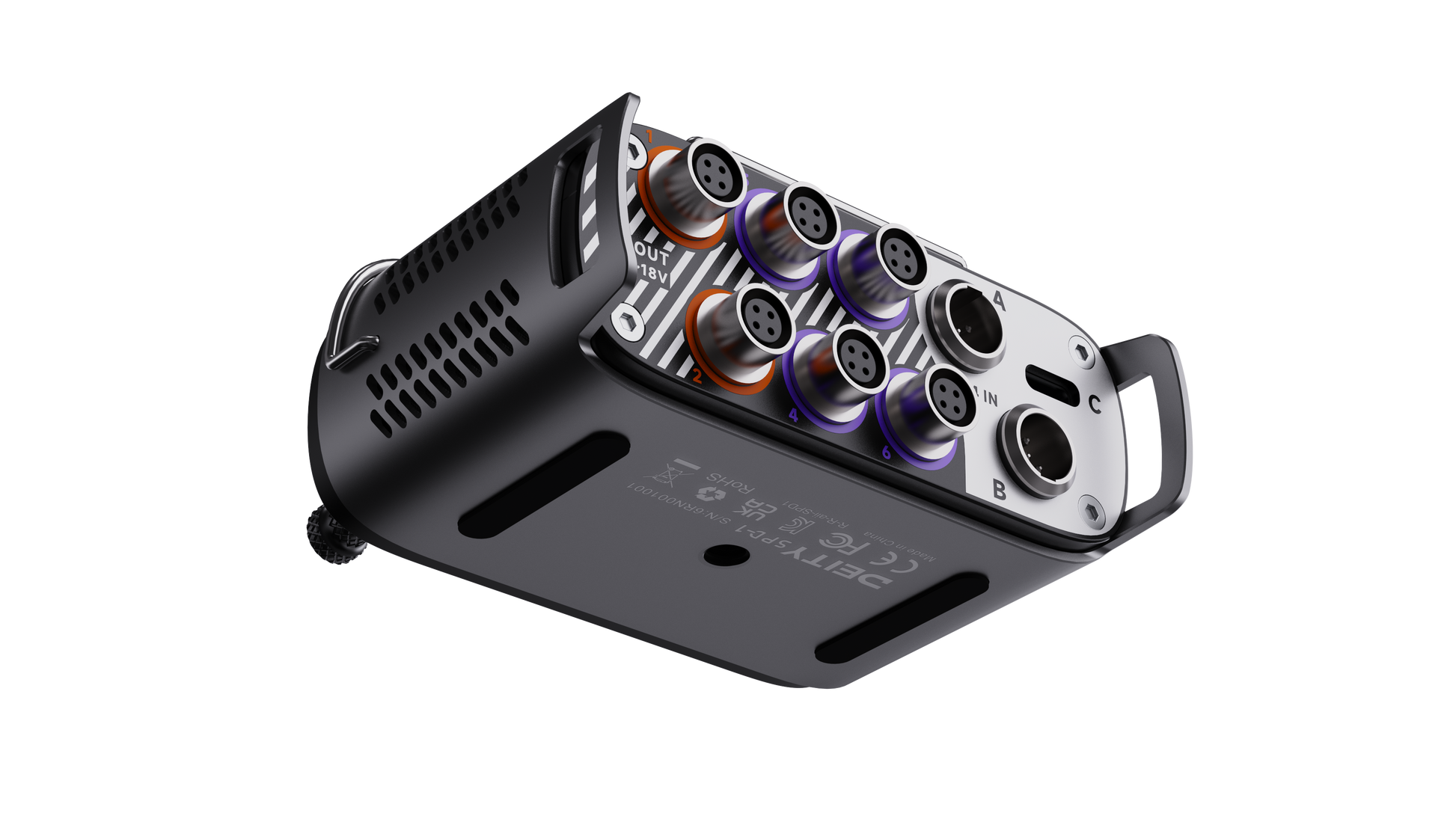

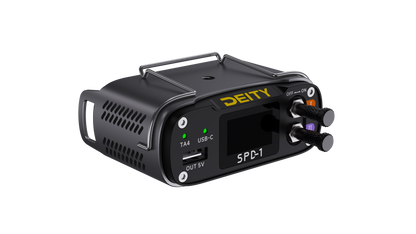

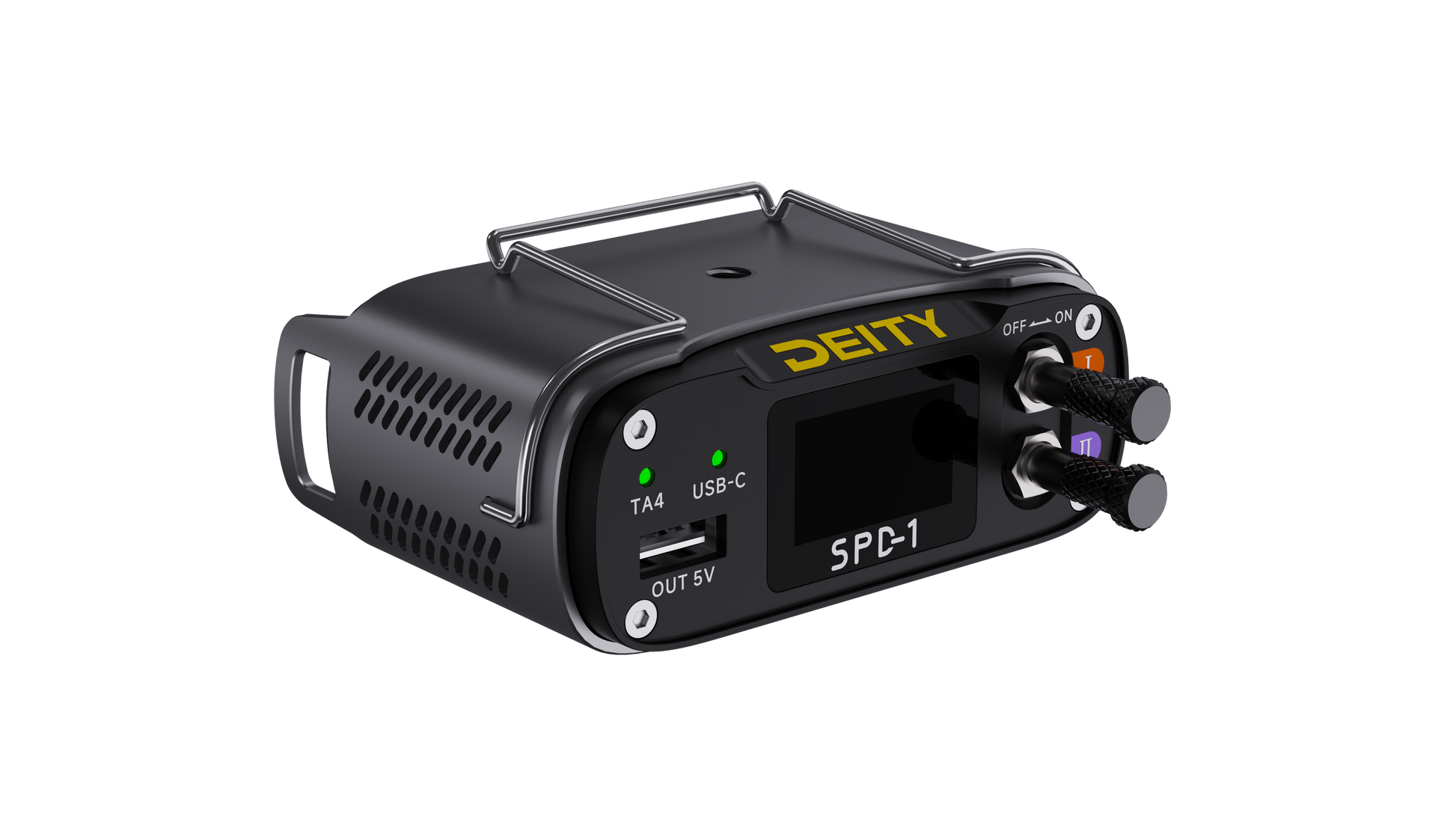

The SPD-1 Power Distribution Box is designed for managing power in a professional sound bag or on a sound cart.

It supports smart and non-smart batteries, triple DC inputs, hot-swappable operation, six unregulated 4-pin push power outputs, a front-facing USB-A output and a 1.1in colour screen for battery telemetry and total power consumption. With locking toggle switches, metal housing, dual 1/4in threaded mounts and a reversible mounting clip, the SPD-1 is built to keep production audio setups powered, organised and easy to monitor.

Choosing your type

Choose the SPD-1 if you need a compact power distribution box for a sound bag or sound cart. It is useful when you want smart battery telemetry, hot-swappable battery inputs, six 4-pin push power outputs, USB-A accessory power and locking switches for a more controlled production audio power setup.

Specifications

Power Type

DC

Inputs

2x TA4f, 1x USB-C 12V

2x 4-pin push 5A total, 4x 4-pin push 5A total, 1x USB-A 5V/2A

Outputs

Operating Voltage Range

12V–18V

Low Voltage Warning

9V–12V

Over Voltage Cutoff

24V

Under Voltage Cutoff

7V

Display

1.1in TFT colour screen

Battery Support

Smart and non-smart batteries

Battery Functions

Telemetry, voltage, temperature, battery life, cycle count and total power consumption

Switches

Locking toggle switches

Mounting Options

2x 1/4in-20 threaded mounts, 1x removable clip

Build Material

Aluminium

Dimensions

36mm x 89mm x 64mm

Weight

159g / 5.6oz

Compatibility

• Sound bag power distribution
• Sound cart power distribution
• Smart and non-smart batteries
• Audio Root batteries
• Inspire Energy batteries
• Remote Audio HiQ batteries
• RRC batteries
• Sound Devices Smart Battery systems
• Deity SPD-T4BATT
• Sound Devices 633, 664, 688 and 8-Series
• Sound Devices MX-HIROSE DC Input Sled
• Wisycom MCR54 End Plate
• Zaxcom Nova, Nova 2 and Deva 24
• Zoom F4, F8, F8n and F8n Pro
• Sony UWP-D and compatible wireless receiver setups

Dimensions

Length

89mm / 3.5in

Width

64mm / 2.5in

Height

36mm / 1.4in

Weight

159g / 5.6oz

What’s in the box?

• 1x Deity SPD-1 Smart Power Distro
• 1x SPD-T4BATT TA4f to NH2054 Battery Cup
• 1x Warranty Card
• 1x Deity Stickers
• 1x QR Card for Digital Manual

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

2-year warranty + optional 6-month extension

This product includes a 2-year Deity manufacturer warranty against defects in materials and workmanship under normal use.

The warranty can be extended by an additional 6 months by registering the product with Deity.

For help with a fault or warranty claim, please visit our Returns & Warranty page and fill out the warranty form.

Soundkit will then help handle the warranty process with Deity on your behalf.

This manufacturer warranty does not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation or normal wear-and-tear items such as cables and accessories.

This manufacturer warranty is in addition to your statutory rights.

Important Notes

• Suggested operating range is 12V–18V.
• Outputs automatically cut off if an over-voltage condition is detected.
• USB-C input provides regulated 12V system power when used with a suitable USB-C power supply.
• The six 4-pin push power outputs are divided across two power circuit groups.
• SKU and barcode still need to be confirmed.
• UK price and cost still need to be added.

Technical Downloads

For up to date manuals, product documents and more in depth specifications, please refer to the official Deity Manuals page

SPD-1 Power Distribution Box

£236.62

Smart Power Distribution

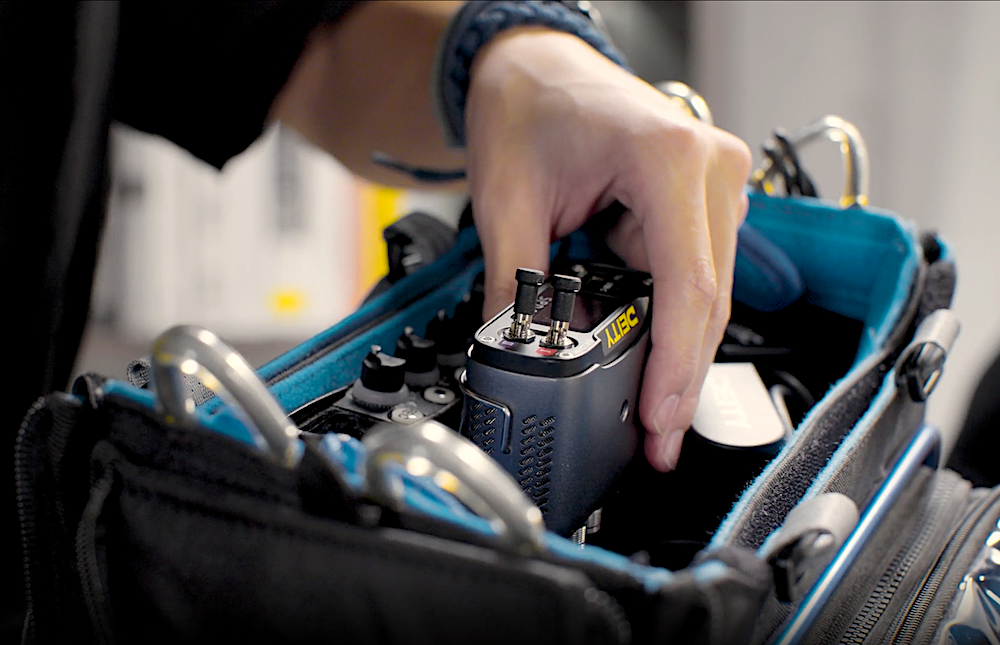

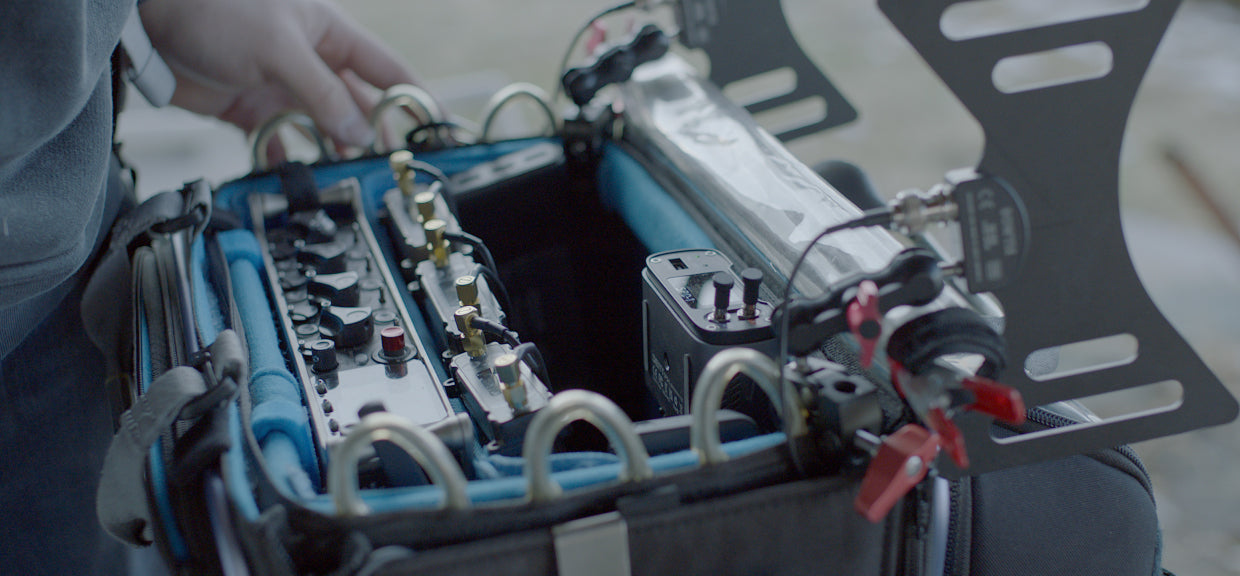

Monitor Power in Your Sound Bag

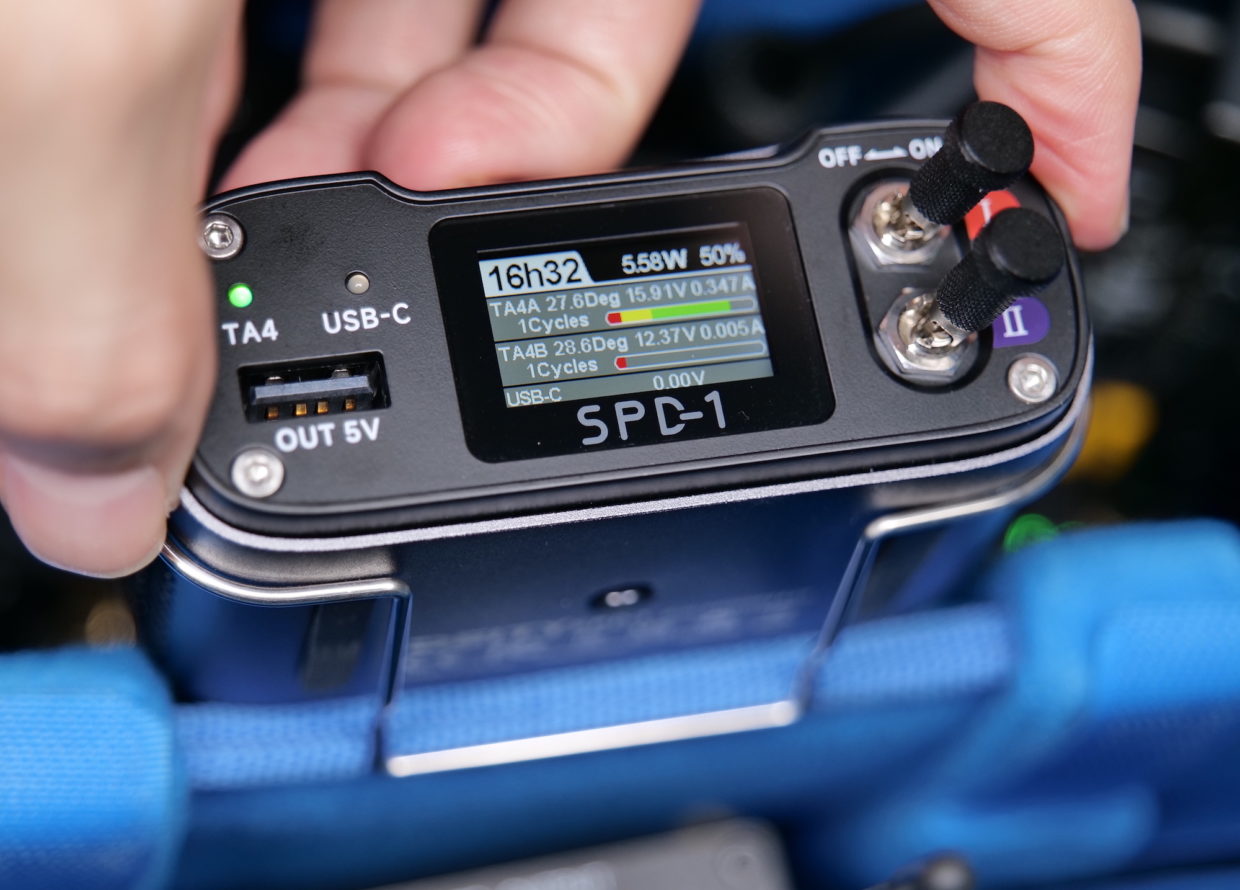

The 1.1in colour screen displays useful power information such as total consumption, voltage, battery life, battery temperature and cycle count when supported.

Triple DC Inputs

Hot-Swappable Battery Support

Use smart or non-smart batteries with triple DC inputs, helping you keep a sound bag or cart powered through location moves and longer shooting days.

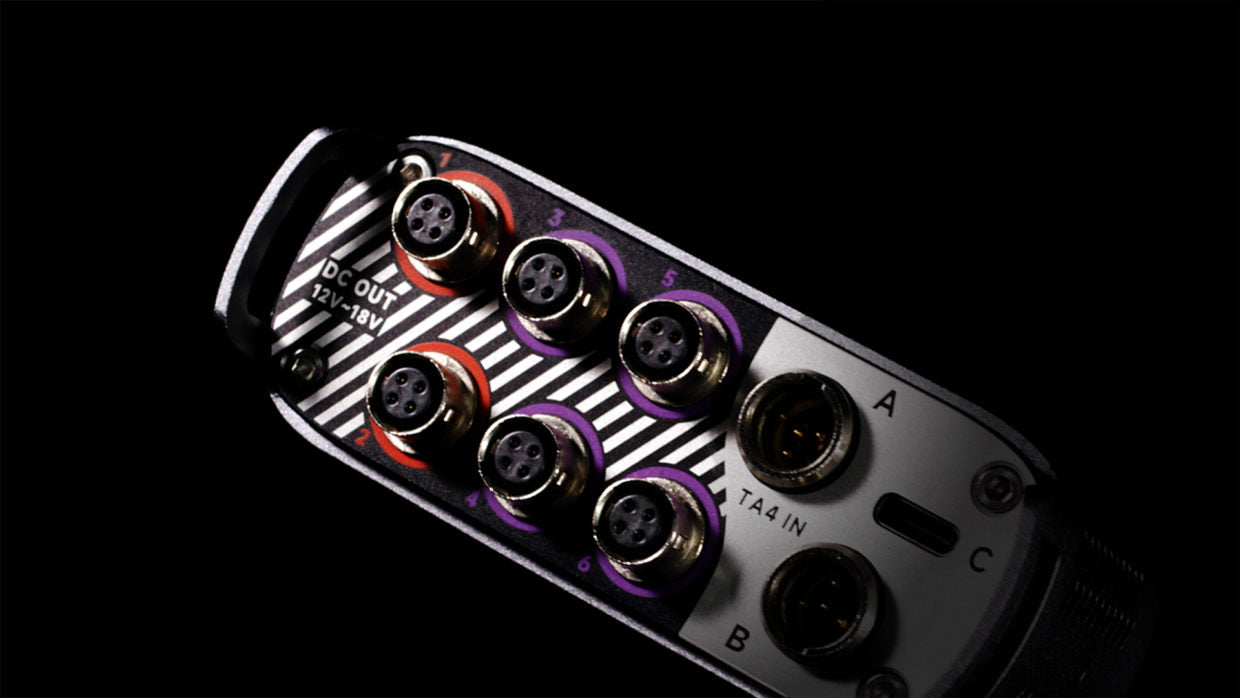

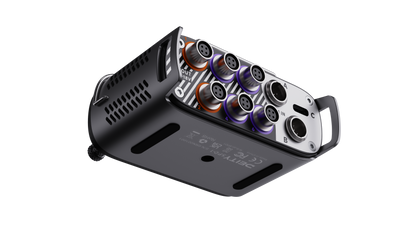

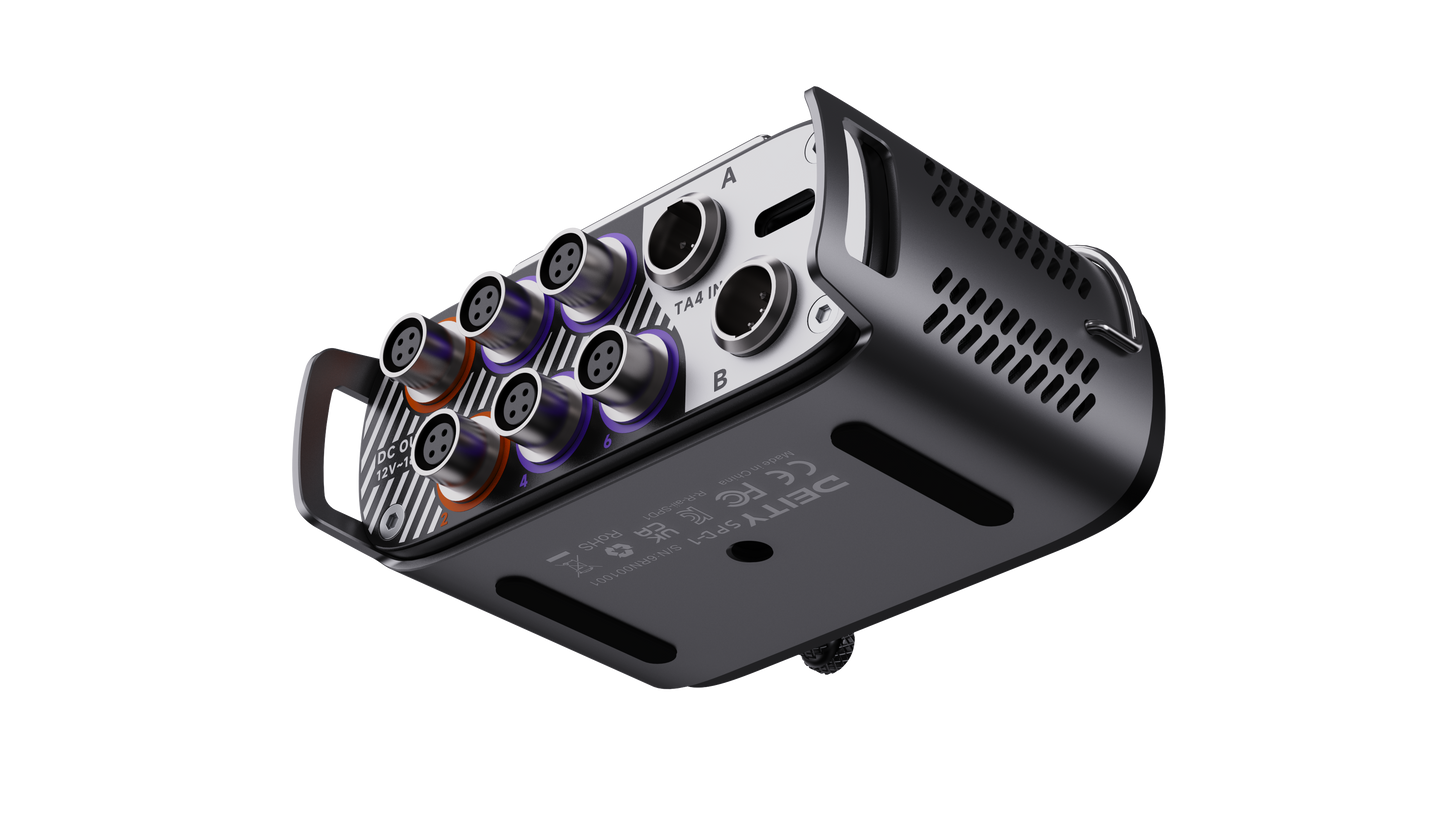

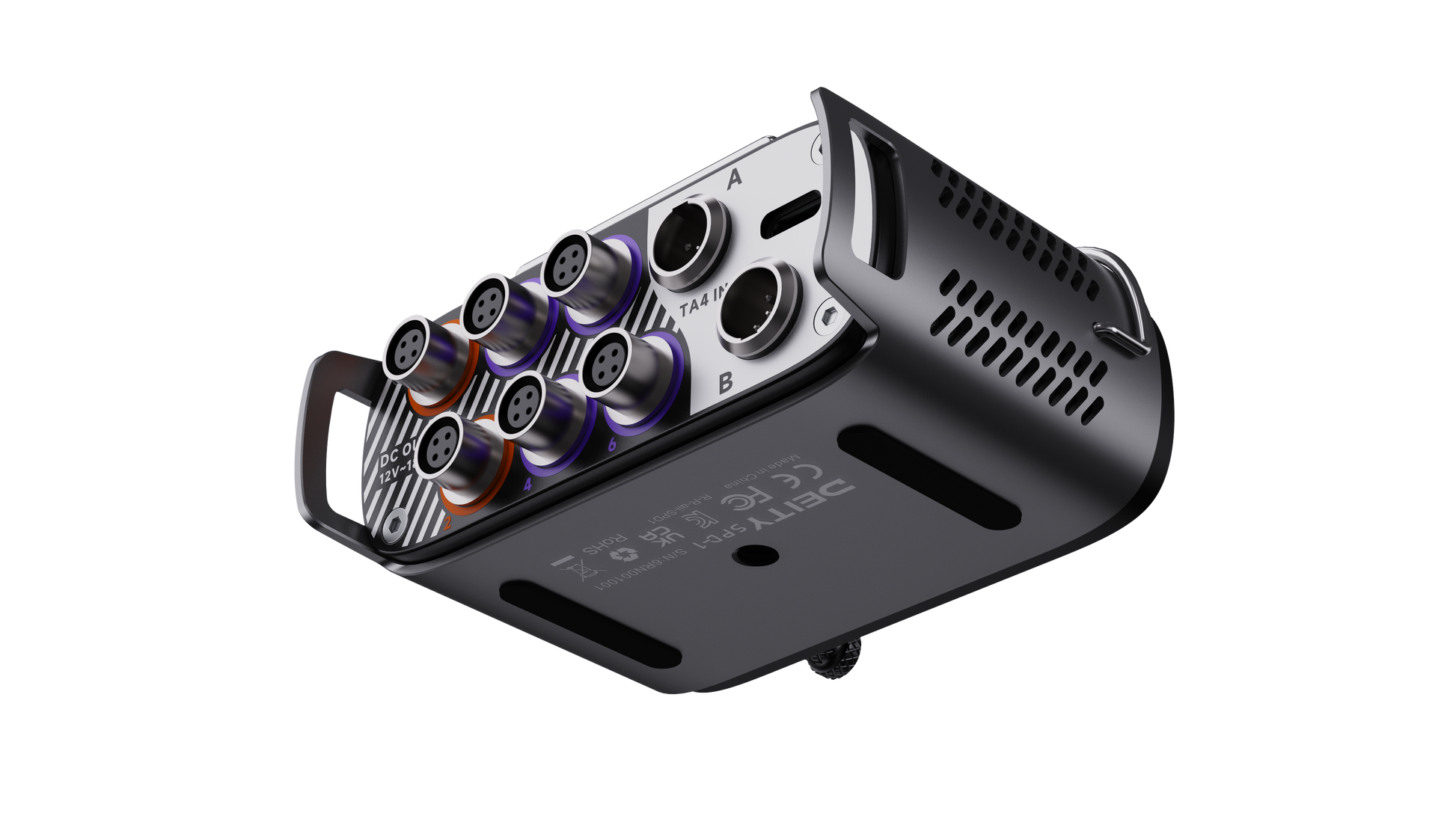

Six 4-Pin Outputs

Power Multiple Devices at Once

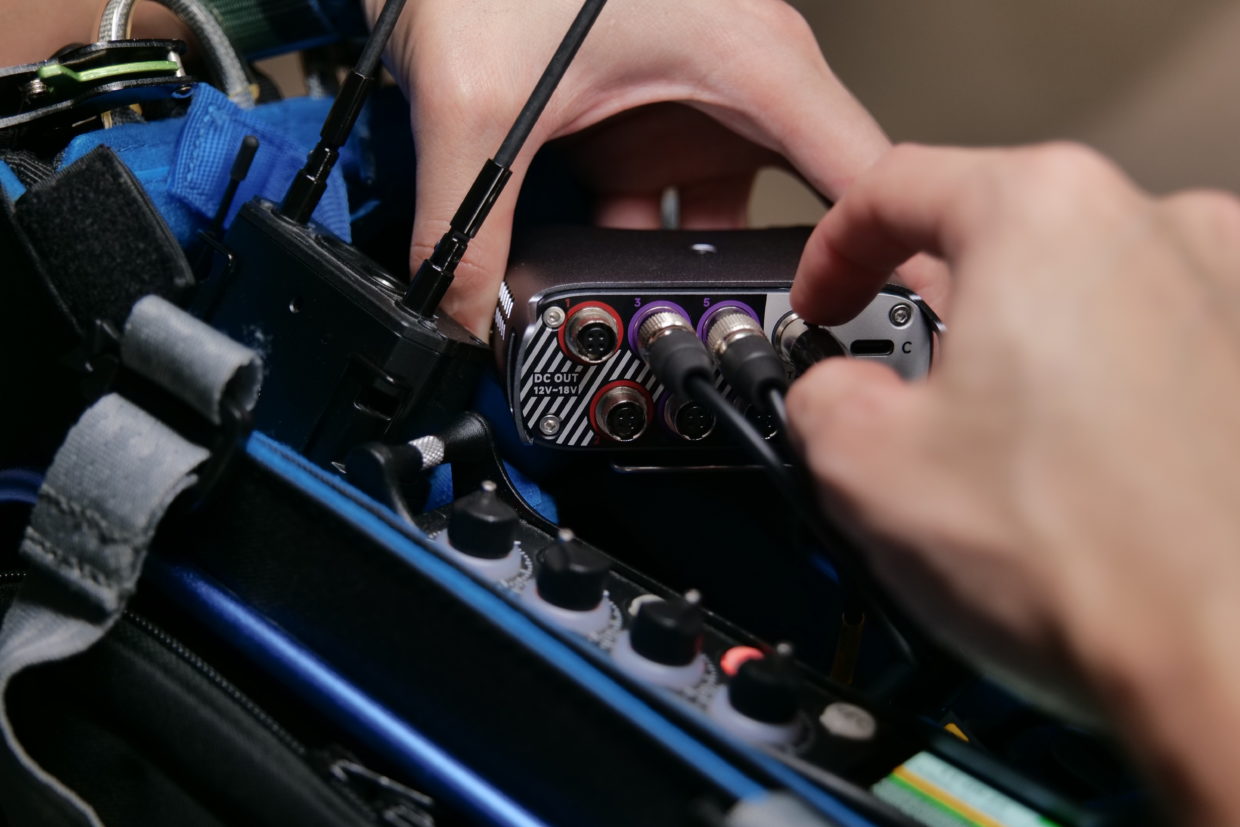

Six unregulated 4-pin push power outputs are split across two circuit groups, so auxiliary devices can be switched separately from primary equipment.
