Deity

THEOS DBTX Bodypack Transmitter (Global Version)

• Global Version digital UHF bodypack transmitter for Deity THEOS wireless systems.
• Built-in backup recorder supports 24-bit and 32-bit float WAV files to microSD.
• Wireless TC-1 timecode sync and Sidus Audio app control support professional set workflows.

Need help choosing?

Choose the DBTX if you need a standalone THEOS bodypack transmitter for lavalier, talent mic or backup-recording workflows. It is the right option when you already have a compatible THEOS receiver and want wideband UHF transmission, onboard 32-bit float recording, wireless timecode sync and Sidus Audio app control.
£410.49 (£342.08 ex VAT)
£410.49 (£342.08 ex VAT)
Tax included. Shipping calculated at checkout.
  • Next-day UK delivery
  • Authorised UK stockist
  • Trusted by industry experts
Awaiting stock, shipping soon

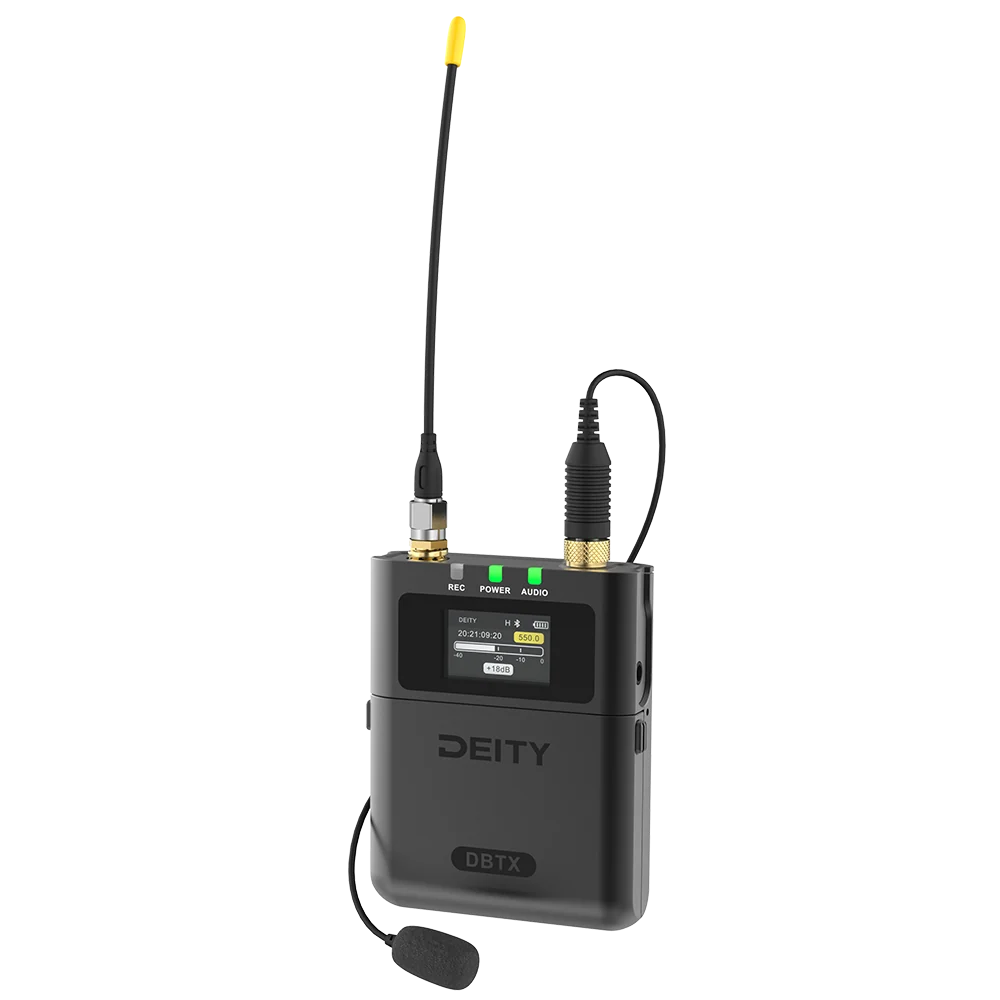

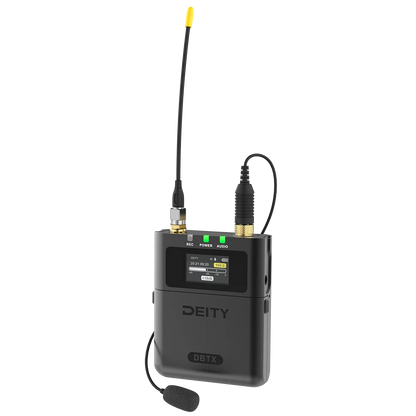

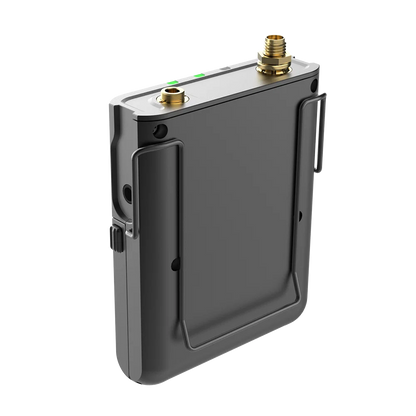

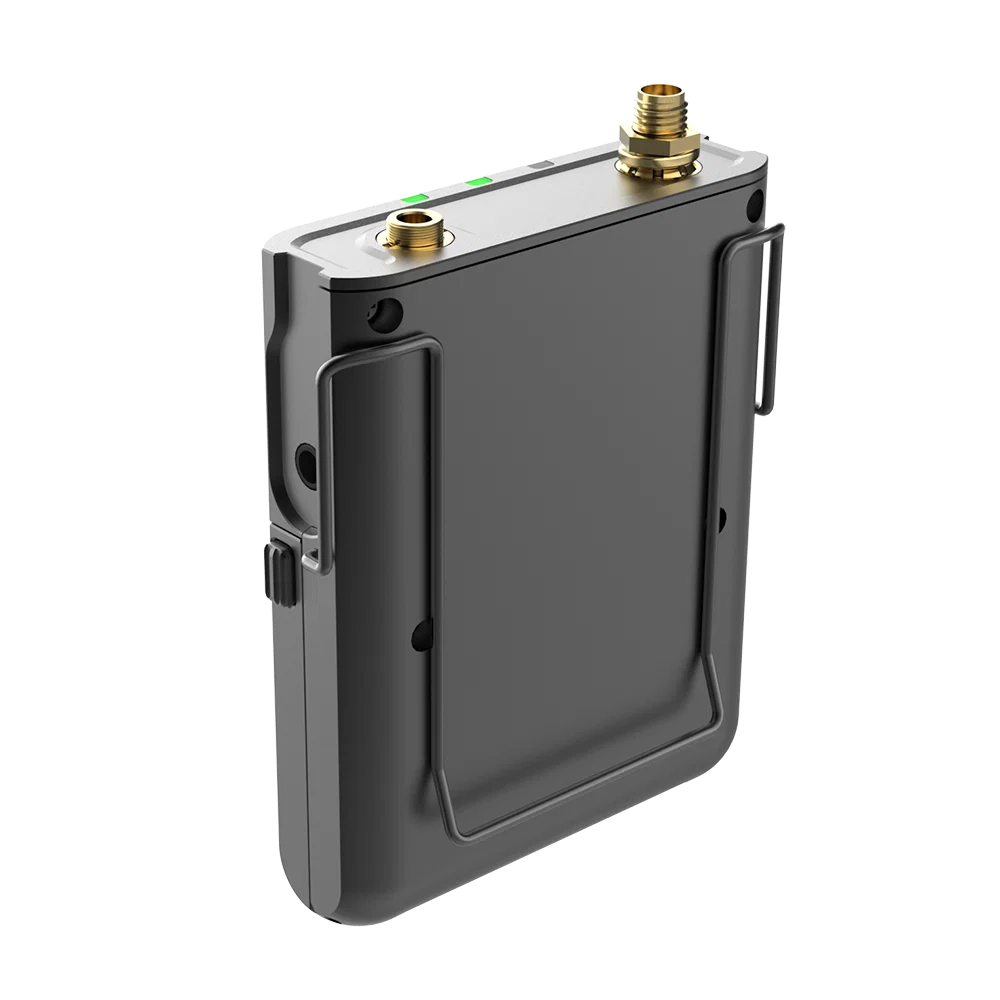

The THEOS DBTX Bodypack Transmitter is a compact digital UHF wireless transmitter for professional film, TV, documentary and location sound workflows.

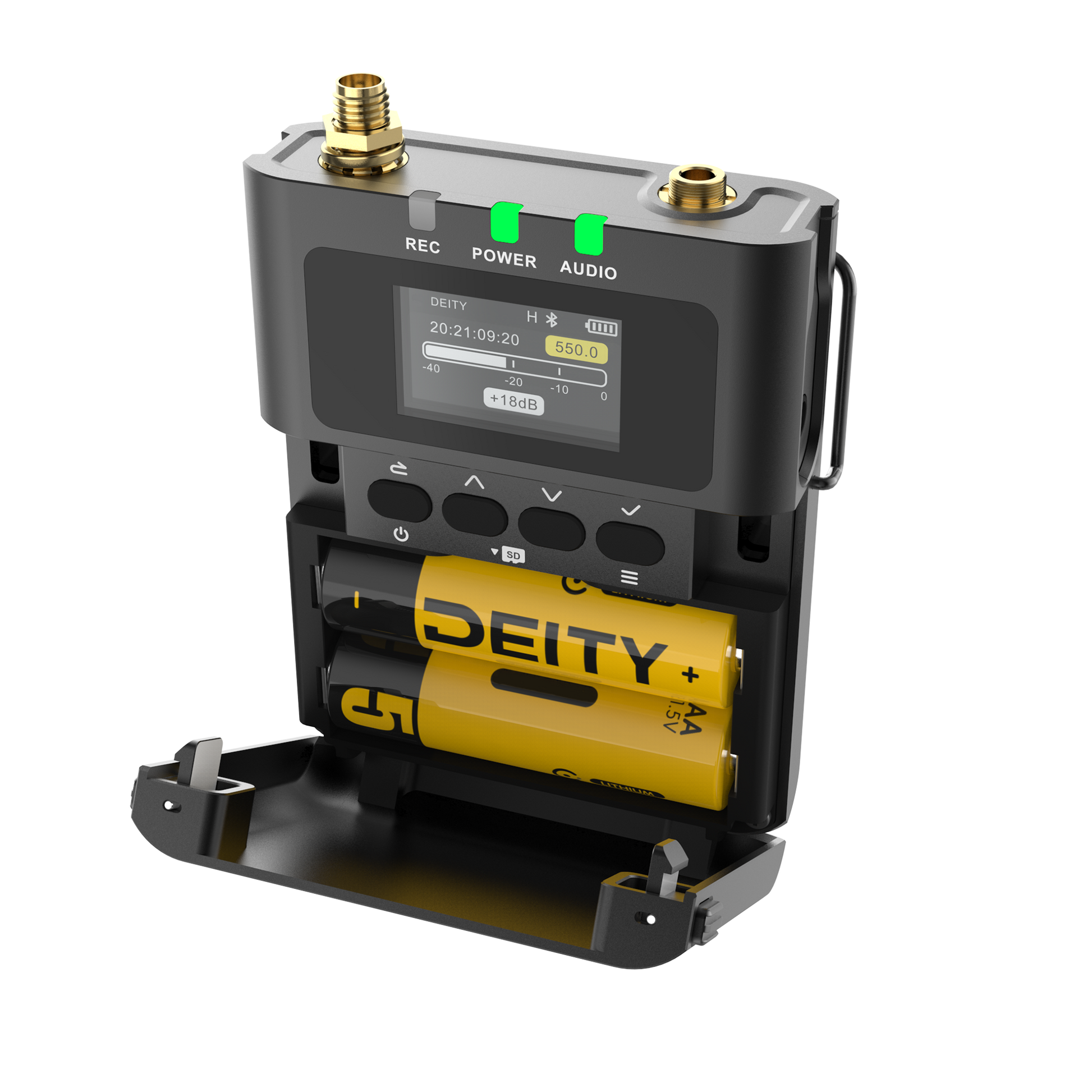

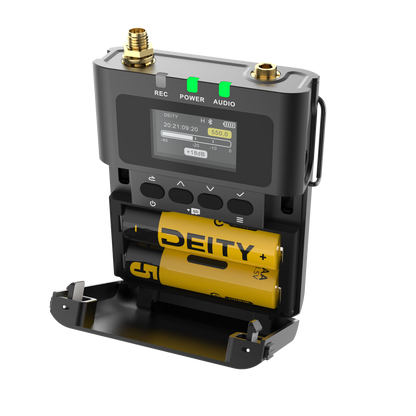

It uses Deity’s Global OneBand wideband UHF system, with frequencies spanning 550–960MHz where legally available, and supports remote control through the Sidus Audio app. Built-in backup recording to microSD, 24-bit and 32-bit float file options, wireless TC-1 timecode sync, a full-colour LCD screen, SMA antenna port, CNC-milled aluminium chassis and AA battery power make it a flexible standalone transmitter for use with THEOS wireless systems.

Choosing your type

Choose the DBTX if you need a standalone THEOS bodypack transmitter for lavalier, talent mic or backup-recording workflows. It is the right option when you already have a compatible THEOS receiver and want wideband UHF transmission, onboard 32-bit float recording, wireless timecode sync and Sidus Audio app control.

Specifications

RF Modulation

Proprietary digital RF modulation

RF Frequency Range

550MHz–960MHz, region/local law dependent

100kHz

RF Frequency Step

RF Bandwidth

200kHz

Minimum Frequency Interval

700kHz

Antenna Connector

50Ω SMA

Power Output

10mW, 20mW, 25mW, 50mW, 100mW, software selectable and regulation dependent

Dynamic Range

123dB

Distortion

<0.5%

Frequency Response

20Hz–20kHz

Low Cut

Off, 75Hz, 100Hz, 150Hz

Mic Power

Mic or line input

Mic Connector

3.5mm TRS

Input Gain

0dB to +30dB

Recording

microSD up to 128GB, WAV, 24-bit / 32-bit float

Compatibility

• Deity THEOS D2RX receiver
• Deity THEOS digital wireless systems
• Deity TC-1 wireless timecode sync
• Sidus Audio app
• W.Lav Pro TRS lavalier microphone
• Compatible 3.5mm TRS lavalier microphones
• Third-party timecode jam via 3.5mm jack
• Film and TV production
• Documentary recording
• ENG workflows
• Reality TV production
• Location sound recording
• Backup transmitter recording
• Multi-camera productions

Dimensions

Height

88.45mm

Width

65mm

Depth

17.8mm

Weight with Battery and Antenna

125g

Weight without Battery and Antenna

88g

What’s in the box?

• 1x DBTX Bodypack Transmitter
• 2x Antennas
• 1x USB Cable
• 1x USB-A to USB-C Converter
• 2x AA Batteries
• 1x Belt Clip
• 1x 32GB microSD Card
• 1x W.Lav Pro TRS Lavalier Microphone

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

2-year warranty + optional 6-month extension

This product includes a 2-year Deity manufacturer warranty against defects in materials and workmanship under normal use.

The warranty can be extended by an additional 6 months by registering the product with Deity.

For help with a fault or warranty claim, please visit our Returns & Warranty page and fill out the warranty form.

Soundkit will then help handle the warranty process with Deity on your behalf.

This manufacturer warranty does not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation or normal wear-and-tear items such as cables and accessories.

This manufacturer warranty is in addition to your statutory rights.

Important Notes

• This is the Global Version for use outside North America.
• Actual usable frequency range depends on local regulations and Sidus Audio regional frequency selection.
• Some UK wireless microphone frequencies may require an Ofcom PMSE licence.
• Simultaneous transmit and record functionality is available on Global units where legally permitted.
• Battery life depends on battery type, RF power, Bluetooth use, recording and screen settings.

Technical Downloads

For up to date manuals, product documents and more in depth specifications, please refer to the official Deity Manuals page
