Deity

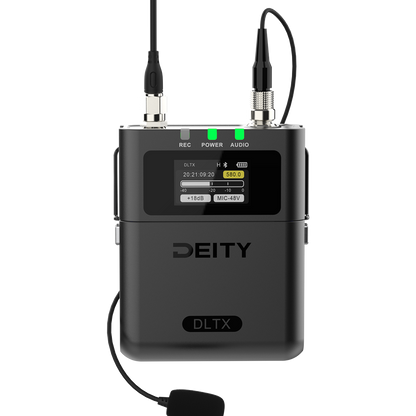

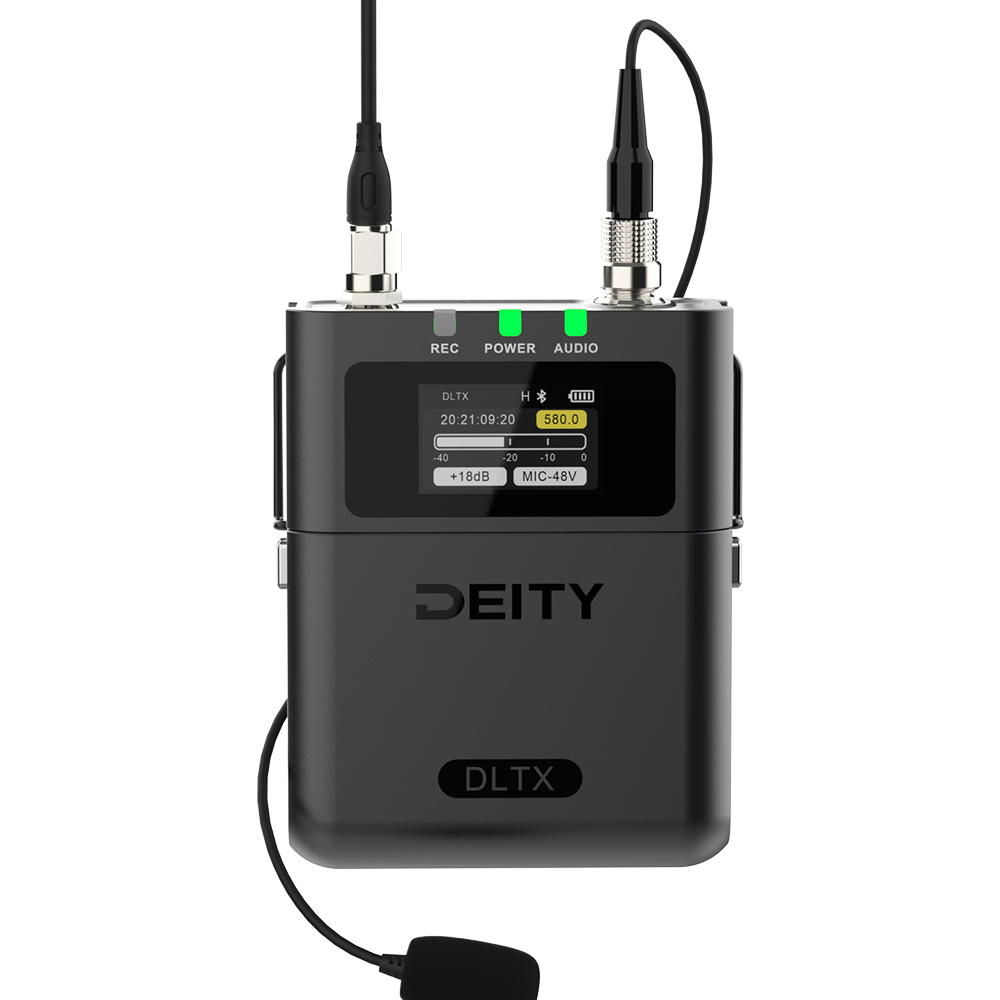

DLTX Transmit + 48V Wireless Transmitter

• 3-pin LEMO wireless transmitter with 48V phantom power, 5V mic bias and line input support.
• Onboard 24-bit / 32-bit float recording to microSD with timecode sync.
• Global OneBand digital UHF operation with Sidus Audio app control and up to 14hrs battery life.

Need help choosing?

Choose the DLTX if you need a compact Theos wireless transmitter for 3-pin LEMO lavaliers, plant mics, boom setups or timecode-synced backup recording. It is especially useful when you need 48V phantom power, 5V mic bias, onboard 32-bit float recording, Sidus Audio app control and flexible digital UHF transmission in one transmitter.
£534.00 (£445.00 ex VAT)
£534.00 (£445.00 ex VAT)
Tax included. Shipping calculated at checkout.
  • Next-day UK delivery
  • Authorised UK stockist
  • Trusted by industry experts
Awaiting stock, shipping soon

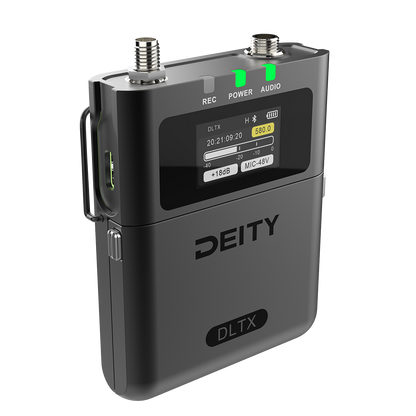

The DLTX is a Theos digital UHF wireless transmitter designed for professional location sound workflows, giving users a compact way to transmit and record audio from 3-pin LEMO microphone and line sources.

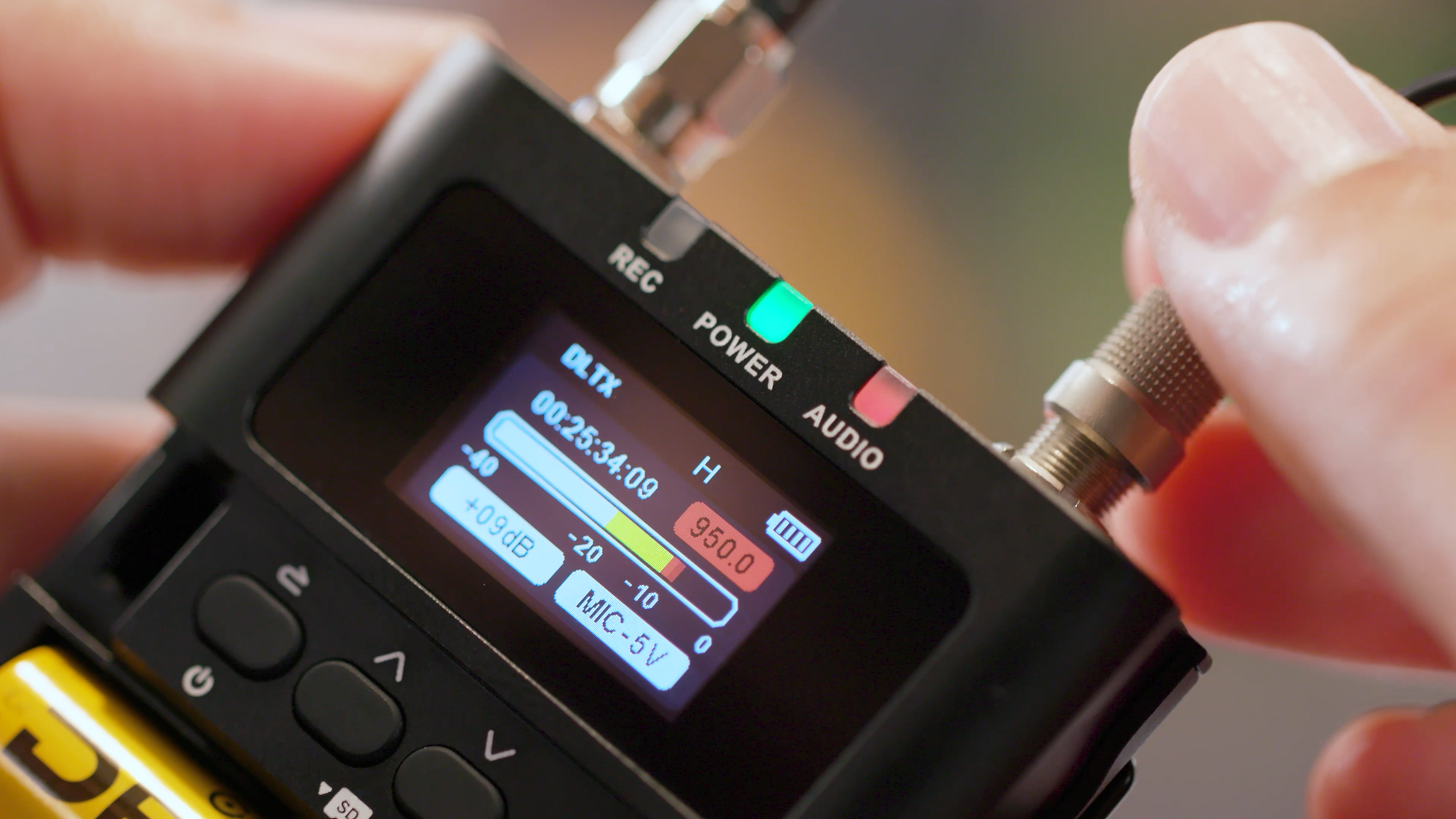

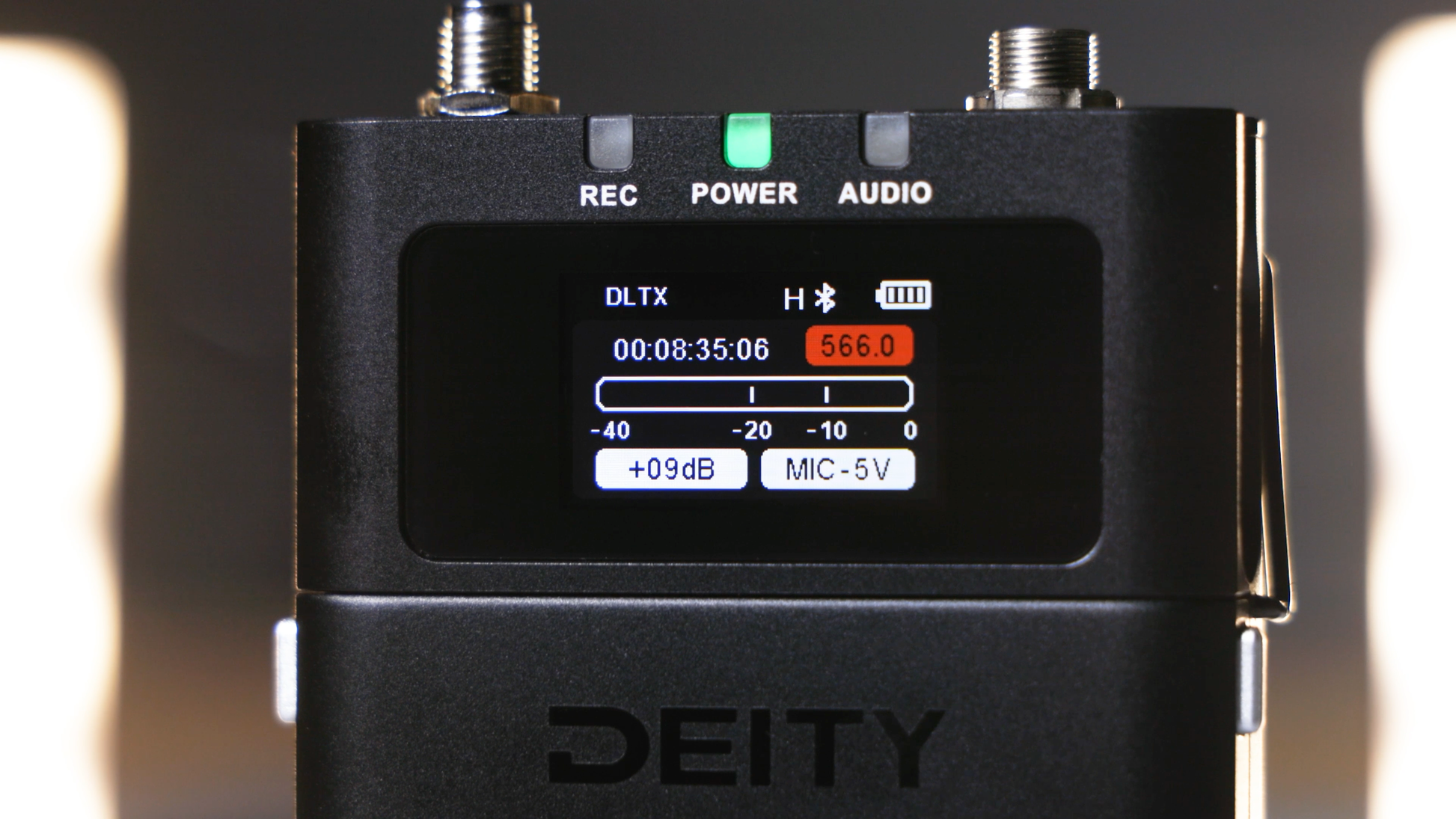

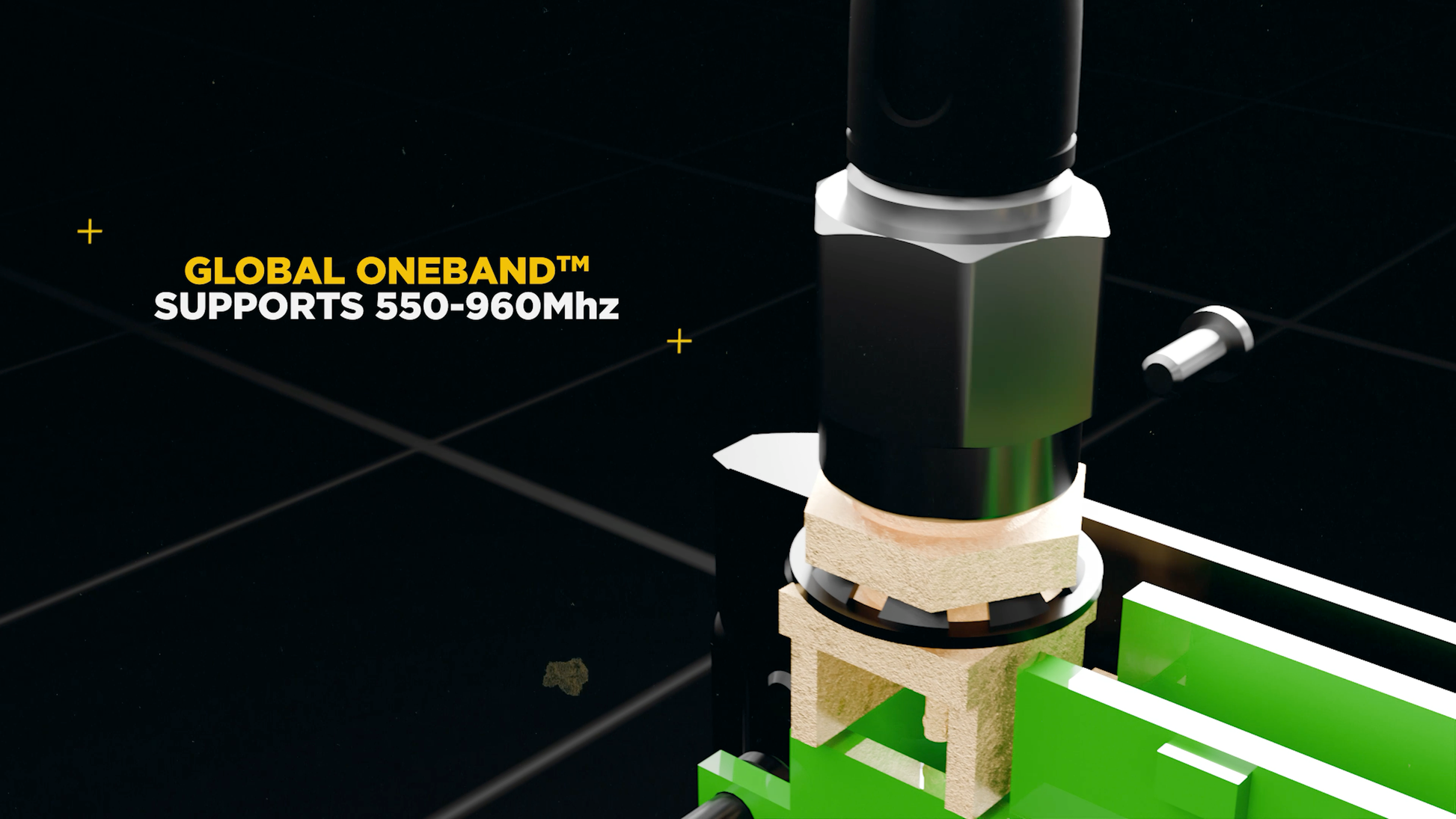

It features Global OneBand ultra-wideband UHF tuning, up to 100mW RF output where legally permitted, 48V phantom power, 5V mic bias, onboard 24-bit / 32-bit float recording with timecode, an analogue limiter and remote control via the Sidus Audio app. With USB-C external power, dual AA battery operation, a full-colour display, CNC-milled aluminium chassis and SMA antenna port, the DLTX is suited to lavalier, plant mic, boom and backup recorder workflows.

Choosing your type

Choose the DLTX if you need a compact Theos wireless transmitter for 3-pin LEMO lavaliers, plant mics, boom setups or timecode-synced backup recording. It is especially useful when you need 48V phantom power, 5V mic bias, onboard 32-bit float recording, Sidus Audio app control and flexible digital UHF transmission in one transmitter.

Specifications

RF Modulation

Proprietary digital RF modulation

RF Frequency Range

550MHz–960MHz, region/local law dependent

100kHz

RF Frequency Step

RF Bandwidth

200kHz

Minimum Frequency Interval

700kHz

Antenna Connector

50Ω SMA

RF Power Output

10mW, 25mW, 50mW, 100mW, regulation dependent

Dynamic Range

105dB

Frequency Response

20Hz–20kHz

Low Cut

Off, 75Hz, 100Hz, 150Hz

Mic Power

5V mic bias, 48V phantom power, line

Audio Input

3-pin LEMO

Input Gain

0dB to +42dB

Timecode

LTC SMPTE, wireless TC-1 sync or jam via 3-pin input

Internal Recording

microSD up to 512GB, WAV, 48kHz, 24-bit / 32-bit Float

Compatibility

• Deity THEOS wireless systems

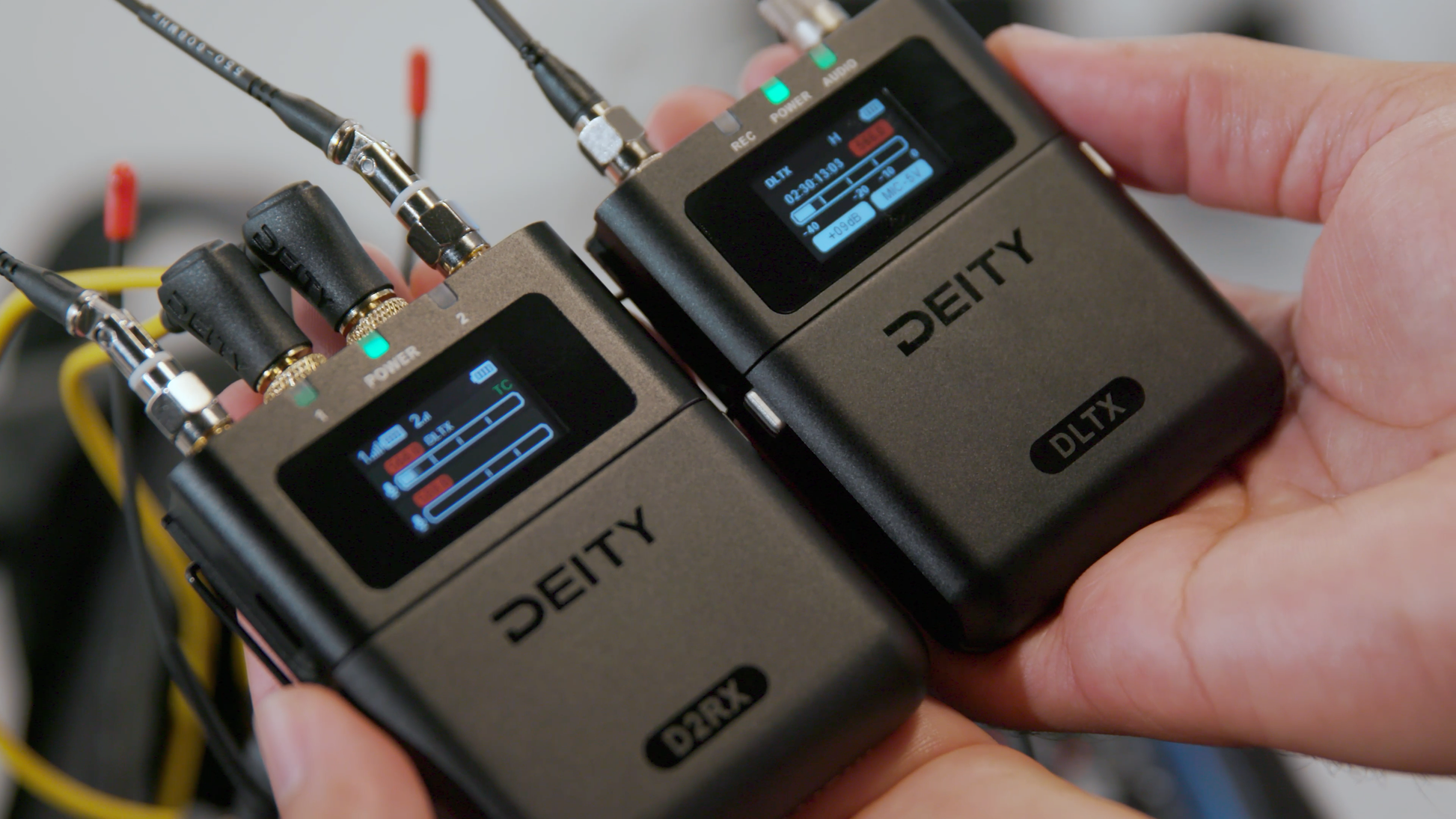

• Deity D2RX receiver
• 3-pin LEMO lavalier microphones
• Deity WLP L3
• Plant microphone setups
• Boom microphone setups
• Microphones requiring 48V phantom power
• 5V mic-bias microphones
• Line-level sources

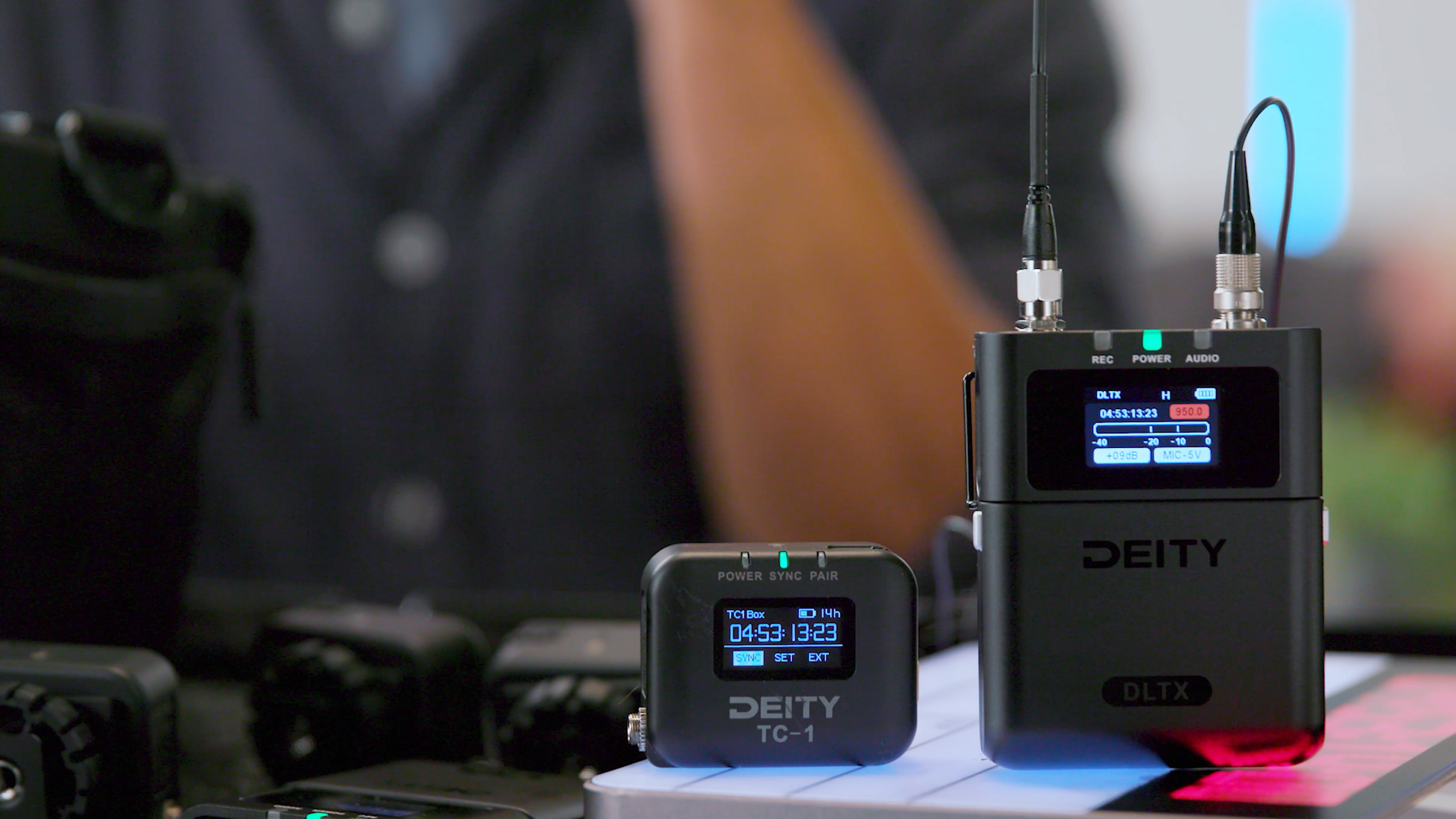

• Deity TC-1 wireless timecode sync
• Third-party timecode jam via 3-pin input

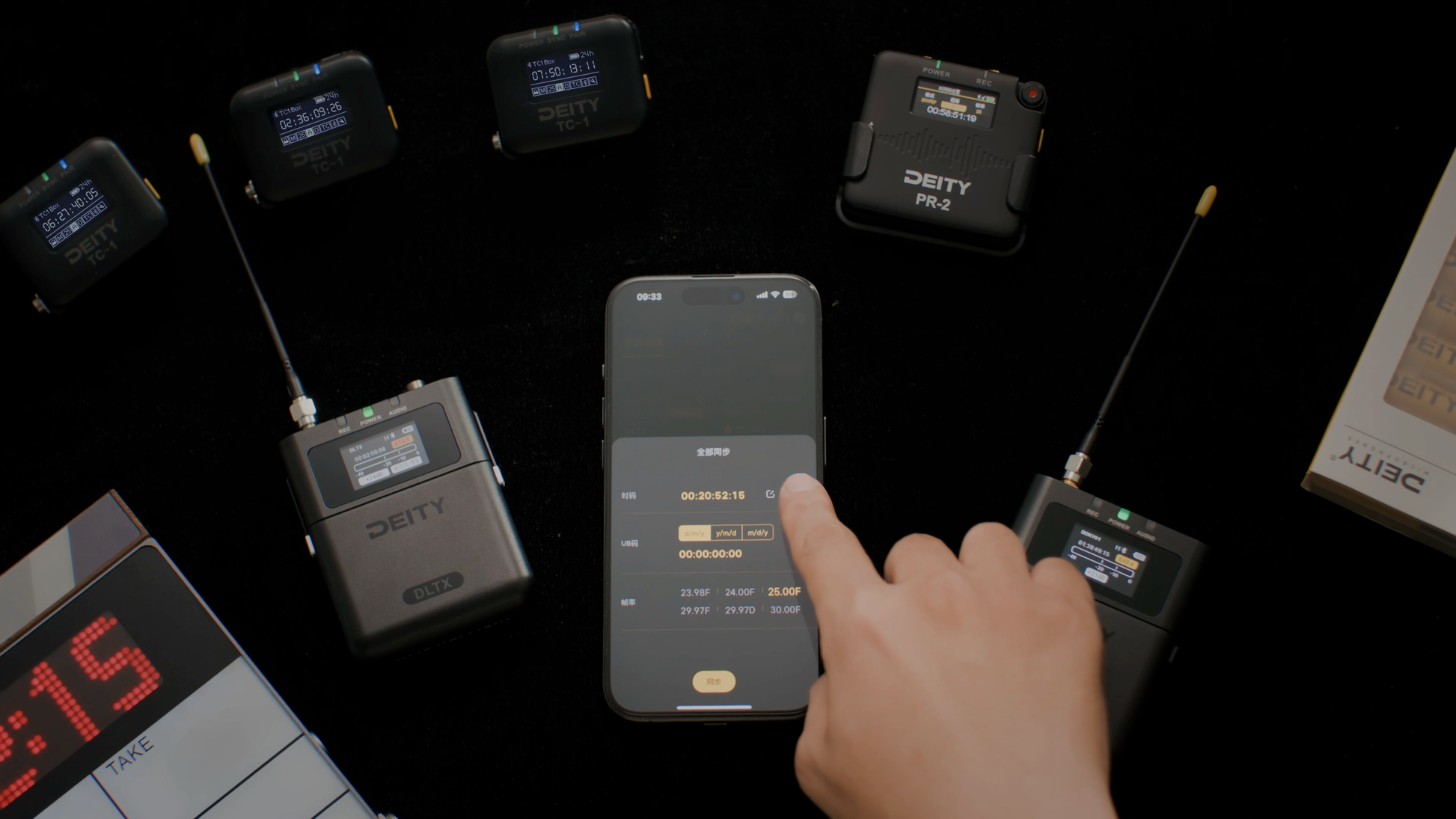

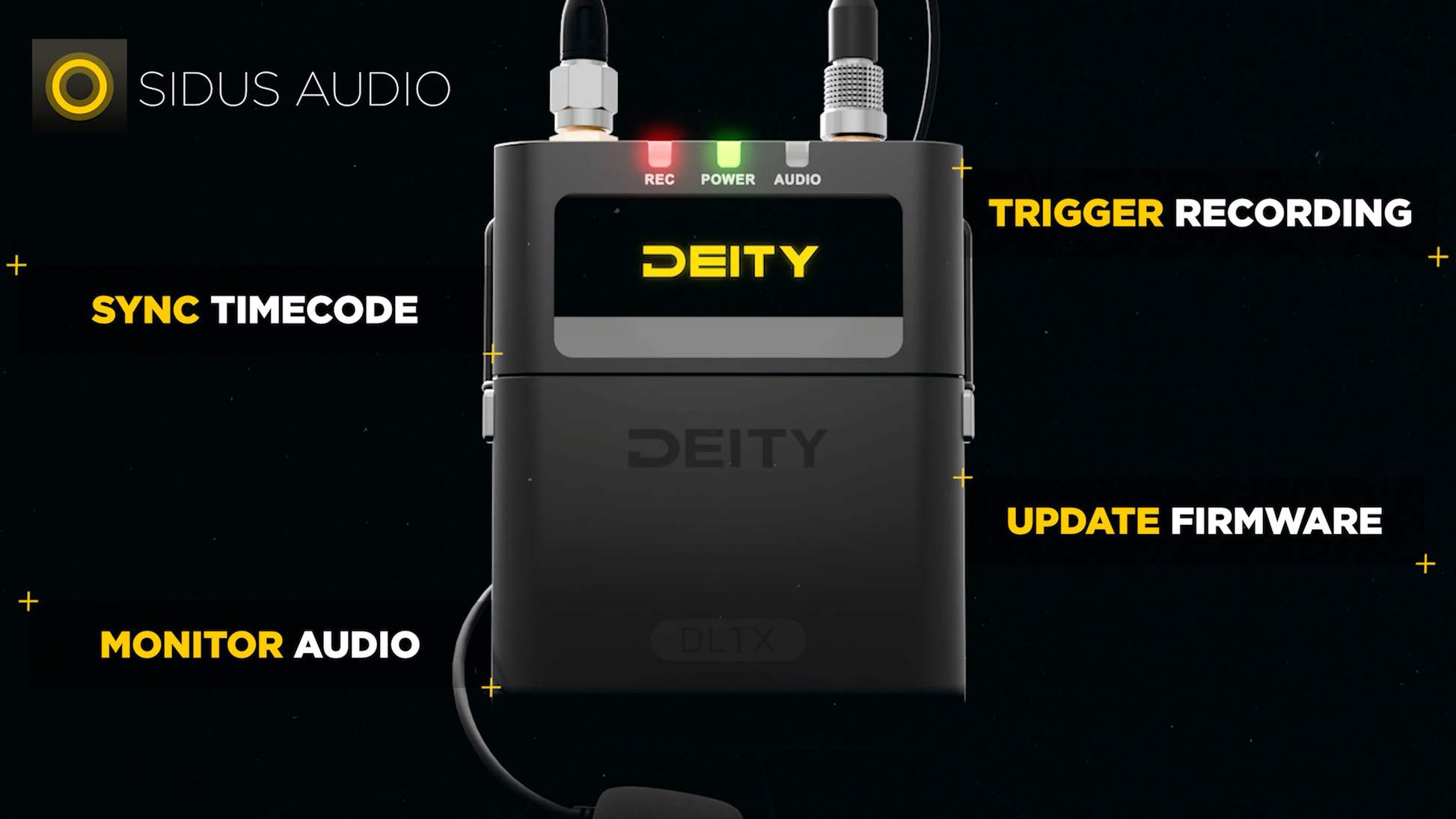

• Sidus Audio app remote control
• Location sound recording
• Film, TV and broadcast production
• Documentary and ENG workflows

What’s in the box?

• 1x DLTX

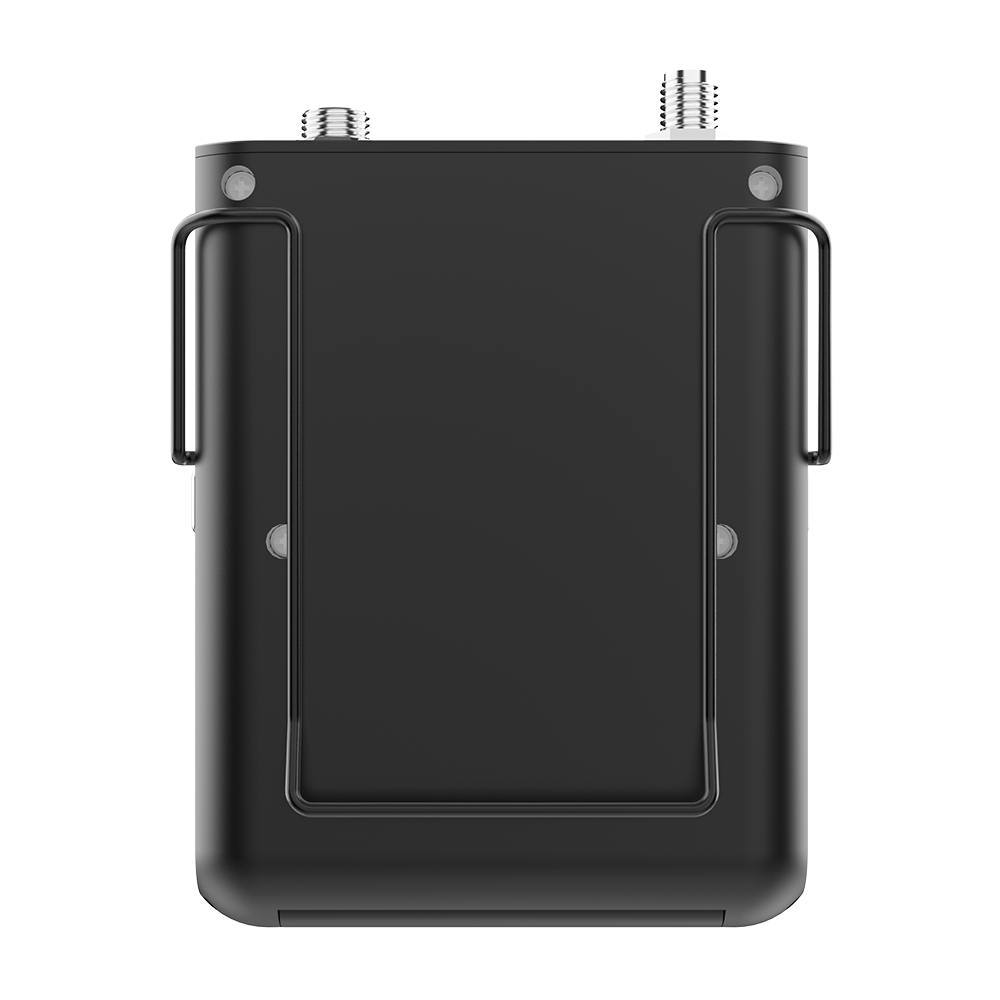

• 1x Belt clip
• 1x Antenna
• 2x AA batteries
• 1x MicroSD card

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

2-year warranty + optional 6-month extension

This product includes a 2-year Deity manufacturer warranty against defects in materials and workmanship under normal use.

The warranty can be extended by an additional 6 months by registering the product with Deity.

For help with a fault or warranty claim, please visit our Returns & Warranty page and fill out the warranty form. Soundkit will then help handle the warranty process with Deity on your behalf.

This manufacturer warranty does not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation or normal wear-and-tear items such as cables and accessories.

This manufacturer warranty is in addition to your statutory rights.

Important Notes

• Actual usable frequency range and RF power depend on local laws and regional settings.
• Not for sale in North America.
• Accessories sold separately: L3-Link, DLTX Boom Pole Holder and WLP L3.
• Custom antennas may need to be cut to match the selected frequency range.
• Battery life depends on RF power, Bluetooth, screen sleep, LED settings and battery type.

Technical Downloads

For up to date manuals, product documents and more in depth specifications, please refer tothe official Deity Manuals page

DLTX Transmit + 48V Wireless Transmitter

£534.00

Transmit + 48V

Power Lavalier, Plant or Boom Setups

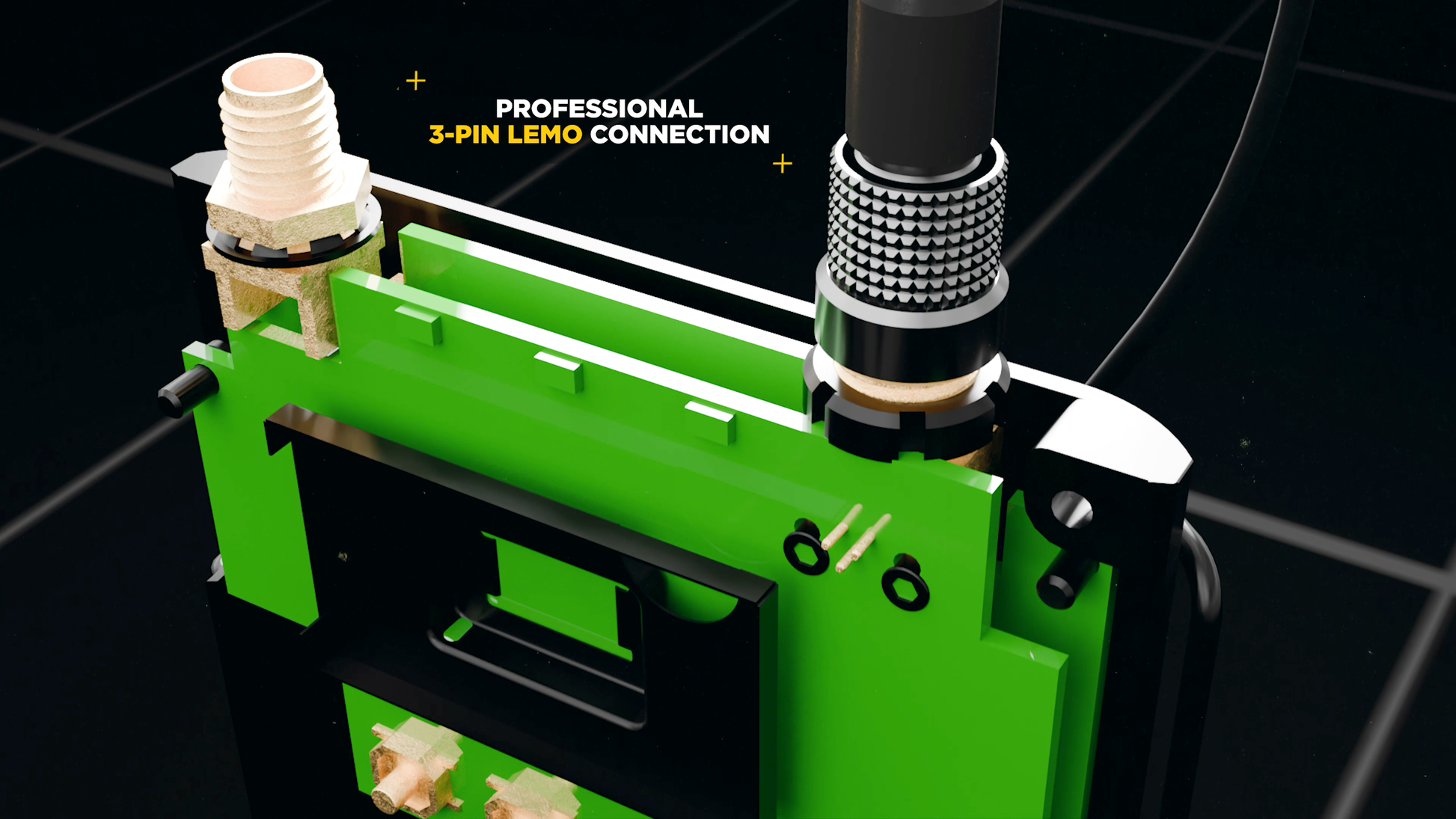

Use the 3-pin LEMO input with 5V mic bias, 48V phantom power or line-level sources for flexible production sound workflows.

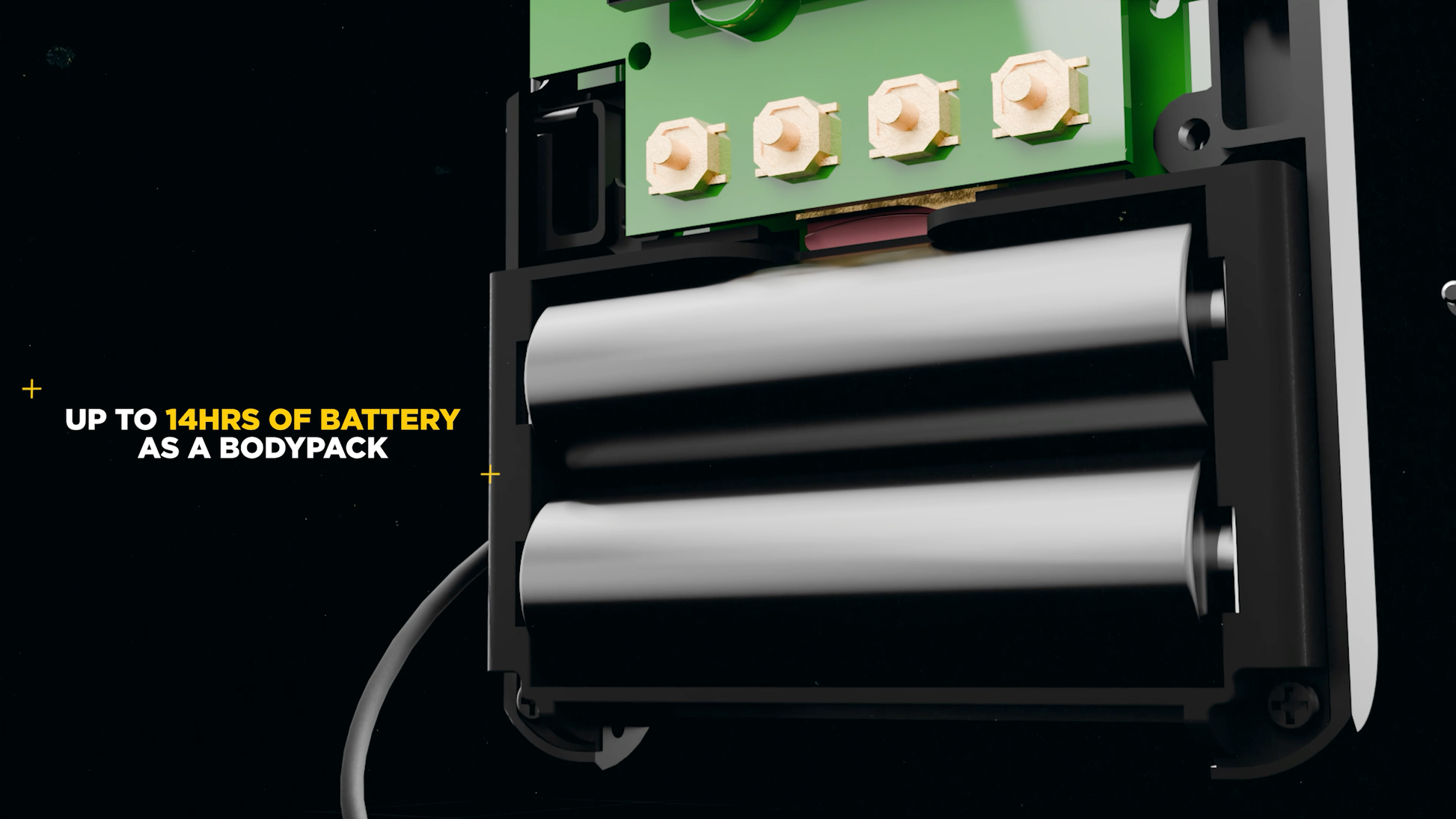

Long AA Battery Life

Run for Up to 14 Hours

Powered by 2 AA batteries, the DLTX can run for up to 14hrs with Deity lithium AA batteries in the stated test conditions.

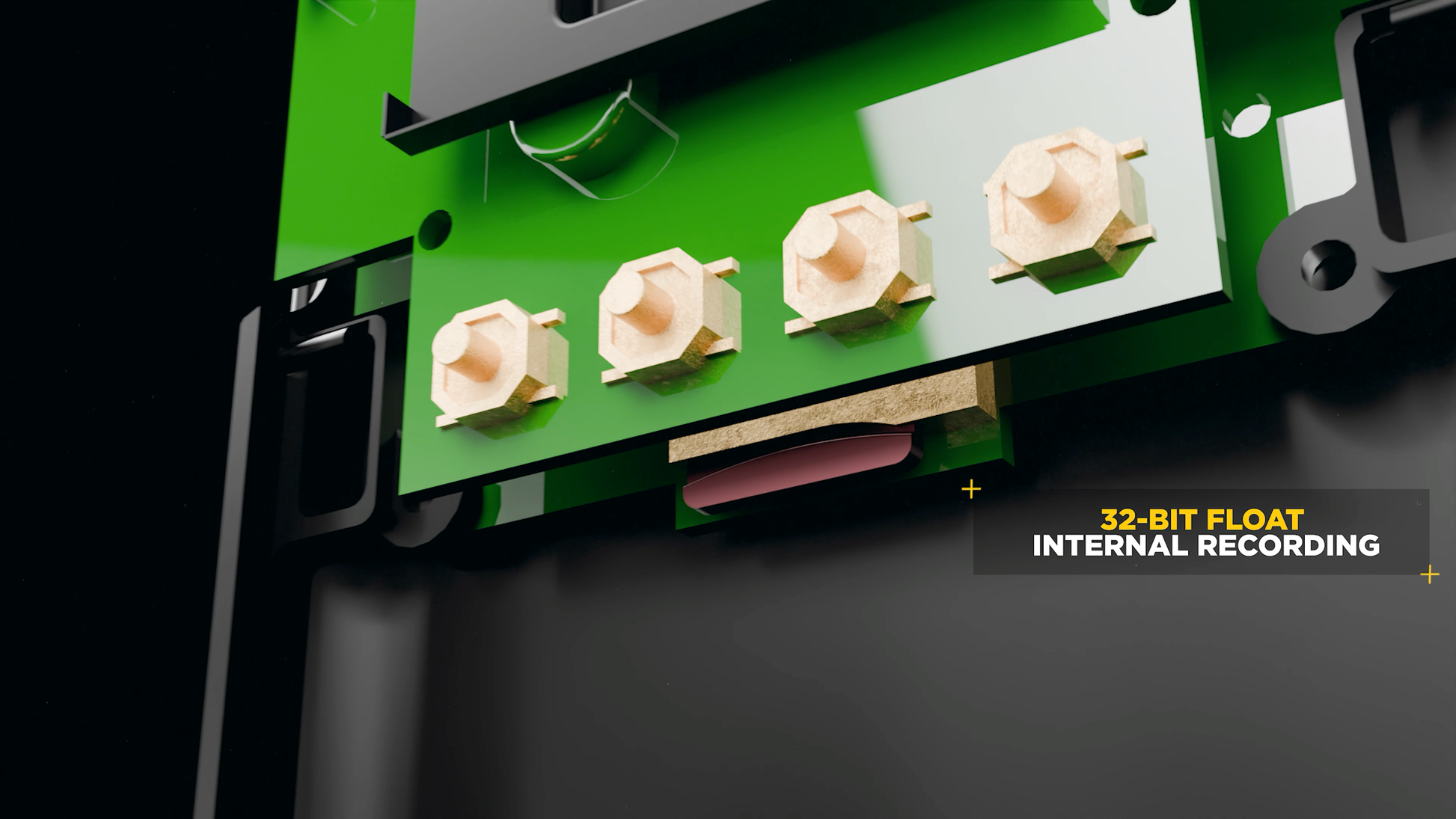

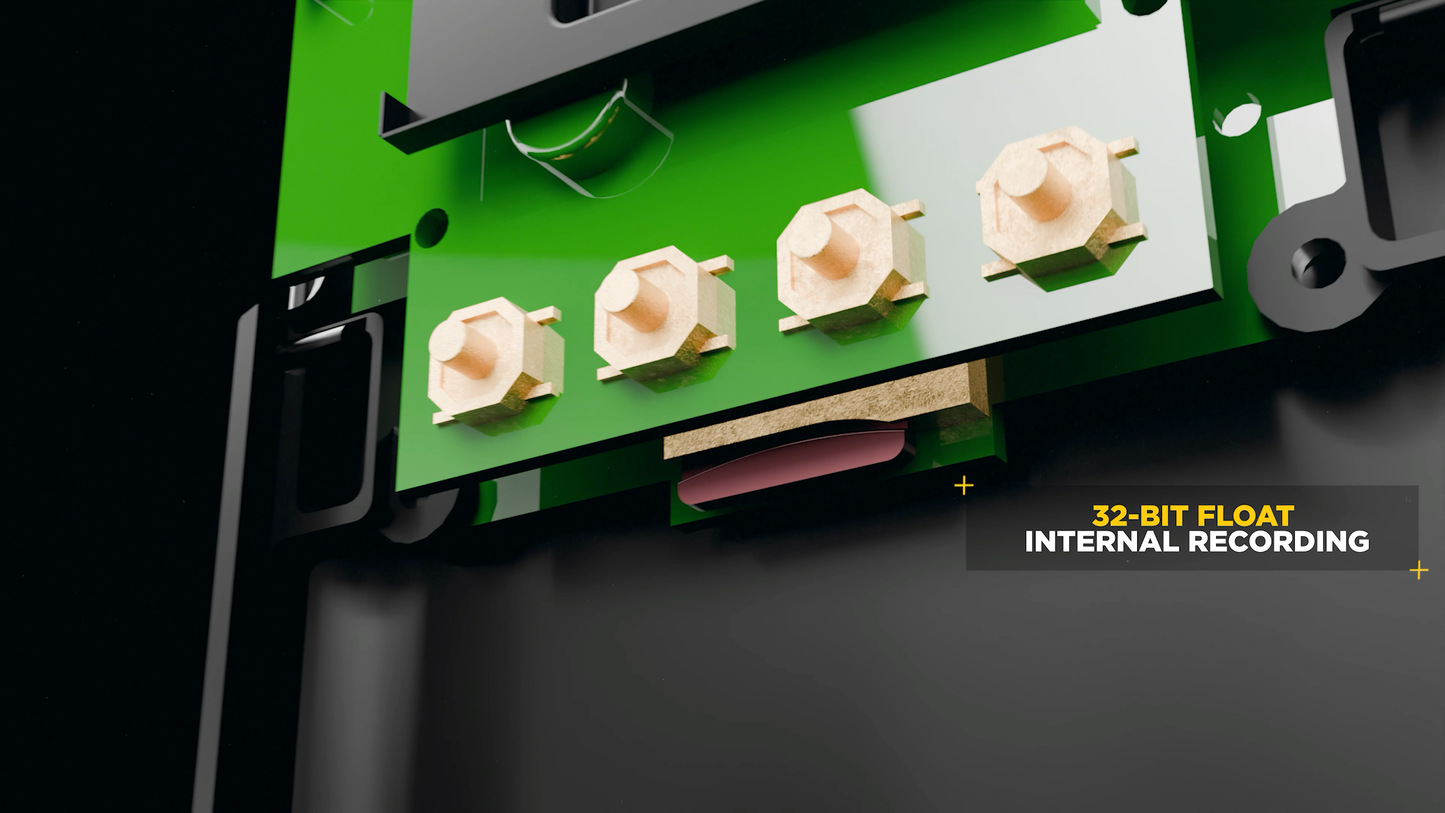

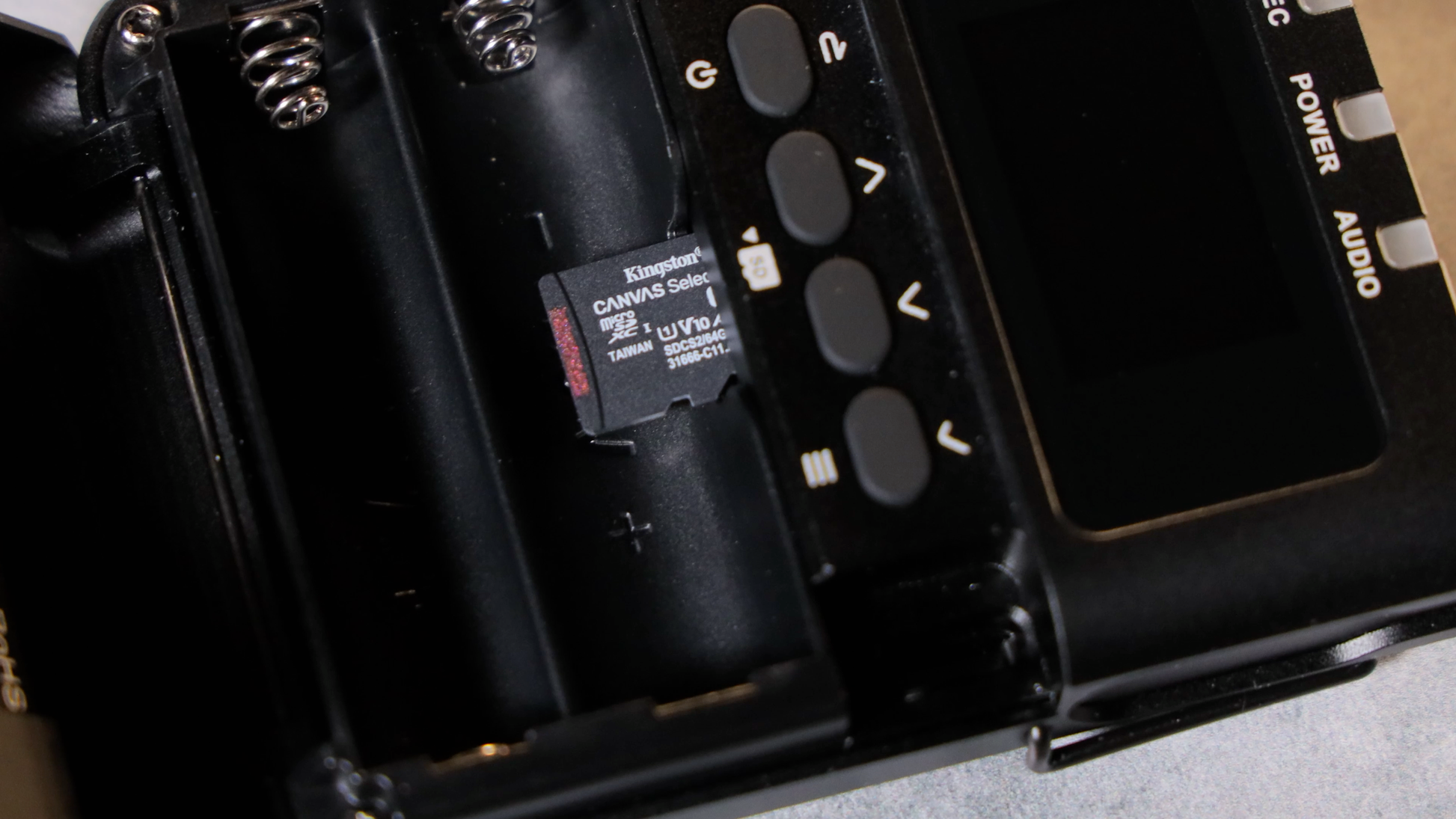

32-Bit Float Backup Recording

Record at the Source

Onboard 24-bit / 32-bit float recording with timecode gives you a backup WAV file that can sync with your main production audio in post.
