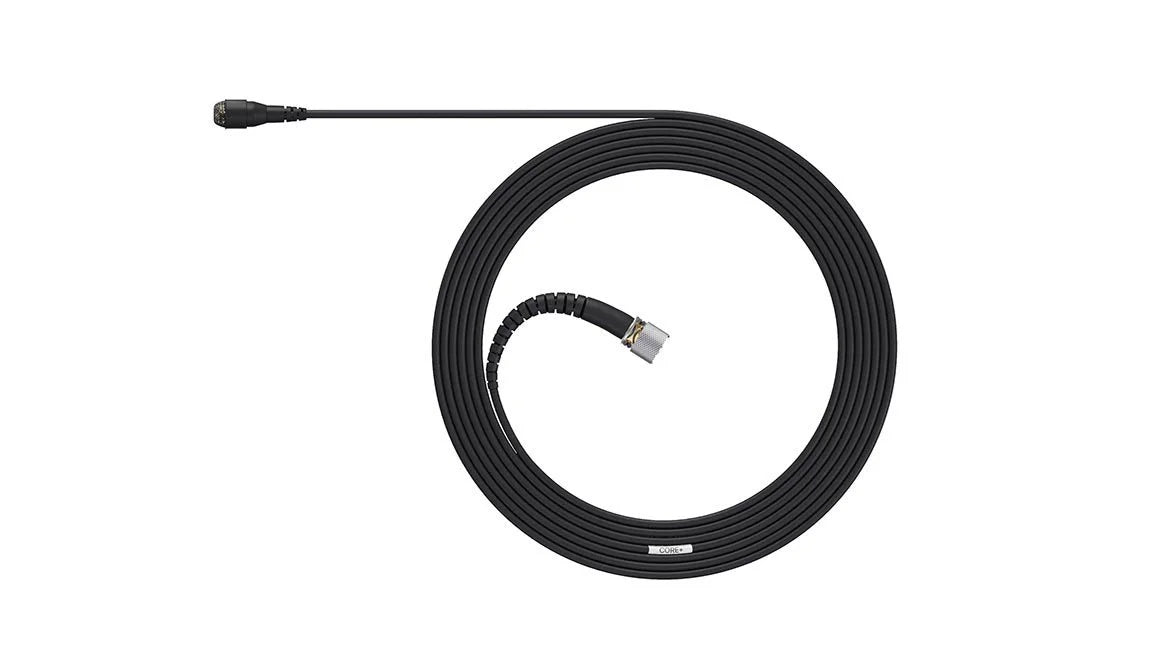

• DPA CORE+ 4060 5.4mm miniature lavalier microphone with MicroLock cable
  • DPA CORE+ 4060 miniature lavalier microphone in black
  • DPA CORE+ 4060 miniature lavalier microphone in beige
  • DPA CORE+ 4060 miniature lavalier microphone in white

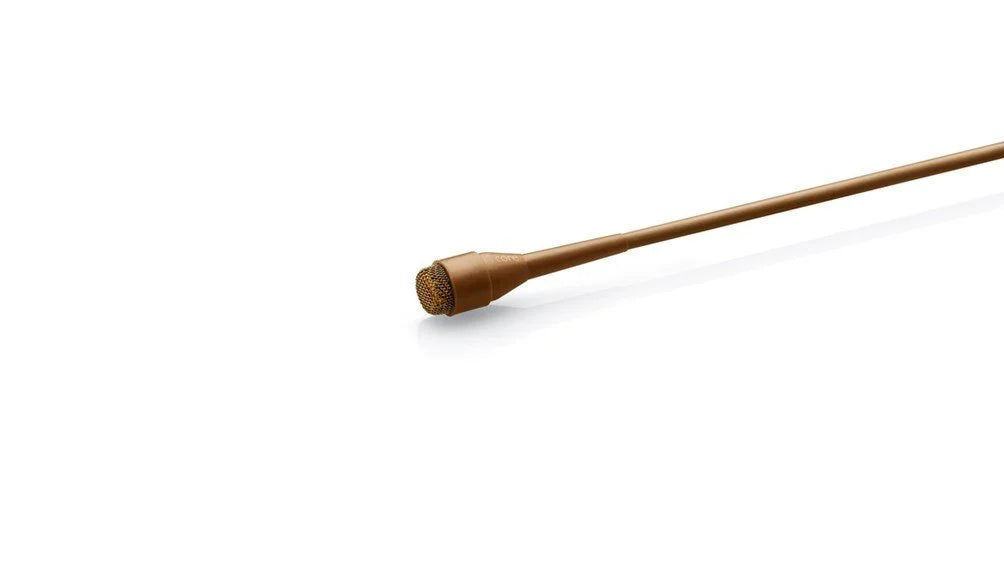

  • DPA CORE+ 4060 miniature lavalier microphone in brown

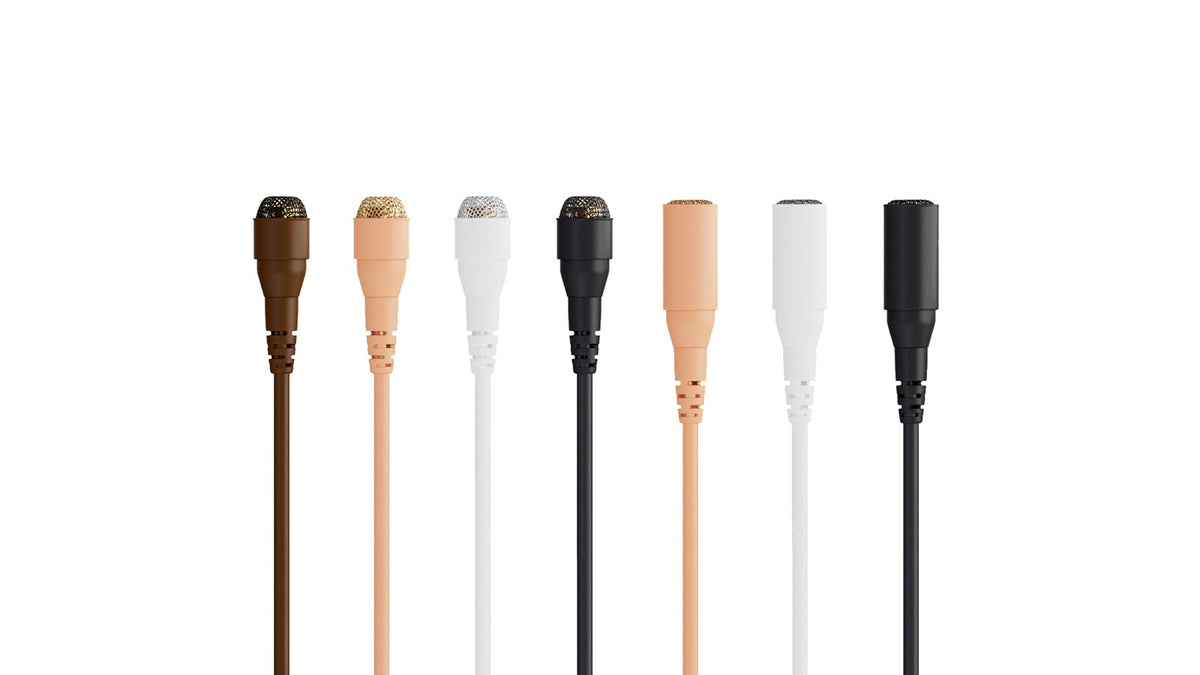

  • DPA 4060 Series CORE+ miniature lavalier microphones in multiple colours

DPA Microphones

DPA 4060 CORE+ Miniature Lavalier Microphone – Normal SPL

• 5.4mm CORE+ by DPA omnidirectional miniature lavalier for film, TV, theatre and broadcast.
• Normal-SPL 4060 capsule: 20mV/Pa sensitivity, 23dB(A) typical self-noise and 134dB SPL peak capability.
• Black, Beige, White and Brown with MicroLock, 3-Pin Lemo, TA4F Mini-XLR and 3.5mm Mini-Jack options.

Choose your colour:
Choose your termination:

Need help choosing?

Choose the 4060 when maximum sensitivity and a strong signal-to-noise ratio are the priority for dialogue, chest-worn lavaliers, quieter voices or more distant placement. Choose the 4061 instead when you need extra headroom for loud voices, theatre or head-mounted placement. If concealment size matters more than the larger 5.4mm capsule, compare the 3mm DPA 6060 / 6061 family.
£444.00 (£370.00 ex VAT)
£444.00 (£370.00 ex VAT)
Tax included. Shipping calculated at checkout.

The DPA CORE+ 4060 is a 5.4mm omnidirectional miniature lavalier microphone for professional film, television, theatre, broadcast and location sound. Its 20mV/Pa sensitivity makes it the Normal SPL model in the 4060/4061 family, giving a strong signal for dialogue, chest-worn lav placement, quieter voices and more remote or acoustically damped positioning.

CORE+ by DPA reduces distortion across the microphone's dynamic range while retaining the familiar natural sound of the 4060 series. Choose Black, Beige, White or Brown, then select MicroLock or a hardwired 3-Pin Lemo, TA4F Mini-XLR or 3.5mm Mini-Jack termination to suit your wireless system.

Choosing your type

Choose the 4060 when maximum sensitivity and a strong signal-to-noise ratio are the priority for dialogue, chest-worn lavaliers, quieter voices or more distant placement. Choose the 4061 instead when you need extra headroom for loud voices, theatre or head-mounted placement. If concealment size matters more than the larger 5.4mm capsule, compare the 3mm DPA 6060 / 6061 family.

Specifications

Directional Pattern

Omnidirectional

Principle of Operation

Pressure

Cartridge Type

Pre-polarized condenser

Frequency Range

20Hz–20kHz

Frequency Response ±2dB

20Hz–20kHz; 3dB soft boost at 8–20kHz

Sensitivity

20mV/Pa; -34dB re. 1V/Pa

Equivalent Noise

Typ. 23dB(A), max. 26dB(A)

THD <0.5%

128dB SPL RMS / 131dB SPL peak

Dynamic Range

Typ. 106dB

Max SPL

134dB SPL peak

Output Impedance

30–40Ω

Power

5–10V via DPA wireless adapter

Capsule Size

5.4mm dia. / 12.7mm long

Cable Length

1.8m

Weight

7.5g incl. cable and MicroLock connector

Compatibility

• MicroLock: use with the appropriate DPA MicroLock adapter for compatible professional wireless transmitters
• 3-Pin Lemo: for transmitters using the matching 3-pin Lemo microphone input
• TA4F Mini-XLR: for transmitters using the matching 4-pin miniature XLR / TA4 input
• 3.5mm Mini-Jack: for compatible locking 3.5mm transmitter inputs
• DPA DAD9001 XLR adapter can provide wired phantom-powered operation from the MicroLock version where appropriate

Dimensions

Capsule

5.4mm

Sensitivity

20mV/Pa

Max SPL

134dB peak

Cable

1.8m

Weight

7.5g

What’s in the box?

• 1x DPA CORE+ 4060 Miniature Lavalier Microphone
• 1x Soft Boost Grid (pre-fitted)
• 1x High Boost Grid
• Selected colour
• Selected termination

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• The 4060 is the Normal SPL / higher-sensitivity model in the 4060/4061 CORE+ family.
• For louder voices, head/forehead mounting or sources requiring more headroom, compare the DPA 4061 CORE+.
• Choose the termination that matches your transmitter before ordering.
• Hardwired termination options can be prepared in-house and may add up to 24 hours to dispatch.
• The 4060 uses DPA's 5.4mm miniature capsule; for a smaller 3mm package compare the DPA 6060.

DPA 4060 CORE+ Miniature Lavalier Microphone – Normal SPL

£444.00
DPA CORE+ 4060 miniature lavalier microphone in black

5.4mm Capsule / 1.8m Cable

The Classic 4060, Refined with CORE+

The 4060 series uses a 5.4mm pre-polarized condenser capsule with a vertical diaphragm, Kevlar-reinforced cable relief and DPA's double-vent protection. A removable acoustic grid lets the response be tailored for different placements.

DPA CORE+ 4061 5.4mm miniature lavalier microphone with MicroLock cable

Normal SPL / 20mV/Pa Sensitivity

Optimised for Dialogue and Natural Speech

The 4060 is the higher-sensitivity model in DPA's classic miniature lavalier family. Its 20mV/Pa sensitivity and 23dB(A) typical self-noise make it especially useful for speech, chest placement and situations where the microphone is more remote or acoustically damped.

DPA 4060 Series CORE+ miniature lavalier microphones in multiple colours

5.4mm CORE+ Miniature Capsule

CORE+ Clarity with Flexible Wireless Termination

CORE+ reduces distortion across the usable dynamic range while keeping the familiar 4060 tonal character. Choose Black, Beige, White or Brown, then select MicroLock or a hardwired 3-Pin Lemo, TA4F Mini-XLR or 3.5mm Mini-Jack termination.
