Deity

DXTX Plug On Transmitter

• Wireless XLR transmitter with Neutrik locking input for professional microphones.
• Onboard 24-bit / 32-bit float recording with timecode support.

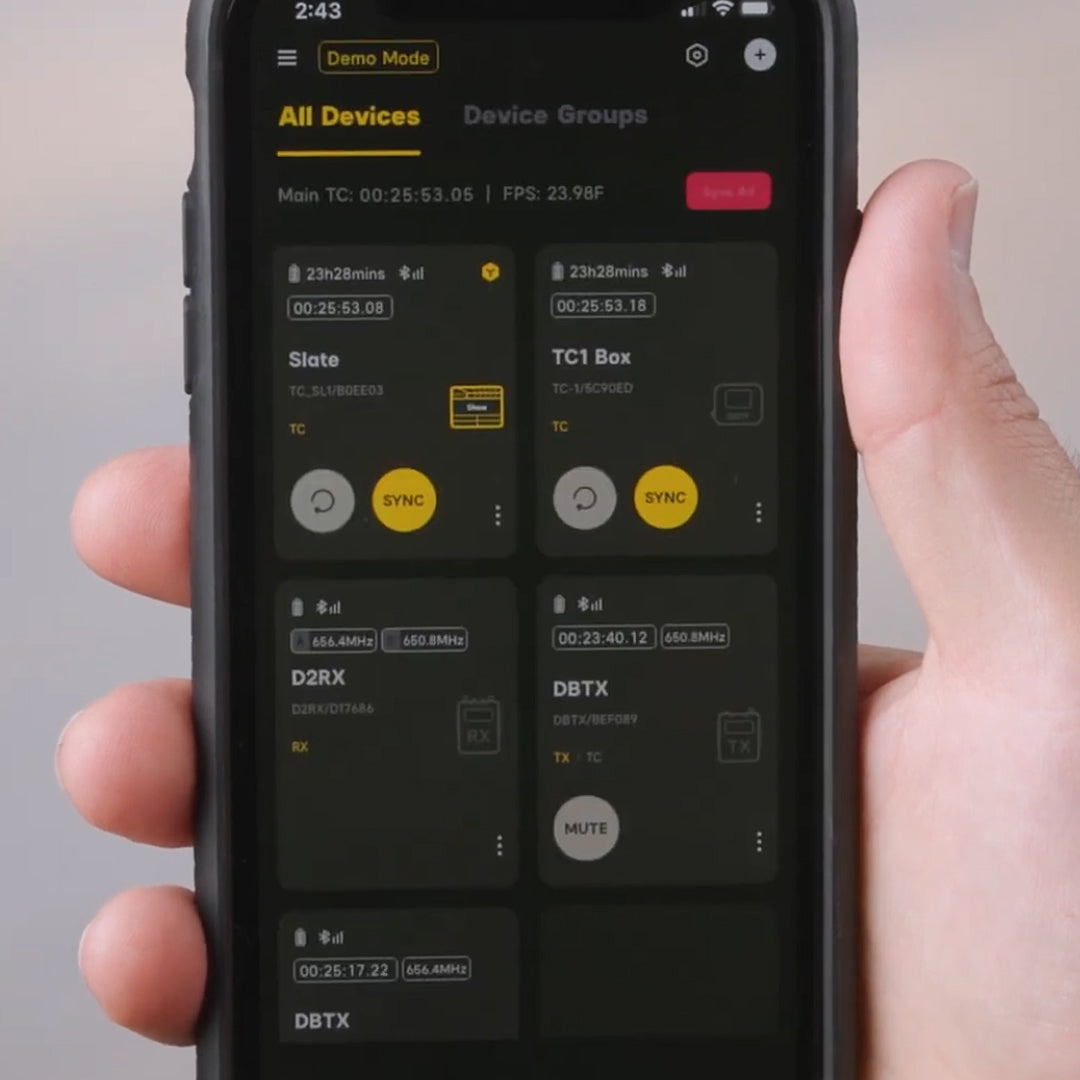

• Supports 48V phantom power, analogue limiting and Sidus Audio app control.

Need help choosing?

Choose the DXTX if you need to turn an XLR microphone into a wireless, timecode-capable recording transmitter. It is especially useful for boom microphones, handheld dynamic mics and professional location sound setups where you want wireless transmission, onboard backup recording and remote control from the Sidus Audio app.
£474.00 (£395.00 ex VAT)
£474.00 (£395.00 ex VAT)
Tax included. Shipping calculated at checkout.
  • Next-day UK delivery
  • Authorised UK stockist
  • Trusted by industry experts
Low stock! Only 3 left

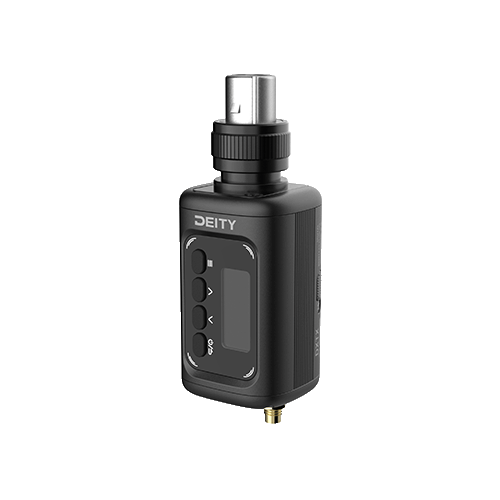

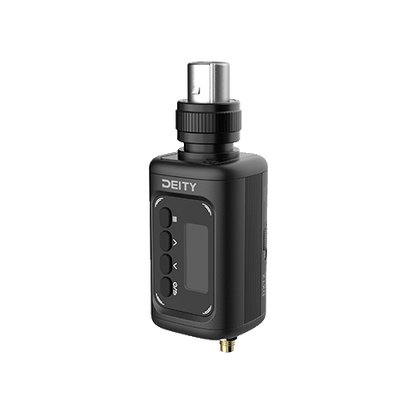

The DXTX is a wireless XLR transmitter designed for capturing, transmitting and recording professional microphone audio at the source.

Built for use with XLR microphones, boom setups and production sound workflows, it features a Neutrik locking XLR input, 24-bit transmission, onboard 24-bit / 32-bit float recording with timecode, 48V phantom power, analogue limiting, wideband digital UHF operation and remote control via the Sidus Audio app. With dual AA power, USB-C external power and an external SMA antenna, the DXTX gives location sound users a flexible way to add wireless transmission and backup recording to XLR microphones.

Choosing your type

Choose the DXTX if you need to turn an XLR microphone into a wireless, timecode-capable recording transmitter. It is especially useful for boom microphones, handheld dynamic mics and professional location sound setups where you want wireless transmission, onboard backup recording and remote control from the Sidus Audio app.

Specifications

RF Modulation

Proprietary digital RF modulation

RF Frequency Range

Region-dependent legal frequency bands

100kHz

RF Frequency Step

RF Bandwidth

200kHz

Minimum Frequency Interval

700kHz

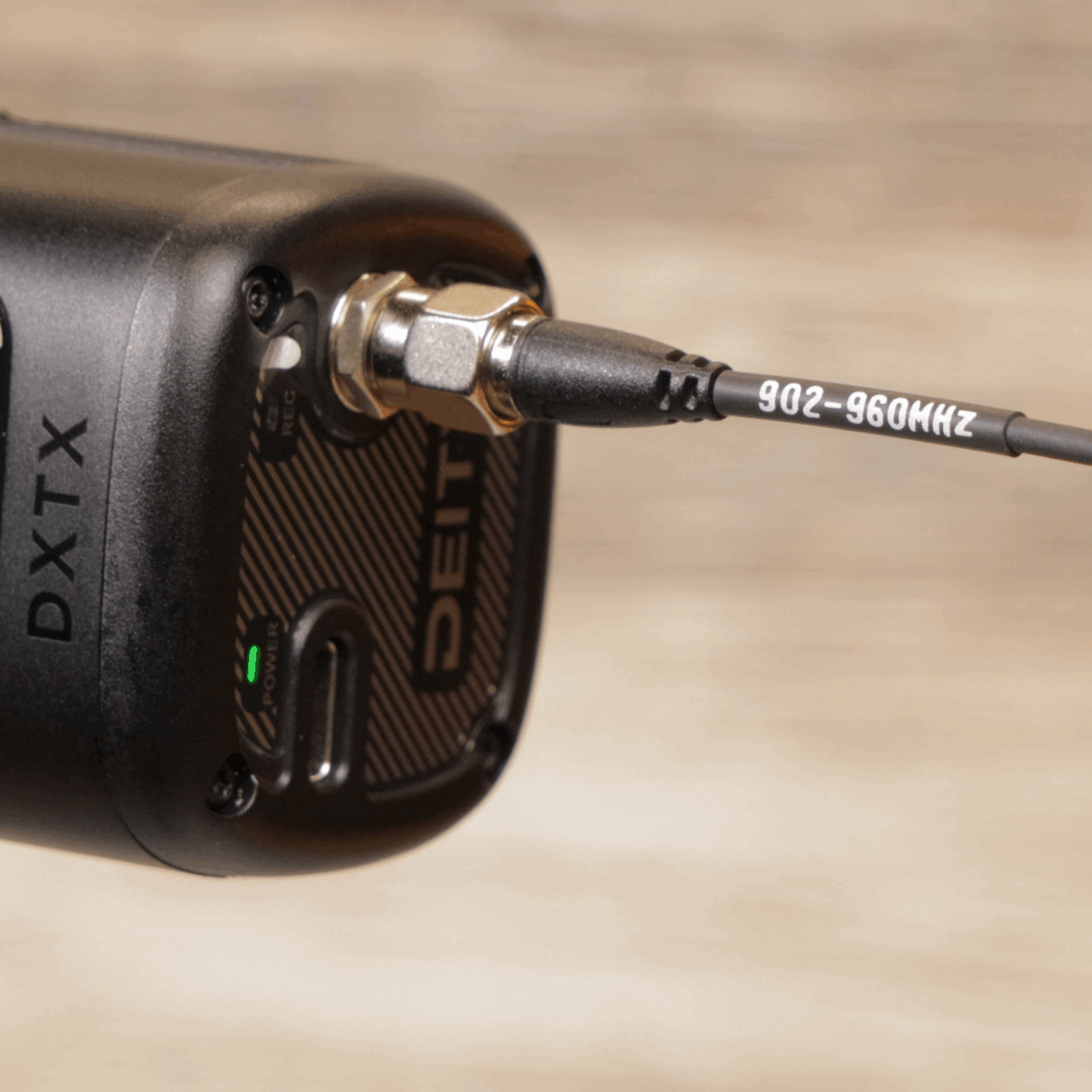

Antenna Connector

50Ω SMA

Power Output

10mW, 25mW, 50mW, 100mW, regulation dependent

Dynamic Range

105dB

Frequency Response

20Hz–20kHz

Low Cut

Off, 75Hz, 100Hz, 150Hz

Mic Power

MIC-5V, MIC-48V, Line

Mic Connector

XLR 3-pin / XLR 5-pin

Input Gain

0dB to +42dB

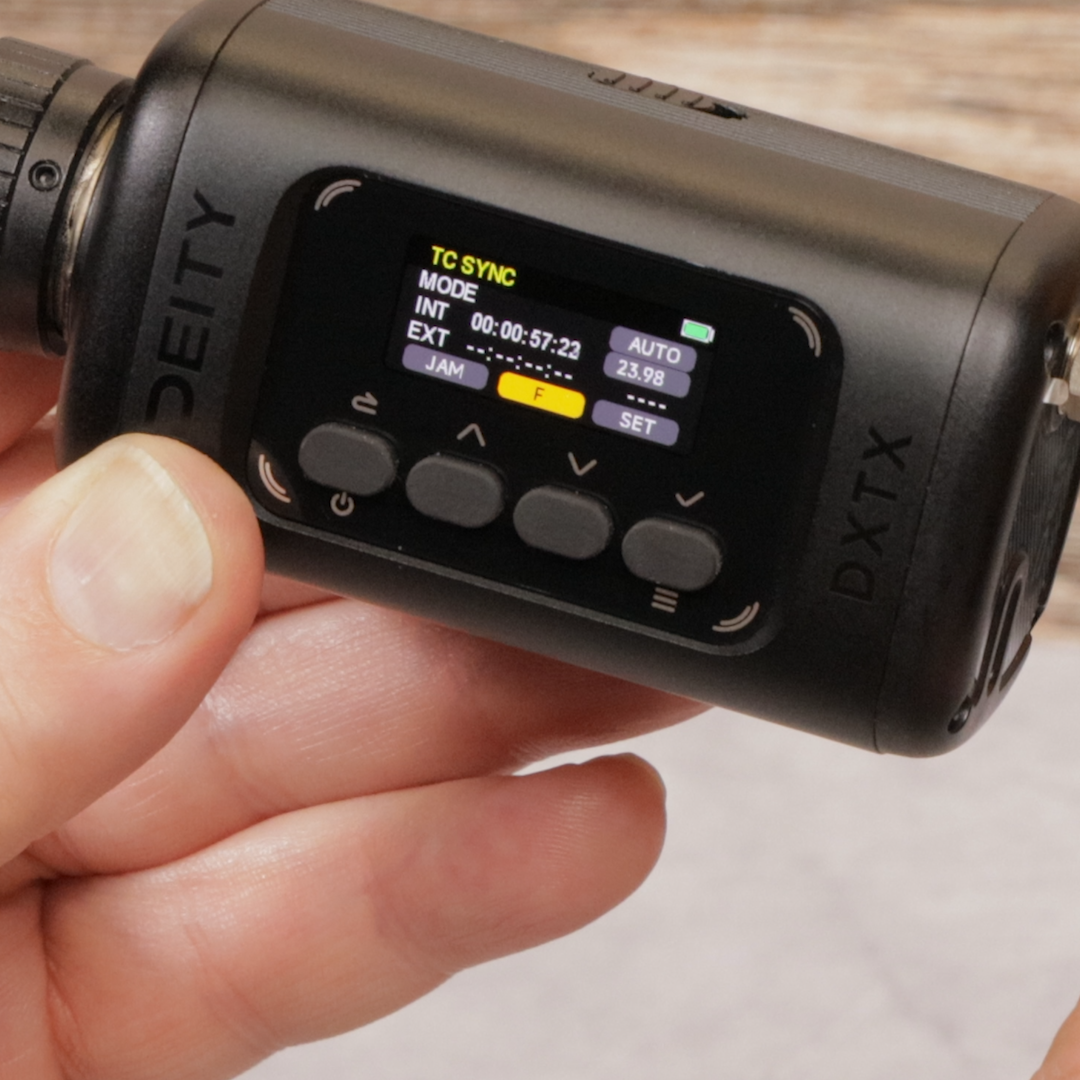

Timecode

LTC SMPTE, 23.98, 24, 25, 29.97, 29.97DF, 30

Recording

microSD card, WAV, 48kHz, 24-bit / 32-bit Float

Compatibility

• XLR microphones

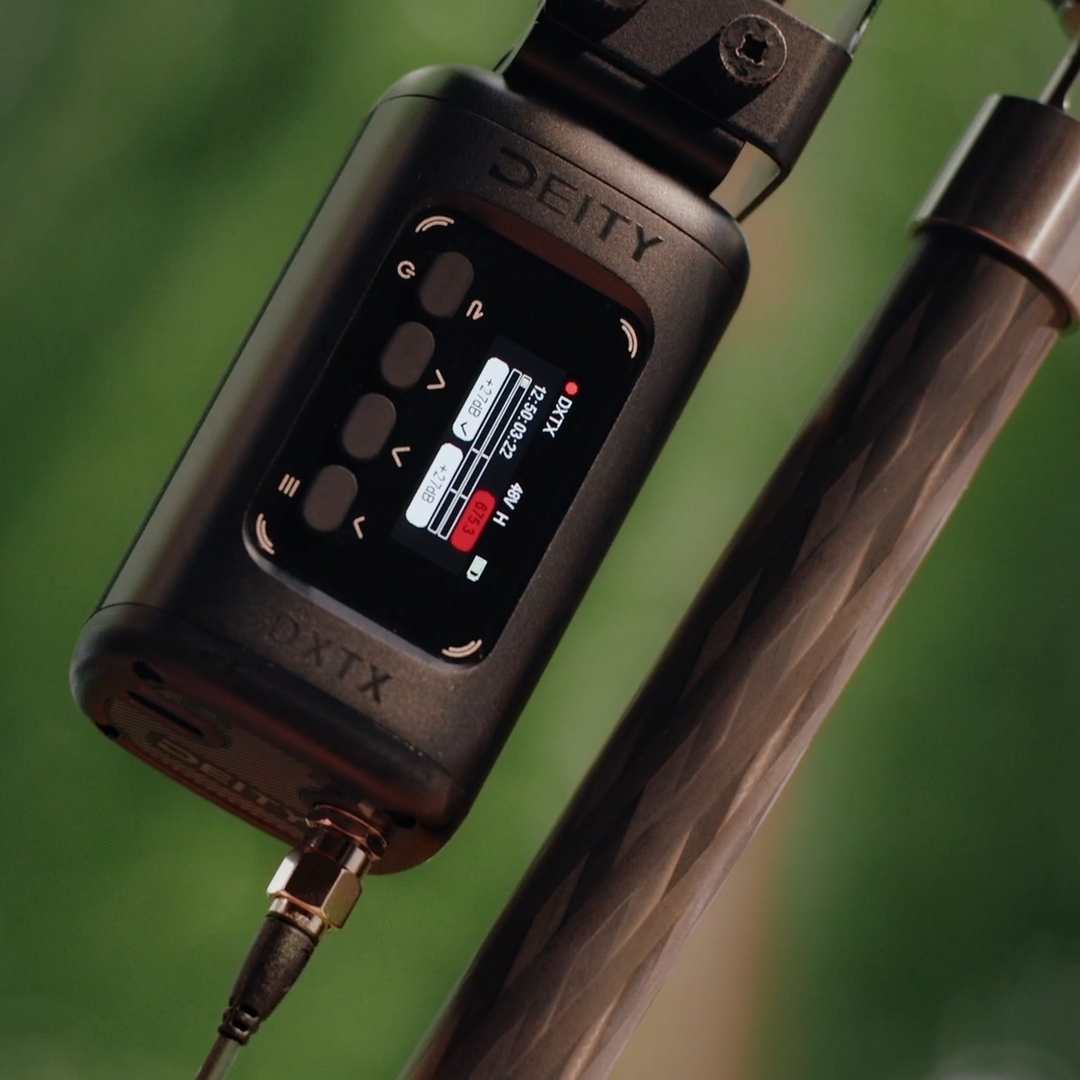

• Boom microphone setups

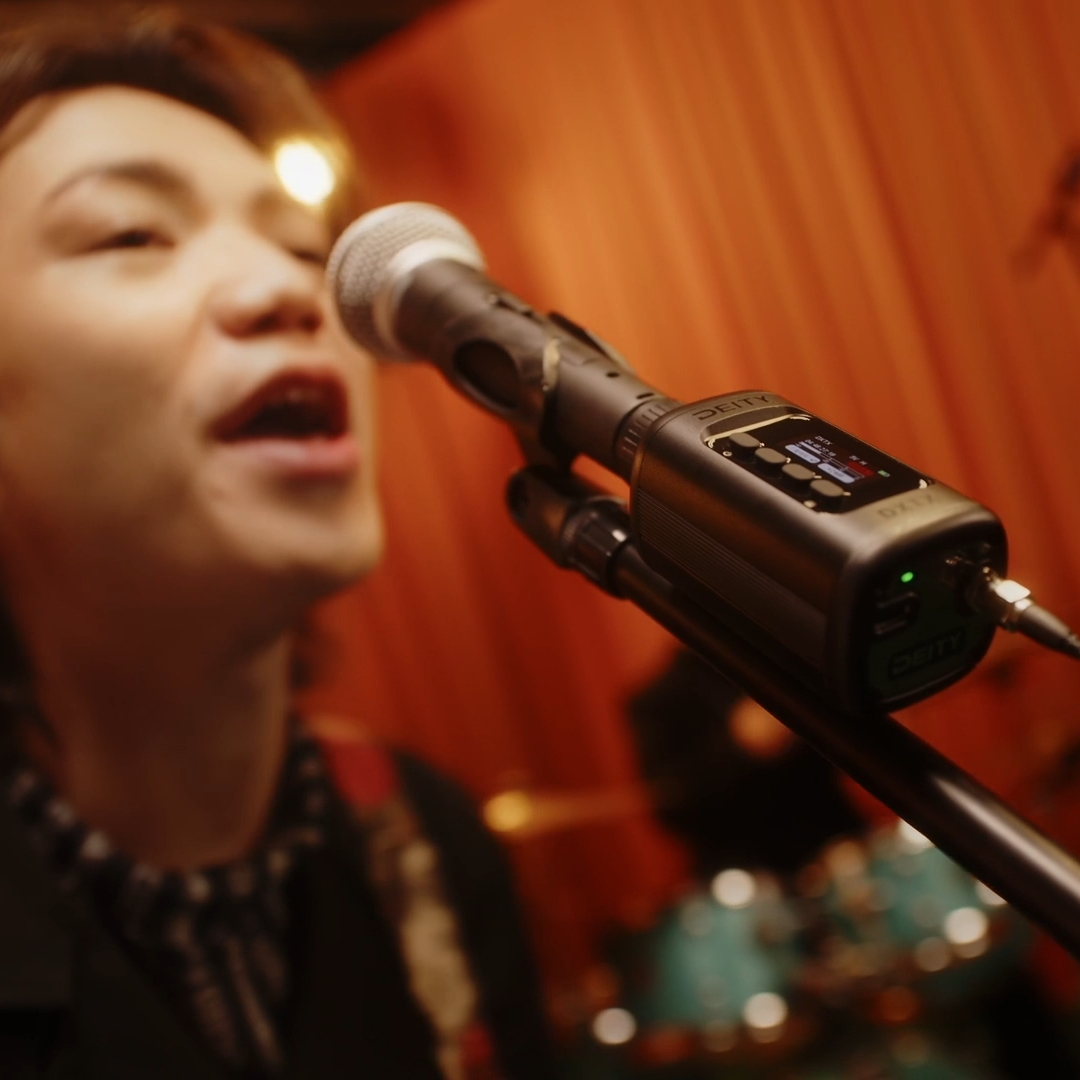

• Dynamic handheld microphones
• Condenser microphones requiring 48V phantom power
• Line-level audio sources
• Deity THEOS wireless systems
• Sidus Audio app remote control
• Location sound recording
• Film, TV and broadcast audio production
• Documentary recording
• ENG workflows
• Backup transmitter recording
• Timecode-synced audio recording

Dimensions

Height

119mm

Width

44.8mm

Depth

42mm

Weight with battery and antenna

228g

What’s in the box?

• 1x DXTX Plug-On Transmitter
• 2x AA Deity Batteries
• 1x Antenna
• 1x Antenna Cut Guide
• 1x Warranty QR Code Card

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

2-year warranty + optional 6-month extension

This product includes a 2-year Deity manufacturer warranty against defects in materials and workmanship under normal use.

The warranty can be extended by an additional 6 months by registering the product with Deity.

For help with a fault or warranty claim, please visit our Returns & Warranty page and fill out thewarranty form. Soundkit will then help handle the warranty process with Deity on your behalf.

This manufacturer warranty does not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation or normal wear-and-tear items such as cables and accessories.

This manufacturer warranty is in addition to your statutory rights.

Important Notes

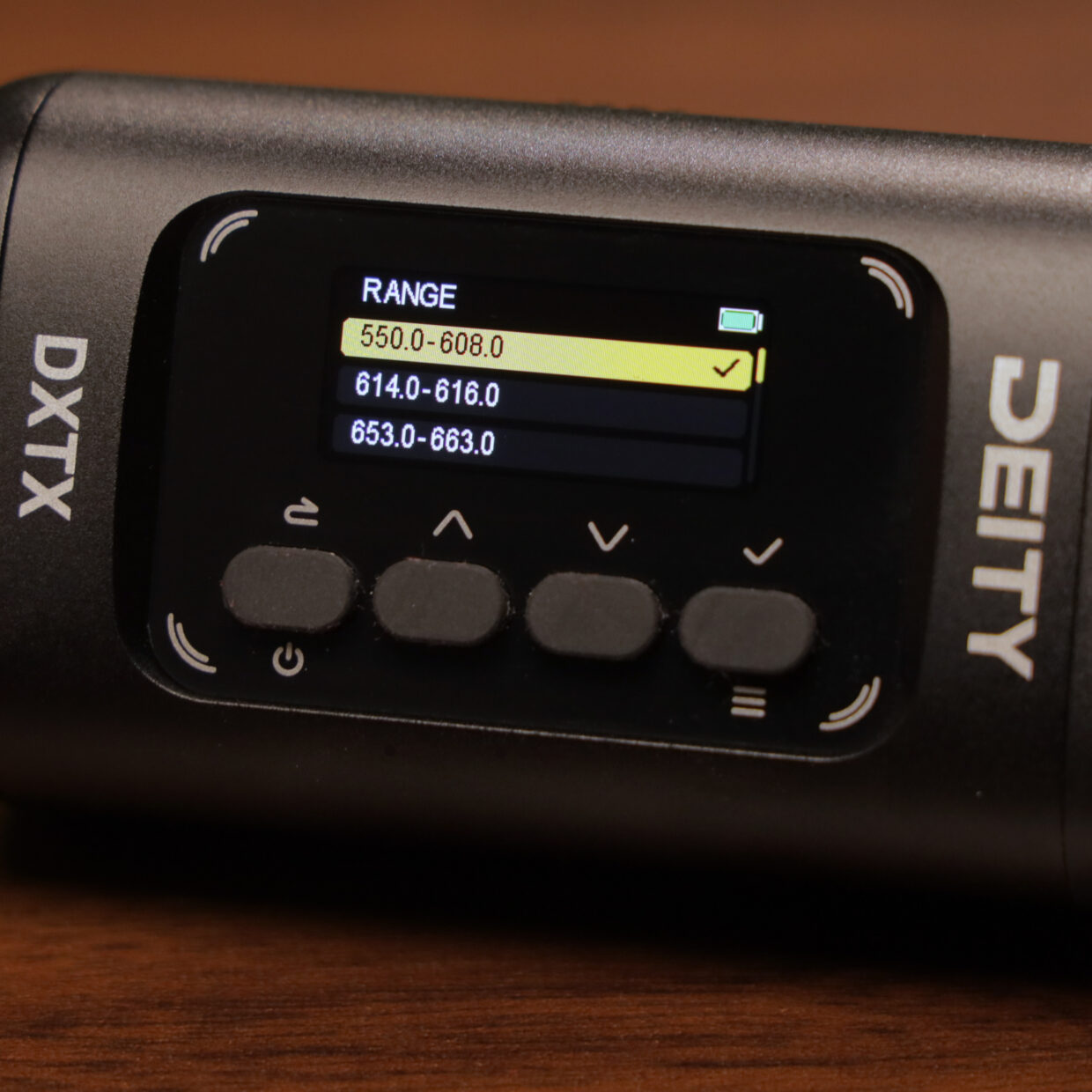

• Actual usable frequency range and RF power depend on local laws and regional settings.
• Not for sale in North America.
• Boom pole mount and XLR Link cable are sold separately.

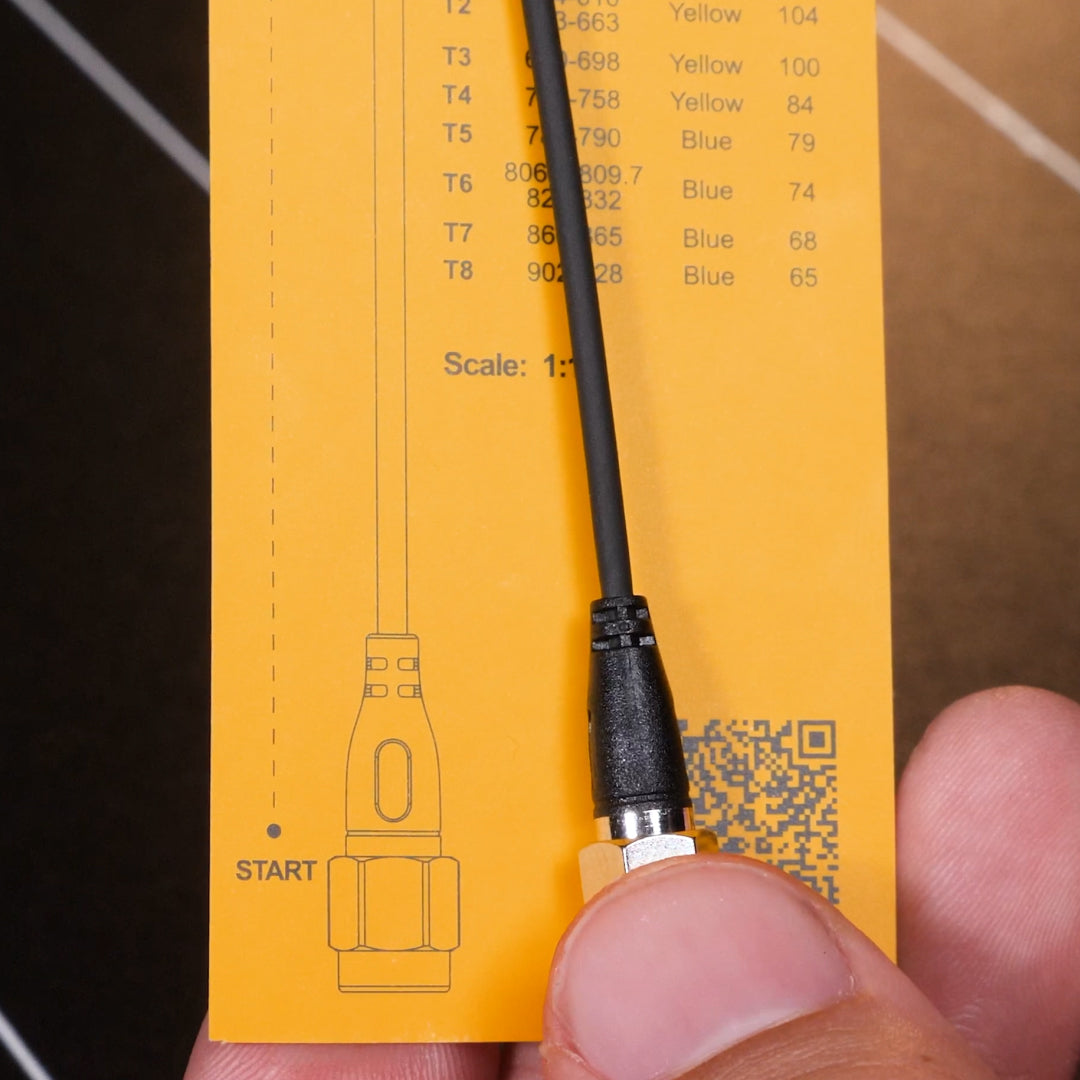

• Custom antennas may need to be cut to match the selected frequency range.
• Battery life depends on RF power, Bluetooth, screen sleep, LED settings and battery type.

Technical Downloads

For up to date manuals, product documents and more in depth specifications, please refer to the official Deity Manuals page

DXTX Plug On Transmitter

£474.00

Wireless XLR Transmission

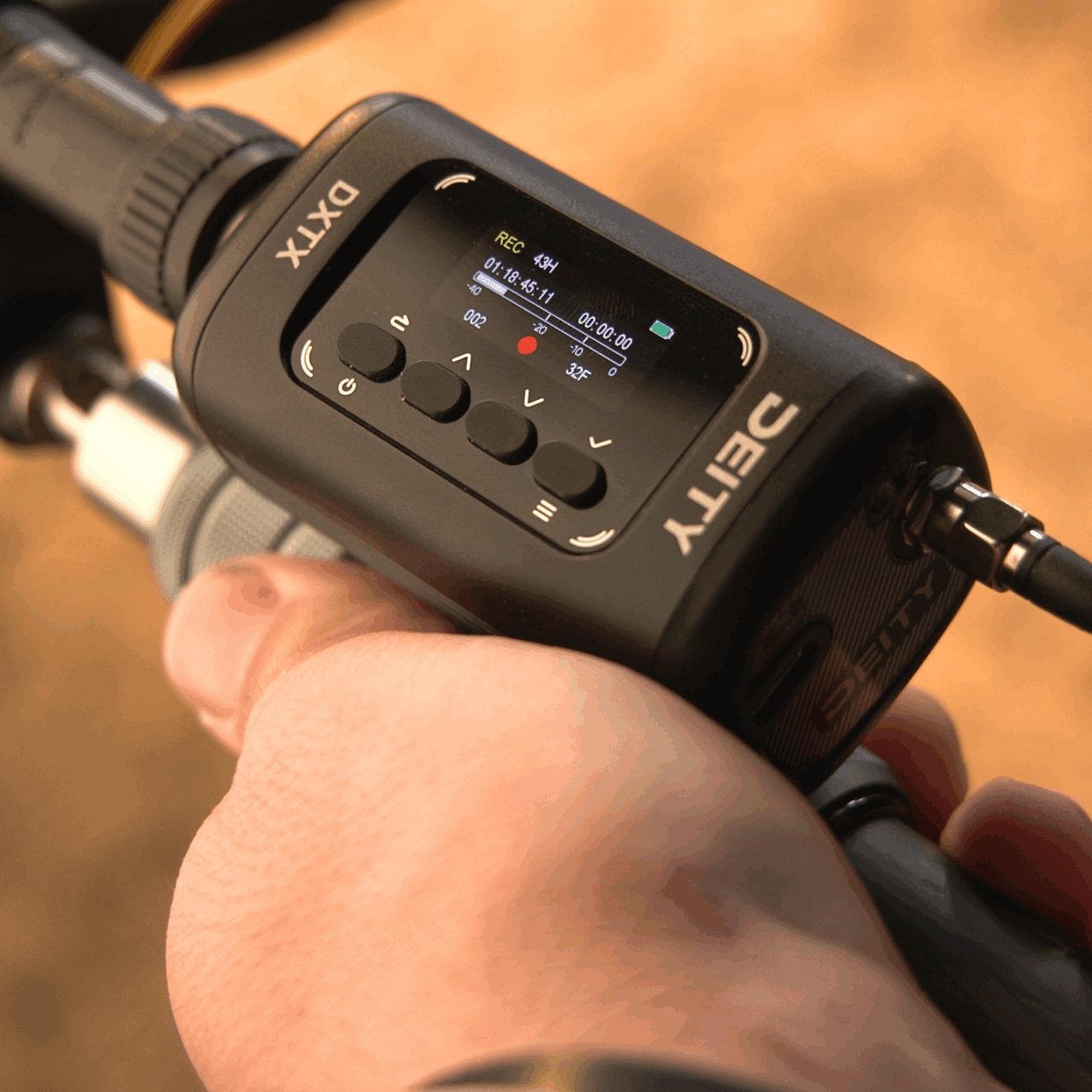

Transmit and Record at the Source

Connect an XLR microphone and send wireless audio while recording onboard backup files with timecode support.

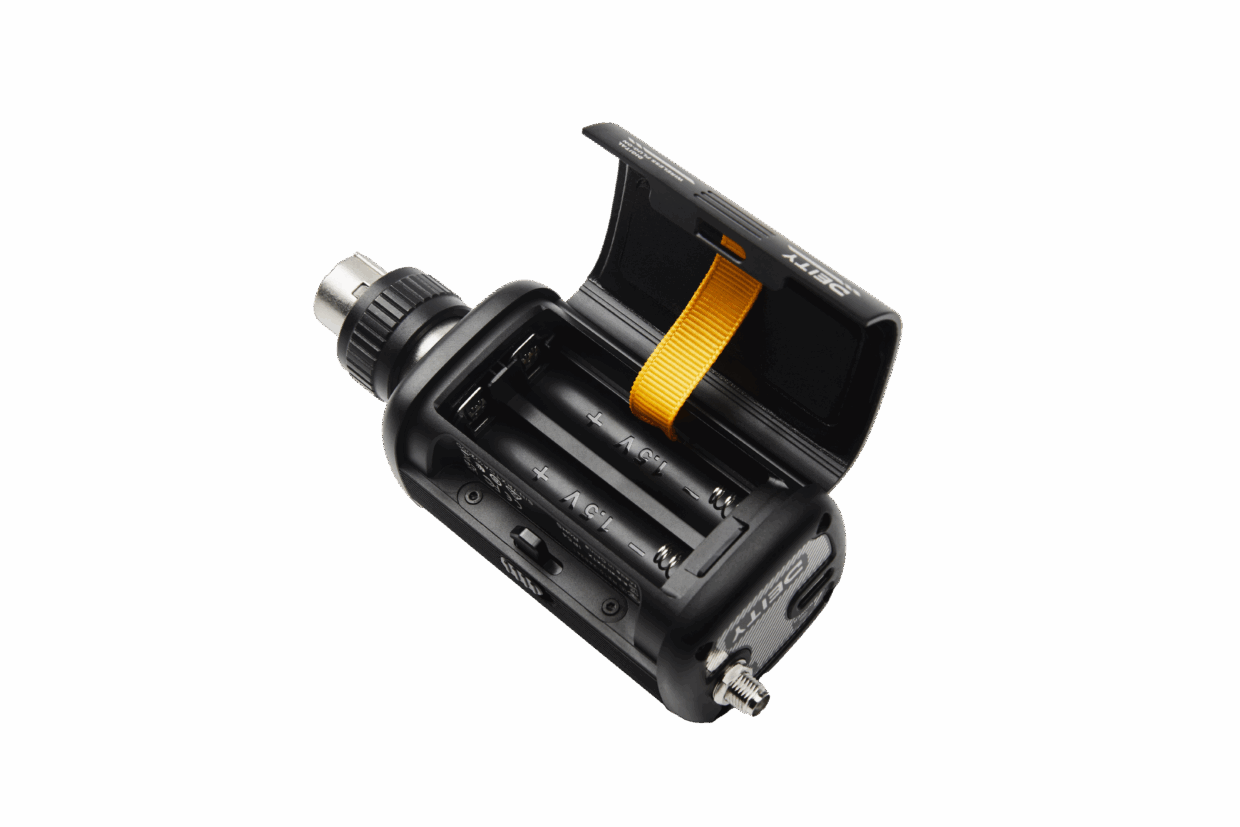

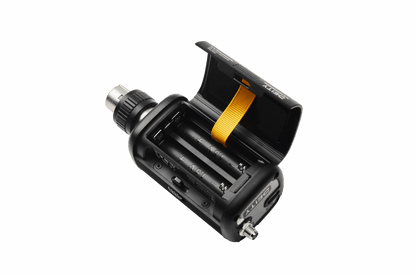

Long AA Battery Life

Run for Over 14 Hours

The DXTX can run for over 14hrs with a dynamic microphone when using Deity lithium AA batteries, giving you reliable power for long production days.

32-Bit Float Recording

Extra Protection for Loud Moments

Onboard 32-bit float recording gives you a safer backup when levels change unexpectedly during production.
