Wisycom

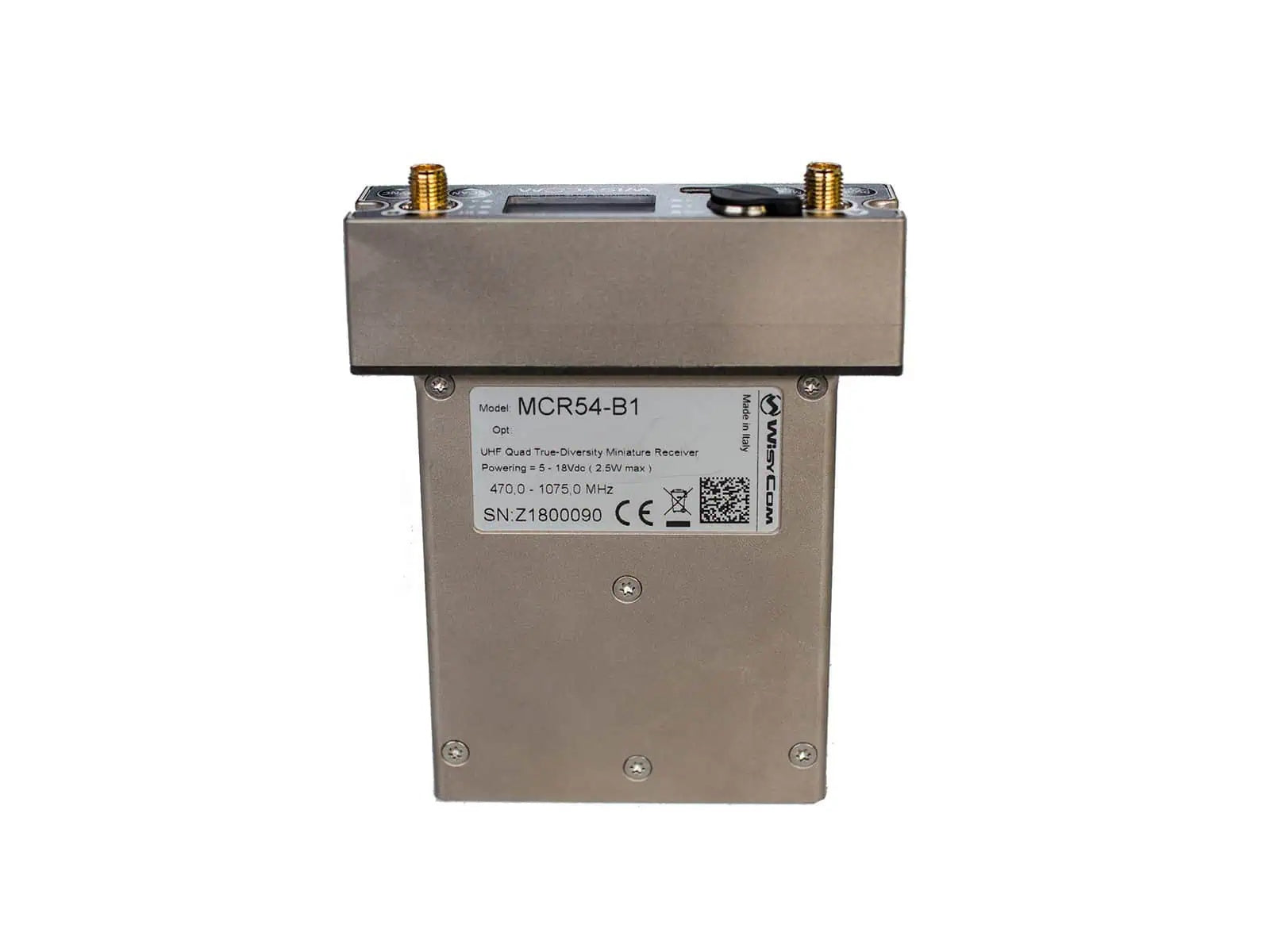

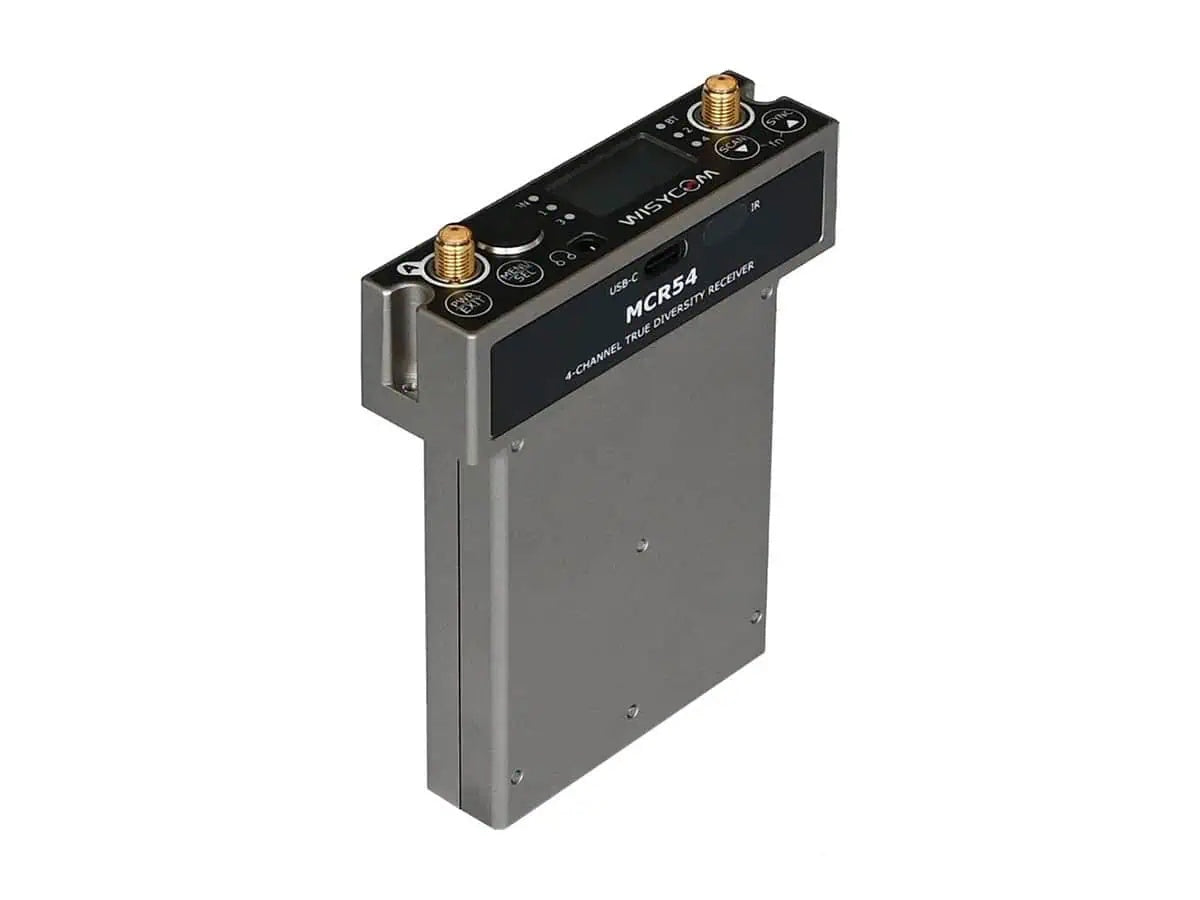

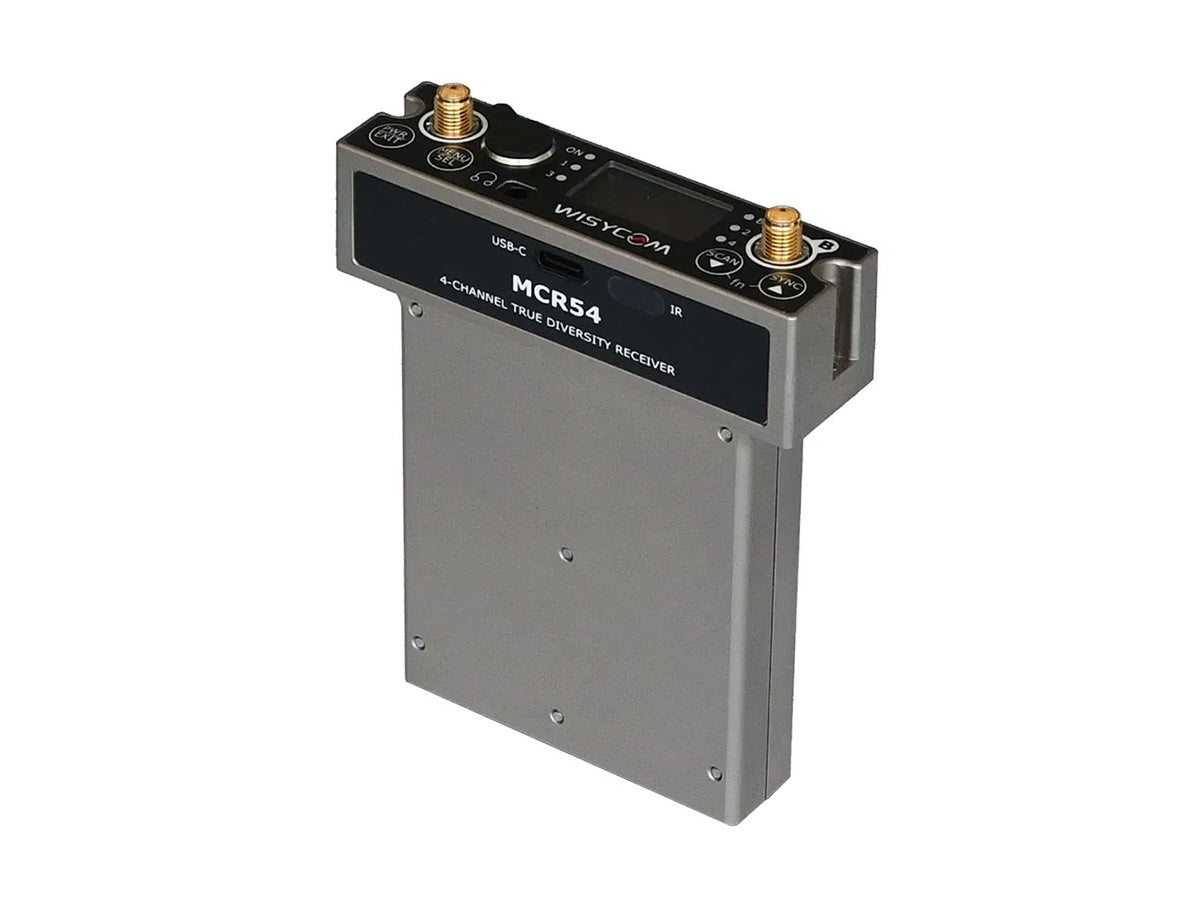

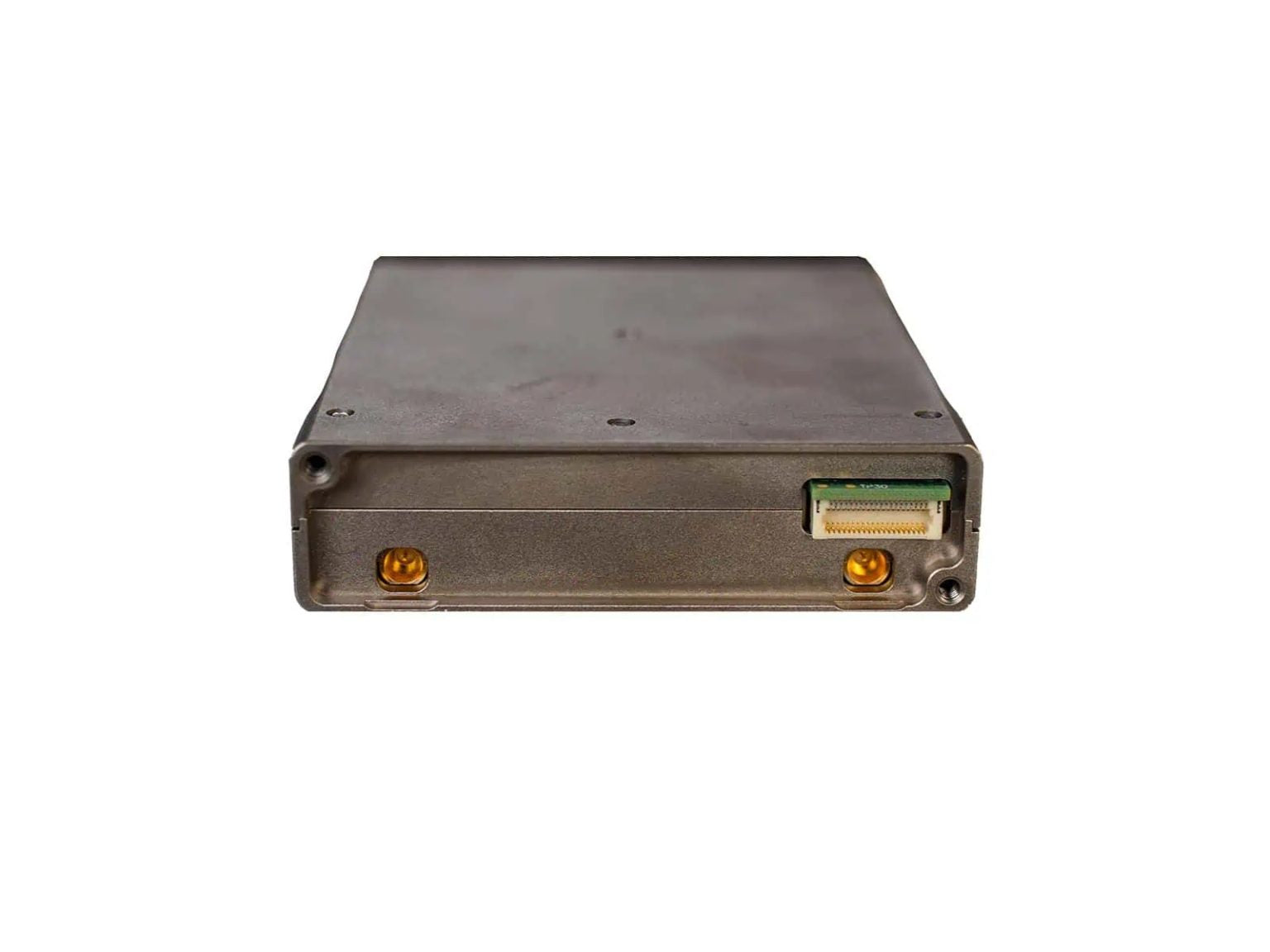

MCR54 4-Channel True Diversity Receiver

• Four-channel true-diversity receiver using eight internal receiver boards.
• Up to 790MHz switching bandwidth with B2 and UK-focused B14 RF configurations.
• Analogue or AES3 digital audio, automatic scanning, IR sync, USB-C and long-range Bluetooth control.

Choose your frequency band:

Need help choosing?

For UK location-sound work, B14 is the configuration specifically built around the UK/DME spectrum blocks: 470–800MHz plus 961–1000MHz, 1044–1077MHz and 1104–1154MHz. B2 combines 470–800MHz with 823–832MHz and 941–960MHz and is used for USA/EU frequency plans. The correct version depends on the frequencies you are licensed to use and the wider Wisycom system you are matching, so check your RF plan before ordering.
£3,907.37 (£3,256.14 ex VAT)
£3,907.37 (£3,256.14 ex VAT)
Tax included. Shipping calculated at checkout.
  • Next-day UK delivery
  • Authorised UK stockist
  • Trusted by industry experts
Awaiting stock, shipping soon

The MCR54 is a four-channel multiband true-diversity receiver with eight receiver boards, slot-in flexibility and up to 790MHz switching bandwidth.

Designed for professional location sound, broadcast and camera systems, the MCR54 combines four true-diversity channels with analogue or AES3 digital audio, automatic spectrum scanning, infrared transmitter programming and long-range Bluetooth/USB-C control through Wisycom Manager. Choose the B2 or B14 RF configuration to suit your operating region and frequency plan.

Choosing your type

For UK location-sound work, B14 is the configuration specifically built around the UK/DME spectrum blocks: 470–800MHz plus 961–1000MHz, 1044–1077MHz and 1104–1154MHz. B2 combines 470–800MHz with 823–832MHz and 941–960MHz and is used for USA/EU frequency plans. The correct version depends on the frequencies you are licensed to use and the wider Wisycom system you are matching, so check your RF plan before ordering.

Specifications

Receiver Channels

4 true-diversity channels

Receiver Boards

8

RF Platform

470–1260MHz multiband architecture

Switching Window

Up to 790MHz

Frequency Step

5kHz minimum

Modulation

Wideband / Narrowband DSP-FM

Audio Bandwidth

30Hz–20kHz WB / 30Hz–17kHz NB

Audio Output

5-pin mini-XLR; analogue or AES3

Digital Sample Rate

AES3 @ 48kHz

Monitor Output

3.5mm headphone jack

Control

USB-C / Bluetooth 5 Long Range

Power

6–18V DC; optional BCA54 battery module

Maximum Power Consumption

3W with 4 active receivers

Dimensions

104 x 87.6 x 25mm

Weight

230g

Compatibility

• Wisycom MTP61
• Wisycom MTP60
• Wisycom MTP40S / MTP41S
• Wisycom MTH410 / MTH610
• Wisycom MTB40S
• Wisycom MRK16 Multi-Slot Rack
• Sound Devices SuperSlot systems including SL-2 with the appropriate slot-in kit
• Unislot-compatible camera systems with the appropriate Wisycom kit
• BPA54 stand-alone rear panel
• BCA54 battery module

Dimensions

Channels

4 True Diversity

Receiver Boards

8

Switching Window

Up to 790MHz

Digital Audio

AES3 / 48kHz

Weight

230g

What’s in the box?

• 1x Wisycom MCR54 4-Channel True Diversity Receiver in selected RF configuration
• Slot-in / stand-alone mounting and power accessories are supplied separately

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Important Notes

• Select B2 or B14 according to the frequencies and regulations applicable to your production.
• B2: 470–800MHz + 823–832MHz + 941–960MHz.
• B14: 470–800MHz + 961–1000MHz + 1044–1077MHz + 1104–1154MHz; this is the UK/DME-oriented configuration sold by Raycom.
• Slot-in, rear-panel, battery and output accessories such as SLK54-IK, BPA54 and BCA54 are separate unless specifically supplied as part of a bundle.
• Always coordinate and license RF frequencies as required for the country and venue where the system will be used.

MCR54 4-Channel True Diversity Receiver

£3,907.37

Up to 790MHz Switching Window

Multiband RF, Fast Coordination

The multiband front end combines a tunable 470–800MHz filter with additional fixed-band filtering. Ultrafast scanning, 5kHz frequency steps, Bluetooth 5 and USB-C control make large wireless systems quicker to coordinate.

8 Receiver Boards

Four True-Diversity Channels

The MCR54 uses eight internal receiver boards to provide four true-diversity wireless channels in one compact slot-in receiver, giving each channel two independent RF paths for robust reception.

SuperSlot / Unislot / MRK16

Slot-In or Stand-Alone

Use the MCR54 in compatible camera and mixer slots, including Sound Devices SuperSlot systems and Wisycom MRK16, or configure it for stand-alone operation with the appropriate optional Wisycom rear panel or battery module.
