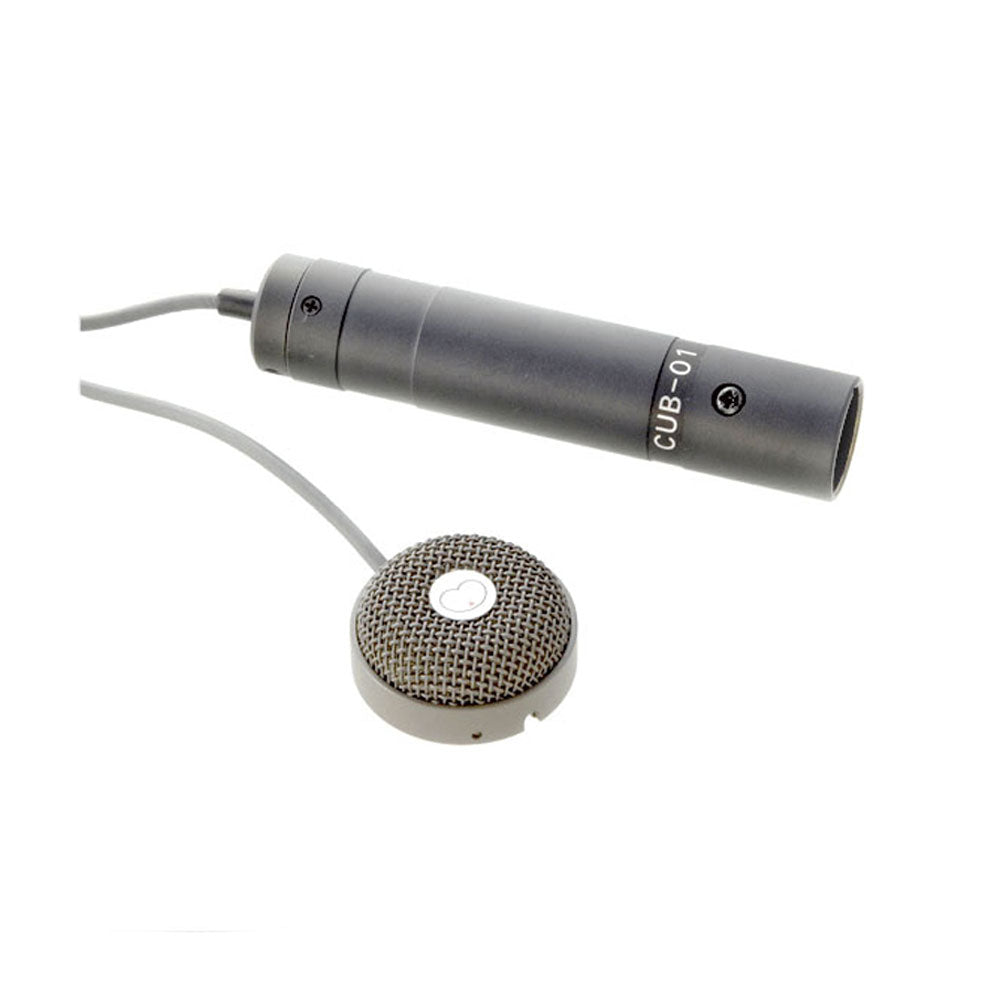

• Sanken CUB-01 boundary microphone with 48V XLR interface

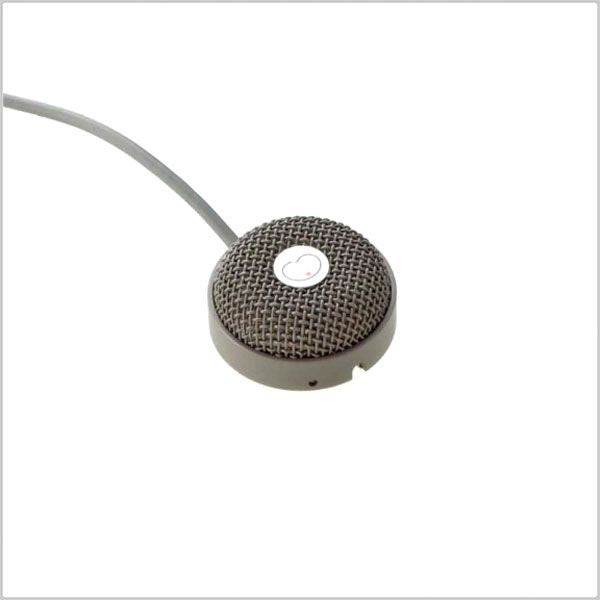

  • Sanken CUB-01PT miniature boundary microphone pigtail version

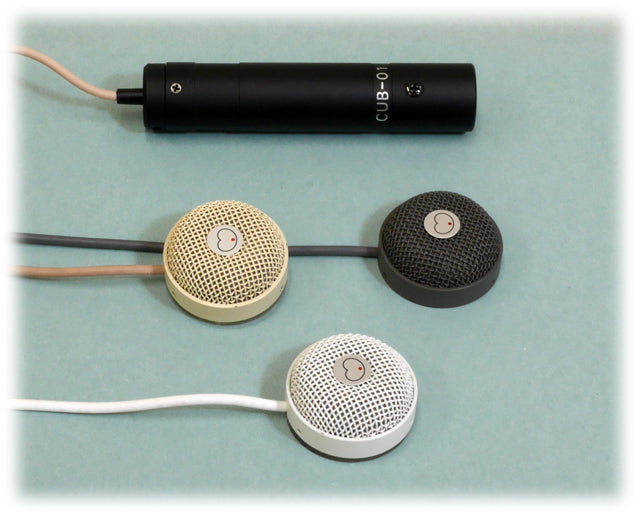

  • Sanken CUB-01 boundary microphone colour and interface options

Sanken

Sanken CUB-01 Miniature Boundary Microphone

• Miniature 32.5mm cardioid boundary microphone for discreet dialogue, table, set and vehicle placement.
• Choose ready-to-use 48V XLR or unterminated PT pigtail connection in Beige or Grey.
• 60Hz–15kHz response with the square-capsule design developed for clear, full-bodied boundary-mic sound.

Choose your connection:
Choose your colour:

Need help choosing?

Choose the XLR / 48V Interface version when the CUB-01 is going straight into a mixer, recorder or other professional phantom-powered microphone input. Choose the PT pigtail only when the microphone will be custom-terminated for a compatible transmitter or low-voltage input. If you are unsure, send us the exact transmitter or recorder model before ordering.
£479.00 (£399.17 ex VAT)
£479.00 (£399.17 ex VAT)
Tax included. Shipping calculated at checkout.

The Sanken CUB-01 is a miniature cardioid boundary microphone for discreet dialogue and ambience recording on tables, sets, stages and inside vehicles.

Its 32.5mm capsule housing is easy to conceal while Sanken’s square-capsule design delivers a fuller, more natural sound than its small size suggests. Choose the 48V XLR version for conventional recorder/mixer inputs or the unterminated PT version for custom transmitter termination.

Choosing your type

Choose the XLR / 48V Interface version when the CUB-01 is going straight into a mixer, recorder or other professional phantom-powered microphone input. Choose the PT pigtail only when the microphone will be custom-terminated for a compatible transmitter or low-voltage input. If you are unsure, send us the exact transmitter or recorder model before ordering.

Specifications

Manufacturer Model

CUB-01 / CUB-01PT

Microphone Type

Miniature boundary microphone

Directivity

Cardioid / front hemisphere

Transducer

Self-polarised condenser

Frequency Response

60Hz–15kHz

Capsule Dimensions

32.5mm dia. x 14mm

XLR Sensitivity

40mV/Pa (-28dB)

XLR Equivalent Noise

16dB-A

XLR Maximum SPL

120dB SPL

XLR Output Impedance

180Ω

XLR Powering

48V phantom

PT Powering

Approx. 3–14V bias

Connection Options

XLR-3M / unterminated pigtail

Colours

Beige / Grey

Weight

45g mic+cable; 55g with 48V I/F

Compatibility

• Professional recorder/mixer XLR inputs with 48V phantom power — XLR variants
• Compatible wireless transmitter or custom low-voltage microphone inputs — PT variants
• Film, TV, vehicle, conference, table and plant-microphone placement

Dimensions

Capsule

32.5 x 14mm

Colours

Beige / Grey

Mic + Cable

45g

Frequency

60Hz–15kHz

Connections

XLR / Pigtail

What’s in the box?

• 1x Sanken CUB-01 microphone in selected connection and colour
• 2x Rubber bases
• 1x Urethane windscreen
• 1x Instruction manual
• 1x Warranty card
• 1x Vinyl case

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

Warranty coverage varies by product and manufacturer.

If you experience a fault or would like to check whether your product is covered by a manufacturer warranty, please visit our Returns & Warranty page and complete the warranty form.

Soundkit will review your claim and, where applicable, help manage the warranty process with the manufacturer on your behalf.

Manufacturer warranties, where provided, generally do not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation, or normal wear and tear.

Your statutory rights are not affected.

Important Notes

• XLR and PT versions are electrically different — choose the connection for the equipment you will use.
• XLR variants use the supplied/in-line 48V interface and standard 3-pin XLR output.
• PT variants are unterminated pigtails intended for custom wiring and use approximately 3–14V bias; they are not plug-and-play XLR microphones.
• Confirm transmitter wiring and powering before terminating a PT version.
