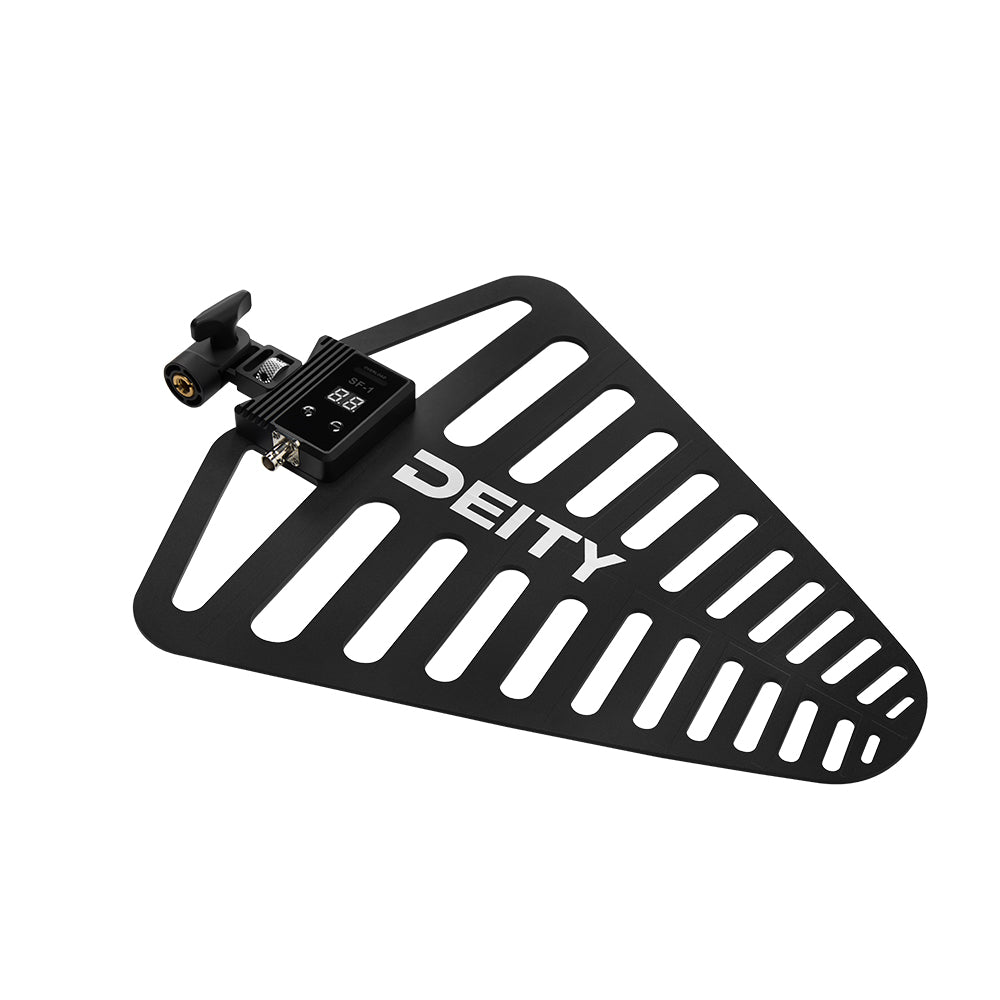

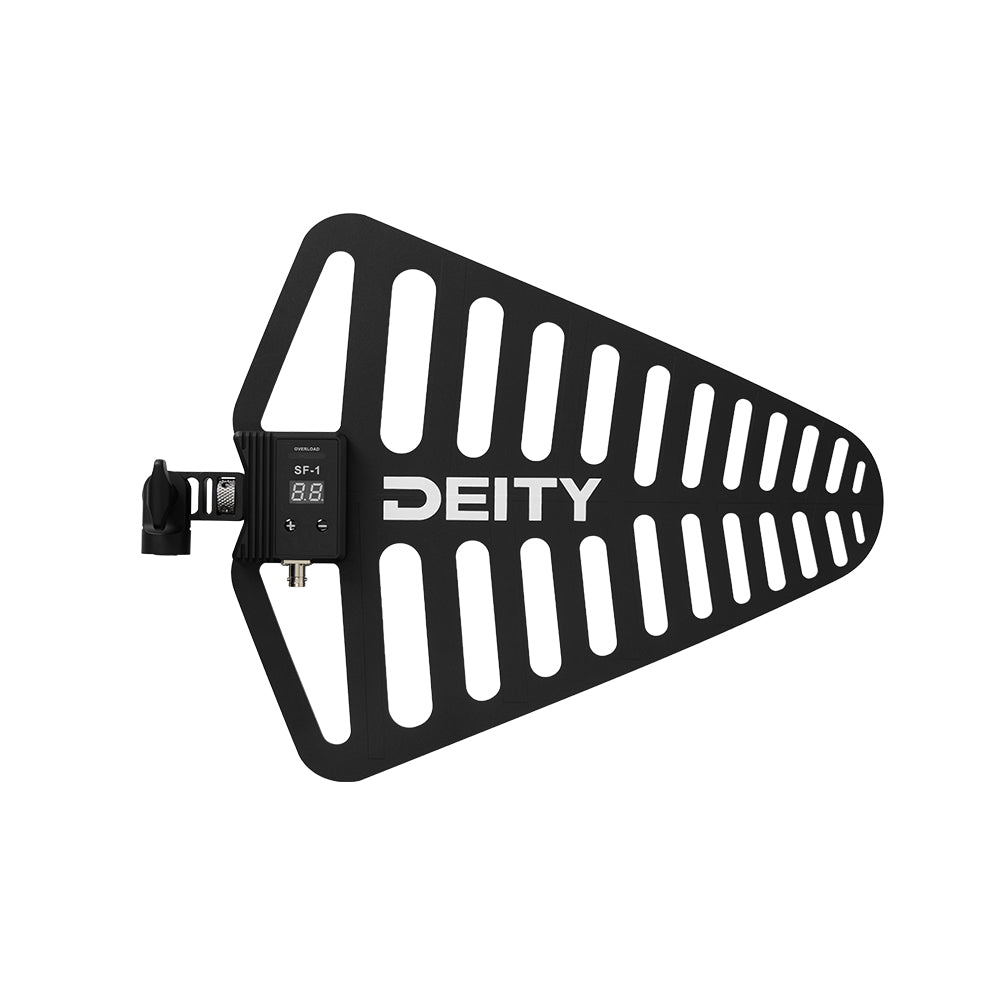

SF1 Directional Shark Fin Antenna

• Active directional UHF shark fin antenna covering 470MHz–960MHz.
• Adjustable -9dB to +21dB active gain helps compensate for coaxial cable loss.
• IP54-rated metal-bodied design with BNC connection and 3/8in / 5/8in mounting support.

Need help choosing?

Choose the SF1 if you need a directional UHF antenna for a wireless microphone system, RF cart or antenna distribution setup. It is useful when you need to improve reception, compensate for coax cable loss and focus coverage toward talent, a stage or a defined shooting area.
£447.60 (£373.00 ex VAT)
£447.60 (£373.00 ex VAT)
Tax included. Shipping calculated at checkout.
  • Next-day UK delivery
  • Authorised UK stockist
  • Trusted by industry experts
Low stock! Only 2 left

The SF1 Directional Shark Fin Antenna is a broadband UHF receive antenna designed to improve range and reliability for professional wireless microphone systems.

It covers 470MHz–960MHz with a directional pickup pattern and 60° optimal usage angle, making it suitable for Deity THEOS systems, multi-receiver carts, theatre, corporate events, location film production and other RF-heavy environments. Adjustable active gain from -9dB to +21dB helps compensate for coaxial cable loss, while the IP54-rated design and metal mounting hardware make it practical for real production use.

Choosing your type

Choose the SF1 if you need a directional UHF antenna for a wireless microphone system, RF cart or antenna distribution setup. It is useful when you need to improve reception, compensate for coax cable loss and focus coverage toward talent, a stage or a defined shooting area.

Specifications

RF Frequency Range

470MHz–960MHz

Input Impedance

50Ω

-9dB to +21dB in 1dB steps

Active Gain

Passive Gain

Typical 6dBi

OIP3

39dBm

Pickup Pattern

Directional

Pickup Angle

60° optimal usage angle

Polarization

Linear

RF Input Power

30mW max

Power Requirements

DC 12–16.8V

Power Consumption

12V / 90mA max

Waterproof Rating

IP54

Operating Temperature

-10°C to +55°C

Connector

50Ω BNC

Mount

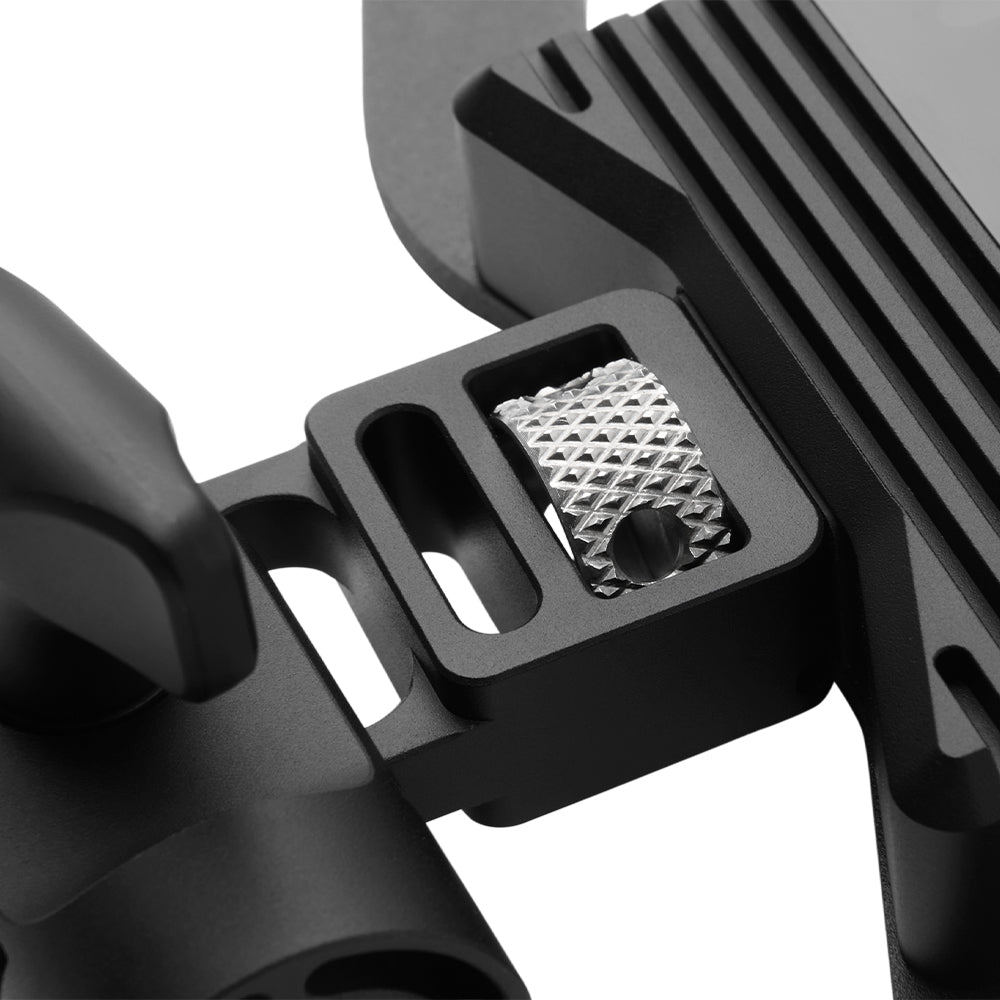

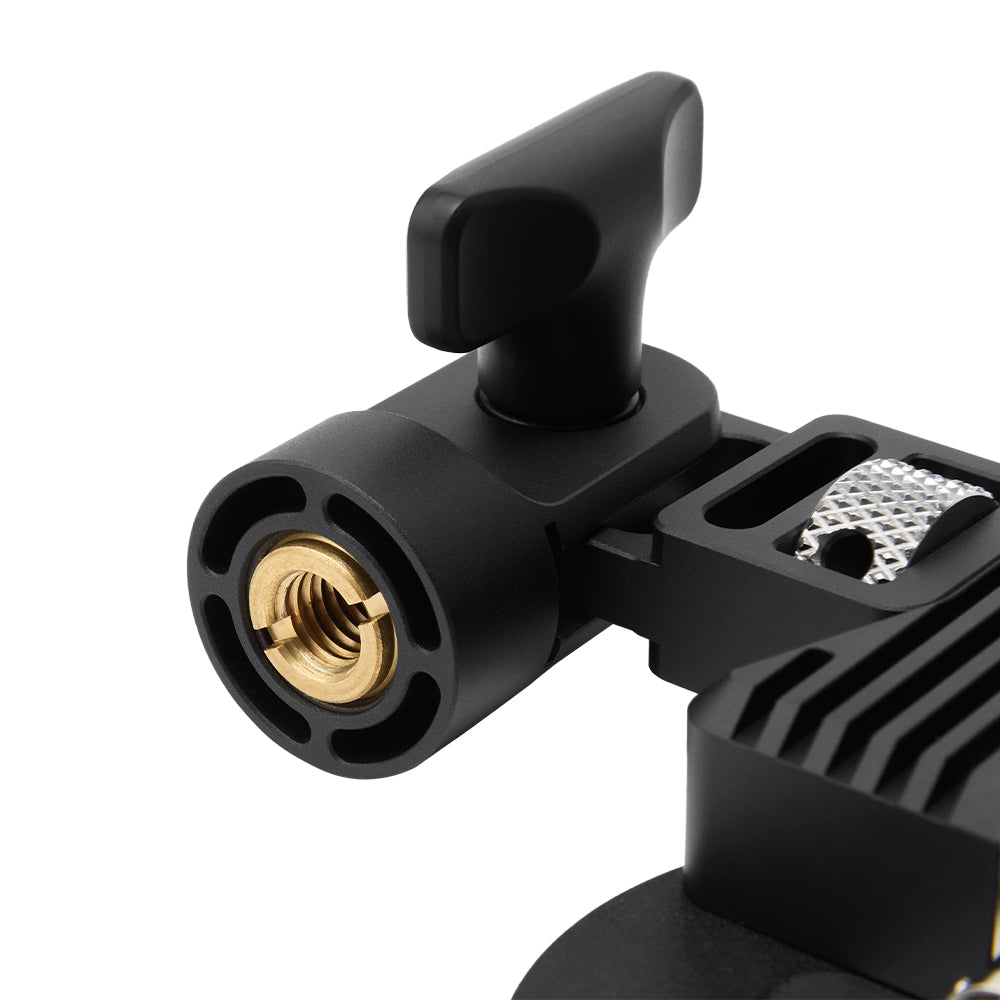

3/8in and 5/8in threaded mounts

Compatibility

• Deity THEOS wireless systems
• UHF wireless microphone receivers
• Antenna distribution systems with 50Ω BNC connections
• 50Ω low-loss BNC coaxial cable runs
• Multi-receiver RF carts
• Theatre performances
• Film and TV production
• Corporate and commercial video production
• House of worship audio systems
• Festival stages and live events
• Outdoor location sound workflows

Dimensions

Length

376.5mm

Width

328.8mm

Weight

532g

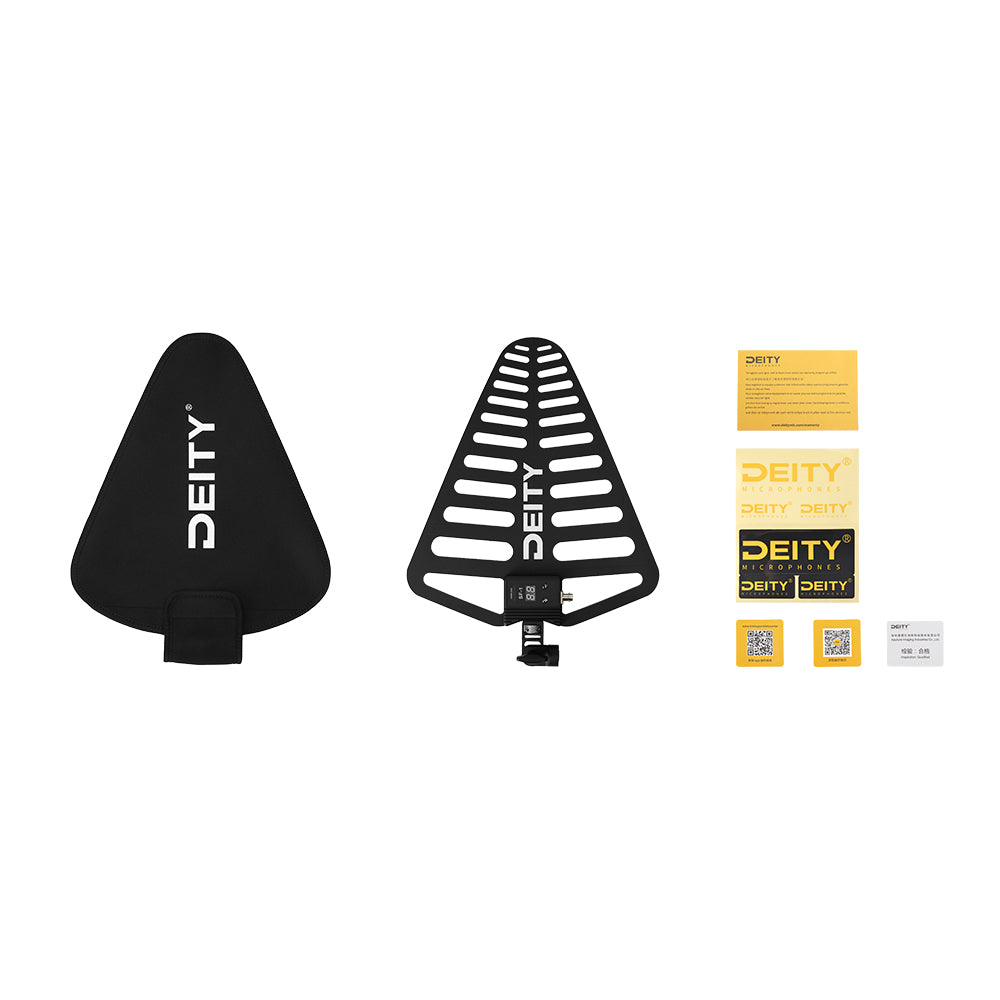

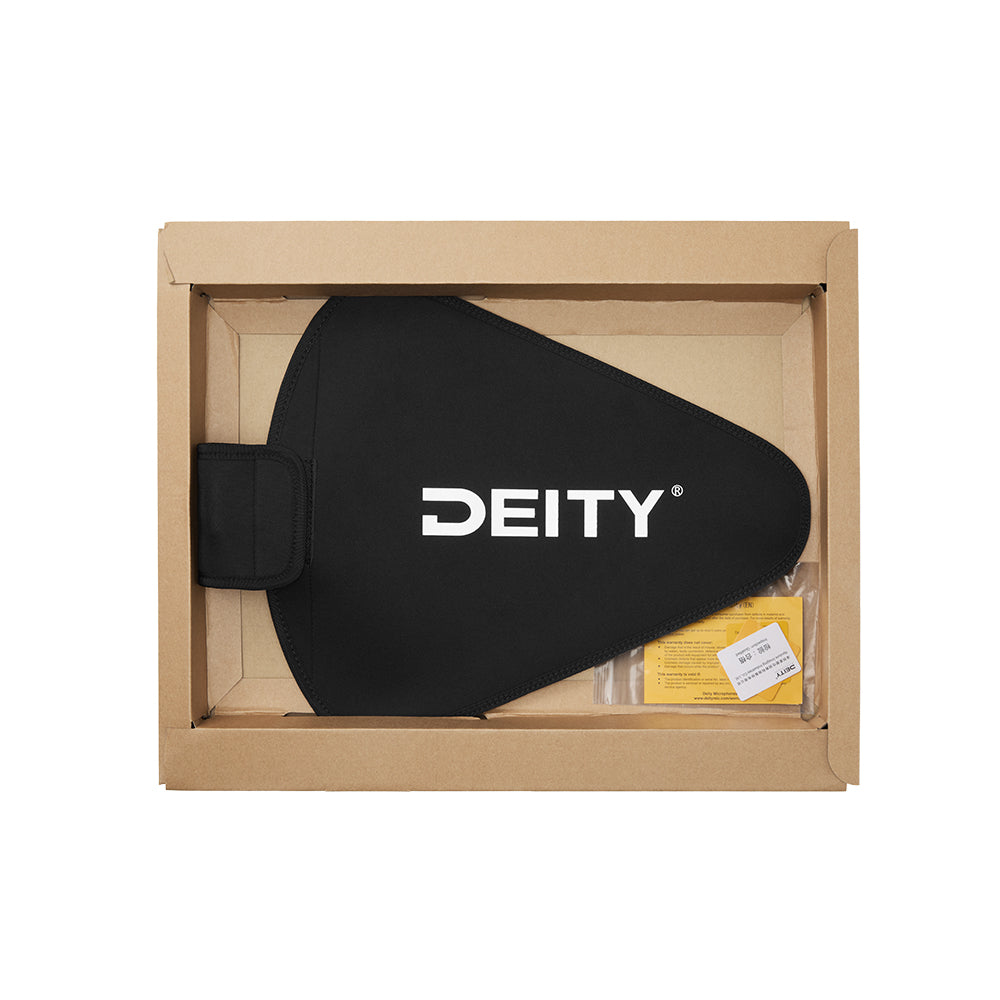

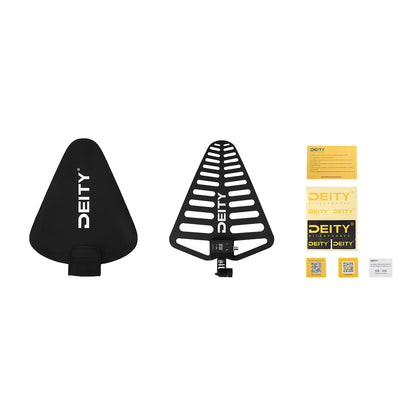

What’s in the box?

• 1x SF1 Active Directional Antenna with mounting base

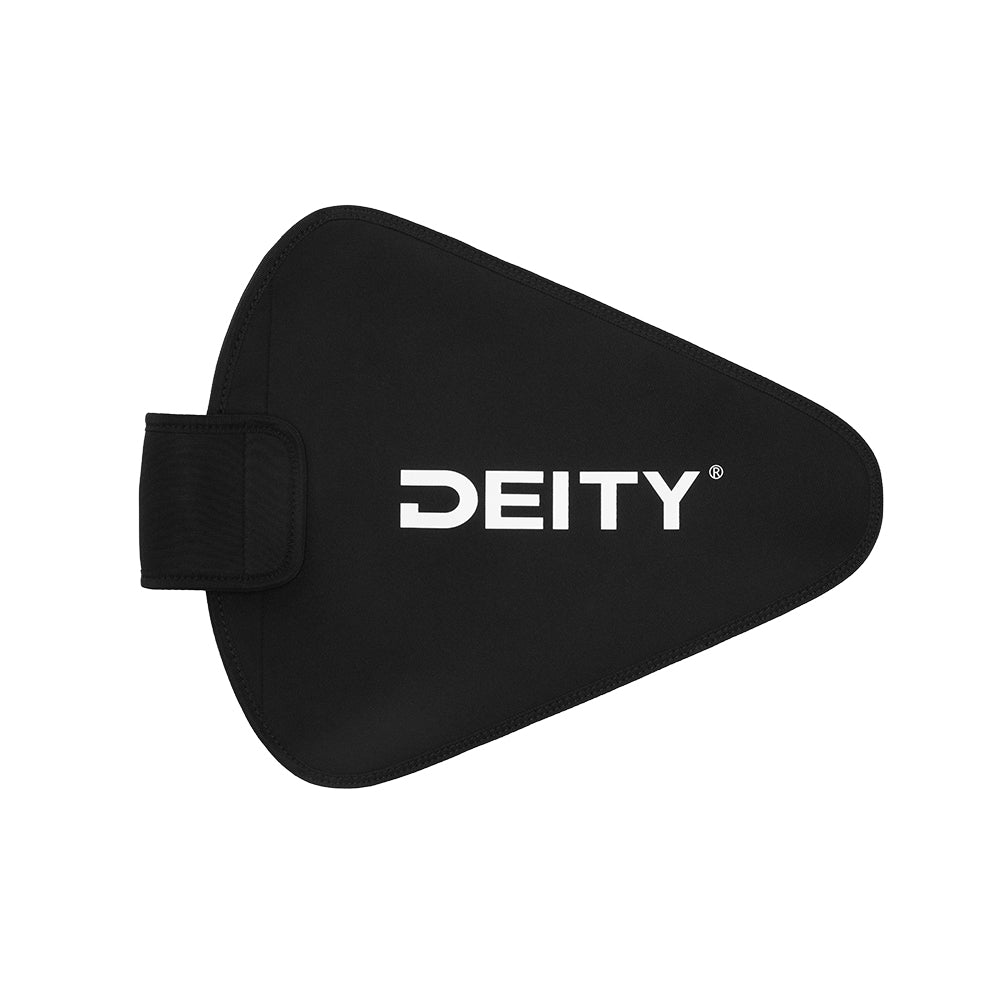

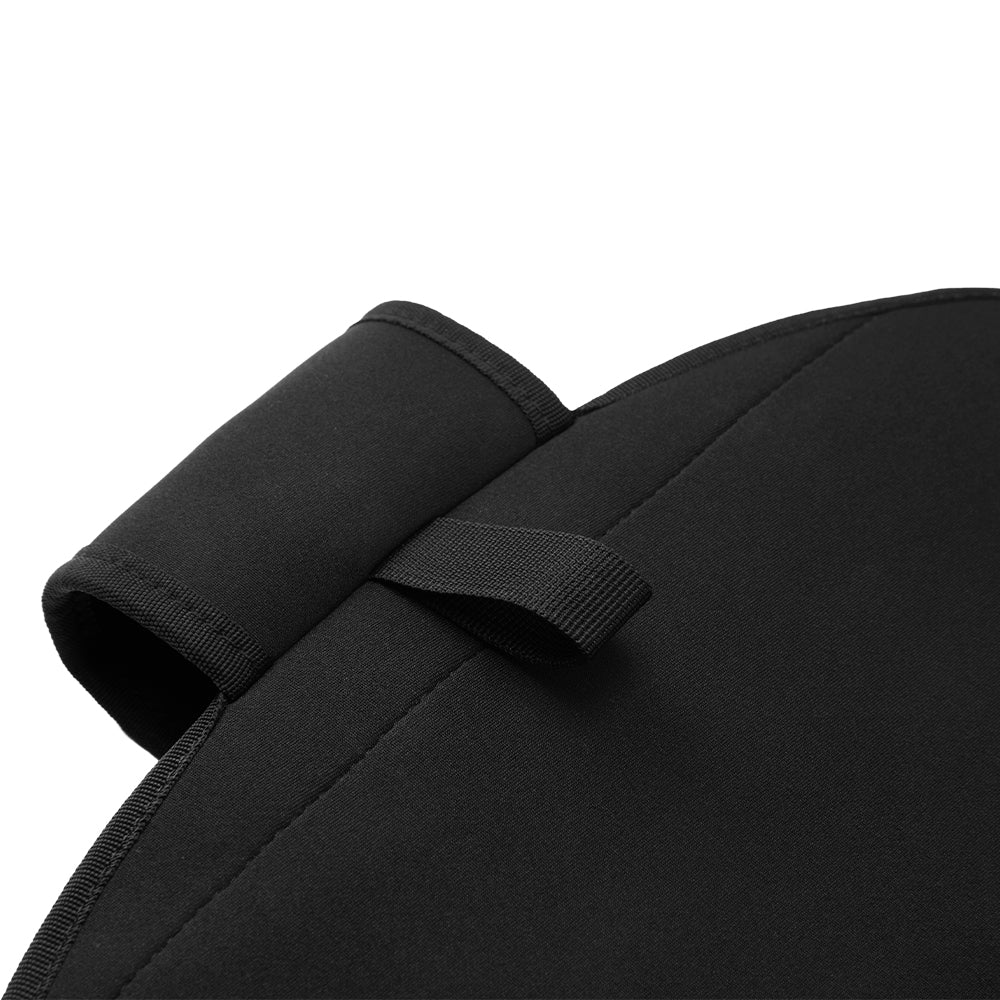

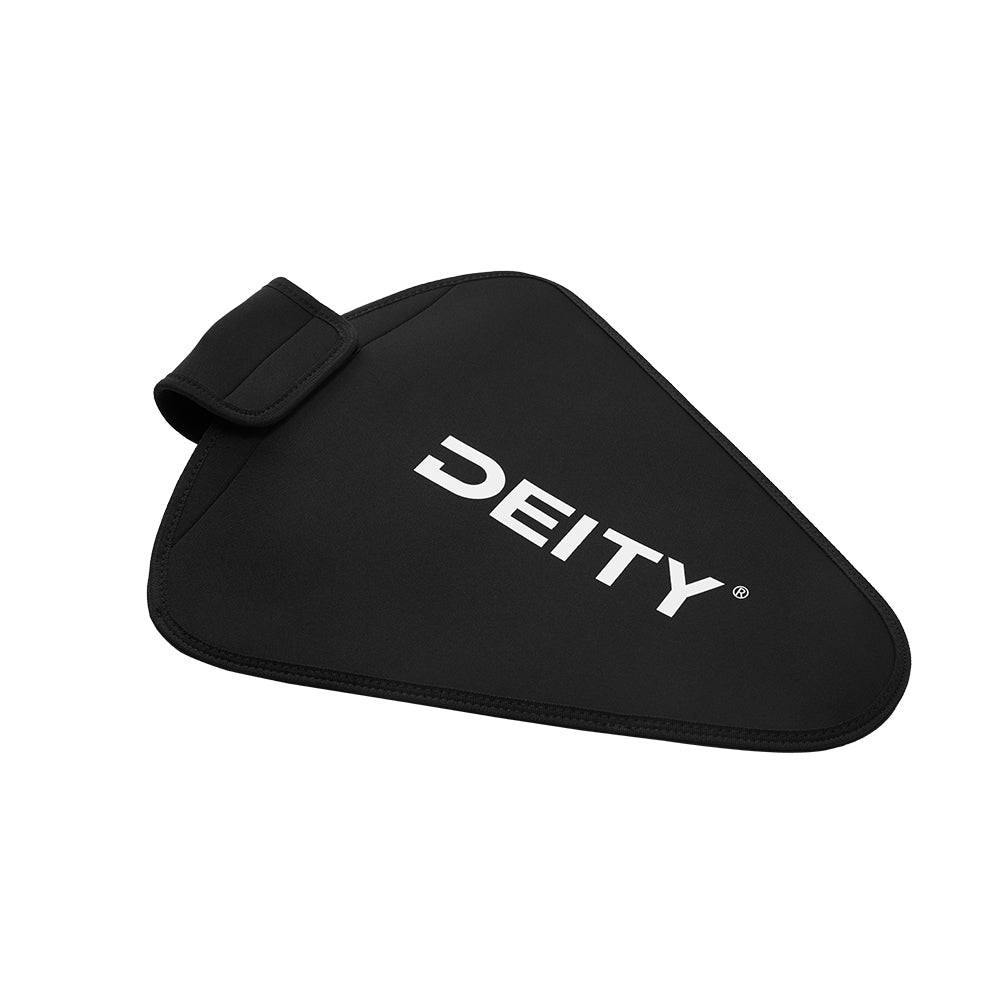

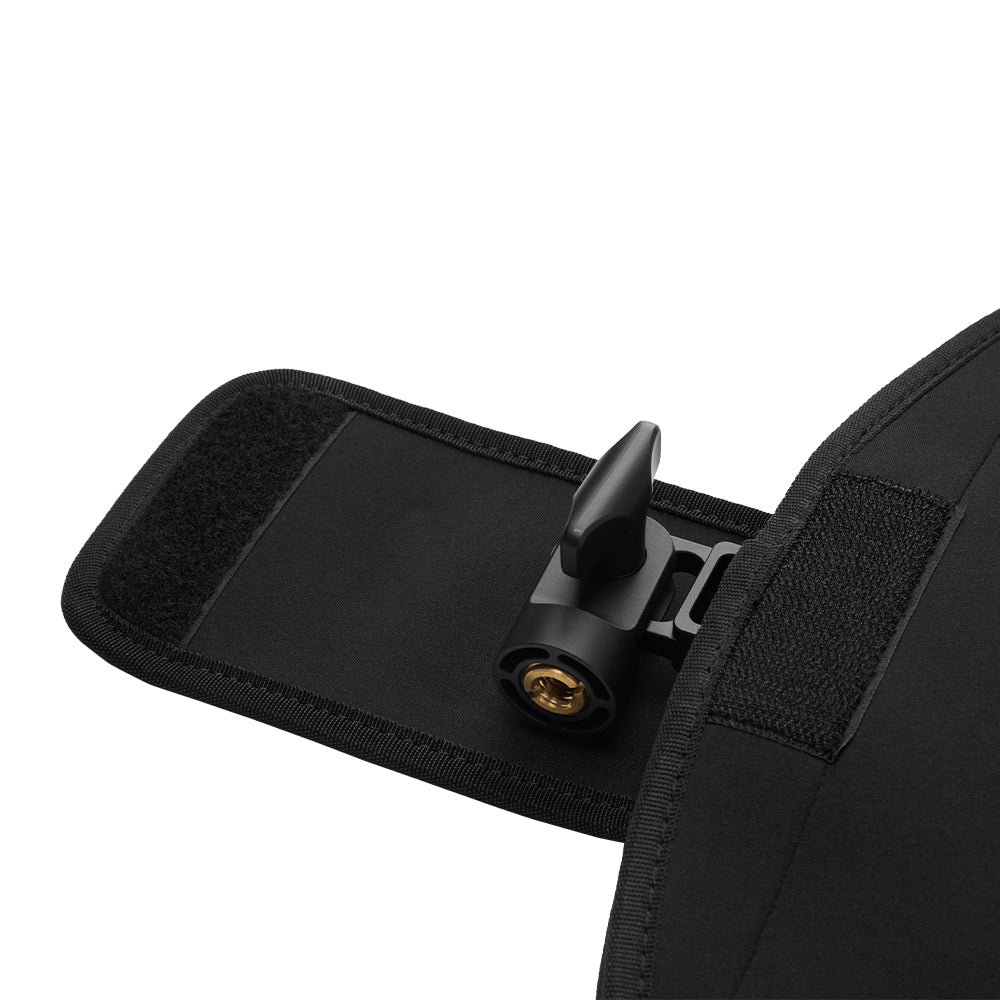

• 1x SF1 pouch

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Warranty

2-year warranty + optional 6-month extension

This product includes a 2-year Deity manufacturer warranty against defects in materials and workmanship under normal use.

The warranty can be extended by an additional 6 months by registering the product with Deity.

For help with a fault or warranty claim, please visit our Returns & Warranty page and fill out the warranty form.

Soundkit will then help handle the warranty process with Deity on your behalf.

This manufacturer warranty does not cover misuse, accidental damage, unauthorised modification, improper storage, incorrect operation or normal wear-and-tear items such as cables and accessories.

This manufacturer warranty is in addition to your statutory rights.

Important Notes

• Active mode requires 12–16.8V DC bias from a compatible receiver or antenna distribution system.
• Use gain to compensate for calculated coaxial cable loss; excessive gain can amplify interference and ambient RF noise.
• Aim the antenna toward the desired coverage area and keep clear line-of-sight to the transmitters where possible.
• Mount antennas high, keep them away from metal objects and space antennas at least 1m apart where possible.
• Always perform a walk-around test before a recording, speech or performance to confirm coverage.

Technical Downloads

For up to date manuals, product documents and more in depth specifications, please refer to the official Deity Manuals page

SF1 Directional Shark Fin Antenna

£447.60

60° Directional Coverage

Focus Reception Where You Need It

The directional pickup pattern helps focus reception toward talent, a stage or a defined shooting area while reducing unwanted off-axis RF pickup.

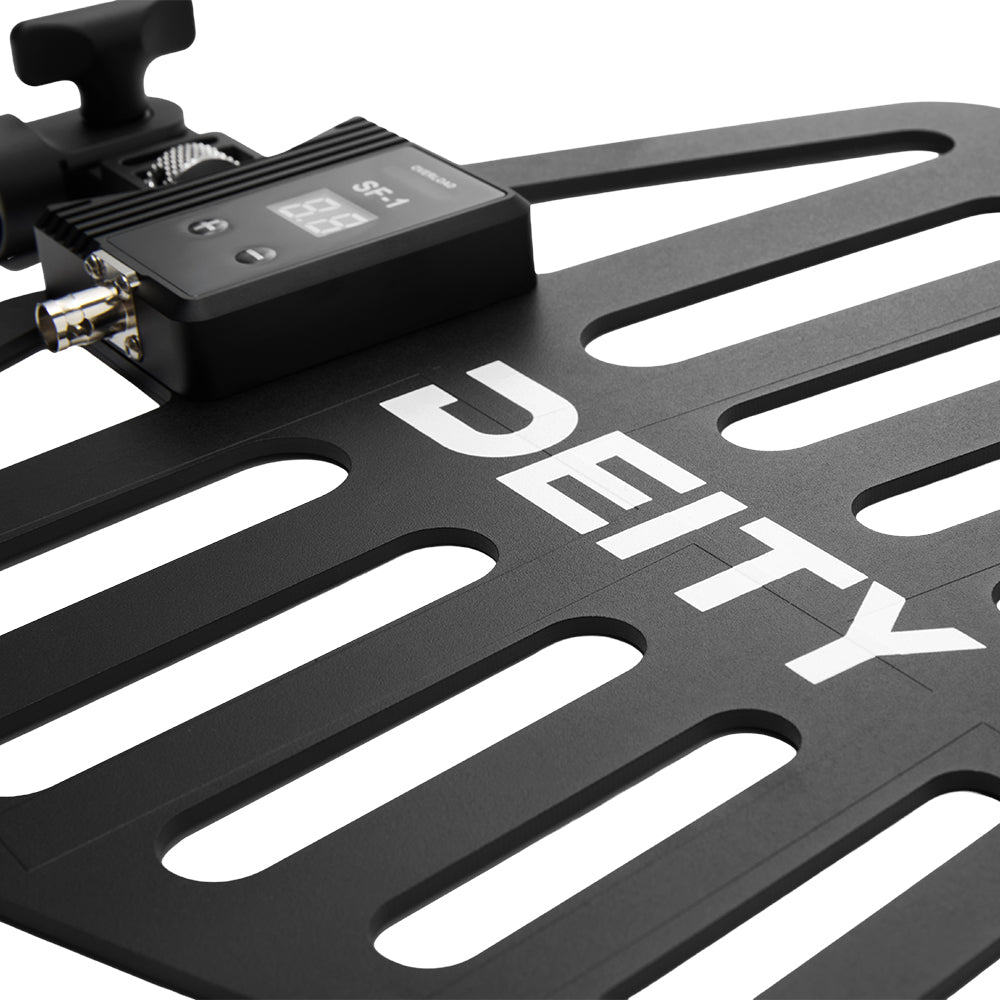

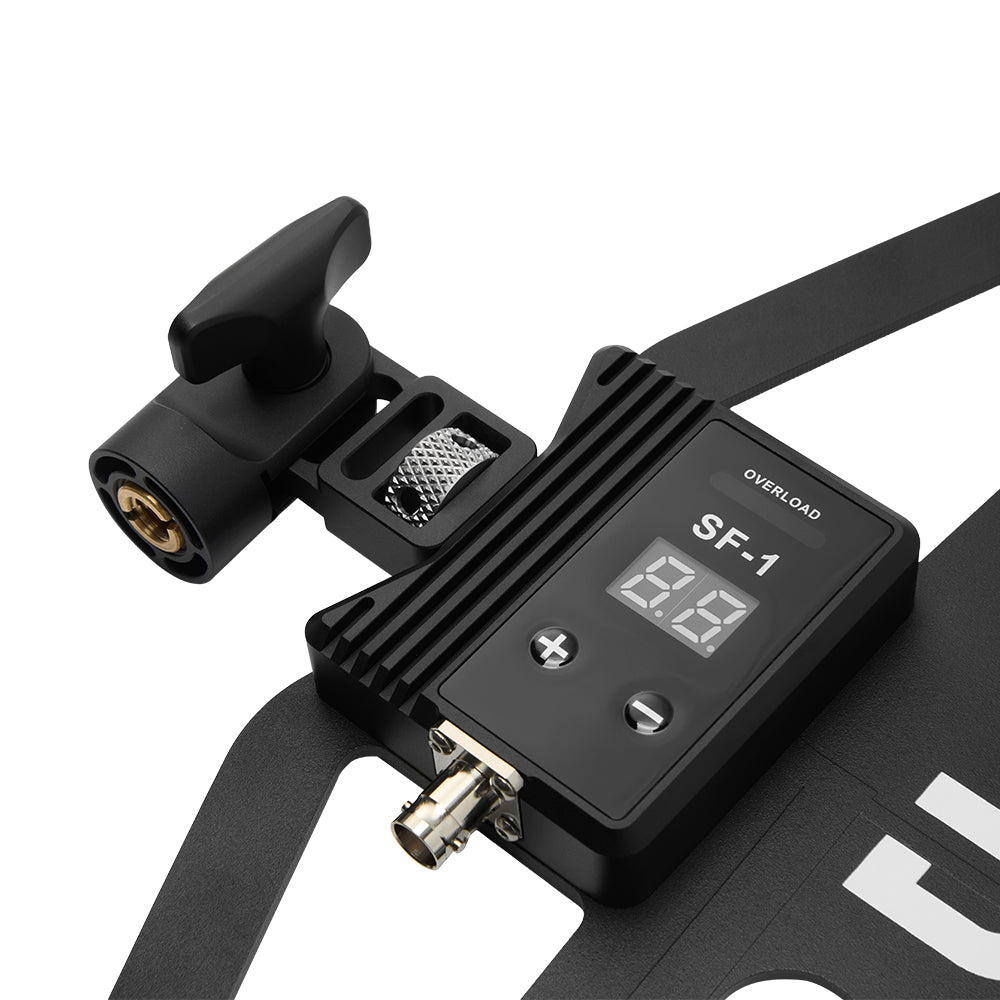

Adjustable Active Gain

Compensate for Cable Loss

Dial in -9dB to +21dB of gain in 1dB steps, using just enough active gain to offset coaxial cable loss without overloading your receiver.

IP54 Location Build

Ready for Real RF Setups

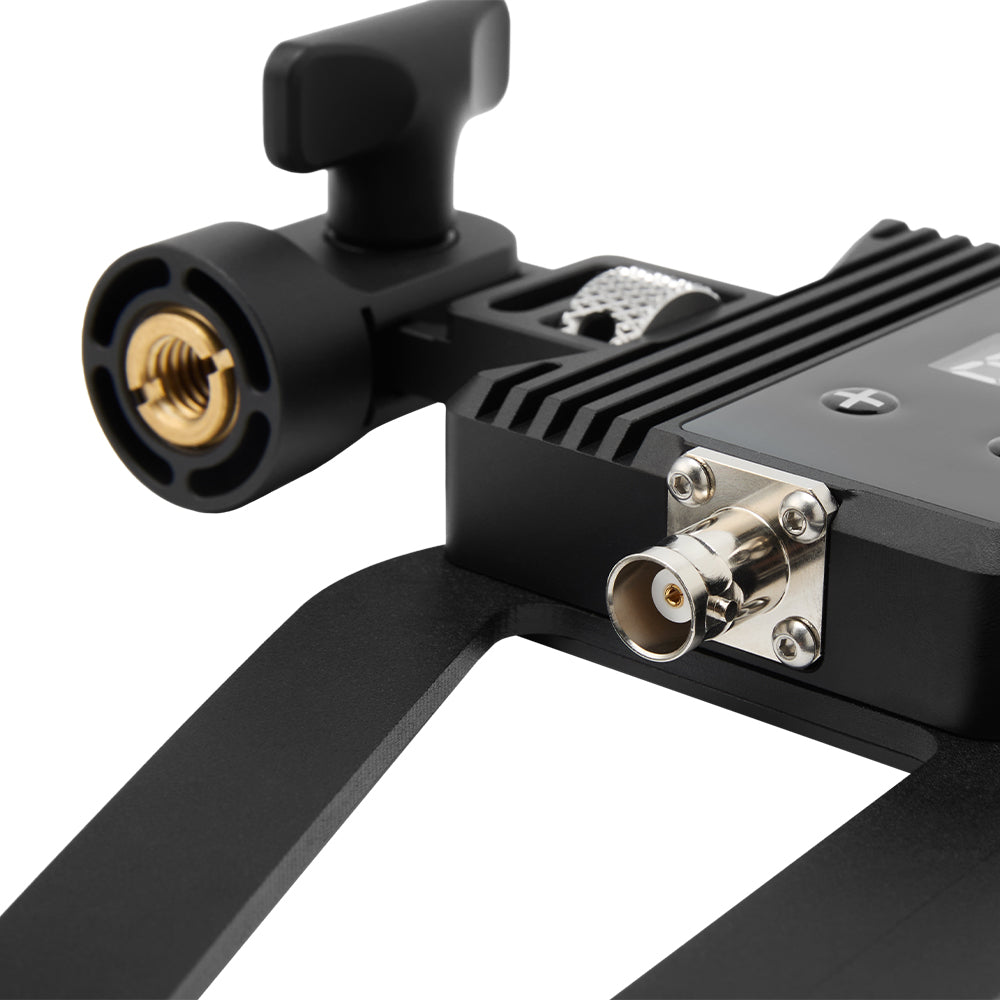

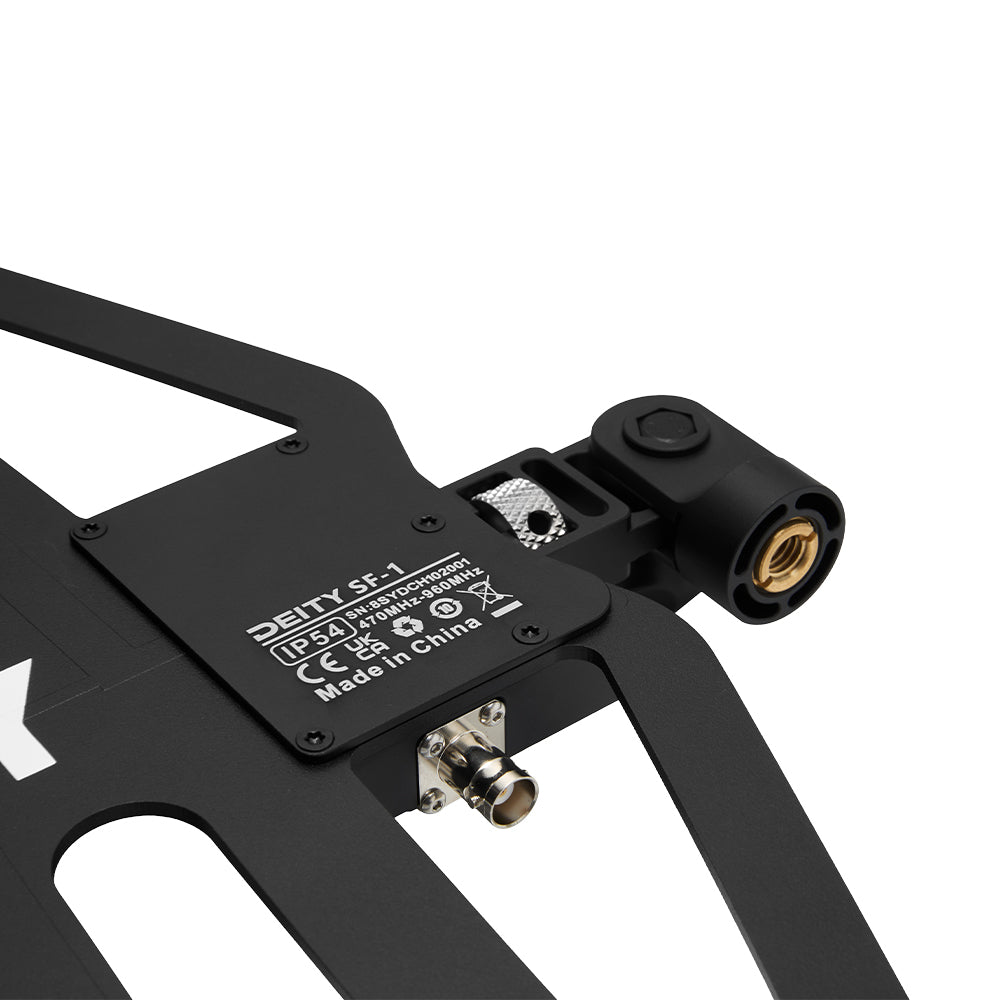

The SF1 combines an IP54-rated housing, 50Ω BNC connection and 3/8in / 5/8in mounting support for professional wireless audio setups.
