Sony UWP D26 Radio Mic Kit

Sony UWP-D26 Radio Mic Kit

The Sony UWP D26 Wireless Microphone Kit is Sony’s wireless microphone package from the new UWP-D Gen4 range. With new features such as NFC Syncing, a more compact belt pack and a brand new mounting shoe, this kit stays true to its Sony name delivering high quality audio via a quick, easy and reliable system.

Ideal for ENG/EFP jobs this wireless system packs years of experience and quality assurance into a user friendly, yet professional package.

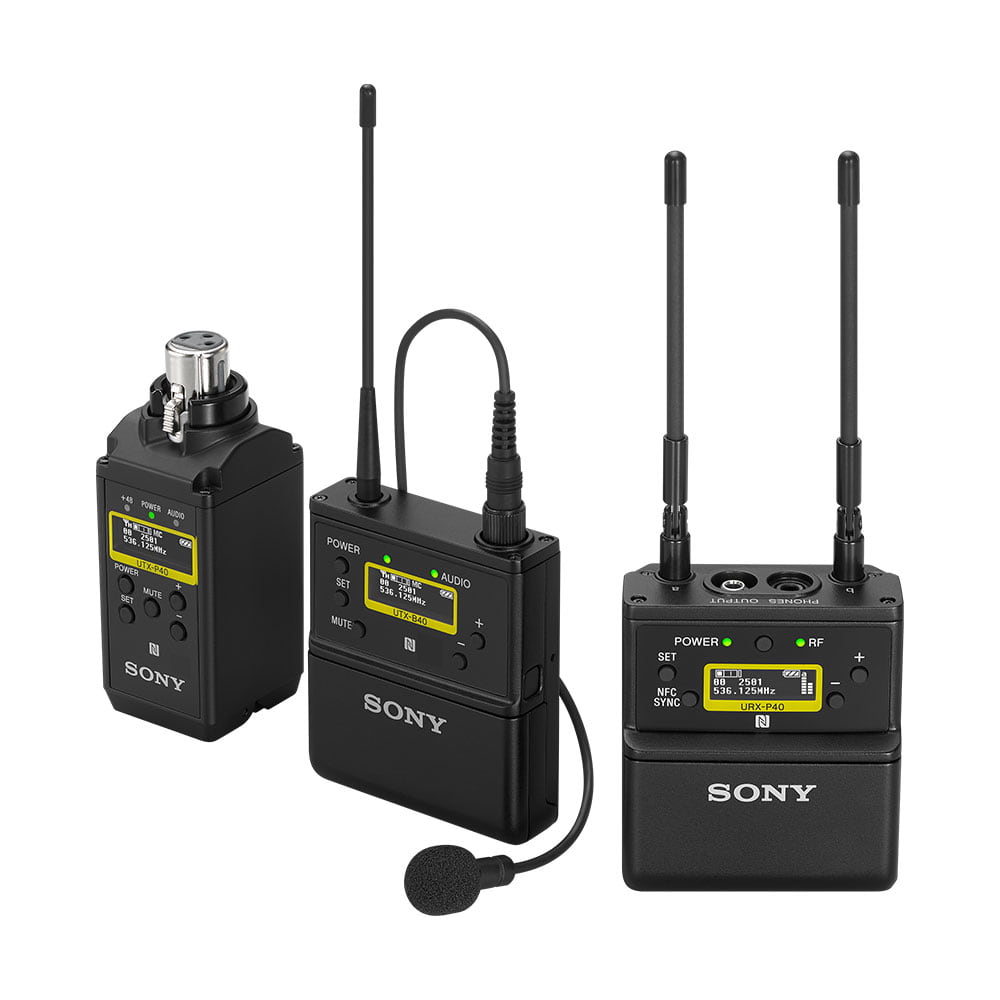

What's in the box:

• 1x UTX-B40 bodypack transmitter
• 1x UTX-P40 XLR plug-on transmitter
• 1x URX-P40 receiver
• 1x Sony Omni-directional lav mic with windscreen, holder and belt clips
• 1x XLR-BMP cable
• 1x Stereo mini-BMP cable
• 1x Shoe mount adaptor
• 1x Soft case

Key features

Digital audio processing for high quality sound
Advanced digital audio processing technology by Sony assures high quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.

Seamless camcorder integration
Integration with compatible* Sony camcorders (requires SMAD-P5 Multi Interface shoe adaptor) displays audio information such as RF level meter, audio mute status and transmitter low battery alert in the camera’s viewfinder. Via the SMAD-P5, audio signals are transmitted from receiver to camera without requiring a cable connection. The wireless receiver can also receive power from the camera, with synchronised power on/off between camera and receiver for more effective power management.

* See details on SMAD-P5 for compatibility information

Fast, easy frequency setting
Sony’s uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel setting between transmitter and receiver.

Light, compact design
Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings and remote production. The receiver’s compact size and light weight make it an ideal partner for use small camcorders and interchangeable lens digital cameras.

Other features include –

• Interchangeable head for wide choice of microphone capsules
• High visibility OLED display, ideal for indoor/outdoor use
• True double tuner diversity for stable signal reception
• Auto gain mode volume control – +15 dB gain volume boost mode for off-mic audio
• Line input
• Channel memory for fast switching between receiver frequencies for two transmitter operation
• Transmitter frequency sent to the receiver for matching multiple receivers to one transmitter
• Headphone output for monitoring
• Monitor mode for using a receiver as an ear monitor
• Variable muting function
• Compatibility with Sony WL-800/UWP/UWP-D series
• Receiver output level control – High visibility OLED display, ideal for indoor/outdoor use – USB connector for power supply (URX-P40 only)
• Includes ECM-V1BMP lavalier microphone

Please note we stock K33 as standard (frequency band 566-630MHz) - other bands are available, please enquire.

Specifications

URX-P40 portable receiver

• Oscillator Type: Crystal-controlled PLL synthesizer
• Reception Type: True diversity method
• Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)
• Carrier Frequency:
  33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) - Supplied as standard in the UK - other frequency bands are available, please enquire
  Frequency Response:

• 23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models)
  40 Hz to 15 kHz (typical) (J model)
• Signal-to-Noise Ratio: 60 dB (1 kHz sine wave, 5 kHz modulation)
• Distortion (T.H.D): 0.9% or less (1 kHz sine wave, 5 kHz modulation)
• Audio Delay:
  Approx. 0.35 ms (analog output)
  Approx. 0.24 ms (digital output)
• Audio Output Connector: 3.5mm diameter 3-pole locking mini jack, , external connection
• Audio Output Level:
  –60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level)
  –20 dBFS (external connection, digital output, 0 dB audio output level)
  –50 dBFS (external connection, analog output, 0 dB audio output level)
• Analog Audio Output Adjustment Range: -12dB - +12dB (3dB step)
• Headphone Output Connector: 3.5 mm diameter mini jack
• Headphone Output Level: Max. 10mW (16-ohm)
• Tone Signal Frequency:
  In UWP-D compander mode: 32.382 kHz
  In UWP compander mode: 32 kHz
  In WL800 compander mode: 32.768 kHz
• Display: OLED
• Power Requirements:
  DC 3.0 V (two LR6/AA size alkaline batteries)
  DC 5.0 V (supplied from USB Type-C connector)
• Battery Life: Approx. six hours - Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage/Transport Temperature: –20 °C to +55 °C (–4 °F to +131 °F)
• Dimensions: 63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna)
• Mass: Approx. 131 g (4.6 oz) (excluding batteries)

UTX-B40 bodypack transmitter

• Oscillator Type: Crystal-controlled PLL synthesizer
• Antenna Type: 1/4 λ wave length wire antenna
• Carrier Frequencies:
  33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) - Supplied as standard in the UK - other frequency bands are available, please enquire

• RF Output Power:
  30 mW/5 mW selectable (UC, U, CE, LA, CN models)
  10 mW/2 mW selectable (J, E, KR models)
• Capsule Type: Elect retcondenser
• Directivity: Omni-directional
• Input Connector: 3.5 mm diameter 3-pole locking mini jack
• Reference Audio Input Level: –60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
  +4 dBu (LINE input )
• Audio Attenuator Adjustment Range: 0 dB to 27 dB (3 dB steps)
• Frequency Response:
  23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
  40 Hz to 15 kHz (Typical) (J model)
• Signal-to-Noise Ratio:
  60 dB (–60 dBV, 1 kHz input)
  102 dB (GAIN MODE set to AUTO GAIN, max.)
  96 dB (GAIN MODE set to NORMAL, max.)
• Distortion: 0.9% or less (–60 dBV, 1 kHz input)
• Audio Delay: Approx. 0.35 ms
• Tone Signal Frequency:
  In UWP-D compander mode: 32.382 kHz
  In UWP compander mode: 32 kHz
  In WL800 compander mode: 32.768 kHz
• Display: OLED
• Power Requirements:
  DC 3.0 V (two LR6/AA size alkaline batteries)
  DC 5.0 V (supplied from USB Type-C connector)
• Battery life Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models) - Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage/Transport Temperature: -20 °C to +55 °C (–4 °F to +131 °F)
• Dimensions: 63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna)
• Mass: Approx. 83 g (2.9 oz) (excluding batteries)

UTX-P40 XLR plug-on transmitter

• Oscillator Type: Crystal-controlled PLL synthesizer
• Carrier Frequencies: 33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) - Supplied as standard in the UK - other frequency bands are available, please enquire
• RF Output Power:

• 30 mW/5 mW selectable (CE, CN models)

• Input Connector: XLR-3-11C type (female)
• Reference Audio Input Level: –60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
  Audio Attenuator Adjustment Range0 dB to 48 dB (3 dB steps)
• Frequency Response:
  23 Hz to 18 kHz (Typical)
• Signal-to-Noise Ratio:
  60 dB (–60 dBV, 1 kHz input)
  102 dB (GAIN MODE set to AUTO GAIN, max.)
  96 dB (GAIN MODE set to NORMAL, max.)
• Distortion: 0.9% or less (–60 dBV, 1 kHz input)
• Audio Delay: Approx. 0.35 ms
• Tone Signal Frequency:
  In UWP-D compander mode: 32.382 kHz
  In UWP compander mode: 32 kHz
  In WL800 compander mode: 32.768 kHz
• Display: OLED
• Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries)
  DC 5.0 V (supplied from USB Type-C connector)
• Battery Life:
  Approx. 8 hours with output power of 30 mW (CE, CN models)
  Battery life has been measured with two Sony L R6/AA size alkaline batteries at 25 °C (77 °F).
• Operating Temperature: 0 °C t o 50 °C (32 °F to 122 °F)
• Storage/Transport Temperature: –20 °C to +55 °C (–4 °F to +131 °F)
• Dimensions: 38 x 98 x 38 mm (1 1/2 x 3 7/8 x 1 1/2 in.) (W / H / D) (including the audio input connector)
• Mass: Approx. 139 g (4.9 oz) (excluding batteries)
