Wisycom MCR54 4-Channel Wireless Kit with 4x MTP61 & BPA54

• Complete four-channel Wisycom system with 1x MCR54, 4x MTP61 and 1x BPA54.
• Includes Soundkit BPA54 output/power cabling: 2x TA5F-to-dual-XLR breakouts plus 1x Hirose power lead.
• Four true-diversity receiver channels with four ultra-miniature transmitters featuring internal recording, LTC and Bluetooth control.

Choose your mcr54 4-channel true diversity receiver — frequency band:
Choose your mtp61 miniature bodypack transmitter — frequency profile:

Need help choosing?

For UK-focused work using the MTP61 UK1 or UK2 profiles, B14 is the most flexible MCR54 option because it overlaps both conventional UHF and the 960MHz-plus spectrum available on those transmitters. B2 pairs naturally with EUX for broad conventional European UHF operation. Other combinations can still work within their shared frequency ranges, but may not give access to every band available on the transmitter. If you are unsure, send us your operating country and intended frequencies before ordering.
£12,075.67 (£10,063.06 ex VAT)
£12,075.67 (£10,063.06 ex VAT)
Tax included. Shipping calculated at checkout.
  • Next-day UK delivery
  • Authorised UK stockist
  • Trusted by industry experts
Awaiting stock, shipping soon

This complete Wisycom wireless kit combines an MCR54 four-channel true-diversity receiver, four MTP61 ultra-miniature bodypack transmitters and a BPA54 stand-alone rear panel, plus the Soundkit output and power cabling needed to integrate the receiver into a professional sound bag or cart.

The MCR54 provides four simultaneous true-diversity channels from eight internal receiver boards, while each MTP61 adds wideband RF, internal recording, LTC timecode and Bluetooth control. The BPA54 provides direct analogue/AES audio outputs and Hirose DC power, with two TA5F-to-dual-XLR breakout cables and a Hirose-to-Hirose power lead included in the bundle. Choose the receiver band and transmitter frequency profile to suit your RF plan.

Choosing your type

For UK-focused work using the MTP61 UK1 or UK2 profiles, B14 is the most flexible MCR54 option because it overlaps both conventional UHF and the 960MHz-plus spectrum available on those transmitters. B2 pairs naturally with EUX for broad conventional European UHF operation. Other combinations can still work within their shared frequency ranges, but may not give access to every band available on the transmitter. If you are unsure, send us your operating country and intended frequencies before ordering.

Specifications

Receiver

1x Wisycom MCR54

Receiver Channels

4 true-diversity channels

Receiver Boards

8

Receiver Switching Window

Up to 790MHz

Transmitters

4x Wisycom MTP61

MTP61 Switching Window

Up to 362MHz

MTP61 Internal Storage

64GB each

MTP61 Recording

24-bit / 32-bit, 48kHz

MTP61 Timecode

Linear Timecode decoding

MTP61 Control

Bluetooth long range

MTP61 Audio Input

3-pin Lemo

Rear Panel

1x BPA54

BPA54 Audio

2x 5-pin mini-XLR; up to 4 analogue / AES channels

Included Audio Cabling

2x TA5F to dual 3-pin XLR-M

Included Power Cable

4-pin Hirose right-angle to straight

Compatibility

• Wisycom MCR54 4-Channel True Diversity Receiver
• Wisycom MTP61 Miniature Bodypack Transmitters
• Wisycom BPA54 Stand-Alone Rear Panel
• 3-Pin Lemo lavalier microphones compatible with MTP61
• Wisycom LBP61 rechargeable batteries and compatible charging systems
• Sound bags and carts using balanced 3-pin XLR audio inputs
• Compatible 4-pin Hirose DC power systems

Dimensions

Wireless Channels

4

Transmitters

4x MTP61

Receiver

MCR54

Rear Panel

BPA54

Included Cabling

4x XLR + Hirose Power

What’s in the box?

• 1x Wisycom MCR54 4-Channel True Diversity Receiver in selected band
• 4x Wisycom MTP61 Miniature Bodypack Transmitters in selected frequency profile
• 1x Wisycom BPA54 Stand-Alone Rear Panel
• 2x Soundkit Right-Angled TA5F to 2x Straight 3-Pin XLR-M Output Cables
• 1x Soundkit Right-Angled 4-Pin Hirose to Straight 4-Pin Hirose Power Cable
• Standard manufacturer accessories supplied with each MTP61
• Lavalier microphones and external DC power source are not included

Delivery & Returns

UK standard delivery costs £4.50, with free standard delivery on UK orders over £250. Next Working Day delivery is available on eligible in-stock orders under 30kg placed before 1pm. Worldwide shipping is also available.

Consumers can return most unwanted products within 30 days of receiving them, subject to our return conditions and exclusions. Please see our Shipping Policy and Returns & Refunds Policy for full details.

Important Notes

• Select both the MCR54 receiver band and MTP61 transmitter frequency profile before ordering.
• B2 MCR54: 470–800MHz + 823–832MHz + 941–960MHz.
• B14 MCR54: 470–800MHz + 961–1000MHz + 1044–1077MHz + 1104–1154MHz.
• MTP61 EUX: 470–832MHz. UK1: 470–663MHz + 960–1075MHz. UK2: 510–698MHz + 960–1075MHz.
• Lavalier microphones and the external DC power source feeding the included Hirose cable are not included.

Wisycom MCR54 4-Channel Wireless Kit with 4x MTP61 & BPA54

£12,075.67
Black bodypack transmitter with antenna and front control buttons

64GB Internal Recording

Recording + Timecode in Every MTP61

Each MTP61 combines miniature bodypack dimensions with internal 64GB recording, 24/32-bit 48kHz audio, Linear Timecode decoding and Bluetooth long-range control for modern production workflows.

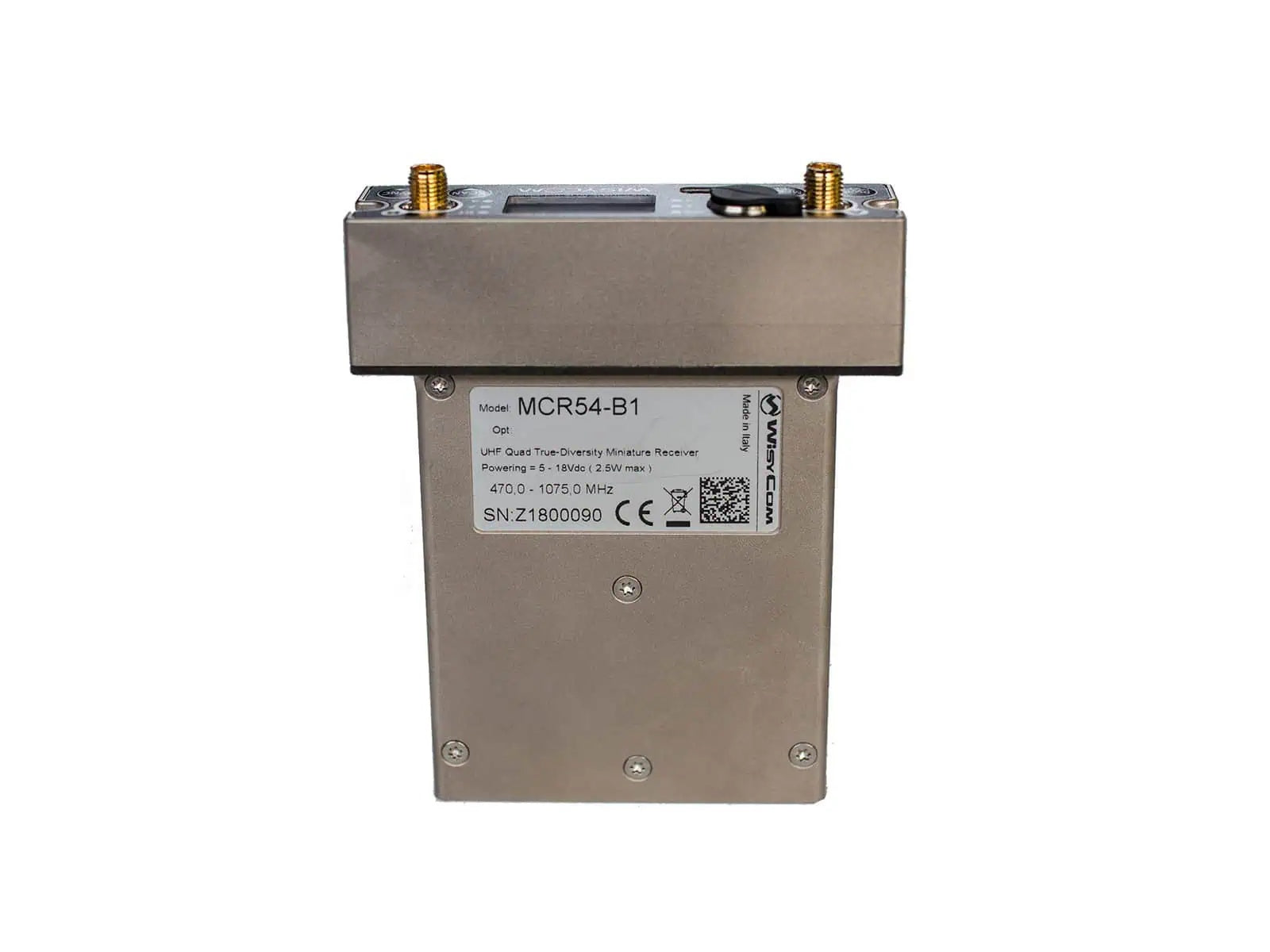

Metal RF wireless receiver with top BNC ports and front panel controls

4 True-Diversity Channels

One Receiver, Four MTP61 Transmitters

The MCR54 uses eight internal receiver boards to deliver four true-diversity wireless channels. Combined with four MTP61 transmitters, this gives you a compact four-person wireless system for drama, broadcast, documentary and professional location-sound work.

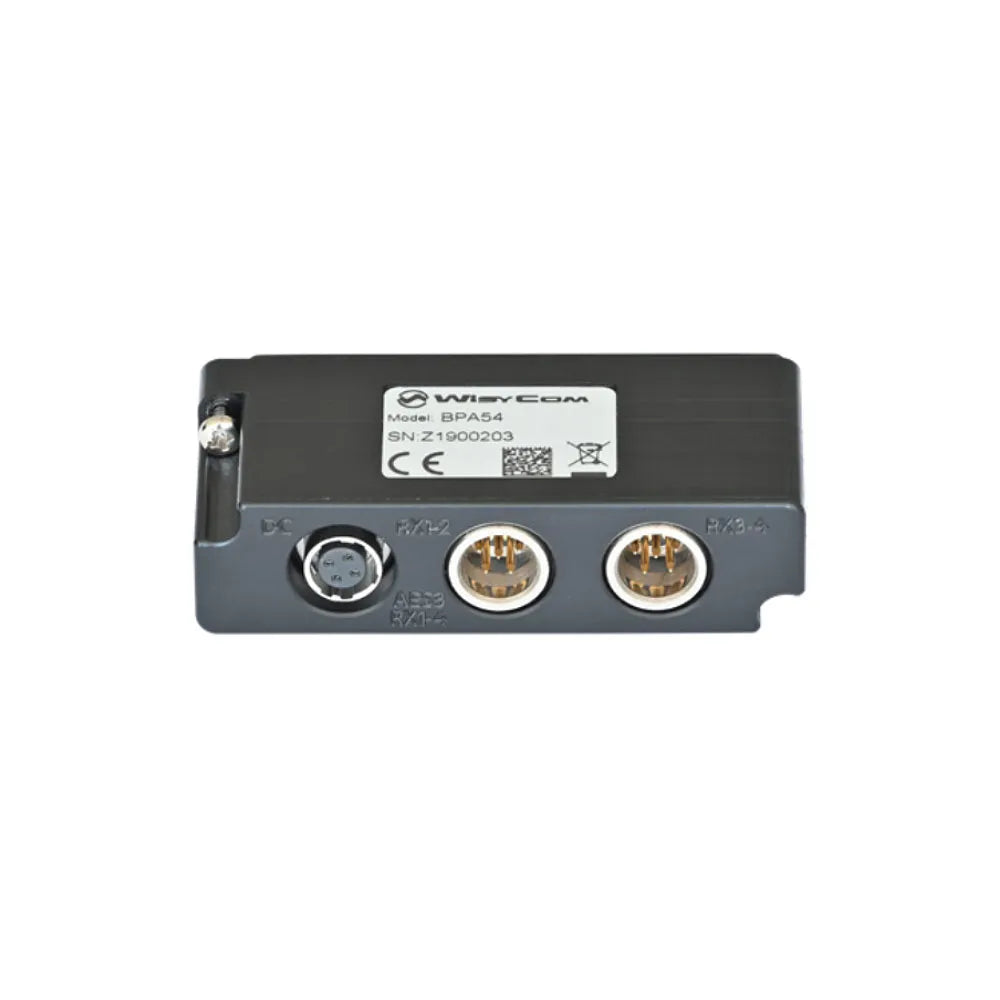

Stand-alone rear panel with two RCA-style ports and mounting screw holes

BPA54 + Cable Set

Ready for Stand-Alone Bag or Cart Use

The BPA54 rear panel adds two 5-pin mini-XLR outputs and a 4-pin Hirose DC input. The included Soundkit cable set breaks the receiver out to four standard 3-pin XLR male audio outputs and provides a Hirose power lead, so the MCR54 can be integrated directly into a sound bag or cart.
