Wisycom MRK16 – Multi Slot Rack Unit

£4,395.60 (£3,663.00 ex VAT)
£4,395.60 (£3,663.00 ex VAT)
Tax included. Shipping calculated at checkout.
  • Next-day UK delivery
  • Authorised UK stockist
  • Trusted by industry experts
Awaiting stock, shipping soon

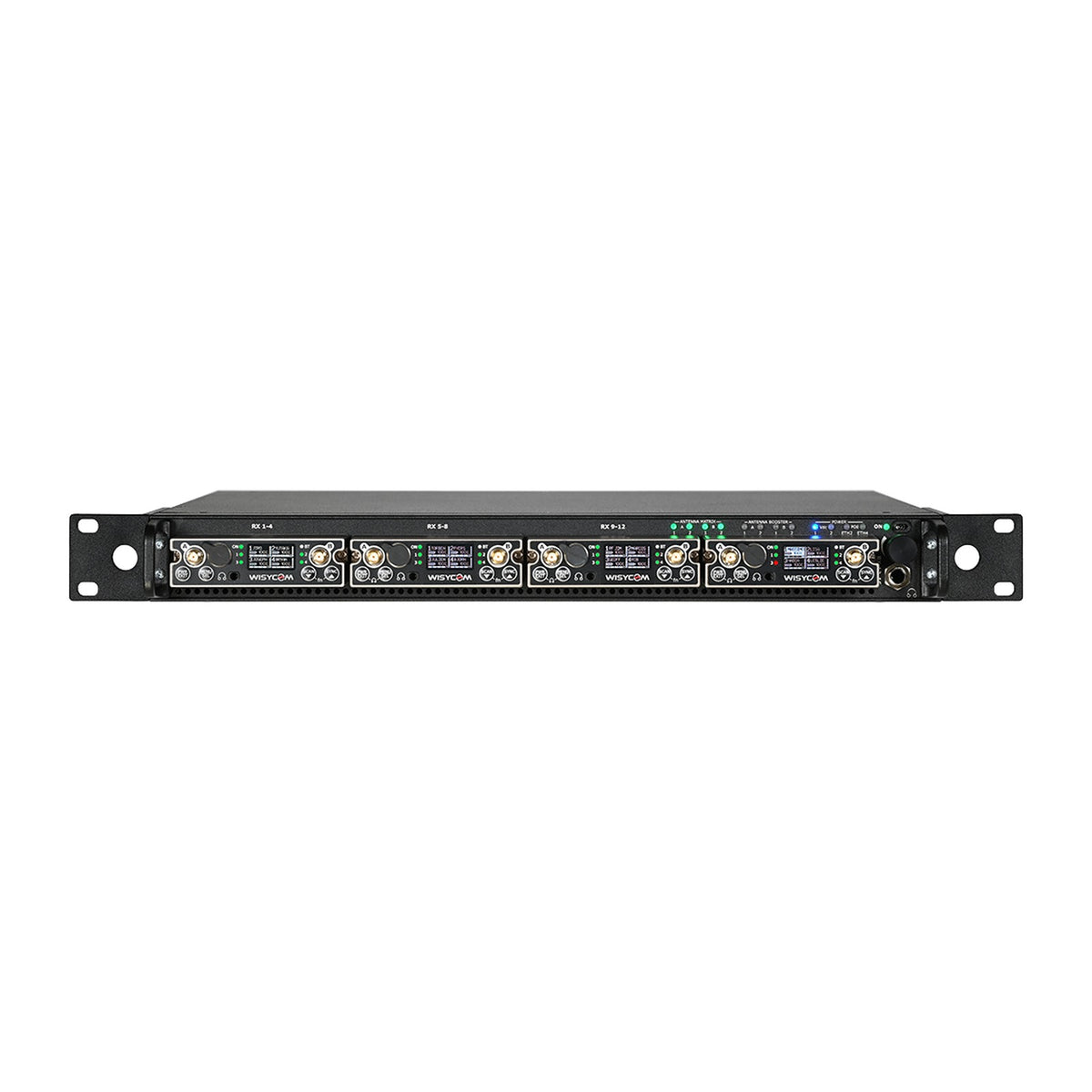

Wisycom MRK16 – Multi Slot Rack Unit

The Wisycom MRK16 – Multi Slot Rack Unit is a modular wireless-microphone receiver system that fit up 16 channels in a compact 19” 1RU aluminium chassis. It accepts up to 4 MCR54 receivers, providing antenna distribution, RF filtering and advanced audio routing (analogue, AES3 and Dante).

Features:

  • Up to 16 true diversity channels in a 1U rack
  • Daisy chain up to 4 racks for 64 channels in only 4u
  • Multiple audio output options; dual Dante, digital AES72 and AES59 and analogue
  • Bluetooth 5 long range class 1 remote control which has 100mW instead of 1 to 3mW like most competitors over 100m range
  • Ultra-wideband receiver system from 470 to 1260 MHz
  • Dual area matrix; two discrete diversity zones selectable from the front panel or in Wisycom Manager software
  • RF over Fibre option for ultra-long distance reception and internal SFP port for gigabit data connection
  • RF inputs with 13 band pass filters automatically selected based upon the upper and lower frequency limit tuned into the receivers
  • Remote control of Wisycom LFA/ADFA antennas to tune gain and frequency selection
  • Dual redundant DC power input
  • Multiple PoE options to power the rack or provide power to external devices such as WiFi access points and USB-C with DC feed for control and charging

Spec:

  • Frequency ranges: 470 – 1260 MHz (full range)
  • Filter selection: 10 automatically selected band-pass filters:
    470-608 MHz
    470-694 MHz
    470-832 MHz
    470-1260 MHz
    510-608 MHz
    510-694 MHz
    510-832 MHz
    510-1260 MHz
    822-1260 MHz
    940-1260 MHz
  • Antenna connector: 4 x BNC type female connectors for inputs, 2 x SMA type female connectors for loop
  • Antenna input impedance: 50 Ohm
  • Spurious emissions: < 2 nW
  • Input/output gain: 1dB ± 1
  • Input/cascade gain: 1dB ± 1
  • IP3: 14 dBm
  • Antenna booster powering: +12 Vcc / 300 mA MAX
  • Analogue audio output: 2 x DB25 connectors (TASCAM)
  • Digital audio output: AES59 (DB25 connector) and AES72 1M (2 RJ45 connectors)
  • Dante output: Dante Primary and Secondary (2 x 1000 Base TX RJ45 Ethernet)
  • Monitor output: headphone 6.3 mm jack socket, volume adjustable with a front knob
  • LED:
    4 LEDs indication for the zone activation status (red, green, off)
    4 LEDs indication for the booster status (red, green, off)
    4 LEDs indication for the power supply status (red, green, blue, off)
    1 LED indication for the MRK16 status (green, off)
  • Max number of receiver slots: 4
  • Max number of channels: 16 (with MCR54), 8 (with MCR54-DUAL)
  • Managing interface: 2 x 1000 Base TX RJ45 Ethernet, Bluetooth 5 Long Range, USB-C and thru display menu of the 1st receiver on the right
  • Powering:
    10÷ 28 Vdc, 5A max, redundant DC Vdc1 and Vdc2 on XLR M-4pin
    1: -Vdc1
    2: +Vdc2
    3: -Vdc2
    4:+Vdc1
    PE1 option: Power Over Ethernet board:
    dual POE++ input on eth 2/4 (redundant pwr supply)
    POE output on eth 1 (external Wifi, Bluetooth antenna)
  • Power consumption: 60W with 4 MCR54s and 4 active boosters
  • Power supply output: on USB-C port to connect external device (e.g. tablet) 1.5 A max
  • Temperature range: -10 ÷ +55 °C
  • Dimensions: 44 x 483 x 352 mm (HxWxD)
  • Weight:
    4.3 Kg. with 4 MCR54s and EXP2 board
    3.30 Kg. without MCR54s
